2007 NISSAN 350Z coolant

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION CO
A
CO
Revision: 2006 November2007 350Z
ENGINE COOLING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Battery Service ................................ 2
Precautions for Liquid Gasket .................................. 2
REMOVAL OF LIQUID GASKET SEALING .......... 2
LIQUID GASKET APPLICATION PROCEDURE ..... 2
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 5
OVERHEATING CAUSE ANALYSIS .......................... 6
Troubleshooting Chart .............................................. 6
COOLING SYSTEM .................................................... 8
Cooling Circuit .......................................................... 8
System Chart ........................................................... 9
ENGINE COOLANT .................................................. 10
Inspection ............................................................... 10
LEVEL CHECK ................................................... 10
LEAK CHECK ..................................................... 10
Changing Engine Coolant ...................................... 10
DRAINING ENGINE COOLANT ......................... 10
REFILLING ENGINE COOLANT ......................... 11
FLUSHING COOLING SYSTEM ......................... 12

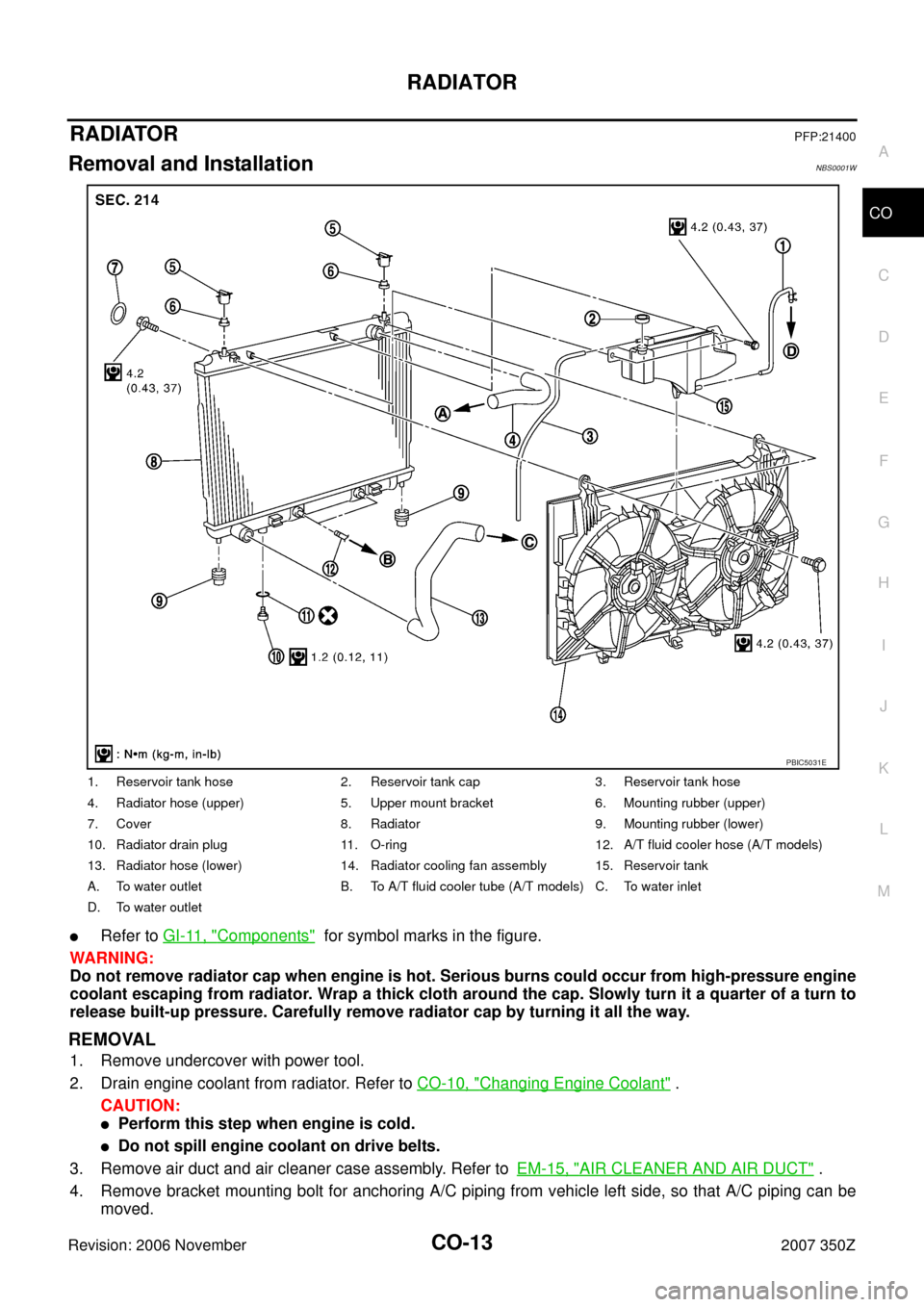

RADIATOR ................................................................ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 15
INSPECTION AFTER INSTALLATION ............... 15
Checking Radiator Cap .......................................... 15
Checking Radiator .................................................. 15
RADIATOR (ALUMINUM TYPE) .............................. 17
Disassembly and Assembly ................................... 17
PREPARATION ................................................... 17
DISASSEMBLY ................................................... 17
ASSEMBLY ......................................................... 18
INSPECTION ...................................................... 20COOLING FAN .......................................................... 21
Removal and Installation ........................................ 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
Disassembly and Assembly .................................... 22
DISASSEMBLY ................................................... 22
INSPECTION AFTER DISASSEMBLY ................ 22
ASSEMBLY ......................................................... 22
WATER PUMP .......................................................... 23
Removal and Installation ........................................ 23
REMOVAL ........................................................... 23
INSPECTION AFTER REMOVAL ....................... 24
INSTALLATION ................................................... 24
INSPECTION AFTER INSTALLATION ................ 25
WATER INLET AND THERMOSTAT ASSEMBLY .... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSPECTION AFTER REMOVAL ....................... 26
INSTALLATION ................................................... 27
INSPECTION AFTER INSTALLATION ................ 27
WATER OUTLET AND WATER PIPING ................... 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 29
INSPECTION AFTER INSTALLATION ................ 29
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 30
Standard and Limit .................................................. 30
ENGINE COOLANT CAPACITY (APPROXI-
MATE) .................................................................. 30
RADIATOR .......................................................... 30
THERMOSTAT .................................................... 30

PRECAUTIONS
CO-3
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 November2007 350Z

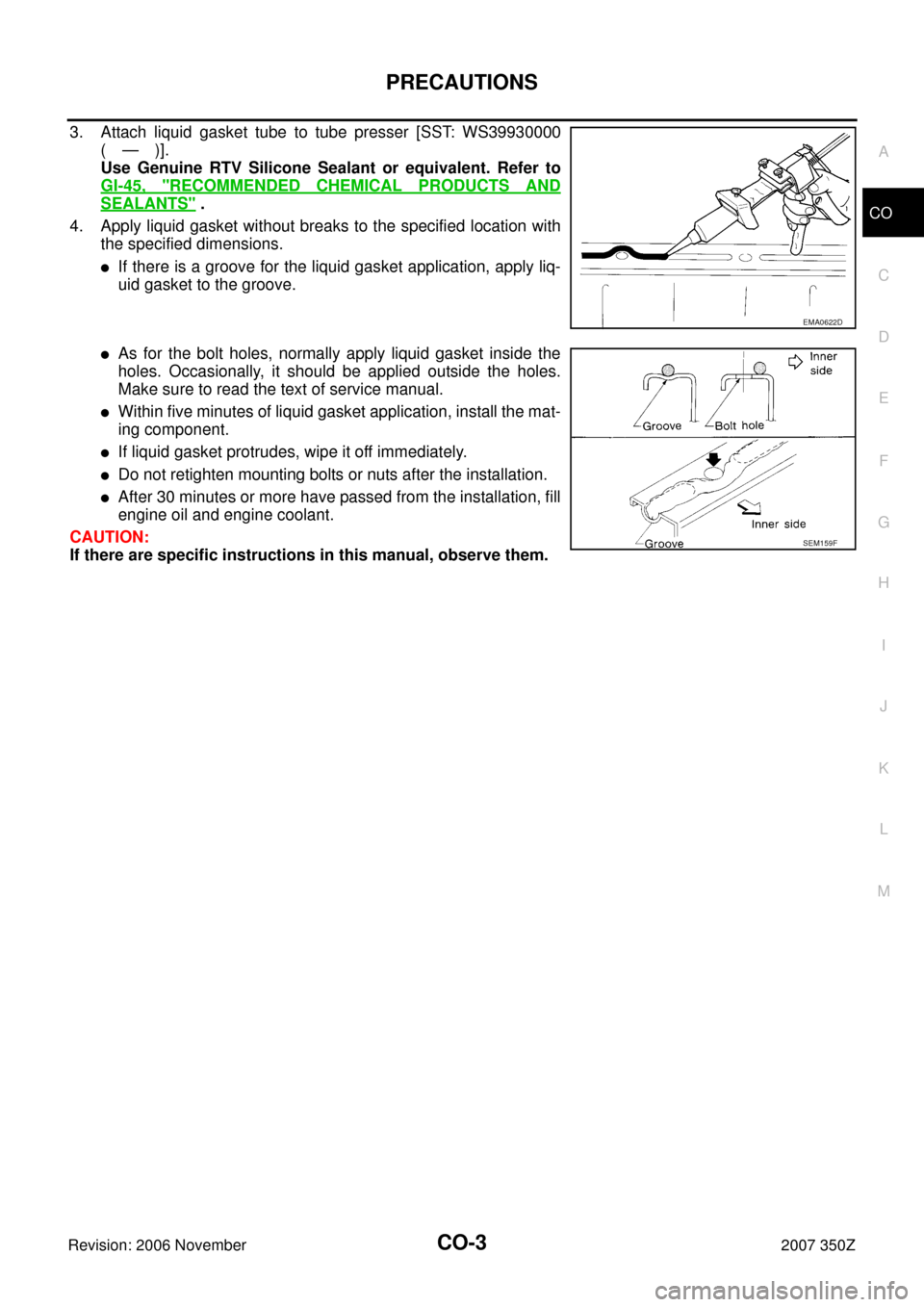

3. Attach liquid gasket tube to tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-45, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
4. Apply liquid gasket without breaks to the specified location with
the specified dimensions.

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.

As for the bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of service manual.

Within five minutes of liquid gasket application, install the mat-
ing component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe them.
EMA0622D
SEM159F

CO-6
OVERHEATING CAUSE ANALYSIS
Revision: 2006 November2007 350Z
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS0001R
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

CO-10
ENGINE COOLANT
Revision: 2006 November2007 350Z

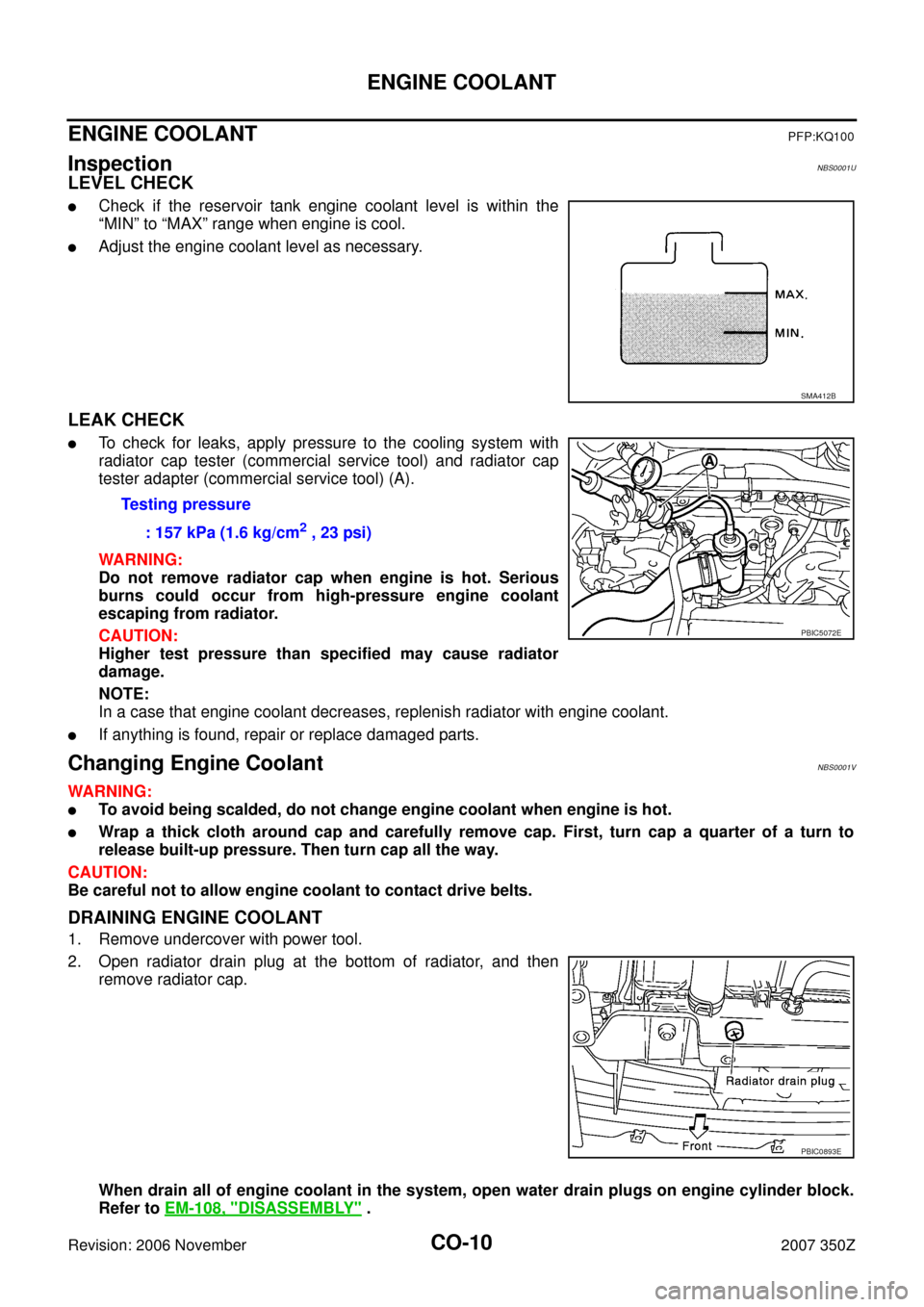

ENGINE COOLANTPFP:KQ100
InspectionNBS0001U
LEVEL CHECK

Check if the reservoir tank engine coolant level is within the
“MIN” to “MAX” range when engine is cool.

Adjust the engine coolant level as necessary.
LEAK CHECK

To check for leaks, apply pressure to the cooling system with
radiator cap tester (commercial service tool) and radiator cap
tester adapter (commercial service tool) (A).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high-pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantNBS0001V
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around cap and carefully remove cap. First, turn cap a quarter of a turn to
release built-up pressure. Then turn cap all the way.
CAUTION:
Be careful not to allow engine coolant to contact drive belts.
DRAINING ENGINE COOLANT
1. Remove undercover with power tool.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.
When drain all of engine coolant in the system, open water drain plugs on engine cylinder block.
Refer to EM-108, "
DISASSEMBLY" .
SMA412B
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)
PBIC5072E
PBIC0893E

ENGINE COOLANT
CO-11
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 November2007 350Z

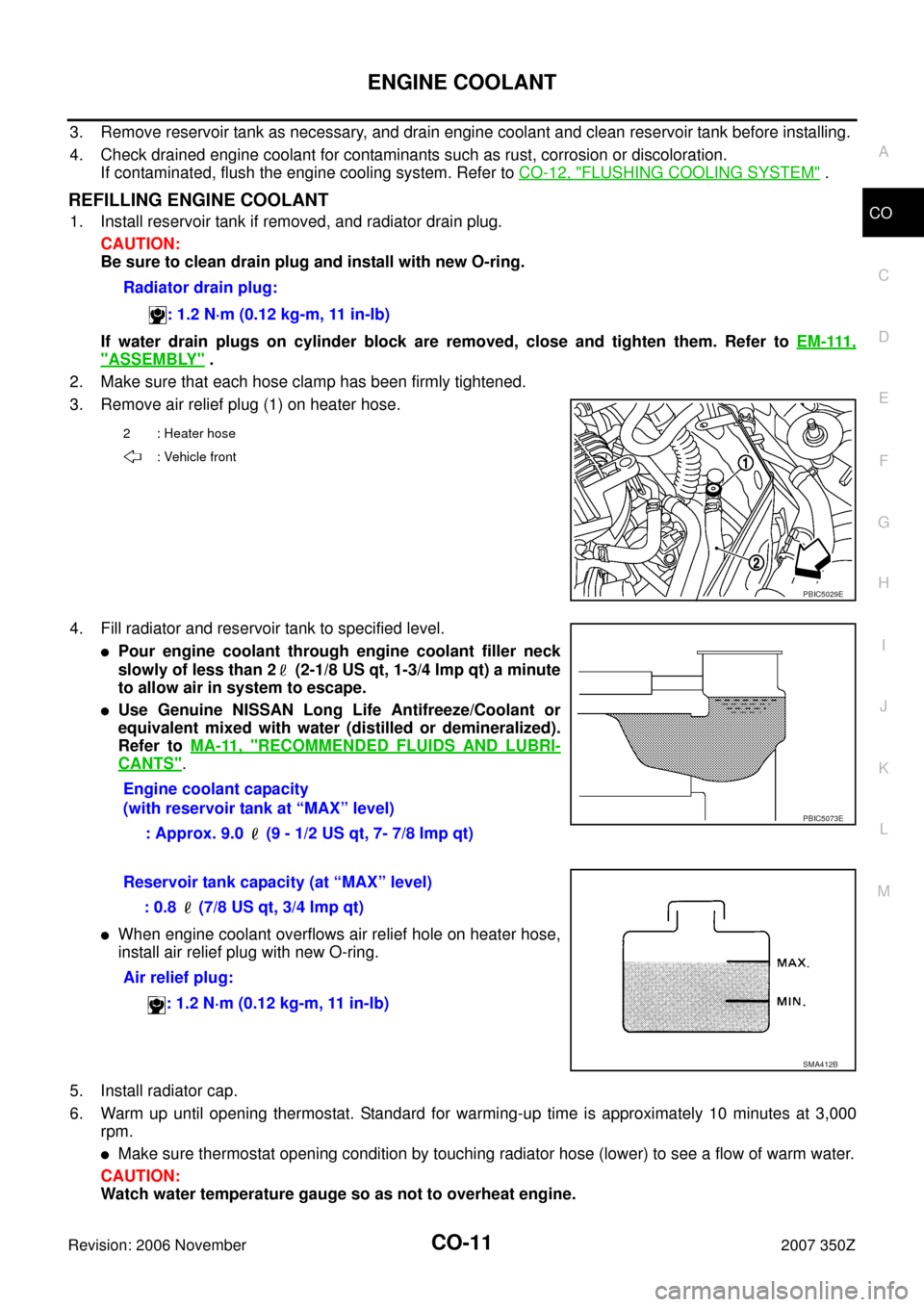

3. Remove reservoir tank as necessary, and drain engine coolant and clean reservoir tank before installing.
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to CO-12, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.
If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM-111,
"ASSEMBLY" .
2. Make sure that each hose clamp has been firmly tightened.
3. Remove air relief plug (1) on heater hose.
4. Fill radiator and reservoir tank to specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (2-1/8 US qt, 1-3/4 lmp qt) a minute
to allow air in system to escape.

Use Genuine NISSAN Long Life Antifreeze/Coolant or
equivalent mixed with water (distilled or demineralized).
Refer to MA-11, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS".

When engine coolant overflows air relief hole on heater hose,
install air relief plug with new O-ring.
5. Install radiator cap.
6. Warm up until opening thermostat. Standard for warming-up time is approximately 10 minutes at 3,000
rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.Radiator drain plug:
: 1.2 N·m (0.12 kg-m, 11 in-lb)
2 : Heater hose
: Vehicle front
PBIC5029E
Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 9.0 (9 - 1/2 US qt, 7- 7/8 lmp qt)
PBIC5073E
Reservoir tank capacity (at “MAX” level)
: 0.8 (7/8 US qt, 3/4 lmp qt)
Air relief plug:
: 1.2 N·m (0.12 kg-m, 11 in-lb)
SMA412B

CO-12
ENGINE COOLANT
Revision: 2006 November2007 350Z
7. Stop engine and cool down to less than approximately 50°C (122°F).

Cool down using fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
8. Refill reservoir tank to “MAX” level line with engine coolant.
9. Repeat steps 4 through 7 two or more times with radiator cap installed until engine coolant level no longer
drops.
10. Check cooling system for leaks with engine running.
11. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
12. Repeat step 11 three times.
13. If sound is heard, bleed air from cooling system by repeating step 4 through 7 until engine coolant level no
longer drops.

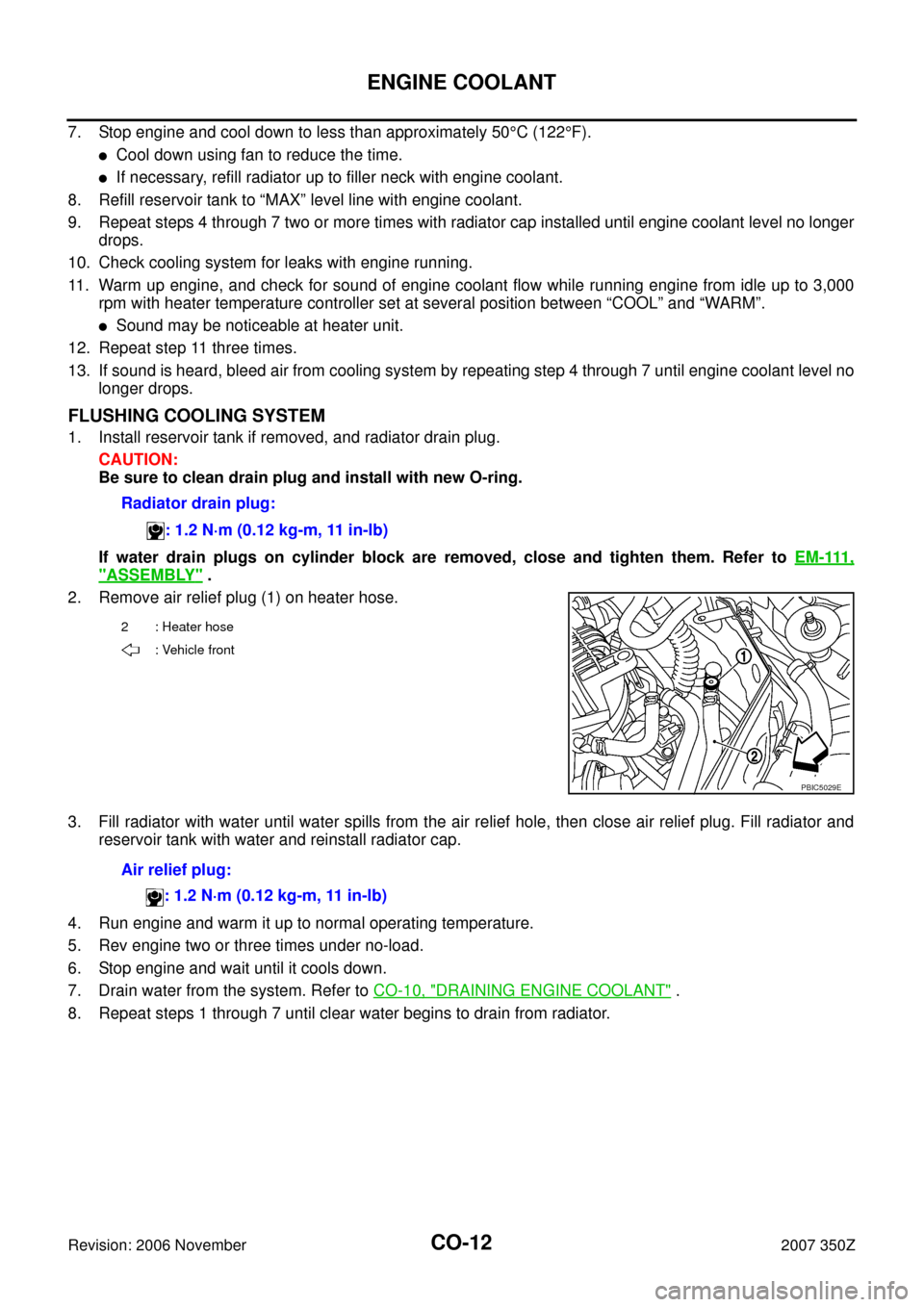

FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.
If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM-111,
"ASSEMBLY" .
2. Remove air relief plug (1) on heater hose.
3. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and
reservoir tank with water and reinstall radiator cap.
4. Run engine and warm it up to normal operating temperature.
5. Rev engine two or three times under no-load.
6. Stop engine and wait until it cools down.
7. Drain water from the system. Refer to CO-10, "
DRAINING ENGINE COOLANT" .
8. Repeat steps 1 through 7 until clear water begins to drain from radiator.Radiator drain plug:
: 1.2 N·m (0.12 kg-m, 11 in-lb)
2 : Heater hose
: Vehicle front
PBIC5029E
Air relief plug:
: 1.2 N·m (0.12 kg-m, 11 in-lb)

RADIATOR
CO-13
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 November2007 350Z
RADIATORPFP:21400
Removal and InstallationNBS0001W

Refer to GI-11, "Components" for symbol marks in the figure.
WARNING:
Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine
coolant escaping from radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter of a turn to
release built-up pressure. Carefully remove radiator cap by turning it all the way.
REMOVAL
1. Remove undercover with power tool.
2. Drain engine coolant from radiator. Refer to CO-10, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
3. Remove air duct and air cleaner case assembly. Refer toEM-15, "
AIR CLEANER AND AIR DUCT" .
4. Remove bracket mounting bolt for anchoring A/C piping from vehicle left side, so that A/C piping can be
moved.
1. Reservoir tank hose 2. Reservoir tank cap 3. Reservoir tank hose
4. Radiator hose (upper) 5. Upper mount bracket 6. Mounting rubber (upper)
7. Cover 8. Radiator 9. Mounting rubber (lower)
10. Radiator drain plug 11. O-ring 12. A/T fluid cooler hose (A/T models)
13. Radiator hose (lower) 14. Radiator cooling fan assembly 15. Reservoir tank
A. To water outlet B. To A/T fluid cooler tube (A/T models) C. To water inlet
D. To water outlet
PBIC5031E

CO-14
RADIATOR
Revision: 2006 November2007 350Z

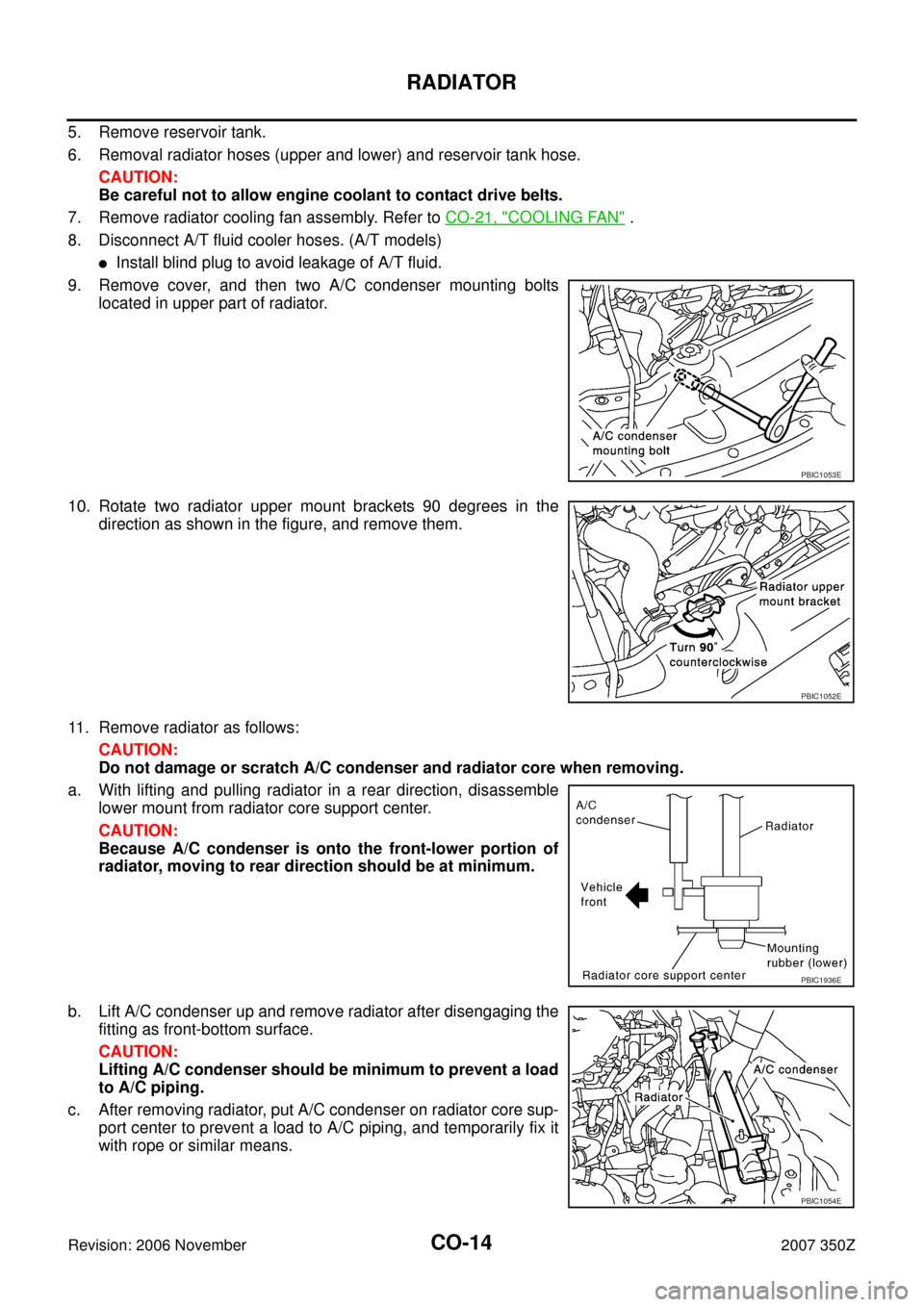

5. Remove reservoir tank.
6. Removal radiator hoses (upper and lower) and reservoir tank hose.
CAUTION:
Be careful not to allow engine coolant to contact drive belts.
7. Remove radiator cooling fan assembly. Refer to CO-21, "
COOLING FAN" .
8. Disconnect A/T fluid cooler hoses. (A/T models)

Install blind plug to avoid leakage of A/T fluid.
9. Remove cover, and then two A/C condenser mounting bolts
located in upper part of radiator.
10. Rotate two radiator upper mount brackets 90 degrees in the
direction as shown in the figure, and remove them.
11. Remove radiator as follows:
CAUTION:
Do not damage or scratch A/C condenser and radiator core when removing.
a. With lifting and pulling radiator in a rear direction, disassemble
lower mount from radiator core support center.
CAUTION:
Because A/C condenser is onto the front-lower portion of
radiator, moving to rear direction should be at minimum.
b. Lift A/C condenser up and remove radiator after disengaging the
fitting as front-bottom surface.
CAUTION:
Lifting A/C condenser should be minimum to prevent a load
to A/C piping.
c. After removing radiator, put A/C condenser on radiator core sup-
port center to prevent a load to A/C piping, and temporarily fix it
with rope or similar means.
PBIC1053E
PBIC1052E
PBIC1936E
PBIC1054E
