22. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of "DATA MONITOR" mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> 1. Detect malfunctioning part of mass air flow sensor circuit and repair it.
Refer to EC-197, "
DTC P0101, P010B MAF SENSOR" .
2. GO TO 29.
NG >> GO TO 23.
23. CHECK “MAS A/F SE-B1”, “MAS A/F SE-B2”
Select “MAS A/F SE-B1”, “MAS A/F SE-B2” in “SPEC” of "DATA MONITOR" mode, and make sure that the
indication is within the SP value.
OK or NG
OK >> GO TO 24.
NG (More than the SP value)>>Replace mass air flow sensor, and then GO TO 29.
24. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NVIS(NATS) system and registration of all NVIS(NATS) ignition key IDs.
Refer to BL-152, "
ECM Re-communicating Function" .
3. Perform EC-76, "
VIN Registration" .
4. Perform EC-76, "
Exhaust Valve Timing Control Learning" .
5. Perform EC-77, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-77, "
Throttle Valve Closed Position Learning" .
7. Perform EC-77, "
Idle Air Volume Learning" .
>> GO TO 29.
25. CHECK INTAKE SYSTEM
Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.

Crushed air ducts

Malfunctioning seal of air cleaner element

Uneven dirt of air cleaner element

Improper specification of intake air system
OK or NG
OK >> GO TO 27.
NG >> Repair or replace malfunctioning part, and then GO TO 26.
26. CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of "DATA MONITOR" mode, and make sure that the indication is within the
SP value.
OK or NG
OK >>INSPECTION END
NG (Less than the SP value)>>GO TO 27.

POWER SUPPLY AND GROUND CIRCUIT
EC-143
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 BR/YECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
53 P/L Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
125 R Power supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)

POWER SUPPLY AND GROUND CIRCUIT
EC-145
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0003Y
1. INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Ye s > > G O T O 8 .
No >> GO TO 2.
2. CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.

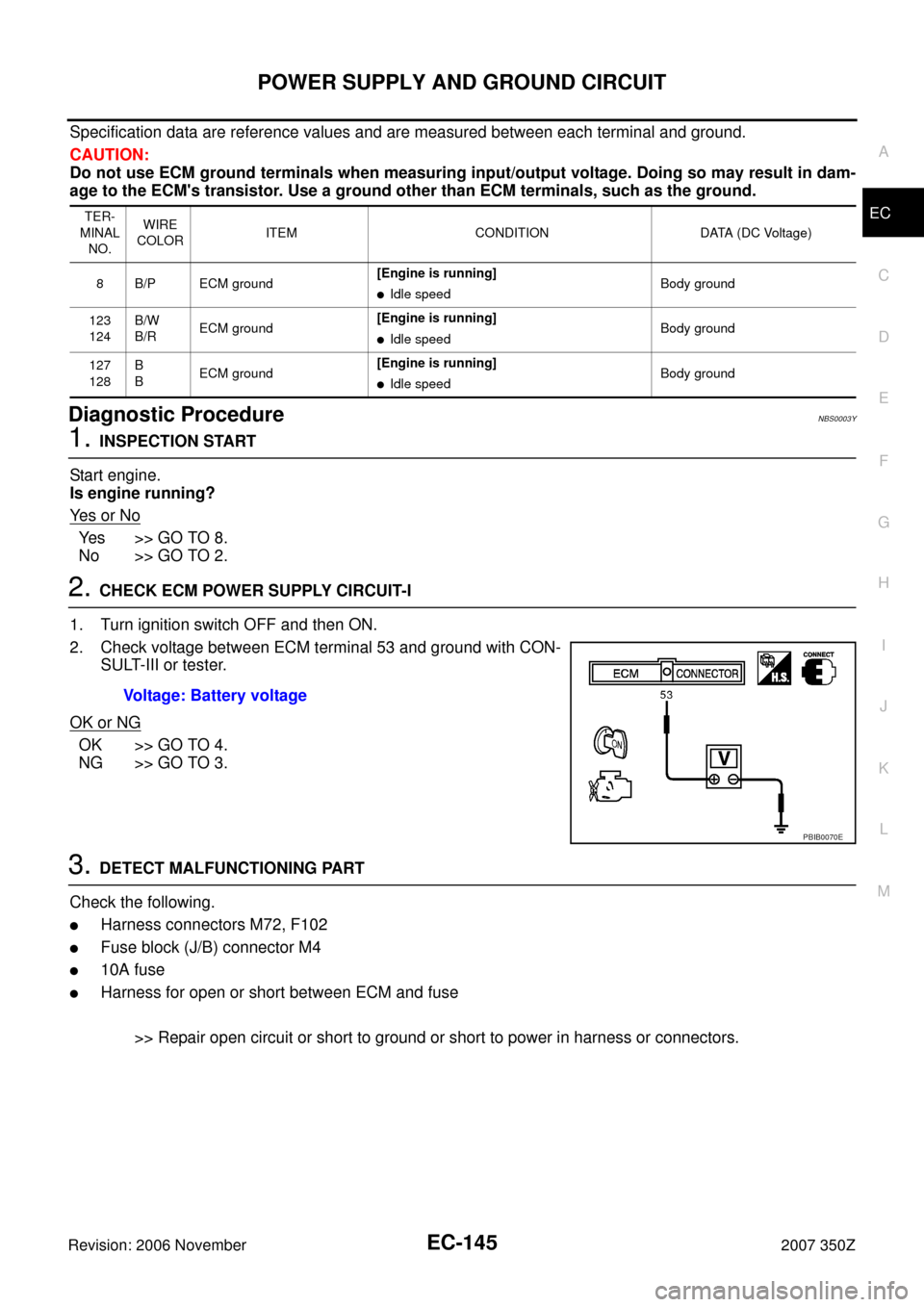

2. Check voltage between ECM terminal 53 and ground with CON-
SULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M72, F102

Fuse block (J/B) connector M4

10A fuse

Harness for open or short between ECM and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
8 B/P ECM ground[Engine is running]

Idle speedBody ground
123
124B/W
B/RECM ground[Engine is running]

Idle speedBody ground
127
128B
BECM ground[Engine is running]

Idle speedBody ground
Voltage: Battery voltage
PBIB0070E

EC-150
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2006 November2007 350Z
17. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F103, B113 (Models with VDC system, navigation system or telephone) or F151
(Models without VDC system, navigation system and telephone)

Harness or connectors F3, E12

Harness or connectors M72, F102

Harness for open or short between ECM and ground.
>> Repair open circuit or short to power in harness or connectors.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-16, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Ground Inspection NBS0003Z
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground
connections are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can
become an unwanted resistance. This unwanted resistance can change the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drasti-
cally affect an electronically controlled circuit. A poor or corroded ground can easily affect the circuit. Even
when the ground connection looks clean, there can be a thin film of rust on the surface.
When inspecting a ground connection follow these rules:

Remove the ground bolt or screw.

Inspect all mating surfaces for tarnish, dirt, rust, etc.

Clean as required to assure good contact.

Reinstall bolt or screw securely.

Inspect for “add-on” accessories which may be interfering with the ground circuit.

If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the
wires are clean, securely fastened and providing a good ground path. If multiple wires are cased in one
eyelet make sure no ground wires have excess wire insulation.
For detailed ground distribution information, refer to PG-27, "
Ground Distribution" .
PBIB1870E

EC-156
DTC P0011, P0021 IVT CONTROL
Revision: 2006 November2007 350Z
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionNBS00045
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN Communication line
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-III Reference Value in Data Monitor ModeNBS00046
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE)
Engine coolant temperature sensor Engine coolant temperature
Wheel sensor Vehicle speed*
PBIB3535E
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM(B1)
INT/V TIM(B2)

Engine: After warming up

Shift lever: P or N (A/T),
Neutral (M/T)

Air conditioner switch: OFF

No loadIdle−5° - 5°CA
2,000 rpm Approx. 0° - 30°CA
INT/V SOL(B1)
INT/V SOL(B2)

Engine: After warming up

Shift lever: P or N (A/T),
Neutral (M/T)

Air conditioner switch: OFF

No loadIdle 0% - 2%
2,000 rpm Approx. 0% - 50%

DTC P0011, P0021 IVT CONTROL
EC-157
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
On Board Diagnosis LogicNBS00047
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC Confirmation ProcedureNBS00048
CAUTION:
Always drive at a safe speed.
NOTE:

If DTC P0011 or P0021 is displayed with DTC P0075 or P0081, first perform trouble diagnosis for
DTC P0075 or P0081. Refer to EC-183, "
DTC P0075, P0081 IVT CONTROL SOLENOID VALVE" .

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the following conditions for at least 6 consecutive seconds.
Hold the accelerator pedal as steady as possible.
4. Let engine idle for 10 seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-158, "
Diagnostic Procedure" .
If 1st trip DTC is not detected, go to next step.
7. Maintain the following conditions for at least 20 consecutive seconds.
8. Check 1st trip DTC.
9. If 1st trip DTC is detected, go to EC-158, "
Diagnostic Procedure" .
DTC No.Trouble diagnosis
nameDetecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing
control performanceThere is a gap between angle of target and
phase-control angle degree.

Crankshaft position sensor (POS)

Camshaft position sensor (PHASE)

Intake valve timing control solenoid valve

Accumulation of debris to the signal pick-up
portion of the camshaft

Timing chain installation

Foreign matter caught in the oil groove for
intake valve timing control P0021
0021
(Bank 2)
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function.
ENG SPEED 500 - 2,000 rpm (A constant rotation is maintained.)
COOLANT TEMP/S More than 60°C (140°F)
B/FUEL SCHDL More than 3.5 msec
Shift lever P or N (A/T), neutral (M/T) position
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLANT TEMP/S More than 70°C (158°F)
Shift lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

EC-158
DTC P0011, P0021 IVT CONTROL
Revision: 2006 November2007 350Z
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnostic ProcedureNBS00049
1. CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi-
nated.
OK or NG
OK >> GO TO 2.
NG >> Go to LU-7, "
OIL PRESSURE CHECK" .
2. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-159, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace malfunctioning intake valve timing control solenoid valve.
3. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-393, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (POS).
4. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-405, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace malfunctioning camshaft position sensor (PHASE).
5. CHECK CAMSHAFT (INT)
Check the following.

Accumulation of debris to the signal plate of camshaft rear end

Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 6.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
PBIA8559J
PBIB3533E

EC-160
DTC P0014 P0024 EVT CONTROL
Revision: 2006 November2007 350Z
DTC P0014 P0024 EVT CONTROLPFP:23795
DescriptionNBS0004C
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN Communication line
This mechanism magnetically controls cam phases continuously with the fixed operating angle of the exhaust
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the exhaust valve timing control magnet
retarder depending on driving status. This makes it possible to control the shut/open timing of the exhaust
valve to increase engine torque and output in a range of high engine speed.
CONSULT-III Reference Value in Data Monitor ModeNBS0004D
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Exhaust valve
timing controlExhaust valve timing con-
trol magnet retarder Camshaft position sensor (PHASE)
Engine coolant temperature sensor Engine coolant temperature
Exhaust valve timing control position sensor Exhaust valve timing signal
Wheel sensor Vehicle speed*
PBIB2765E
MONITOR ITEM CONDITION SPECIFICATION
EXH/V TIM B1
EXH/V TIM B2

Engine: After warming up

Shift lever: Neutral

Air conditioner switch: OFF

No loadIdle−5° - 5°CA
Around 2,500 rpm while the engine
speed is risingApprox. 0° - 30°CA
EX VTC DTY B1
EX VTC DTY B2

Engine: After warming up

Shift lever: Neutral

Air conditioner switch: OFF

No loadIdle 0% - 2%
Around 2,500 rpm while the engine
speed is risingApprox. 0% - 70%
