BR-12
BRAKE TUBE AND HOSE
Revision: 2006 November2007 350Z
BRAKE TUBE AND HOSEPFP:46300
Hydraulic CircuitNFS0000B
CAUTION:

Make sure it does not twist or break when being attached.

Make sure there is no interference with other parts when turning steering both clockwise and
counterclockwise.

The brake tube is an important safety part. If a brake fluid leak is detected, always disassemble the
parts. Replace applicable part with a new one, if necessary.

Do not let brake fluid come in contact with painted surfaces on the body. This might damage the
paint, so if it does come in contact, immediately wipe area and wash off with water.

Do not bend or twist brake hose sharply, or strongly pull it.

When removing components, cover connections so that no dirt, dust, or other foreign matter gets
in.

Refill with new brake fluid “ DOT 3 ”.

Do not reuse drained brake fluid.
Removal and Installation of the Front Brake Tube and Brake Hose (Other than
Brembo Calipers)
NFS0000C
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolt and remove the brake hose from the caliper assembly.
4. Remove the lock plate and nut, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the nut to the
specified torque.
NOTE:
When removed bracket attaching the bolt is tightened with provi-
sions torque.
2. Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolts to the specified torque.
SFIA1869E
: 19.6 – 23.5 N·m (2.0 – 2.3 kg-m, 15 – 17 ft-lb)
: 10.8 – 15.6 N·m (1.1 – 1.5 kg-m, 8 – 11 ft-lb)
PFIA0230E

BRAKE TUBE AND HOSE
BR-13
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
CAUTION:
Do not reuse the copper washer.
3. Attach the brake hose to the brake tube, partially tighten the flare nut as far as possible by hand, then
secure it to the bracket with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Front Brake Tube and Brake Hose (With Brembo
Calipers)
NFS0000D
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove the brake tube from the brake hose.
3. Using a flare nut wrench, remove the caliper-side brake tube from the brake hose.
4. Remove the lock plate and nut, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the nut to the
specified torque.
2. Attach the caliper-side brake tube to the brake hose, partially
tighten the flare nut as far as possible by hand, then tighten it to
the specified torque with flare nut crowfoot and torque wrench.
3. Attach the brake hose to the brake tube, partially tighten the flare nut as far as possible by hand, then
secure to the bracket with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque with flare nut
torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Rear Brake Tube and Brake Hose (Other than
Brembo Calipers)
NFS0000E
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolts, and then remove brake hose from the caliper assembly.
4. Remove the lock plate and then remove the brake hose from the vehicle.: 16.7 – 19.6 N·m (1.7 – 1.9 kg-m, 13 – 14 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
Nut: 19.6 – 23.5 N·m (2.0 – 2.3 kg-m, 15 – 17 ft-lb)
Bolt: 10.8 – 15.6 N·m (1.1 – 1.5 kg-m, 8 – 11 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0229E

BR-14
BRAKE TUBE AND HOSE
Revision: 2006 November2007 350Z
INSTALLATION
1. Attach the brake hose L-pin to the caliper assembly positioning
hole and tighten the union bolt to the specified torque.
CAUTION:
Do not reuse the copper washer.
2. After securing the brake hose to the vehicle with the lock plate,
partially tighten the brake tube flare nut as far as possible by
hand and then tighten to the specified torque with flare nut crow-
foot and torque wrench.
3. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Rear Brake Tube and Brake Hose (With Brembo
Calipers)
NFS0000F
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove the brake tube from the brake hose.
3. Using a flare nut wrench, remove the caliper-side brake tube from the brake hose.
4. Remove the lock plate and bolt, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the bolt to the
specified torque.
2. Attach the caliper-side brake tube to brake hose, partially tighten
the flare nut as far as possible by hand, then tighten it to the
specified torque with flare nut crowfoot and torque wrench.
3. Attach the brake hose to the brake tube, partially tighten the
flare nut as far as possible by hand, then secure to the bracket
with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Inspection after InstallationNFS0000G
CAUTION:
If a leak is detected at the connections, retighten it or, if necessary, replace the damaged part.
1. Check hose, tube, and connections for fluid leaks, damage, twist, deformation, contact with other parts,
and loose connections.
2. While depressing pedal under a force of 785 N (80 kg, 177 lb) with engine running for approximately 5
seconds, check for fluid leakage from each part.: 16.7 – 19.6 N·m (1.7 – 1.9 kg-m, 13 – 14 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0293J
: 19.6 – 22.5 N·m (2.0 – 2.2 kg-m, 15 – 16 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7kg-m, 11 – 12 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0234E

FRONT DISC BRAKE
BR-31
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
2. Attach pad.
CAUTION:

Attach the pad with wear sensor to the outer side.

The side of the shim with the larger cutouts should be on
the entry side of the disc rotor spin.
3. Insert the upper pad pin from the inner cylinder side, then insert
firmly to the outer cylinder side through the hole in the top of the
pad.
4. As shown in the figure, place the top of the cross spring over the
top pad pin, press in the cross spring, push the lower pad pin
from the inner cylinder side to the outer cylinder side, and
secure the cross spring.
5. Insert the clip in the small hole at the end of the pad pin.
CAUTION:
If the clip is not fully attached, the pad pin or the pad could
fall out while the vehicle is in motion.
6. Install tires to vehicle.
Removal and Installation of Brake Caliper Assembly (Other than Brembo Cali-
pers)
NFS000AV
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Fasten disc rotor using wheel nut.
3. Drain brake fluid gradually (from bleed valve while depressing brake pedal). Refer to BR-10, "
Drain and
Refill" .
4. Remove union bolt, and then remove brake hose from caliper
assembly.
5. Remove torque member mounting bolts (from torque member),
and remove caliper assembly (from vehicle with a power tool).
CAUTION:
Do not drop brake pad.
6. Remove disc rotor.
CAUTION:
Put matching marks on wheel hub assembly and disc rotor,
if it is necessary to remove disc rotor.
INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3”.

Do not reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Put alignment marks on disc rotor and wheel hub at the time of removal when reusing disc rotor.
2. Install caliper assembly to vehicle, and tighten torque member mounting bolts to the specified torque.
Refer to BR-27, "
Components" .
CAUTION:
Before installing torque member to vehicle, wipe oil and grease on washer seats on steering
knuckle and mounting surface of torque member.
PFIA0275E
PFIA0276E
SFIA0140E

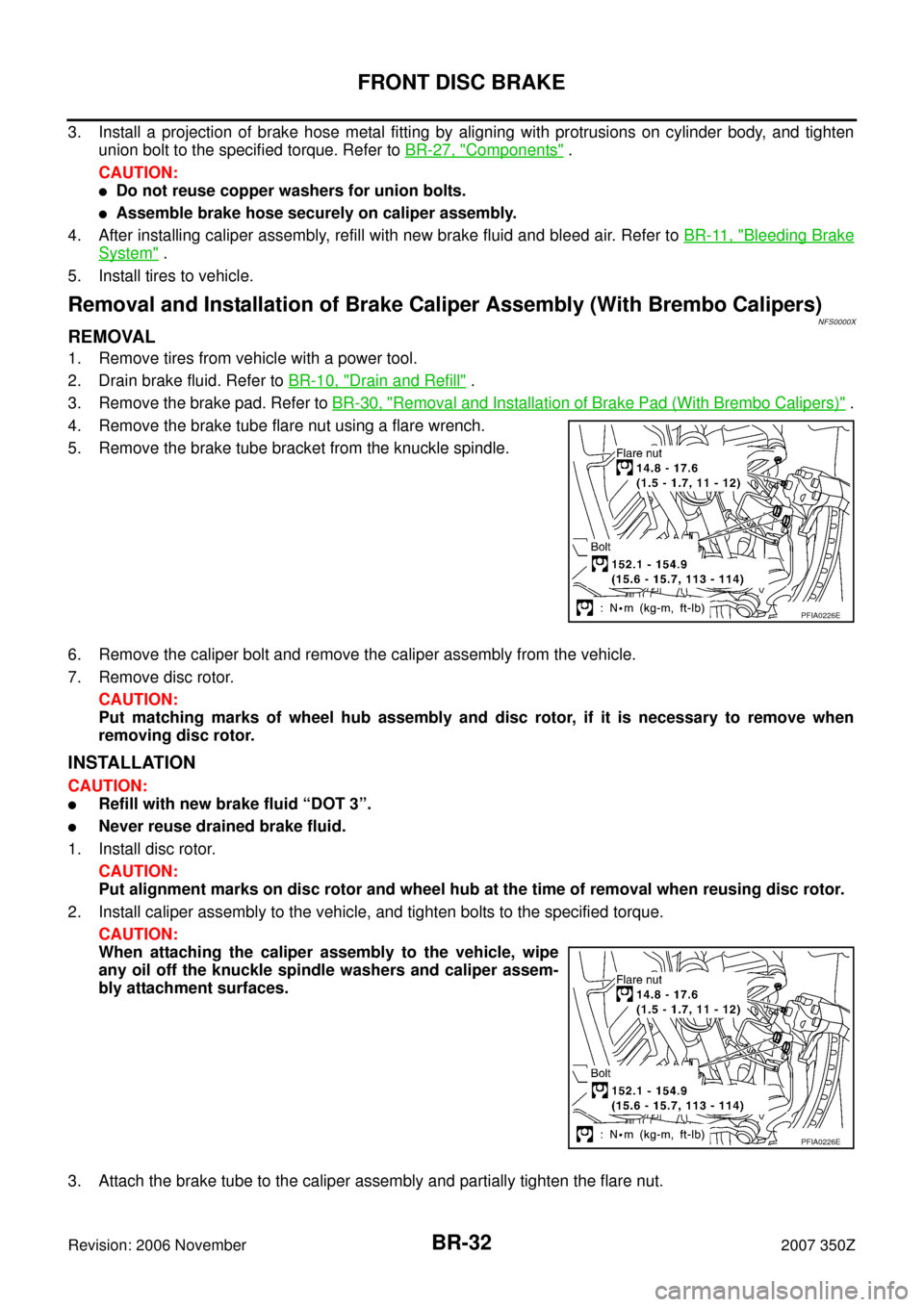

BR-32
FRONT DISC BRAKE
Revision: 2006 November2007 350Z
3. Install a projection of brake hose metal fitting by aligning with protrusions on cylinder body, and tighten
union bolt to the specified torque. Refer to BR-27, "
Components" .
CAUTION:

Do not reuse copper washers for union bolts.

Assemble brake hose securely on caliper assembly.
4. After installing caliper assembly, refill with new brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake
System" .
5. Install tires to vehicle.
Removal and Installation of Brake Caliper Assembly (With Brembo Calipers)NFS0000X
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Drain brake fluid. Refer to BR-10, "
Drain and Refill" .
3. Remove the brake pad. Refer to BR-30, "
Removal and Installation of Brake Pad (With Brembo Calipers)" .
4. Remove the brake tube flare nut using a flare wrench.
5. Remove the brake tube bracket from the knuckle spindle.
6. Remove the caliper bolt and remove the caliper assembly from the vehicle.
7. Remove disc rotor.
CAUTION:
Put matching marks of wheel hub assembly and disc rotor, if it is necessary to remove when
removing disc rotor.
INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3”.

Never reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Put alignment marks on disc rotor and wheel hub at the time of removal when reusing disc rotor.
2. Install caliper assembly to the vehicle, and tighten bolts to the specified torque.
CAUTION:
When attaching the caliper assembly to the vehicle, wipe
any oil off the knuckle spindle washers and caliper assem-
bly attachment surfaces.
3. Attach the brake tube to the caliper assembly and partially tighten the flare nut.
PFIA0226E
PFIA0226E

BR-44
REAR DISC BRAKE
Revision: 2006 November2007 350Z
CAUTION:
Attach the pad with wear sensor to the outer side.
3. Insert the upper pad pin from the outer cylinder side, then insert
firmly to the inner cylinder side through the hole in the top of the
pad.
4. As shown in the figure, place the top of the cross spring over the
top pad pin, press in the cross spring, push the lower pad pin
from the outer cylinder side to the inner cylinder side, and
secure the cross spring.
5. Insert the clip in the small hole at the end of the pad pin.
CAUTION:
If the clip is not fully attached, the pad pin or the pad could
fall out while the vehicle is in motion.
6. Install tires to vehicle.
Removal and Installation of Brake Caliper Assembly (Other than Brembo Cali-
pers)
NFS00012
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Fasten disc rotor using wheel nut.
3. Drain brake fluid. Refer to BR-10, "
Drain and Refill" .
4. Remove union bolts then disconnect brake hose from caliper
assembly and torque member bolts, and remove caliper assem-
bly.
CAUTION:
Do not drop brake pad.
5. Remove disc rotor.
CAUTION:
Put matching marks on wheel hub assembly and disc rotor,
if it is necessary to remove disc rotor.
INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3”.

Do not reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Put alignment marks on disc rotor and wheel hub at the time of removal when reusing disc rotor.
2. Install caliper assembly to the vehicle, and tighten torque member mounting bolts to the specified torque.
CAUTION:
Before installing caliper assembly to the vehicle, wipe off oil and grease on washer seats on axle
assembly and mounting surface of caliper assembly.
3. Install L-shape pin of brake hose to caliper assembly and tighten union bolts to the specified torque.
CAUTION:

Do not reuse the copper washer for union bolts.

Securely attach brake hose to protrusion on caliper assembly.
4. Insert new brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
5. Check rear disc brake for drag.
6. Install tires to vehicle.
BRD0352D
PFIA0292J

REAR DISC BRAKE
BR-45
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
Removal and Installation of Brake Caliper Assembly (With Brembo Calipers)NFS00017
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Drain brake fluid. Refer to BR-10, "
Drain and Refill" .
3. Remove the brake pad. Refer to BR-42, "
Removal and Installa-
tion of Brake Pad (With Brembo Calipers)" .
4. Remove the brake tube flare nut using a flare wrench.
5. Remove the brake hose bolt, move the brake hose, and remove
the caliper assembly from the vehicle.
6. Remove disc rotor.
CAUTION:
Put matching marks on wheel hub assembly and disc rotor,
if it is necessary to remove disc rotor.
INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3”.

Do not reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Put alignment marks on disc rotor and wheel hub at the time of removal when reusing disc rotor.
2. Install the brake tube to the caliper assembly and partially tighten the flare nut.
3. Install the caliper assembly to the vehicle and tighten the bolt to
the specified torque.
4. Tighten the flare nut to the specified torque.
5. Install brake pad and shim. Refer to BR-42, "
Removal and
Installation of Brake Pad (With Brembo Calipers)" .
6. Refill new brake fluid and bleed air. Refer to BR-11, "
Bleeding
Brake System" .
7. Install tires to vehicle.
Disassembly and Assembly of Brake Caliper Assembly (Other than Brembo
Calipers)
NFS00013
NOTE:
Do not remove torque member, pads, shims, shim cover and pad retainers when disassembling and assem-
bling cylinder body assembly.
DISASSEMBLY
1. Remove the slide pin bolt, and then remove cylinder body from torque member.
CAUTION:
Do not drop pads, shims, shim covers and pad retainers from torque member.
2. Remove sliding pin boot from torque member.
PFIA0225E
PFIA0225E
