BRAKE PEDALPFP:46501
Inspection and AdjustmentNFS00006
PLAY AND CLEARANCE BETWEEN THE BRAKE PEDAL AND FLOOR PANEL WITH PEDAL
DEPRESSED
1. Check the brake pedal free height from the dash lower panel (1).
2. Adjust the height referring to the following specifications.
ADJUSTMENT
1. Loosen the stop lamp switch and ASCD cancel switch by rotat-
ing it counterclockwise by 45°.
2. Loosen the lock nut (A) on the input rod, then rotate the input
rod to set the pedal to the specified height, and tighten the lock
nut (A) to the specified torque. Refer to BR-23, "
Components" .
CAUTION:
Check that the threaded end of the input rod stays inside
the clevis.
3. With the pedal pulled and held by hand, press the stop lamp
switch and ASCD cancel switch until its threaded end contacts
the stopper rubber.
4. With the threaded end of the stop lamp switch contacting the
stopper rubber and ASCD cancel switch, rotate the switch clock-
wise by 45° to secure.
CAUTION:
Make sure that the clearance “C” between the stopper rub-
ber and threaded end of the stop lamp switch and ASCD
cancel switch is within the standard.
5. Check the pedal play.
CAUTION:
Make sure that the stop lamps go off when the pedal is
released.
6. Start the engine to check the brake pedal's depressed height.Brake pedal height “H
1 ” (from dash lower panel top sur-
face)
M/T models : 153.2 – 163.2 mm (6.03 – 6.43 in)
A/T models : 161.5 – 171.5 mm (6.36 – 6.75 in)
Depressed pedal height “H
2 ” [under a force of 490 N (50
kg, 110 lb) with the engine running]
M/T models : More than 90 mm (3.54 in)
A/T models : More than 95 mm (3.74 in)
Clearance “C ” between threaded end of the stop lamp
switch/ASCD cancel switch (2) and stopper rubber (3).
: 0.74 – 1.96 mm (0.0291 – 0.0772 in)
Pedal play “A” : 3 – 11 mm (0.12 – 0.43 in)
PFIA0877E
PFIA0819E

BR-14
BRAKE TUBE AND HOSE
Revision: 2006 November2007 350Z
INSTALLATION
1. Attach the brake hose L-pin to the caliper assembly positioning
hole and tighten the union bolt to the specified torque.
CAUTION:
Do not reuse the copper washer.
2. After securing the brake hose to the vehicle with the lock plate,
partially tighten the brake tube flare nut as far as possible by
hand and then tighten to the specified torque with flare nut crow-
foot and torque wrench.
3. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Removal and Installation of the Rear Brake Tube and Brake Hose (With Brembo
Calipers)
NFS0000F
REMOVAL
1. Drain brake fluid. Refer to BR-10, "Drain and Refill" .
2. Using a flare nut wrench, remove the brake tube from the brake hose.
3. Using a flare nut wrench, remove the caliper-side brake tube from the brake hose.
4. Remove the lock plate and bolt, and remove the brake hose from the vehicle.
INSTALLATION
1. Attach the brake hose to the vehicle and tighten the bolt to the
specified torque.
2. Attach the caliper-side brake tube to brake hose, partially tighten
the flare nut as far as possible by hand, then tighten it to the
specified torque with flare nut crowfoot and torque wrench.
3. Attach the brake hose to the brake tube, partially tighten the
flare nut as far as possible by hand, then secure to the bracket
with the lock plate.
4. Using a flare nut crowfoot and torque wrench, tighten the flare nut to the specified torque.
5. Refill brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" .
Inspection after InstallationNFS0000G
CAUTION:
If a leak is detected at the connections, retighten it or, if necessary, replace the damaged part.
1. Check hose, tube, and connections for fluid leaks, damage, twist, deformation, contact with other parts,
and loose connections.
2. While depressing pedal under a force of 785 N (80 kg, 177 lb) with engine running for approximately 5
seconds, check for fluid leakage from each part.: 16.7 – 19.6 N·m (1.7 – 1.9 kg-m, 13 – 14 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0293J
: 19.6 – 22.5 N·m (2.0 – 2.2 kg-m, 15 – 16 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7kg-m, 11 – 12 ft-lb)
: 14.8 – 17.6 N·m (1.5 – 1.7 kg-m, 11 – 12 ft-lb)
PFIA0234E

BRAKE BOOSTER
BR-23
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
BRAKE BOOSTERPFP:47200
On-Vehicle InspectionNFS0000L

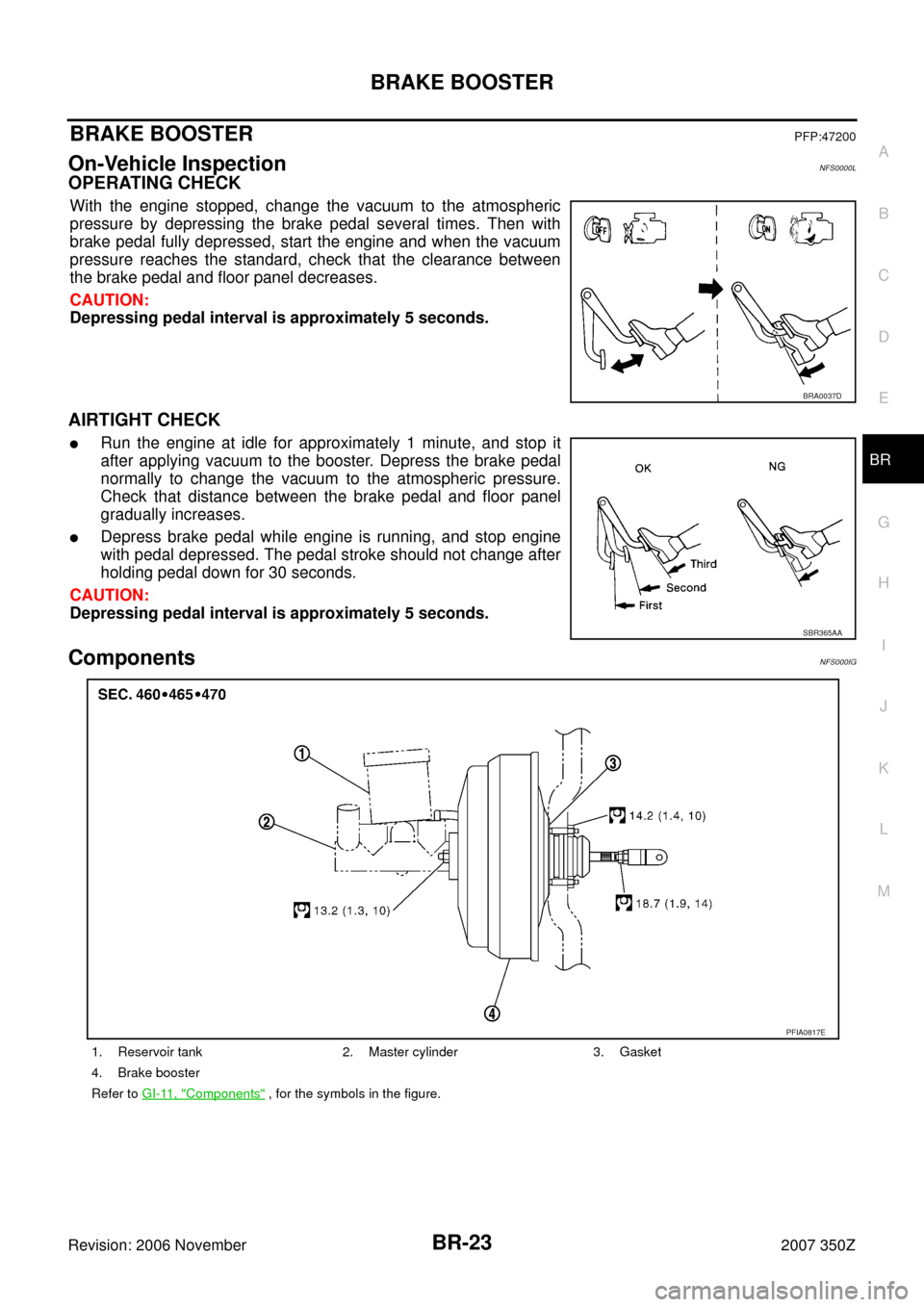

OPERATING CHECK
With the engine stopped, change the vacuum to the atmospheric
pressure by depressing the brake pedal several times. Then with
brake pedal fully depressed, start the engine and when the vacuum
pressure reaches the standard, check that the clearance between
the brake pedal and floor panel decreases.
CAUTION:
Depressing pedal interval is approximately 5 seconds.
AIRTIGHT CHECK

Run the engine at idle for approximately 1 minute, and stop it
after applying vacuum to the booster. Depress the brake pedal
normally to change the vacuum to the atmospheric pressure.
Check that distance between the brake pedal and floor panel
gradually increases.

Depress brake pedal while engine is running, and stop engine
with pedal depressed. The pedal stroke should not change after
holding pedal down for 30 seconds.
CAUTION:
Depressing pedal interval is approximately 5 seconds.
ComponentsNFS000IG
BRA0037D
SBR365AA
1. Reservoir tank 2. Master cylinder 3. Gasket
4. Brake booster
Refer to GI-11, "
Components" , for the symbols in the figure.
PFIA0817E

BR-24
BRAKE BOOSTER
Revision: 2006 November2007 350Z
Removal and InstallationNFS0000M
REMOVAL
CAUTION:

Be careful not to deform or bend brake piping while removing and installing the brake booster.

Replace clevis pin if it is damaged.

Be careful not to damage brake booster stud bolt threads. If brake booster is tilted or inclined dur-
ing installation, the dash panel may damage the threads.

Attach the check valve in the correct orientation.
1. Remove vacuum hose from the brake booster. Refer to BR-25, "
VACUUM LINES" .
2. Remove the brake master cylinder. Refer to BR-24, "
Removal and Installation" .
3. Remove the brake piping between brake master cylinder and ABS actuator and electric unit (control unit).
Refer to BR-12, "
Hydraulic Circuit" .
CAUTION:
For M/T vehicles with remove the brake piping after removing the clutch reservoir tank bolt.
4. Remove the brake pedal attachment snap pin and clevis pin from inside the vehicle.
5. Remove the nuts on the brake booster and brake pedal assembly.
6. Remove brake booster assembly from the engine compartment side.
INSPECTION AFTER REMOVAL
Output Rod Length Inspection
1. Using a handy vacuum pump, apply a vacuum of −66.7 kPa (−
500 mmHg,−19.69 inHg) to the brake booster.
2. Check output rod length.
INSTALLATION
1. Loosen the lock nut to adjust the input rod length so that the
length “B” (in the figure on the right) satisfies the specified value.
2. After adjusting “B”, temporarily tighten the lock nut to install the
booster assembly to the vehicle. At this time, make sure to
install a gasket between the booster assembly and the vehicle.
3. Connect the brake pedal with the clevis of the input rod.
4. Install the pedal bracket mounting nuts and tighten them to the
specified torque.
5. Install the brake piping between brake master cylinder and ABS
actuator and electric unit (control unit). Refer to BR-12, "
Hydraulic Circuit" .
6. Install the master cylinder to the booster assembly. Refer to BR-24, "
Removal and Installation" .
7. Adjust the height and play of the brake pedal. Refer to BR-7, "
ADJUSTMENT" .
8. Tighten the lock nut of the input rod to the specified torque. Refer to BR-23, "
Components" .
9. Refill new brake fluid and bleed air. Refer to BR-11, "
Bleeding Brake System" . Standard dimension when vacuum −66.7 kPa
(−500 mmHg, −19.69 inHg)
With TCS : 10.4 mm (0.409 in)
With VDC : −6.2 mm (−0.244 in)
SBR208E
Length “B” : 125 mm (4.92 in)
SGIA0060E

VACUUM LINES
BR-25
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
VACUUM LINESPFP:41920
ComponentsNFS000IH
Removal and InstallationNFS0000N

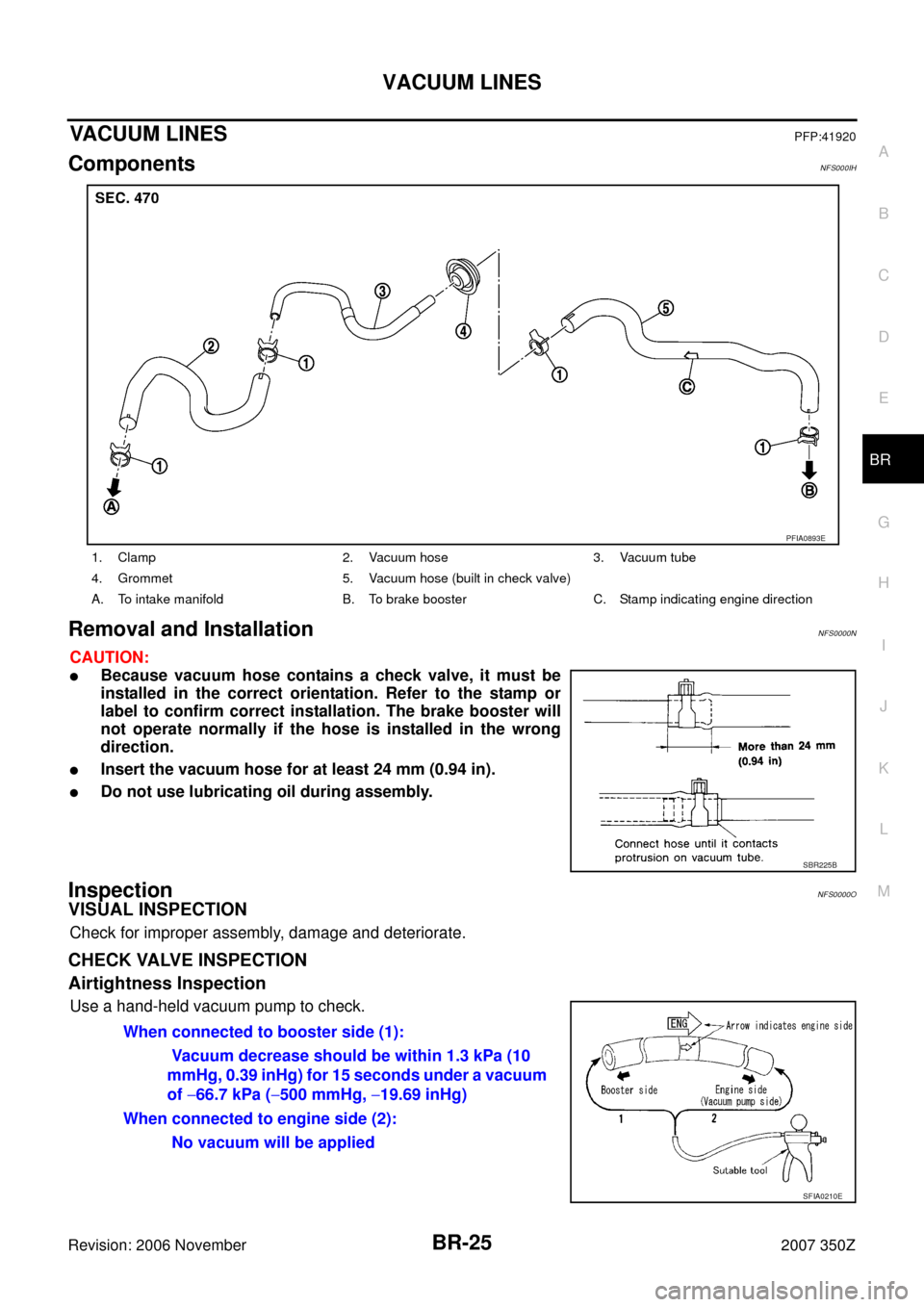

CAUTION:

Because vacuum hose contains a check valve, it must be
installed in the correct orientation. Refer to the stamp or
label to confirm correct installation. The brake booster will
not operate normally if the hose is installed in the wrong
direction.

Insert the vacuum hose for at least 24 mm (0.94 in).

Do not use lubricating oil during assembly.
InspectionNFS0000O
VISUAL INSPECTION
Check for improper assembly, damage and deteriorate.
CHECK VALVE INSPECTION
Airtightness Inspection
Use a hand-held vacuum pump to check.
1. Clamp 2. Vacuum hose 3. Vacuum tube
4. Grommet 5. Vacuum hose (built in check valve)
A. To intake manifold B. To brake booster C. Stamp indicating engine direction
PFIA0893E
SBR225B
When connected to booster side (1):
Vacuum decrease should be within 1.3 kPa (10
mmHg, 0.39 inHg) for 15 seconds under a vacuum
of −66.7 kPa (−500 mmHg, −19.69 inHg)
When connected to engine side (2):
No vacuum will be applied
SFIA0210E

BR-52
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsNFS00019
Unit: mm (in)
Brake PedalNFS0001A
Brake BoosterNFS0001B
Check ValveNFS0001C
Front Disc BrakeNFS0001D
Brake model Other than brembo With brembo
Front brakeRotor outer diameter × thickness 320 × 28.0 (12.60 × 1.102) 324 × 30.0 (12.76 × 1.181)
Pad length × width × thickness130.0 × 50.0 × 11.0
(5.12 × 1.97 × 0.43)11 7 . 1 × 53.3 × 9.3
(4.61 × 2.098 × 0.366)
Cylinder bore diameter 45.0 × 2 (1.772 × 2) 38 (1.50) × 2 + 44 (1.73) × 2
Rear brake Rotor outer diameter × thickness 308 × 16 (12.13 × 0.63) 322 × 22 (12.68 × 0.87)
Pad length × width × thickness83.0 × 31.9 × 8.5
(3.27 × 1.26 × 0.335)76.6 × 45 × 9.1
(3.016 × 1.77 × 0.358)
Cylinder bore diameter 42.86 (1.6874) 40.0 × 2 (1.575)
Master cylinder Cylinder bore diameter 26.99 (1.0626)
Control valve Valve type Electric brake force distribution
Brake booster Diaphragm diameterCoupe 255 (10.04)Pri: 230 (9.06)
Sec: 205 (8.07)
RoadsterPri: 230 (9.06)
Sec: 205 (8.07)Pri: 230 (9.06)
Sec: 205 (8.07)
Recommended brake fluid DOT 3
Brake pedal height (from dash lower panel top surface)M/T models 153.2 – 163.2 mm (6.03 – 6.43 in)
A/T models 161.5 – 171.5 mm (6.36 – 6.75 in)
Depressed pedal height [under a force of 490 N (50 kg, 110 lb)
with the engine running]M/T models More than 90 mm (3.54 in)
A/T models More than 95 mm (3.74 in)
Clearance between threaded end of the stop lamp switch/ASCD cancel switch and
stopper rubber0.74 – 1.96 mm (0.0291 – 0.0772 in)
Pedal play3 – 11 mm (0.12 – 0.43 in)
Vacuum leakage
[at vacuum of −66.7 kPa (−500 mmHg, −19.69 inHg)]Within 3.3 kPa (25 mmHg, 0.98 inHg) of vacuum for 15 seconds
Output rod lengthWith TCS 10.4 mm (0.409 in)
With VDC−6.2 mm (−0.244 in)
Input rod length125 mm (4.92 in)
Vacuum leakage
[at vacuum of −66.7 kPa(−500 mmHg, −19.69 inHg)]Within 1.3 kPa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds
Brake model Other than brembo With brembo
Brake padStandard thickness (new) 11.0 mm (0.433 in) 9.3 mm (0.366 in)
Repair limit thickness 2.0 mm (0.079 in) 2.0 mm (0.079 in)
Disc rotorStandard thickness (new) 28.0 mm (1.102 in) 30.0mm (1.181 in)
Repair limit thickness 26.0 mm (1.024 in) 28.4mm (1.118 in)
Maximum uneven wear (measured at 8 positions) 0.015mm (0.0006 in) or less 0.015 mm (0.0006 in) or less
Runout limit (with it attached to the vehicle) 0.035 mm (0.0014 in) or less 0.040 mm (0.0016 in) or less
Runout limit (just the disc rotor) 0.020 mm (0.0008 in) or less 0.040 mm (0.0016 in) or less
