DOOR LOCK
BL-99
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
4. Reach to separate the key cylinder (driver side only) rod and outside handle rod connection (on the han-
dle).
5. Disconnect the door lock actuator connector.

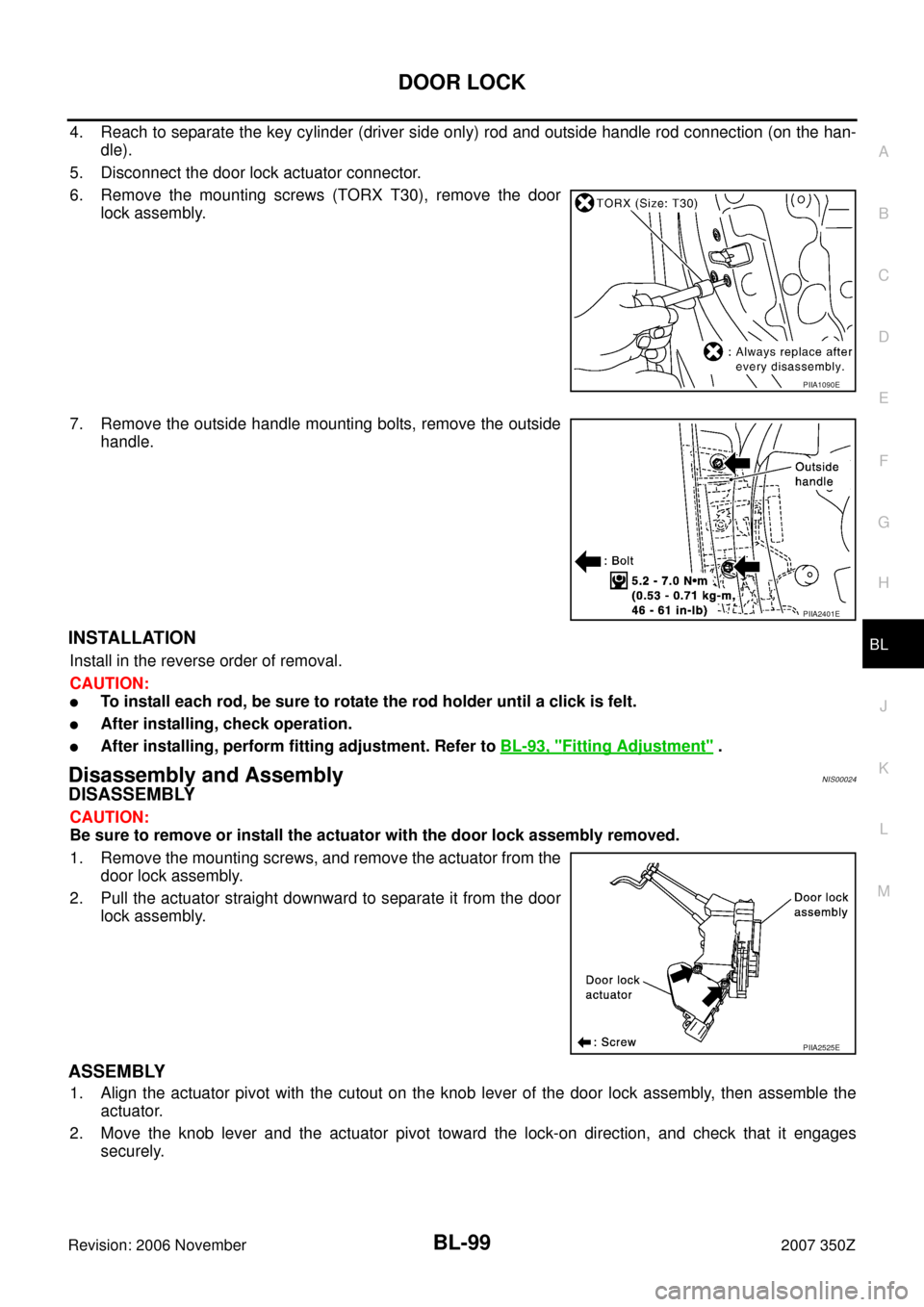

6. Remove the mounting screws (TORX T30), remove the door
lock assembly.
7. Remove the outside handle mounting bolts, remove the outside
handle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

To install each rod, be sure to rotate the rod holder until a click is felt.

After installing, check operation.

After installing, perform fitting adjustment. Refer to BL-93, "Fitting Adjustment" .
Disassembly and AssemblyNIS00024
DISASSEMBLY
CAUTION:
Be sure to remove or install the actuator with the door lock assembly removed.
1. Remove the mounting screws, and remove the actuator from the
door lock assembly.
2. Pull the actuator straight downward to separate it from the door
lock assembly.
ASSEMBLY
1. Align the actuator pivot with the cutout on the knob lever of the door lock assembly, then assemble the
actuator.
2. Move the knob lever and the actuator pivot toward the lock-on direction, and check that it engages
securely.
PIIA1090E
PIIA2401E
PIIA2525E

TRUNK LID OPENER
BL-115
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

through driver side door lock actuator (unlock sensor) terminals 2 and 4,

through grounds M30 and M66.
And power is supplied

to BCM terminal 68

through trunk lid lock assembly (trunk lid opener actuator) terminals 2 and 1

through grounds B5, B6 and T14.
Then trunk lid lock assembly (trunk lid opener actuator) opens trunk.
TRUNK LID OPENER CANCEL OPERATION
When trunk lid opener cancel switch is OFF (CANCEL), it cannot open trunk with trunk lid opener switch.
TRUNK OPENER OPERATION WITH KEY FOB
Open the trunk with key fob. Refer to BL-63, "Trunk Opener Operation/For Roadster" .

BL-118
TRUNK LID OPENER
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCMNIS0002P
Te r -
minalWire
colorItemSignal input/
outputConditionVoltage (V)
(Approx.)
18 BRemote keyless entry
receiver (Ground)—— 0
19 YRemote keyless entry
receiver (Power supply)OutputKey is inserted in IGN key cylinder 0
All door closed
20 LRemote keyless entry
receiver (Signal)InputKey is inserted in IGN key cylinder 0
Waiting
(All door closed)
When signal is received
(All door closed)
30 P Trunk lid opener switch InputTrunk lid opener
cancel switch is
ONTrunk lid opener
switch is ON0
Trunk lid opener
switch is OFF5
Driver side door is
lockedTrunk lid opener
cancel switch is
OFF5
39 L CAN – H Input/Output — —
40 P CAN – L Input/Output — —
42 GY Ignition switch (ON) Input Ignition switch ON or START position Battery voltage
52 B Ground — — 0
55 RPower source (Fusible
link)Input — Battery voltage
68 L/RTrunk lid opener release
output signalOutput Closed (OFF) → Opened (ON) 0 → Battery voltage
OCC3881D
OCC3879D
OCC3880D

BL-120
TRUNK LID OPENER
Revision: 2006 November2007 350Z
Trouble DiagnosisNIS0002R
TRUNK DOSE NOT OPEN WITH TRUNK LID OPENER SWITCH
1. CHECK TRUNK LID OPENER CANCEL SWITCH
Check trunk lid opener cancel switch position.
Ye s o r N o
Yes >> GO TO 2.
No >> Turn on trunk lid opener cancel switch.
2. CHECK TRUNK LID OPEN INPUT SIGNAL
1. Remove Key from ignition key cylinder.
2. Unlock driver side door.
3. Check voltage between BCM and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 6.
3. CHECK TRUNK LID OPEN OUTPUT SIGNAL

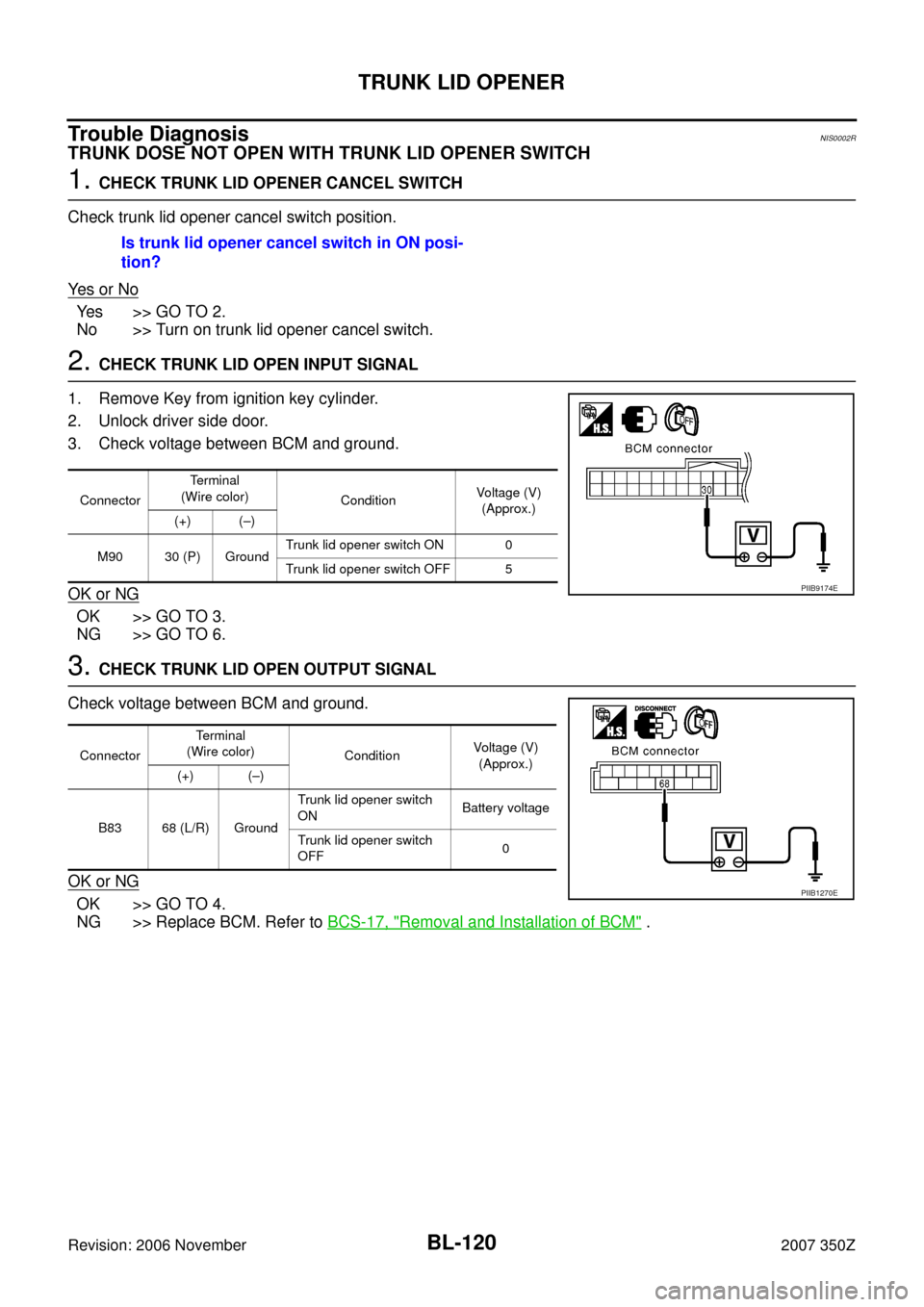

Check voltage between BCM and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace BCM. Refer to BCS-17, "
Removal and Installation of BCM" . Is trunk lid opener cancel switch in ON posi-
tion?
ConnectorTerminal
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M90 30 (P) GroundTrunk lid opener switch ON 0
Trunk lid opener switch OFF 5
PIIB9174E
ConnectorTerminal
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
B83 68 (L/R) GroundTrunk lid opener switch
ONBattery voltage
Trunk lid opener switch
OFF0
PIIB1270E

TRUNK LID OPENER
BL-123
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
11 . CHECK DRIVER SIDE DOOR LOCK ACTUATOR GROUND CIRCUIT

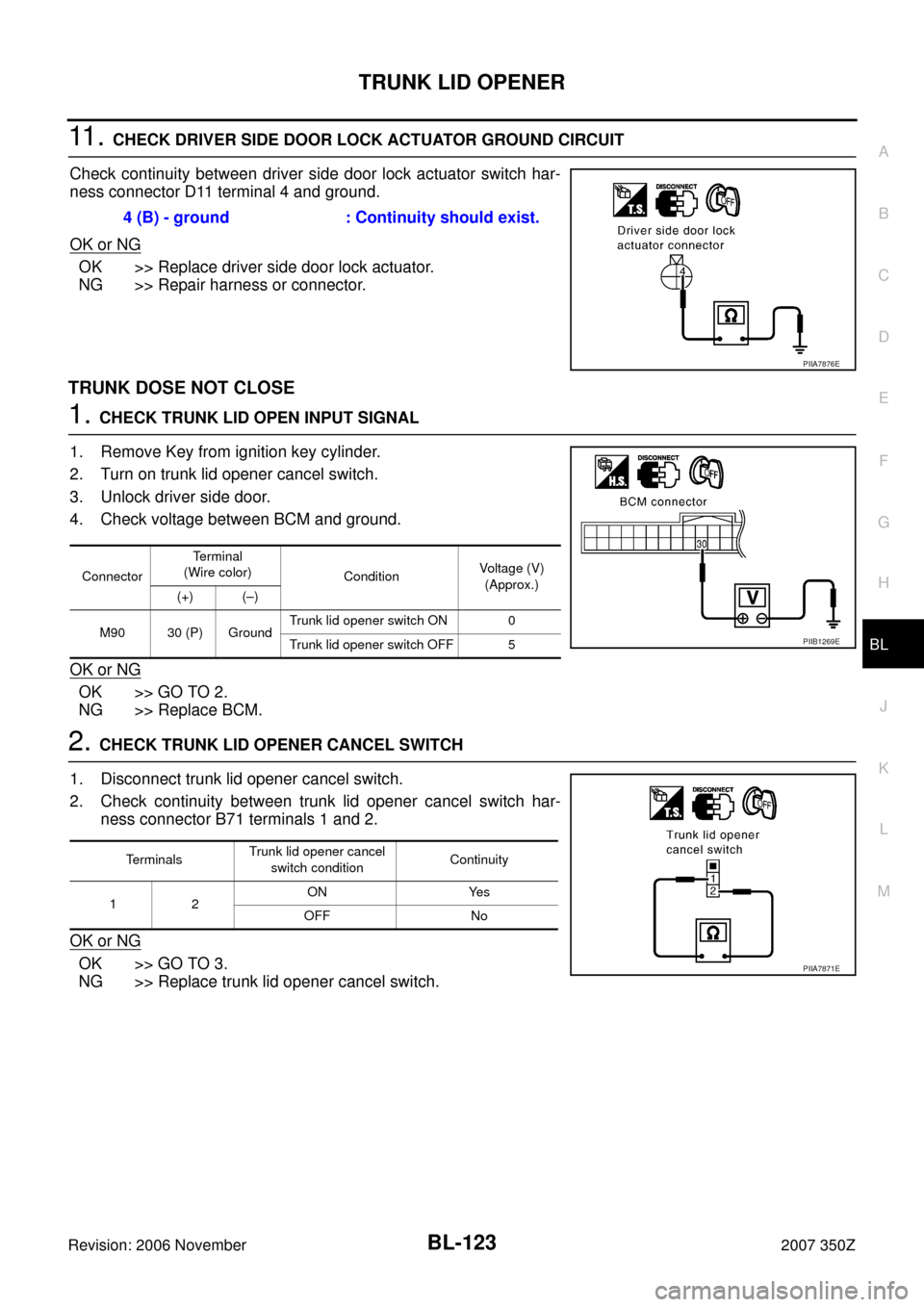

Check continuity between driver side door lock actuator switch har-
ness connector D11 terminal 4 and ground.
OK or NG
OK >> Replace driver side door lock actuator.
NG >> Repair harness or connector.
TRUNK DOSE NOT CLOSE
1. CHECK TRUNK LID OPEN INPUT SIGNAL
1. Remove Key from ignition key cylinder.
2. Turn on trunk lid opener cancel switch.
3. Unlock driver side door.
4. Check voltage between BCM and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.
2. CHECK TRUNK LID OPENER CANCEL SWITCH
1. Disconnect trunk lid opener cancel switch.
2. Check continuity between trunk lid opener cancel switch har-
ness connector B71 terminals 1 and 2.
OK or NG
OK >> GO TO 3.
NG >> Replace trunk lid opener cancel switch.4 (B) - ground : Continuity should exist.
PIIA7876E
ConnectorTerminal
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M90 30 (P) GroundTrunk lid opener switch ON 0
Trunk lid opener switch OFF 5
PIIB1269E
TerminalsTrunk lid opener cancel
switch conditionContinuity
12ON Yes
OFF No
PIIA7871E

BL-126
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
System DescriptionNIS0002T
DESCRIPTION
Operation Flow
Setting the vehicle security system
Initial condition

Ignition switch is in OFF position.
Disarmed phase

When hood, doors, back door (for Coupe) or trunk (for Roadster) is open, the vehicle security system is
set in the disarmed phase on the assumption that the owner is inside or near the vehicle.

When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.4
seconds.
Pre-armed phase and armed phase
When the following operation 1 or 2 is performed, the vehicle security system turns into the “pre-armed”
phase. (The security indicator lamp illuminates.)
1. BCM receives LOCK signal from door key cylinder switch or key fob after all doors and back door (for
Coupe) or trunk (for Roadster) are closed.
2. All doors and back door (for Coupe) or trunk (for Roadster) are closed after doors are locked by key or
door lock and unlock switch.
The security indicator lamp illuminates for 30 seconds. Then, the system automatically shifts into the
“armed” phase.
Canceling the set vehicle security system
When one of the following operations is performed, the armed phase is canceled.
1. Unlock the doors with the key or the key fob.
2. Open the back door (for Coupe) or trunk (for Roadster) with the key fob.
3. Turn ignition switch to “ON” or “ACC” position.
Canceling the alarm operation of the vehicle security system
When one of the following operations is performed, the alarm operation is canceled.

Unlock the door with the key or key fob.

Open the trunk (for Roadster) with the key fob.
Activating the alarm operation of the vehicle security system
Make sure the system is in the armed phase. (The security indicator lamp blinks every 2.4 seconds.)
When the following operation 1 or 2 is performed, the system sounds the horns and flashes the headlamps for
about 50 seconds.
1. Any door or trunk (for Roadster) is opened during armed phase.
PIIA1367E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-127
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
2. Disconnecting and connecting the battery connector before canceling armed phase.
POWER SUPPLY AND GROUND
Power is supplied at all times

through 10A fuse [No.19, located in the fuse block (J/B)]

to security indicator lamp terminal 1.
Power is supplied at all times

through 40A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55

through 10A fuse [No.18, located in the fuse block (J/B)]

to BCM terminal 42.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied.

to BCM terminal 52

through body grounds M30 and M66.
INITIAL CONDITION TO ACTIVATE THE SYSTEM
The operation of the vehicle security system is controlled by the doors and trunk (for Roadster).
To activate the vehicle security system, BCM must receive signals indicating the doors and trunk (for Road-
ster) are closed and the doors are locked by key or key fob.
When a door is open, BCM terminals 12, 65 receives a ground signal from each door switch.
When driver side door is unlocked by power window main switch (door lock and unlock switch), BCM terminal
22 receives a signal from terminal 12 of power window main switch.
When passenger side door is unlocked by power window sub-switch (door lock and unlock switch), BCM ter-
minal 22 receives a signal from terminal 16 of power window sub-switch.
The IPDM E/R then sends a signal to the BCM via CAN communication line.
When the back door (for Coupe) or trunk (for Roadster) is open, BCM terminal 57 (for Roadster) or 58 (for
Coupe) receives a ground signal

from terminal 1 of the back door switch (for Coupe) or terminal 3 of trunk lid lock assembly (trunk room
lamp switch) (for Roadster)

through body grounds B5, B6,T14, D105 (for Coupe) or B5, B6, T14 (for Roadster).
VEHICLE SECURITY SYSTEM ALARM OPERATION
The vehicle security system is triggered by

opening a driver or passenger side door

opening the back door (for Coupe)

opening the trunk (for Roadster)

detection of battery disconnect and connect.
The vehicle security system will be triggered once the system is in armed phase,
When BCM receives a ground signal at terminals 12, 62 (door switch), 57 (trunk room lamp switch) or 58 (back
door switch).
Power is supplied at all times

to horn relay terminal 2

through 15A fuse (No. 35, located in the fuse and fusible link box).
When the vehicle security system is triggered, ground is supplied intermittently to both headlamp relay and
horn relay.
When both headlamp relay (with built-in IPDM E/R) and horn relay are energized and then power is supplied
to headlamps (high beam and low beam) and horns (HIGH and LOW).
The headlamps flash and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds, but will reactivate if the vehicle is tampered with again.
VEHICLE SECURITY SYSTEM DEACTIVATION
To deactivate the vehicle security system, a door must be unlocked or back door (for Coupe) or trunk (for
Roadster) must be opened with the key or key fob.

BL-128
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
When the key is used to unlock a door, BCM terminal 22 receives signal

from terminal 12 of the power window main switch (door lock and unlock switch).
When the BCM receives either above signal or unlock signal from key fob, the vehicle security system is deac-
tivated. (Disarmed phase)
PANIC ALARM OPERATION
Remote keyless entry system may or may not operate vehicle security system (horn and headlamps) as
required.
When the panic alarm button on the keyfob is triggered, ground is supplied intermittently to both headlamp
relay and horn relay.
When both headlamp relay (with built-in IPDM E/R) and horn relay are energized and then power is supplied
to headlamps (high beam and low beam) and horns (HIGH and LOW).
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob.
CAN Communication System DescriptionNIS0002U
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS0002V
Refer to LAN-4, "CAN Communication System" .
