POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
Check Key Switch (insert) NIS0000R

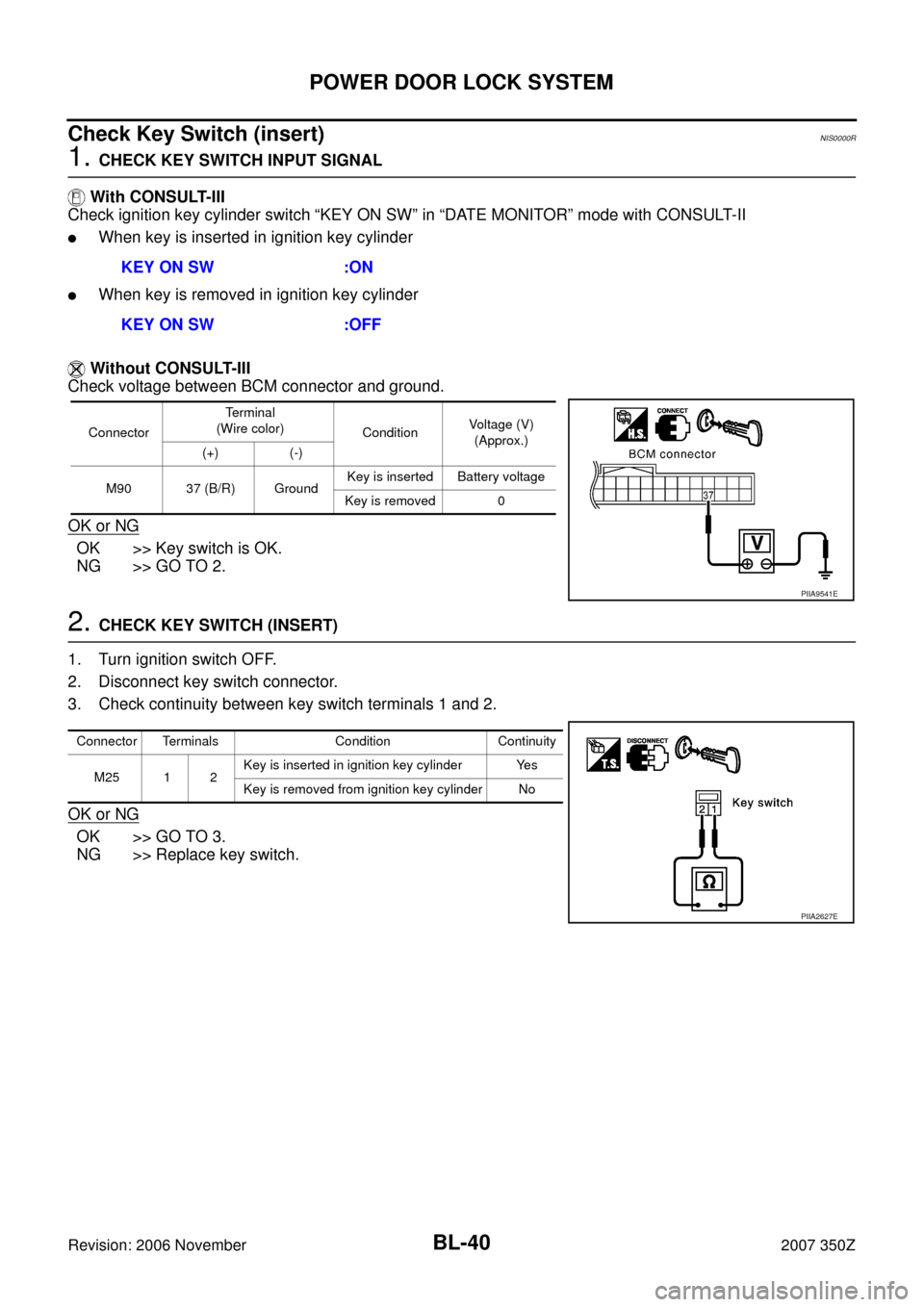

1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-III
Check ignition key cylinder switch “KEY ON SW” in “DATE MONITOR” mode with CONSULT-II

When key is inserted in ignition key cylinder

When key is removed in ignition key cylinder
Without CONSULT-III
Check voltage between BCM connector and ground.
OK or NG
OK >> Key switch is OK.
NG >> GO TO 2.
2. CHECK KEY SWITCH (INSERT)
1. Turn ignition switch OFF.
2. Disconnect key switch connector.
3. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> GO TO 3.
NG >> Replace key switch.KEY ON SW :ON
KEY ON SW :OFF
ConnectorTerminal
(Wire color)
Condition Voltage (V)
(Approx.)
(+) (-)
M90 37 (B/R) GroundKey is inserted Battery voltage
Key is removed 0
PIIA9541E
Connector Terminals Condition Continuity
M25 1 2Key is inserted in ignition key cylinder Yes
Key is removed from ignition key cylinder No
PIIA2627E

POWER DOOR LOCK SYSTEM
BL-41
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
3. CHECK KEY SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M90 terminal
37 and key switch harness connector M25 terminal 1.
3. Check continuity between BCM harness connector M90 terminal
37 and ground.
OK or NG
OK >> Check the following.

10A fuse [No.21, located in the fuse block (J/B)]

Harness for open or short between key switch and fuse
NG >> Repair harness or connector.37 (B/R) - 1 (B/R) : Continuity should exist.
37 (B/R) - Ground : Continuity should not exist.
PIIB1258E

BL-42
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
Check Door Lock and Unlock Switch NIS0000S
1. CHECK POWER WINDOW OPERATION
Does power window system operate normally?
YES or NO?
YES >> GO TO 2
NO >> Refer to GW-30, "
Trouble Diagnoses Symptom Chart" .
2. CHECK DOOR LOCK AND UNLOCK SWITCH OUTPUT SIGNAL
With CONSULT-III
Check door lock and unlock switch (“LOCK SW DR/AS”, “UNLK SW DR/AS”) in DATA MONITOR mode with
CONSULT-II. Refer to BL-35, "
DATA MONITOR" .

When door lock and unlock switch is turned to LOCK

When door lock and unlock switch is turned to UNLOCK
Without CONSULT-III
1. Remove key from ignition switch, and close the doors of driver side and passenger side.
2. Check the signal between BCM connector and ground with oscilloscope when door lock and unlock
switch (driver side and passenger side) is turned “LOCK” or “UNLOCK”.
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door
lock and unlock switch (driver side or passenger side) is turned “LOCK” or “UNLOCK”.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK BCM OUTPUT SIGNAL
Check power window serial link (“POWER WINDOW DOWN”) in “ACTIVE TEST” mode with CONSULT-III.
Refer to BL-74, "
Active Test" .
When “ACTIVE TEST” is executed, the window of driver side and passenger side are go down.
OK or NG
OK >> Further inspection is necessary. Refer to symptom chart.
NG >> Replace BCM.CDL LOCK SW :ON
CDL UNLOCK SW :ON
ConnectorTerminal
(Wire color)Signal
(Reference value)
(+) (–)
M90 22 (Y) Ground
PIIA6379EPIIA1297E

POWER DOOR LOCK SYSTEM
BL-47
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Check Door Key Cylinder Switch NIS0000V
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
With CONSULT-III

Check door key cylinder switch (“KEY CYL LK SW”) in “DATA MONITOR” mode with CONSULT-III.

Check door key cylinder switch (“KEY CYL UN-SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between power window main switch (door lock and unlock switch) connector and ground.
OK or NG
OK >> Further inspection is necessary. Refer to symptom
chart.
NG >> GO TO 2.
2. CHECK DOOR KEY CYLINDER SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch (door lock and unlock switch) and door key cylinder switch con-
nector.
3. Check continuity between power window main switch (door lock and unlock switch) harness connector D7
terminals 6, 7 and door key cylinder switch harness connector D12 terminals 1, 3.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between power window main
switch and door key cylinder switch. “KEY CYL LK-SW” should be “ON” when key inserted
in door key cylinder is turned to lock.
“KEY CYL UN-SW” should be “ON” when key inserted
in door key cylinder is turned to unlock.
ConnectorTe r m i n a l s
Key position Voltage (V)
(Approx.)
(+) (–)
D76 (B/R)
GroundNeutral/Unlock 5
Lock 0
7 (SB)Neutral/Lock 5
Unlock 0
PIIA3352E
6 (B/R) – 3 (B/R) : Continuity should exist.
7 (SB) – 1 (SB) : Continuity should exist.
PIIA3353E

BL-48
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
3. CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT
Check continuity between door key cylinder switch harness connector D12 terminal 2 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DOOR KEY CYLINDER SWITCH
Check continuity between door key cylinder switch terminals 1, 3 and 2.
OK or NG
OK >> Further inspection is necessary. Refer to symptom
chart.
NG >> Replace door key cylinder switch.
Check Back Door Opener Switch NIS0000W
1. CHECK BACK DOOR OPENER SIGNAL
Check voltage between BCM connector and ground.
Press back door opener switch when driver side door is unlocked.
*: When interior lamp battery saver control is in OFF position. →Approx.5V
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.2 (B) – Ground : Continuity should exist.
PIIA3354E
Connector Terminals Key position Continuity
D121
2Neutral/Lock No
Unlock Yes
3Neutral/Unlock No
Lock Yes
PIIA3355E
ConnectorTerminals
(Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
M90 30 (P) GroundBack door
opener switch
ON0
Back door
opener switch
OFFBattery voltage*
PIIA9334E

REMOTE KEYLESS ENTRY SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationNIS00014
FOR COUPE
PIIB7456E

BL-60
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
FOR ROADSTER
PIIB9172E

REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
System DescriptionNIS00015
INPUTS
Power is supplied at all times

through 40A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No.18, located in the fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 21, located in the fuse block (J/B)]

to key switch terminal 2.
When the ignition switch is ON or START position, power is supplied

through 10A fuse [No.1, located in the fuse block (J/B)]

to BCM terminal 38.
When the ignition switch is ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through body grounds M30 and M66.
When the driver side door switch is ON (door is OPEN), ground is supplied

to BCM terminal 62

through driver side door switch terminal 1 and

through driver door switch case ground.
When the passenger side door switch is ON (door is OPEN), ground is supplied

to BCM terminal 12

through passenger side door switch terminal 1 and

through passenger side door switch case ground.
When the back door switch (For coupe models) is ON (door is OPEN), ground is supplied

to BCM terminal 58

through the back door switch terminals 1 and 3 and

through body grounds B5, B6, D105 and T14.
When the trunk lid lock assembly (trunk room lamp switch) (For roadster models) is ON (trunk is OPEN),
ground is supplied

to BCM terminal 57

through the trunk room lamp switch terminals 3 and 1 and

through body grounds B5,B6 and T14.
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

through key switch terminals 2 and 1

to BCM terminal 37.
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).
Remote keyless entry receiver sends keyfob signal

to BCM terminal 20

from remote keyless entry receiver terminal 2.
The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

auto door lock

interior lamp and step lamp

panic alarm
