346 Controls in detailLightingLocator lighting and night security illu-
mination
Locator lighting and night security illumi-
nation are described in the COMAND vehi-
cle section under “Setting locator lighting”
(page 221) and “Setting night security il-
lumination” (
page 220).
Headlamp cleaning system
1Headlamp washer button

Switch on the ignition (
page 315).

Press button1.
The headlamps are cleaned with a
high-pressure water jet.For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 498).
Combination switch
1High beam
2High beam flasher
Switching on high beams
Turn exterior lamp switch to
positionB or to*
(page 342).

Push the combination switch in the
direction1.
The high beam indicatorA on the
instrument cluster comes on.
i
The headlamps are automatically cleaned if,
at the same time,


the engine is running


the lights are switched on


the windshield wipers have wiped the wind-
shield with washer fluid 15 times
When you switch off the ignition or press
button1, the automatic function is reset and
will start counting the next time from the begin-
ning.

347 Controls in detail
Lighting
High beam flasher
Pull the combination switch briefly in
the direction2.
Corner-illuminating lamps
The corner-illuminating lamps improve illu-
mination of the area in the direction into
which you are turning.
Corner-illuminating lamps will operate
with:

the engine running


during darkness


the headlamps switched on
Switching on corner-illuminating lamps

Depending on whether you are turning
left or right, switch on the left or right
turn signal (
page 342).The respective corner-illuminating
lamp comes on and illuminates the
area in the direction into which you are
turning.Switching off the corner-illuminating
lamps
The combination switch for the turn signal
resets automatically after major steering
wheel movements. This will switch off the
corner-illuminating lamps if they were acti-
vated by switching on the left or right turn
signal.
If the turn signal should stay on after mak-
ing the turn, the turn signal and corner-illu-
minating lamp can be switched off by
returning the combination switch to its
original position.
i
The corner-illuminating lamps function is not
available at a vehicle speed above 25 mph
(40 km/h).
i
The corner-illuminating lamps will come on
automatically up to a speed of approximately
25 mph (40 km/h) depending on the steering
angle, even if you did not switch on either turn
signal. If the corner-illuminating lamps came on
automatically, they will also go out automatically
depending on the steering angle.
i
If you have switched on the turn signal for
one side but turn the steering wheel in the other
direction, the corner-illuminating lamp lights up
on the side of the turn signal.
i
The corner-illuminating lamps temporarily
light up on both sides of the vehicle if you turn
the steering wheel in one direction and then in
the other direction shortly thereafter.
i
When you shift the automatic transmission
in reverse gearR, the inverse corner-illuminating
lamp comes on automatically depending on the
steering direction and steering angle.
The turn signal has no influence on the corner-il-
luminating lamp on the outside of the curve.
i
If you are driving faster than 25 mph
(40 km/h) when activating the turn signal indica-
tor, the corner-illuminating lamp function is
switched off.
i
The corner-illuminating lamp may remain lit
for a short time. The corner-illuminating lamp
lights up for no more than 20 seconds with the
vehicle standing still. It is then switched off even
if the turn signal is still switched on or you have
turned the steering wheel to full lock.

351 Controls in detail
Windshield wipers
Windshield wipers
Combination switch1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid

Switch on the ignition (
page 315).
Switching on/off windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
MWindshield wipers off
USlow intermittent wiping
(rain sensor operation low sen-
sitivity)
VFast intermittent wiping
(rain sensor operation low sen-
sitivity)
uSlow continuous wiping
tFast continuous wiping
!
If the windshield wipers leave smears on the
windshield after the car has been driven through
an automatic car wash, then wax or other resi-
due is on the windshield. Shortly after washing
the car in an automatic car wash, clean the wind-
shield with windshield washer fluid
(
page 352).
!
Do not operate the wipers when the wind-
shield is dry. Dust that accumulates on a wind-
shield might scratch the glass and/or damage
the wiper blades when wiping occurs on a dry
windshield. If it is necessary to operate the wip-
ers in dry weather conditions, always operate
the wipers with windshield washer fluid
(
page 352).
!
If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.


For safety reasons, stop the vehicle in a safe
location,

turn off the engine by turning the
SmartKey to position0 and withdraw
SmartKey from starter switch
or


turn off the engine by pressing the
KEYLESS-GO* start/stop button
(page 317) and open the driver’s door
(with the driver’s door open, starter
switch is in position0, same as with
SmartKey removed from starter switch)
before attempting to remove any blockage.


Remove blockage.


Turn the windshield wipers on again.If the windshield wipers fail to function at all in
combination switch position u,


set the combination switch to the next high-
er wiper speed


have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center

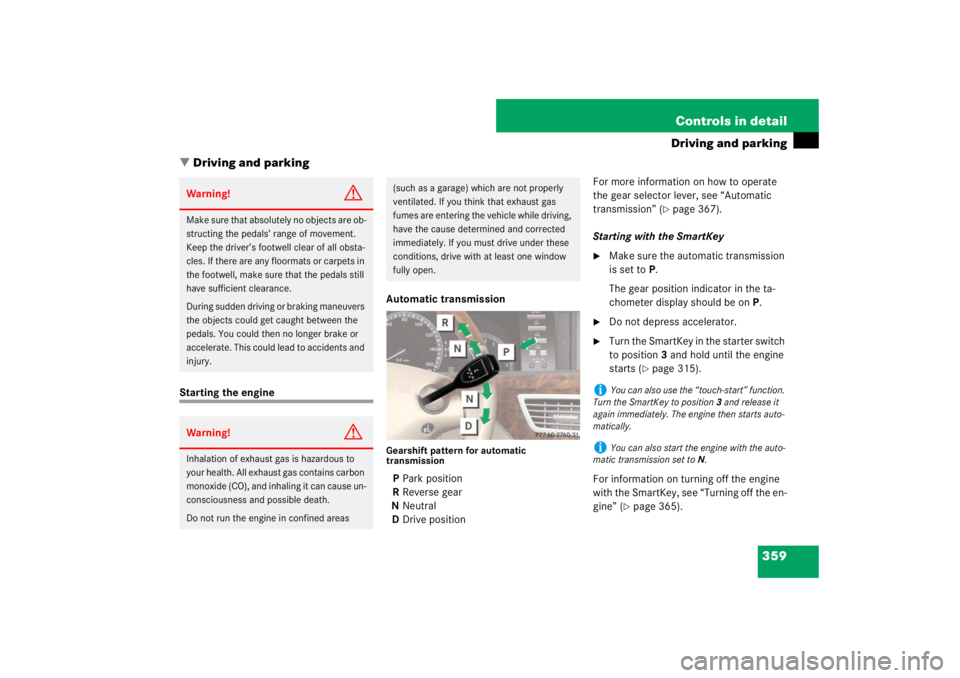

359 Controls in detail
Driving and parking
Driving and parking
Starting the engineAutomatic transmission
Gearshift pattern for automatic
transmissionPPark position
RReverse gear
NNeutral
DDrive positionFor more information on how to operate
the gear selector lever, see “Automatic
transmission” (
page 367).
Starting with the SmartKey

Make sure the automatic transmission
is set toP.
The gear position indicator in the ta-
chometer display should be on P.

Do not depress accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 315).
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 365).
Warning!
G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate. This could lead to accidents and
injury.Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
i
You can also use the “touch-start” function.
Turn the SmartKey to position 3 and release it
again immediately. The engine then starts auto-
matically.
i
You can also start the engine with the auto-
matic transmission set to N.

360 Controls in detailDriving and parkingStarting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
starter switch.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO* start / stop button1USA only
2Canada only
Make sure KEYLESS-GO start/stop
button is inserted in the starter switch
(page 316).

Make sure the automatic transmission
is set toP.
The gear position indicator in the ta-
chometer display should be on P.

Depress the brake pedal during the
starting procedure.

Do not depress accelerator.

Press KEYLESS-GO start/stop button
once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off the en-
gine” (
page 365).
Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey: Turn SmartKey in starter
switch to position0 and repeat starting
procedure.
Warning!
G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.
i
You can also start the engine with the auto-
matic transmission set to N.
i
If you wish to start the vehicle with the
SmartKey instead of the KEYLESS-GO feature,
remove the KEYLESS-GO start/stop button from
the starter switch and proceed as described in
“Starting with the SmartKey” (
page 359).

361 Controls in detail
Driving and parking

If you are starting the engine with
KEYLESS-GO: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
or

Remove the KEYLESS-GO* start/stop
button from starter switch.

Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO.

Repeat the starting procedure
(page 359). Remember that extend-
ed starting attempts can drain the bat-
tery.

Get a jump start (
page 639).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Call Roadside Assistance.

Notify an authorized Mercedes-Benz
Center.
Driving off
Depress the brake pedal.
The gear selector lever can now be
used.

Shift automatic transmission toD orR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
The electric parking brake is automati-
cally released (
page 364).
The red brake warning 0 (USA only)
or ! (Canada only) in the instru-
ment cluster goes out.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs in the doors
move down.
After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
i
Wait for the gear selection process to com-
plete before setting the vehicle in motion.
i
Shifting from gear position P to position R,
N, or D is only possible with the brake pedal de-
pressed. Without the brake pedal depressed, the
gear selector lever can be moved, but the park-
ing pawl remains engaged, not allowing shifting
to occur.
i
After driving off the doors and the trunk lock
automatically.
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
You can deactivate the automatic locking using
the COMAND system (
page 223).


362 Controls in detailDriving and parking
For more information, see “Driving instruc-
tions” (
page 479).
Turn signalsCombination switch1Turn signals, right
2Turn signals, left

Press the combination switch up1 or
down2.
The corresponding turn signal indicator
lampL orK flashes in the in-
strument cluster (
page 28).
The combination switch resets automati-
cally after major steering wheel move-
ments.
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.Warning!
G
It is dangerous to shift the gear selector le-
ver out of P or N if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.!
Shift the automatic transmission toP or R
only when the vehicle is stopped in order to avoid
damaging the transmission.
!
Do not run cold engine at high engine
speeds. Running a cold engine at high engine
speeds may shorten the service life of the en-
gine.
!
Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
i
To signal minor directional changes, e.g.
passing or changing lanes, move combination
switch to point of resistance only and release.
The corresponding turn signal flashes three
times.


363 Controls in detail
Driving and parking

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle in a safe location as
soon as possible and turn off the en-
gine. Allow engine and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 497).
In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Move away from vehicle.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.
Parking
i
Excessive coolant temperatures trigger a
warning message in the multifunction display
(
page 588).
Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering systems. In this case, it is impor-
tant to keep in mind that a considerably
higher degree of effort is necessary to brake
and steer the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay, or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Press the parking brake handle.


Shift the automatic transmission to P.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
KEYLESS-GO* start/stop button
(page 317).


Take the SmartKey or the SmartKey with
KEYLESS-GO* with you and lock vehicle
when leaving.
