25 At a glance
Exterior view
Item
Page
1
Trunk

Unlocking


Opening and closing


Minispare wheel


Vehicle tool kit
436
436
629
611
2
Rear lamps
622
3
Rear window, defrosting
430
4
Fuel filler flap
Gasoline
489
664
5
Doors

Locking and unlocking


Opening and closing
304
312
Item
Page
6
Exterior rear view mirror
Parking position
334
335
7
Towing eye bolt
General information
644
642
8
Rims and tires

Checking tire inflation
pressure


Minispare wheel


Flat tire
655
511
613
629
9
Hood, opening
Engine oil
Coolant
492
494
497
Item
Page
a
Headlamp cleaning system
346
b
Front lamps
622
c
Windshield wipers
Wiper blades, replacing
Wiper blades, cleaning
351
627
540
d
Window, cleaning
540
e
Roofs

Power tilt/sliding sunroof


Panorama roof with power
tilt/sliding panel*
441
443

29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
378
2
Fuel gauge with:
Fuel tank reserve warning
lamp
AHigh beam headlamp
indicator lamp
-ABS indicator lamp
=SRS indicator lamp
550
346
544
552
3
Parktronic*/Park Assist*
warning indicator for left
front area
407,
411
4
Speedometer with:0
USA only
!
Canada only
Parking brake
warning or indi-
cator lamps
546
Item
Page
;
USA only
3
Canada only
Brake warning
lamp
545
550
HCombination low tire
pressure*/TPMS mal-
function telltale*
553
L
Left/right turn
signal indicator
lamps
362
KvESP
® warning lamp
549
lDistance warning
lamp*
397,
549
5
Parktronic*/Park Assist*
warning indicator for right
front area
407,
411
Item
Page
6
Gear position/range indica-
tor
370
7
Tachometer with:±Engine malfunction
indicator lamp
547
8
Selected program mode indi-
cator
370
9
Main menu for control sys-
tem, multifunction display
241
a
Outside temperature
379
b
Display with:Additional speedometer
255
:Distance warner*
397,
252

33 At a glance
Center console
Lower part
Item
Page
1
Favorite button
216
2
Rear head restraints retract
button
325
3
Program mode selector
switch for:

automatic transmission
shift program


suspension tuning of
Airmatic (only S 550) or
ABC*


engine control
374
4
Shortcut button for:

radio


CD/DVD
94
111
5
Back button
87
Item
Page
6
Hazard warning flasher
348
7
Seat operation via COMAND:

Lumbar support


Multicontour seat*


Drive-dynamic
multicontour seat*
236
237
237
240
8
Shortcut button for:

telephone*


navigation
115
148
9
COMAND controller
82
a
COMAND on/off switch
79
b
Volume adjustment
89
c
Mute function
89
d
Telephone keypad
117

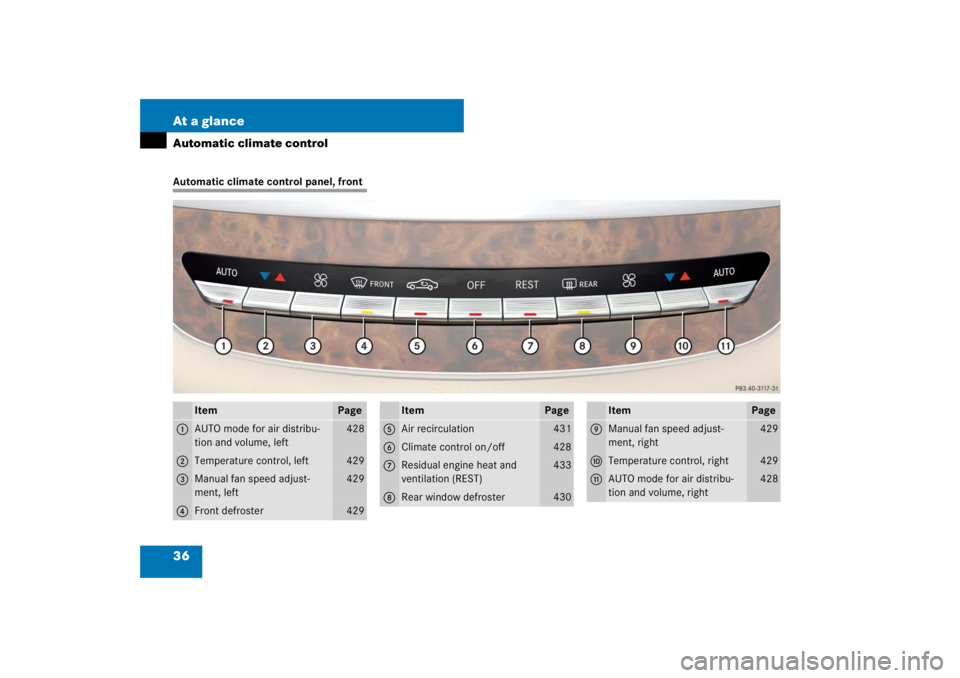

36 At a glanceAutomatic climate controlAutomatic climate control panel, front
Item
Page
1
AUTO mode for air distribu-
tion and volume, left
428
2
Temperature control, left
429
3
Manual fan speed adjust-
ment, left
429
4
Front defroster
429
Item
Page
5
Air recirculation
431
6
Climate control on/off
428
7
Residual engine heat and
ventilation (REST)
433
8
Rear window defroster
430
Item
Page
9
Manual fan speed adjust-
ment, right
429
a
Temperature control, right
429
b
AUTO mode for air distribu-
tion and volume, right
428

44 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (
page 55)


Child restraints (
page 61)


Lower anchors and tethers for children
(LATCH) (
page 64)
Additional protection potential provide


Supplemental Restraint System (SRS)
with

Air bags (
page 45)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD)
for seat belts (
page 58)


Seat belt force limiter (
page 58)


Preventive occupant safety
(PRE-SAFE
®) (page 60)Air bag system components with


The front passenger front air bag off in-
dicator lamp (
page 53)


Front passenger seat with Occupant
Classification System (OCS)
(page 50)
As independent systems, their protective
functions work in conjunction with each
other.
The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The =indicator lamp in the instrument
cluster (page 28) comes on when the
ignition is switched on and goes out no lat-
er than a few seconds after the engine has
been started.The SRS components are in operational
readiness when the =indicator lamp is
not lit when the engine is running.
A malfunction in the system has been
detected if the =indicator lamp:


fails to go out not later than approxi-
mately 4 seconds after the engine was
started


does not come on at all


comes on after the engine was started
or while driving
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 61).
Warning!
G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.

51 Safety and Security
Occupant safety
Both driver and the front passenger should
always use the 59indicator
lamp as an indication of whether or not the
front passenger is properly positioned.Warning!
G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
59indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 562).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from
the seat, remain illuminated or go out. With
the 59indicator lamp illumi-
nated, the front passenger front air bag is
deactivated. With the 59 indi-
cator lamp out, the front passenger front air
bag is activated.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


55 Safety and Security
Occupant safety
For more information, see the “Practical
hints” section (
page 555).
Seat belts
When the engine is started, the seat belt
telltale< illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passengers to fasten
your seat belts.
If after these 6 seconds, the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) are not fastened
with all doors closed,

and the vehicle speed does not exceed
15 mph (25 km/h), the seat belt
telltale< remains illuminated for as
long as either the driver’s or front
passenger’s seat belt is not fastened.


and the vehicle speed exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
intensity until both the driver’s and
front passenger’s seat belt are fas-
tened, or for a maximum of 60 seconds
from the time the vehicle speed exceeded 15 mph (25 km/h) if either
the driver’s or front passenger’s seat
belt remains unfastened.
If the driver’s or front passenger’s seat
belt remains unfastened after
60 seconds, the seat belt telltale<
stops flashing and the warning chime
stops sounding. The seat belt
telltale< then continues to be illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt are
not fastened.
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a front door is opened.
For more information, see “Practical hints”
(
page 550).
Always wear your seat belt. All vehicle
occupants always need to have their seat
belts fastened and wear them properly.
Warning!
G
Never place anything between seat cushion
(e.g. pillow), since it reduces the effective-
ness of the Occupant Classification System.
The bottom of the child seat must make full
contact with the passenger seat cushion. An
incorrectly mounted child seat could cause
injuries to the child in case of an accident,
instead of increasing protection for the
child.
Follow the manufacturer’s instructions for
installation of child seats.

69 Safety and Security
Driving safety systems
Driving safety systems
This section contains information about
Adaptive Brake Lights as well as the follow-
ing driving safety systems:

ABS (A
ntilock B
rake S
ystem)


Adaptive Brake


BAS (B
rake A
ssist S
ystem)


BAS Plus* (B
rake A
ssist S
ystem Plus*)


EBP (E
lectronic B
rake P
roportioning)


ESP
® (E
lectronic S
tability P
rogram)


ETS (E
lectronic T
raction S
ystem)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
The - indicator lamp in the instrument
cluster (
page 28) comes on when you
switch on the ignition (
page 315). It goes
out when the engine is running.
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.

Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, BAS Plus*, EBP, ESP
® and
ETS cannot reduce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.i
In winter operation, the maximum effective-
ness of the ABS, Adaptive Brake, BAS,
BAS Plus*, EBP, ESP
® and ETS is only achieved
with winter tires (
page 530), or snow chains
as required.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.
