2007 MERCEDES-BENZ S CLASS fog light bulb

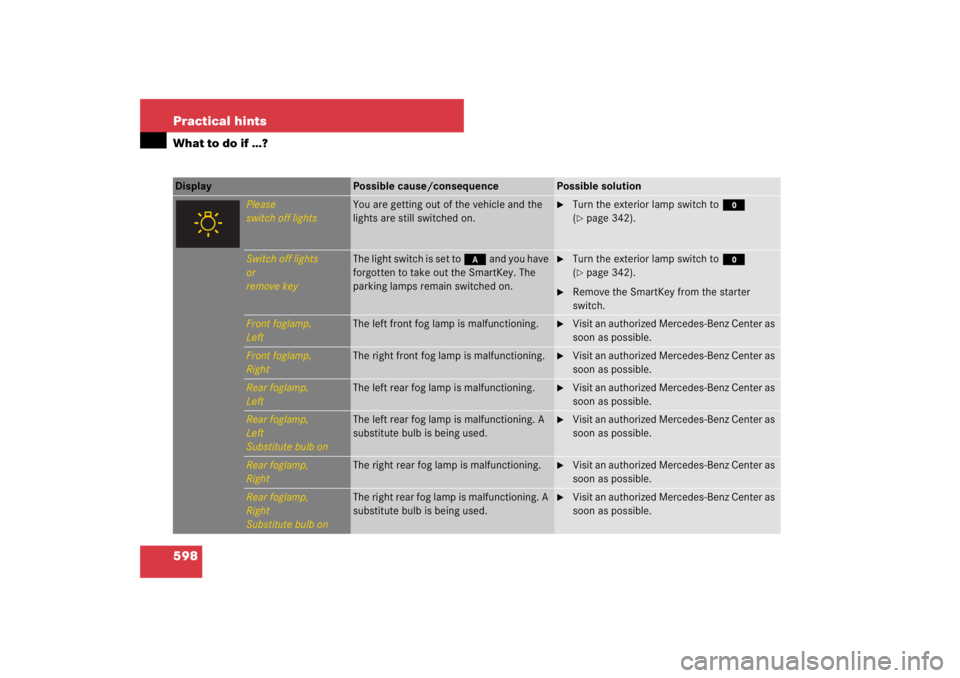

598 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Please
switch off lights
You are getting out of the vehicle and the
lights are still switched on.

Turn the exterior lamp switch to M
(page 342).
Switch off lights
or
remove key
The light switch is set to * and you have
forgotten to take out the SmartKey. The
parking lamps remain switched on.

Turn the exterior lamp switch to M
(page 342).

Remove the SmartKey from the starter
switch.
Front foglamp,
Left
The left front fog lamp is malfunctioning.

Visit an authorized Mercedes-Benz Center as
soon as possible.
Front foglamp,
Right
The right front fog lamp is malfunctioning.

Visit an authorized Mercedes-Benz Center as
soon as possible.
Rear foglamp,
Left
The left rear fog lamp is malfunctioning.

Visit an authorized Mercedes-Benz Center as
soon as possible.
Rear foglamp,
Left
Substitute bulb on
The left rear fog lamp is malfunctioning. A
substitute bulb is being used.

Visit an authorized Mercedes-Benz Center as
soon as possible.
Rear foglamp,
Right
The right rear fog lamp is malfunctioning.

Visit an authorized Mercedes-Benz Center as
soon as possible.
Rear foglamp,
Right
Substitute bulb on
The right rear fog lamp is malfunctioning. A
substitute bulb is being used.

Visit an authorized Mercedes-Benz Center as
soon as possible.

621 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
i
If the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.
i
Substitute bulbs will be brought into use
when the following lamps malfunction:


Brake lamps


Rear fog lamps


Front parking lamps


Tail lamps


Turn signal lamps
Observe the messages in the multifunction dis-
play (page 557).

623 Practical hints
Replacing bulbs
Notes on bulb replacement


Only use 12-volt-bulbs of the same
type and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.


the Bi-Xenon lamps


the front turn signal lamps


the front fog lamps


the additional turn signal lamps in the
exterior rear view mirrors


the parking and standing lamps


the front side marker lamps


the high mounted brake lamps


the brake, tail and rear standing lamps


the rear side marker lamps


the rear fog lamp


the rear turn signal lamps


the rear side marker lamps


the license plate lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to M
(page 342).

Open the hood (
page 492) (except
for side marker lamps).
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
i
Have the headlamp adjustment checked
regularly.

686 IndexETD 58, 672
Safety guidelines 47
Exterior lighting
Delayed switch-off (COMAND) 220
Locator lighting (COMAND) 221
Exterior rear view mirrors
Adjusting 332
Auto-dimming on the driver’s
side 334
Fold in automatically when locking
(COMAND) 222
Lower mirror when reversing
(COMAND) 222
Power folding 333
F
Favorite button 216
First aid kit 611
Flat tire 629
Jacking up the vehicle 630
Lowering the vehicle 633
Mounting the Minispare wheel 629
Preparing the vehicle 629
Flexible Service System see FSS
Fluids
Automatic transmission fluid 661
Brake fluid 662, 663Capacities 661
Engine coolant 497, 662, 665
Engine oil 496, 661, 663
Power steering fluid 661
Windshield washer and headlamp
cleaning system 662, 668
Fog lamps
Messages in display 598
Replacing bulbs 622
Front air bags 49
Front lamps
Replacing bulbs 622, 623
Front lamps see headlamps
Front passenger front air bag 49
Front passenger front air bag off indicator
lamp 53, 555
FSS (Canada vehicles) 532
Fuel 490, 662, 664
Additives 665
Capacity, Fuel tank 662
Filling the tank 489
Fuel filler flap and cap 489
Fuel reserve warning lamp 29, 550
Premium unleaded gasoline 490,
662, 664
Requirements, Octane rating 664Fuel cap
Message in display 591
Fuel consumption statistics
After start 245
Since last reset 245
Fuel filler flap 489
Locking/Unlocking 489
Fuel tank
Capacity 662
Filler flap 489
Fuels, coolants, lubricants etc.
Capacities 661
Fuses 645
Aids for replacing fuses 646
Fuse box in engine compartment 646
Fuse box in passenger
compartment 647
Fuse boxes in dashboard 647
Fuse chart (vehicle tool kit) 611
Fuse extractor (vehicle tool kit) 611
Replacing 645
Spare fuses (vehicle tool kit) 611
