418 Controls in detailDriving systems
Use the COMAND controller
(page 82) to select “parallel parking”
function2.
You will see the guide lines for parallel
parking on the COMAND display.

Back up carefully parallel to parked car
until the respective vertical blue guide
line1 is at the end of the parked vehi-
cle next to you.

Stop the vehicle.1Vertical blue guide line
3Extended blue guide line
4Blue guide lines for vehicle contour

With the vehicle at a standstill, turn
steering wheel in parking direction until
blue guide lines3 and 4 appear and
the rectangle formed by guide lines 4
shows the desired parking position. If
another vehicle is located next to you,
the extended blue guide line4 must
just touch the corresponding vertical
blue guide line1.
Warning!
G
If the respective vertical guide line1 is not
yet located at the end of the parked vehicle
and you are already turning into the parking
space, you could collide with the parked ve-
hicle. Stop the parking procedure immedi-
ately. Pull out of the parking space and start
the parking procedure over again.
i
If an obstacle is inside of or protrudes into
the area marked by blue guide lines4 for the
vehicle, the parking space is too small for the ve-
hicle.
i
If you turn the steering wheel too far, the
message “Steering wheel turned too far. Please
adjust steering wheel” appears on the COMAND
display. Turn the steering wheel back until the
message disappears and the extended blue
guide line4 intersects with vertical blue guide
line1.
If you back up using the wrong wheel angle, the
following appears in the COMAND display:
“Steering wheel turned too far. Park Assist dis-
abled.”. Pull out of the parking space and start
the parking procedure over again.


419 Controls in detail
Driving systems
5Bent blue guide line
Back up with the set wheel angle.
The guide lines in the COMAND display
disappear. After a short distance, the
bent blue guide line5 appears.

Back up until bent guide line5 inter-
sects the edge of the parking space,
e.g. the curb.

Stop the vehicle.
6Yellow and red guide lines for cornering
7Blue guide line for straight driving

With the vehicle at a standstill, turn
steering wheel as far as it will go in the
opposite direction.
The guide lines for straight driving7
and cornering6 appear in the
COMAND display.

Back up using the set wheel angle until
blue guide line7 for straight driving is
parallel to the edge of the parking
space, e.g. the curb.

Now straighten out steering wheel and
back up until you still have just enough
room behind the vehicle.
While doing so, observe
Parktronic* (
page 405) or Park As-
sist* (
page 409) warning indicators.
i
If you turn the steering wheel while backing
up, the following appears in the COMAND dis-
play: “The steering wheel position has been
changed. Park Assist disabled.”. Pull out of the
parking space and start the parking procedure
over again.

438 Controls in detailTrunkClosing trunk from inside
automatically*In vehicles with trunk opening/closing sys-
tem* you can close the trunk from the in-
side using the remote trunk opening/
closing* switch.1Remote trunk opening/closing* switch
(vehicles with trunk opening/closing
system*)

Press and hold switch1 until the
trunk is closed.
The indicator lamp in the switch goes
out when the trunk is closed.
To interrupt the closing procedure:

Release switch1.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
lid opening when closing the trunk. Be espe-
cially careful when small children are
around.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.Warning!
G
Maintain sight of trunk area while operating
door mounted switch. Monitor the closing
procedure carefully to make sure no one is
in danger of being injured.
To interrupt the closing procedure, release
the door mounted remote trunk open-
ing/closing* switch again.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the remote trunk
opening/closing* switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
i
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has been
piled too high) in the upper motion sequence, the
closing procedure is stopped and the trunk re-
opens slightly.

439 Controls in detailTrunk
Closing trunk from outside
automatically*
In vehicles with trunk opening/closing sys-
tem* you can close the trunk separately
from the outside using the trunk closing
switch.
Vehicles without KEYLESS-GO*1Trunk closing switch
Vehicles with KEYLESS-GO*1Trunk closing switch
Press trunk closing switch1 briefly.
The trunk closes.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk lid opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press button Š on the SmartKey


press the trunk opening/closing*
switch (on the driver’s door)


press trunk closing switch


press the KEYLESS-GO locking/closing
switch*
Even with the SmartKey removed from the
starter switch, the trunk opening/closing*
switch can be operated. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
i
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has been
piled too high) in the upper motion sequence, the
closing procedure is stopped and the trunk re-
opens slightly.

442 Controls in detailPower tilt/sliding sunroof1Push back to slide sunroof open
2Push forward to slide sunroof closed
3Push up to raise sunroof at rear
4Pull down to lower sunroof at rear
With the sunroof closed or tilted open, a
screen can be slid into the roof opening to
help provide shade. When sliding the sun-
roof open, the screen will also retract.
Switch on the ignition (
page 315).

To open, close, raise or lower, move the
switch to resistance point in the re-
quired direction1to4 until the
tilt/sliding sunroof has reached the de-
sired position.

Express-operation: To open, close,
raise or lower, move the switch past
the resistance point in the required
direction1to4 and release.
The tilt/sliding sunroof opens or closes
completely.

Stopping during Express-opening/
closing: Move the switch in any direc-
tion.
Synchronizing
The tilt/sliding sunroof must be synchro-
nized

after the tilt/sliding sunroof has been
closed manually (
page 617)


if the tilt/sliding sunroof can only be
opened with a jerking motion


after a malfunction

Switch on the ignition (
page 315).

Press and hold the sunroof switch in
the direction of arrow3 until the
tilt/sliding sunroof is fully raised at the
rear.
Keep holding the sunroof switch in the
direction of arrow3 for approximately
1 second.

Check the Express-operation feature
(page 442).
If the tilt/sliding sunroof opens com-
pletely, the sunroof is synchronized.
Otherwise repeat the above steps.
i
With the SmartKey in starter switch
position0 or removed from the starter switch,
the tilt/sliding sunroof can be operated


until you open the driver’s or passenger door


for up to approximately 5 minutes
i
If the movement of the tilt/sliding sunroof is
blocked during the closing procedure, the sun-
roof will stop and reopen slightly.
!
Do not open the tilt/sliding sunroof com-
pletely if it is not aligned. Otherwise you could
damage the tilt/sliding sunroof.

457 Controls in detail
Useful features
Opening ashtray
Press mark on cover plate2 forward.
Removing ashtray insert

Push sliding button1 to the left.
The ashtray is disengaged and slides
out a short way.

Remove the insert from the ashtray
frame.
Reinstalling ashtray insert

Install the insert by pushing it back into
the frame until it engages.
Closing ashtray

Briefly press mark on cover plate2
forward.
Rear door ashtray
Opening ashtray

Lift up the cover.Removing ashtray insert
1Insert

Press the open cover outwards beyond
the stop.
Ashtray insert1 pops out of the hold-
er.

Remove insert by pulling it upward.
Reinstalling ashtray insert

Install the insert by pushing it back into
the frame until it engages.
Cigarette lightersWarning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
Make sure that any children traveling with
you do not injure themselves or start a fire
with the hot cigarette lighter.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
To avoid possible injury to children sitting in
the rear seat, activate the override switch
(page 67). Activation of the override
switch deactivates the rear center console
lighter.

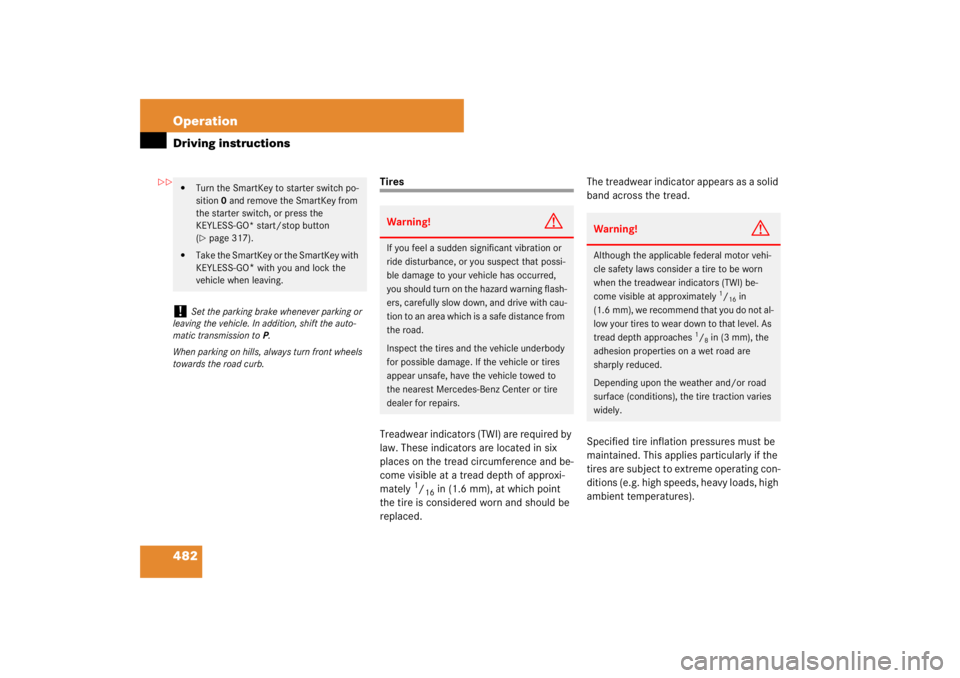

482 OperationDriving instructions
Tires
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and be-
come visible at a tread depth of approxi-
mately
1/16
in (1.6 mm), at which point
the tire is considered worn and should be
replaced.The treadwear indicator appears as a solid
band across the tread.
Specified tire inflation pressures must be
maintained. This applies particularly if the
tires are subject to extreme operating con-
ditions (e.g. high speeds, heavy loads, high
ambient temperatures).


Turn the SmartKey to starter switch po-
sition 0 and remove the SmartKey from
the starter switch, or press the
KEYLESS-GO* start/stop button
(page 317).


Take the SmartKey or the SmartKey with
KEYLESS-GO
* with you and lock the
vehicle when leaving.
!
Set the parking brake whenever parking or
leaving the vehicle. In addition, shift the auto-
matic transmission to P.
When parking on hills, always turn front wheels
towards the road curb.
Warning!
G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
tio n to an a rea whic h is a s afe d ista nc e fro m
the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have the vehicle towed to
the nearest Mercedes-Benz Center or tire
dealer for repairs.
Warning!
G
Although the applicable federal motor vehi-
cle safety laws consider a tire to be worn
when the treadwear indicators (TWI) be-
come visible at approximately
1/16 in
(1.6 mm), we recommend that you do not al-
low your tires to wear down to that level. As
tread depth approaches
1/8 in (3 mm), the
adhesion properties on a wet road are
sharply reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.


495 Operation
Engine compartment

If necessary, add engine oil.
For adding engine oil (
page 496).
For more information on engine oil, see the
“Technical data” section (page 661) and
(
page 663).
Other display messages
If the SmartKey or KEYLESS-GO* start/
stop button is not in position 2, the follow-
ing message will appear:
For engine oil level,
turn on ignition

Switch on the ignition (
page 315).
If you see the message
Waiting period for,
engine oil level
not complete

If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message
Engine oil level
Not when engine on

Turn off the engine.

If the engine is at operating tempera-
ture, wait 5 minutes before checking
oil.

If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.
If there is excess engine oil with the engine
at operating temperature, the following
message will appear:
Engine oil level
Reduce oil level

Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 602).
Checking engine oil level with the oil
dipstick (S 550)
When checking the oil level


the vehicle must be parked on level
ground


with the engine at operating tempera-
ture, the vehicle must have been sta-
tionary for at least 5 minutes with the
engine turned off


with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned off
!
Excess oil must be siphoned or drained off.
It could cause damage to the engine and catalyt-
ic converter (gasoline engine) not covered by the
Mercedes-Benz Limited Warranty.
