2007 MERCEDES-BENZ S CLASS automatic transmission fluid

ContentsStarter switch positions ..................... 315
SmartKey ..................................... 315
SmartKey with KEYLESS-GO*....... 316
Seats.................................................. 318
Seat adjustment ........................... 318
Seat heating* ............................... 322
Seat ventilation* .......................... 323
Head restraints............................. 324
Multicontour seats*, rear ............. 327
Easy-entry/exit feature ................ 328
Steering wheel ................................... 330
Steering wheel adjustment........... 330
Heated steering wheel* ............... 331
Mirrors ............................................... 332
Interior rear view mirror ............... 332
Exterior rear view mirrors ............. 332
Power folding exterior rear view
mirrors ......................................... 333
Auto-dimming rear view mirrors ... 334
Activating exterior rear view
mirror parking position ................. 335
Memory function................................ 336
Storing positions into memory ..... 337
Recalling positions from memory . 337
Storing exterior rear view mirror
parking position ........................... 338Fastening the seat belts .................... 339
Proper use of seat belts ............... 341
Seat belt height adjustment ......... 341
Lighting.............................................. 342
Exterior lamp switch..................... 342
Combination switch ..................... 346
Corner-illuminating lamps ............ 347
Hazard warning flasher ................ 348
Interior lighting............................. 348
Courtesy lighting .......................... 350
Door entry lamps ......................... 350
Trunk lamp ................................... 350
Windshield wipers.............................. 351
Switching on/off windshield
wipers .......................................... 351
Intermittent wiping....................... 352
Single wipe................................... 352
Wiping with windshield washer
fluid .............................................. 352
Power windows.................................. 353
Opening and closing power
windows ....................................... 353
Rear side window sunshades* ..... 355
Summer opening feature.............. 355
Convenience closing feature ........ 356Driving and parking ........................... 359
Starting the engine ...................... 359
Driving off .................................... 361
Turn signals.................................. 362
Problems while driving ................. 362
Parking......................................... 363
Turning off the engine .................. 365
Releasing seat belts ..................... 366
Automatic transmission..................... 367
Gear selector lever....................... 367
Shifting procedure ....................... 369
Automatic transmission positions 370
Gear ranges ................................. 372
Driving tips................................... 373
Automatic shift program .............. 374
Steering wheel gearshift control .. 375
Emergency operation
(Limp-Home Mode) ...................... 377
Instrument cluster ............................. 378
Adjusting instrument cluster and
COMAND display illumination ...... 378
Coolant temperature gauge ......... 378
Tachometer.................................. 379
Outside temperature indicator ..... 379
Fuel gauge ................................... 379

481 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
park, so that the air stream can cool down
the brakes faster.
Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
When starting off on a slippery surface, do
not allow a drive wheel to spin for an ex-
tended period with the ESP
® switched off.
Doing so may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Parking
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!
When driving down long and steep grades,
relieve the load on the brakes by shifting into a
lower gear to use the engine’s braking power.
This helps prevent overheating of the brakes and
reduces brake pad wear.
When using the engine’s braking power, a drive
wheel may not spin for an extended period of
time, e.g. on slippery road surfaces. This may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited War-
ranty.
!
Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of inadvertent vehicle movement, be-
fore turning off the engine and leaving the
vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Shift the automatic transmission toP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


497 Operation
Engine compartment
Example illustration from S 5501Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.For more information on engine, see the
“Technical data” section (
page 661) and
(
page 663).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
!
Excess oil must be siphoned or drained off.
It will cause damage to the engine and catalytic
converter not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

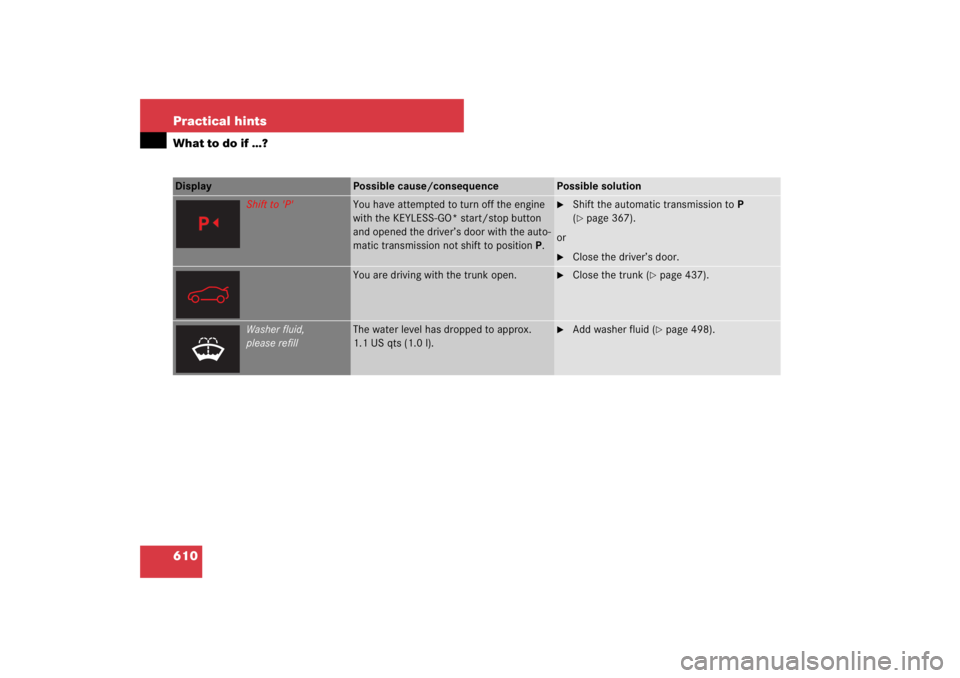

610 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Shift to 'P'
You have attempted to turn off the engine
with the KEYLESS-GO* start/stop button
and opened the driver’s door with the auto-
matic transmission not shift to positionP.

Shift the automatic transmission toP
(page 367).
or

Close the driver’s door.
You are driving with the trunk open.

Close the trunk (
page 437).
Washer fluid,
please refill
The water level has dropped to approx.
1.1 US qts (1.0 l).

Add washer fluid (
page 498).

661 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Warning!
G
Comply with all valid regulations with re-
spect to handling, storing and disposing of
service fluids. Otherwise you could endan-
ger persons or the environment.
Keep service fluids out of the reach of chil-
dren.
If a service fluid is swallowed, contact a phy-
sician immediately.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Never allow sparks, flame or smoking
materials near gasoline!
Do not allow fuel to come into contact with
skin or clothing. Direct skin contact with fu-
els and the inhalation of fuel vapors are
damaging to health.
Switch off the engine before refueling.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
S 550
S 600
8.98 US qt. (8.5 l)
9.51 US qt. (9.0 l)
Approved engine oils
Automatic transmission
S 550
S 600
10.36 US qt. (9.8 l)
8.14 US qt. (7.7 l)
MB Automatic Transmission Fluid
Rear axle
S 550
1.27 US qt. (1.2 l)
Hypoid gear oil SAE 85 W 90
S600
2.11 US qt. (2.0 l)
Hydraulic system for ADS or ABC
All models
4.2 US qt. (4.0 l)
MB Hydraulic Fluid
Power steering
S 550
approx. 1.06 US qt. (1.0 l)
MB Power Steering Fluid
(Pentosin CHF 11S)
S 600
approx. 1.27 US qt. (1.2 l)

680 IndexAquaplaning see Hydroplaning
Armrest 448, 450
Ashtrays 456
Aspect ratio 526
Audio (COMAND) 104
CD mode 111
DVD mode 111
MP3 mode 111
Audio (Control system instrument
cluster) 248
CD changer 249
DVD changer 249
Audio DVD
Fast forward/rewind (COMAND) 113
Menu overview (COMAND) 110
Pause function (COMAND) 112
Stop function (COMAND) 112
Auto-dimming, Rear view mirrors 334
Automatic climate control 424
Adjusting air distribution
(COMAND) 230
Adjusting air flow from air vents
(COMAND) 233
Adjusting air volume (COMAND) 230
Adjusting the footwell temperature
(COMAND) 232Air recirculation mode 431
Central climate control menu
(COMAND) 231
Central menu for rear climate control*
(COMAND) 234
Defrosting 429
Operating the rear climate control*
from the front 234
Operating via COMAND 229
Rear window defroster 430
Selecting Mono mode
(COMAND) 232
Setting temperature (COMAND) 230
Setting the temperature 429
Setting the temperature in the rear
passenger compartment 435
Switching cooling on or off
(COMAND) 231
Automatic headlamp mode 255, 343
Automatic lighting control, Interior
lighting 349
Automatic locking when driving 313
Automatic shift program 374
Automatic transmission
Accelerator position 373
Automatic shift program 374Emergency operation (limp-home
mode) 377
Fluid 661
Fluid level 497
Gear ranges 372
Gear selector lever 367
Gear shifting malfunctions 377
Hill start assist system 374
Kickdown 373
Program mode selector switch 374
Shifting procedure 369
Starting the engine 359
Steering wheel gearshift control 375
Transmission fluid 497
Transmission positions 370
B
Backup lamps
Replacing bulbs 622
Bar 526
BAS 71
Batteries, SmartKey
Checking battery condition 311
Replacing 619
Batteries, SmartKey with KEYLESS-GO*
Checking battery condition 311
Replacing 619

686 IndexETD 58, 672
Safety guidelines 47
Exterior lighting
Delayed switch-off (COMAND) 220
Locator lighting (COMAND) 221
Exterior rear view mirrors
Adjusting 332
Auto-dimming on the driver’s
side 334
Fold in automatically when locking
(COMAND) 222
Lower mirror when reversing
(COMAND) 222
Power folding 333
F
Favorite button 216
First aid kit 611
Flat tire 629
Jacking up the vehicle 630
Lowering the vehicle 633
Mounting the Minispare wheel 629
Preparing the vehicle 629
Flexible Service System see FSS
Fluids
Automatic transmission fluid 661
Brake fluid 662, 663Capacities 661
Engine coolant 497, 662, 665
Engine oil 496, 661, 663
Power steering fluid 661
Windshield washer and headlamp
cleaning system 662, 668
Fog lamps
Messages in display 598
Replacing bulbs 622
Front air bags 49
Front lamps
Replacing bulbs 622, 623
Front lamps see headlamps
Front passenger front air bag 49
Front passenger front air bag off indicator
lamp 53, 555
FSS (Canada vehicles) 532
Fuel 490, 662, 664
Additives 665
Capacity, Fuel tank 662
Filling the tank 489
Fuel filler flap and cap 489
Fuel reserve warning lamp 29, 550
Premium unleaded gasoline 490,
662, 664
Requirements, Octane rating 664Fuel cap
Message in display 591
Fuel consumption statistics
After start 245
Since last reset 245
Fuel filler flap 489
Locking/Unlocking 489
Fuel tank
Capacity 662
Filler flap 489
Fuels, coolants, lubricants etc.
Capacities 661
Fuses 645
Aids for replacing fuses 646
Fuse box in engine compartment 646
Fuse box in passenger
compartment 647
Fuse boxes in dashboard 647
Fuse chart (vehicle tool kit) 611
Fuse extractor (vehicle tool kit) 611
Replacing 645
Spare fuses (vehicle tool kit) 611

687 Index
G
Garage door opener 470
Gasoline see Fuel
GAWR 526
Gear range 673
Automatic transmission 372
Limiting 372
Shifting into optimal 376
Gear selector lever 367
Gearshift pattern 367
Messages in display 562, 566, 567,
569, 610
Position 369
Shifting procedure 369
Transmission position 370
Global Positioning System see GPS
Glove box 448
Gloves, Vehicle tool kit 611
GPS 673
Reception (COMAND) 145
Tele Aid 462
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight Rating see GVWR
Gross Vehicle Weight see GVW
GVW 526
GVWR 527H
Hands-free microphone 37
Hard plastic trim items, Cleaning 542
Hazard warning flasher 348
Head restraints 324
Adjustment 324
Folding back and placing upright rear
head restraints 325
Front seat 324
Luxury active head restraints
(S600 only) 59
Rear seat 325
Resetting activated luxury active head
restraints (S600 only) 618
Headlamp cleaning system 346, 498
Washer fluid 662, 668
Headlamps
Automatic control 343
Automatic headlamp mode 255
Cleaning lenses 537
Cleaning system 498
Manual headlamp mode 255
Messages in display 595
Refilling washer fluid 499
Headliner and shelf below rear window,
Cleaning and care of 542Heated seats* 322
Heated steering wheel* 331
Height adjustments
Vehicle level (ABC*) 403
High beam
Replacing bulbs 622
High beam flasher 347
High beam headlamps
Switching on 346
High mounted brake lamp 622
Hood 492
Message in display 591
Opening 492
Horn 27
Hydroplaning 483
I
Identification labels 652
Identification Number, Vehicle (VIN) 652
Ignition 315, 317
Switching on 315
Switching on, KEYLESS-GO* 317
Immobilizer 75
Indicator lamps see Lamps, indicator and
warning
Individualization
Voice Control* 302
