2007 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (368,1)
Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You
can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-8) in this booklet.
9-38
Customer Information and Reporting Safety Defects
Reporting Safety Defects
RX-8_8V89-EA-06F_Edition1 Page368
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (369,1)

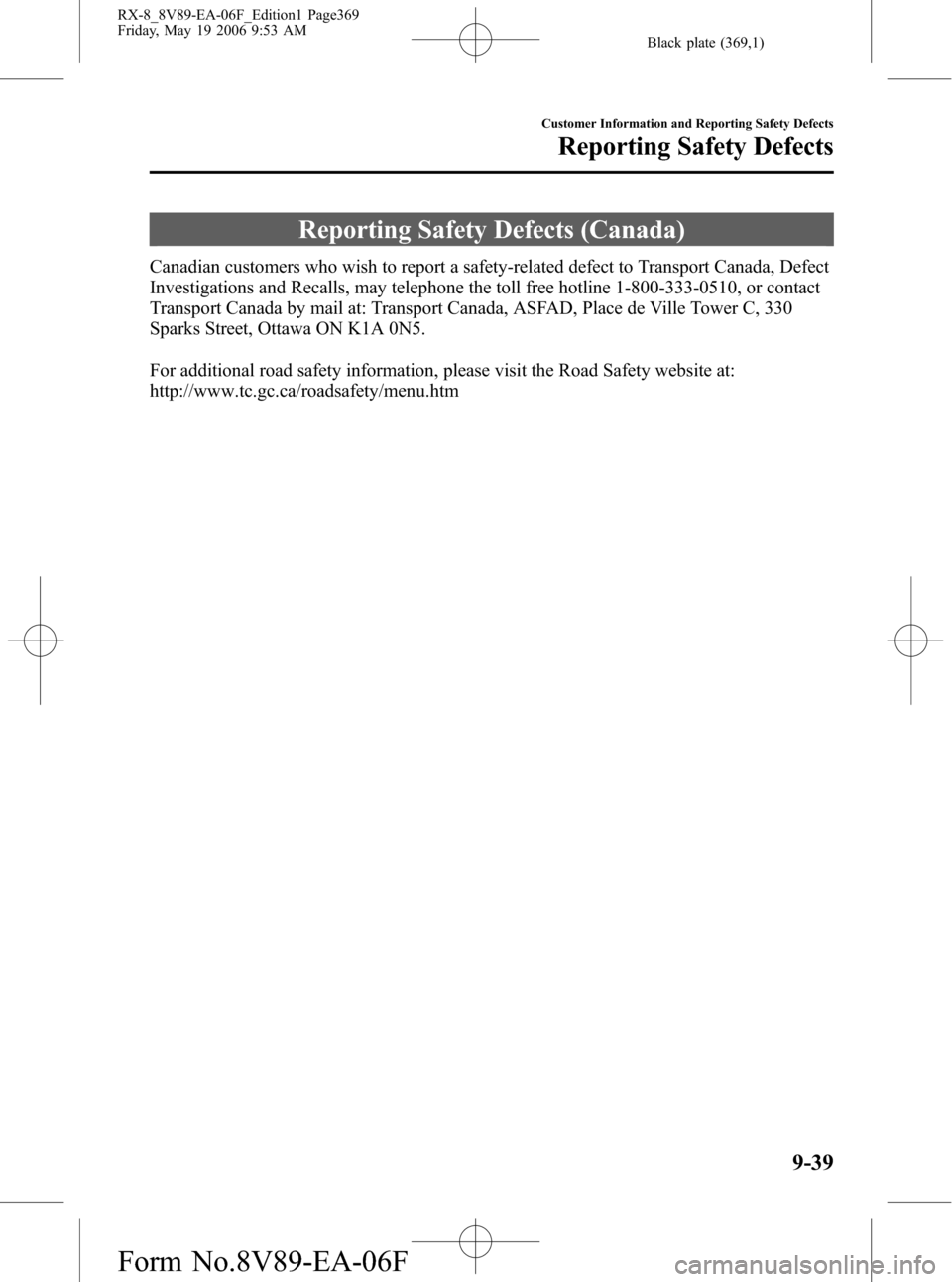

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-39
RX-8_8V89-EA-06F_Edition1 Page369
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (370,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-064B-07 2007 WORKSHOP MANUAL (English)
9999-95-040G-07 2007 WIRING DIAGRAM (English)
9999-95-079C-07 (U.S.A. only) 2007 OWNER'S MANUAL
9999-EC-079C-07 (Canada only) 2007 OWNER'S MANUAL
9999-PR-079C-07 (Puerto Rico only) 2007 OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-40
Customer Information and Reporting Safety Defects
Service Publications
RX-8_8V89-EA-06F_Edition1 Page370
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (371,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
10-1
RX-8_8V89-EA-06F_Edition1 Page371
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (372,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
10-2
Identification Numbers
RX-8_8V89-EA-06F_Edition1 Page372
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (373,1)
qTire Pressure Label
qEngine Number
Forward
Identification Numbers
10-3
RX-8_8V89-EA-06F_Edition1 Page373
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (374,1)
Specifications
qEngine
Item Model
Type Rotary engine
Displacement 654 ml × 2 (654 cc × 2, 40.0 cu in × 2)
Compression ratio 10.0
qElectrical System
Item Classification
Battery 12V-52AH/5HR
Spark-plug numberTrailing side N3Y1 18 110, N3H1 18 110C
*1
Leading side N3Y8 18 110, N3Y9 18 110, N3H5 18 110*1
Spark-plug gap 1.15―1.25 mm (0.046―0.049 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-12.
Manual transmission oil API Service GL-4 (SAE 75W-90)
Automatic transmission fluid JWS3309
Rear differential oilAPI Service GL-5 (SAE 90)
API Service GL-5 (SAE 80W-90)
API Service GL-5 (SAE 75W-90)
*
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
* Not available from Mazda
10-4
Specifications
RX-8_8V89-EA-06F_Edition1 Page374
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F

Black plate (375,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 3.5 L (3.7 US qt, 3.1 Imp qt)
Without oil filter replacement 3.3 L (3.5 US qt, 2.9 Imp qt)
Coolant 9.8 L (10.4 US qt, 8.6 Imp qt)
Manual transmission oil 1.75 L (1.85 US qt, 1.54 Imp qt)
Automatic transmission fluid 7.9 L (8.4 US qt, 7.0 Imp qt)
Rear differential oil 1.3 L (1.4 US qt, 1.1 Imp qt)
Fuel tank 60 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Model
Overall length 4,425 mm (174.2 in), 4,430 mm*(174.4 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread 1,500 mm (59.1 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,700 mm (106.3 in)
*With license plate holder
qWeights
ItemWeight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,728 kg (3,810 lbs) 1,748 kg (3,854 lbs)
GAWR (Gross Axle Weight Rating)Front 827 kg (1,823 lbs) 844 kg (1,861 lbs)
Rear 901 kg (1,986 lbs) 907 kg (2,000 lbs)
CW (Curb Weight)U.S.A. 1,381 kg (3,045 lbs) 1,395 kg (3,075 lbs)
Canada 1,389 kg (3,062 lbs) 1,404 kg (3,095 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.42 kg (14.8 oz)
Specifications
10-5
RX-8_8V89-EA-06F_Edition1 Page375
Friday, May 19 2006 9:53 AM
Form No.8V89-EA-06F
