2007 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (104,1)
qClosing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
3-40
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page104
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (105,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Doors and Locks
3-41
RX-8_8V89-EA-06F_Edition1 Page105
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (106,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Slide the hood latch to the right and lift
the hood.
3. Grasp the support rod and secure it in
the stay hole indicated by the arrow to
hold the hood open.
Clip
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
3-42
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page106
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (107,1)

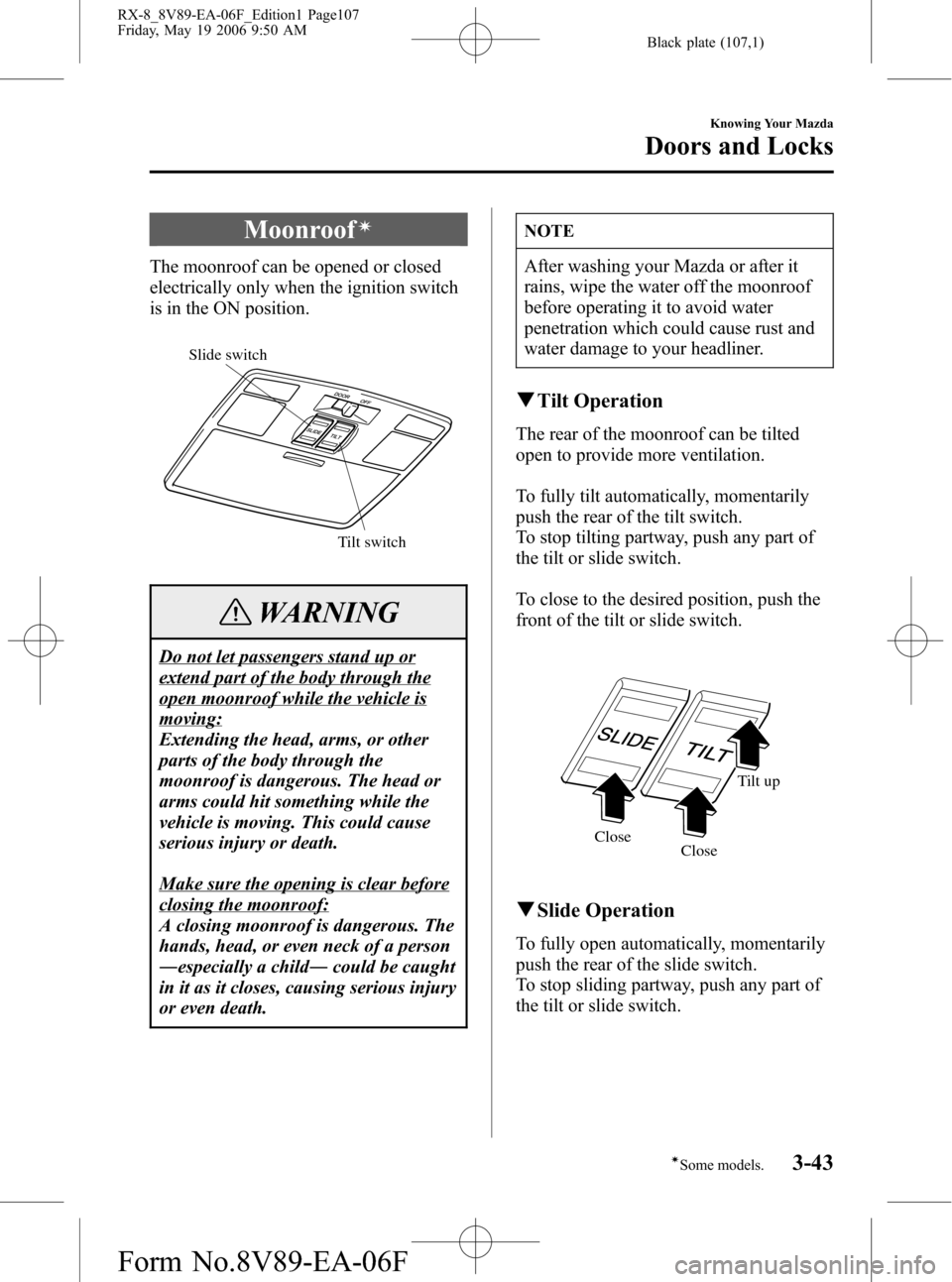

Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person
―especially a child―could be caught
in it as it closes, causing serious injury
or even death.
NOTE
After washing your Mazda or after it
rains, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
push the rear of the tilt switch.
To stop tilting partway, push any part of
the tilt or slide switch.
To close to the desired position, push the
front of the tilt or slide switch.
CloseTilt up
Close
qSlide Operation
To fully open automatically, momentarily
push the rear of the slide switch.
To stop sliding partway, push any part of
the tilt or slide switch.
Knowing Your Mazda
Doors and Locks
3-43íSome models. RX-8_8V89-EA-06F_Edition1 Page107
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (108,1)
To close to the desired position, push the
front of the tilt or slide switch.
Close CloseOpen
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
The sunshade does not tilt. To avoid
damaging the sunshade, do not push up
on it.
3-44
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page108
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (109,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction. Otherwise
the signal from the auxiliary key will
not be received correctly and the engine
may not start.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
lEquipment containing electronic
components or cards with magnetic
strips such as credit cards come near
the auxiliary key.
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
Knowing Your Mazda
Security System
3-45
RX-8_8V89-EA-06F_Edition1 Page109
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (110,1)
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lThe engine may not start and the
security indicator light may
illuminate or flash if the advanced
key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard, or
in the glove box. Move the advanced
key to another place, turn the
ignition switch to the LOCK
position, and then restart the engine.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone could interfere with your
immobilizer system. If you are using
the proper advanced key and the
engine fails to start, check the
security indicator light. If the
indicator light is flashing, turn the
ignition switch to the ACC or LOCK
position and wait for a while, then
restart the engine. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If the engine is shut off
while the indicator light is flashing,
you won't be able to restart it.
lSince the electronic codes are reset
when repairing the immobilizer
system, the advanced key (including
auxiliary key) are needed. Bring all
the advanced keys (including
auxiliary keys) to an Authorized
Mazda Dealer.
3-46
Knowing Your Mazda
Security System
RX-8_8V89-EA-06F_Edition1 Page110
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (111,1)
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe advanced keys (including
auxiliary key) carry a unique
electronic code. For this reason, and
to assure your safety, obtaining a
replacement advanced key (including
auxiliary key) requires some waiting
time. They are only available
through an Authorized Mazda
Dealer.
lAlways keep a spare advanced key
in case one is lost. If an advanced
key is lost, consult an Authorized
Mazda Dealer as soon as possible.
lIf you lose an advanced key
(including auxiliary key), an
Authorized Mazda Dealer will reset
the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer
system. Bring all the remaining
advanced keys (including auxiliary
keys) to an Authorized Mazda
Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Knowing Your Mazda
Security System
3-47
RX-8_8V89-EA-06F_Edition1 Page111
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F
