2007 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (288,1)
qSchedule 2
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine oilPuerto Rico Replace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belt I I
AIR FILTER
Air filter C C R C
IGNITION SYSTEM
Spark plugs R
FUEL SYSTEM
Fuel filter Replace every 160,000 km (100,000 miles)
Fuel lines, hoses and connections
*1II
COOLING SYSTEM
Cooling system I I
Engine coolantFL22 type
*2Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
OthersReplace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
Engine coolant levelIIIIIIIIIIII
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
8-6
Maintenance and Care
Scheduled Maintenance
RX-8_8V89-EA-06F_Edition1 Page288
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (289,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS AND BODY
Brake lines, hoses and connections I I
Brake and clutch fluid levelIIIII IIIII
Brake fluid R R
Disc brakesIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Manual transmission oil R R
Rear differential oil R R
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Bolts and nuts on chassis and body T T
Flat tire repair kit
*3Inspect every year
AIR CONDITIONER SYSTEM
Cabin air filter (If installed) Replace every 40,000 km (25,000 miles) or 2 years
Chart symbols:
I:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
L:Lubricate
C:Clean
T:Tighten
Remarks:
*1 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*2 Use FL22 type coolant in vehicles with the inscription“FL22”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*3 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance and Care
Scheduled Maintenance
8-7
RX-8_8V89-EA-06F_Edition1 Page289
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (290,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-16)
lEngine coolant level (page 8-14)
lEngine oil level (page 8-13)
lWasher fluid level (page 8-17)
qAt Least Monthly
Tire inflation pressures (page 8-24)
qAt Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 8-14)
lEngine oil (page 8-12)
8-8
Maintenance and Care
Owner Maintenance
RX-8_8V89-EA-06F_Edition1 Page290
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (291,1)

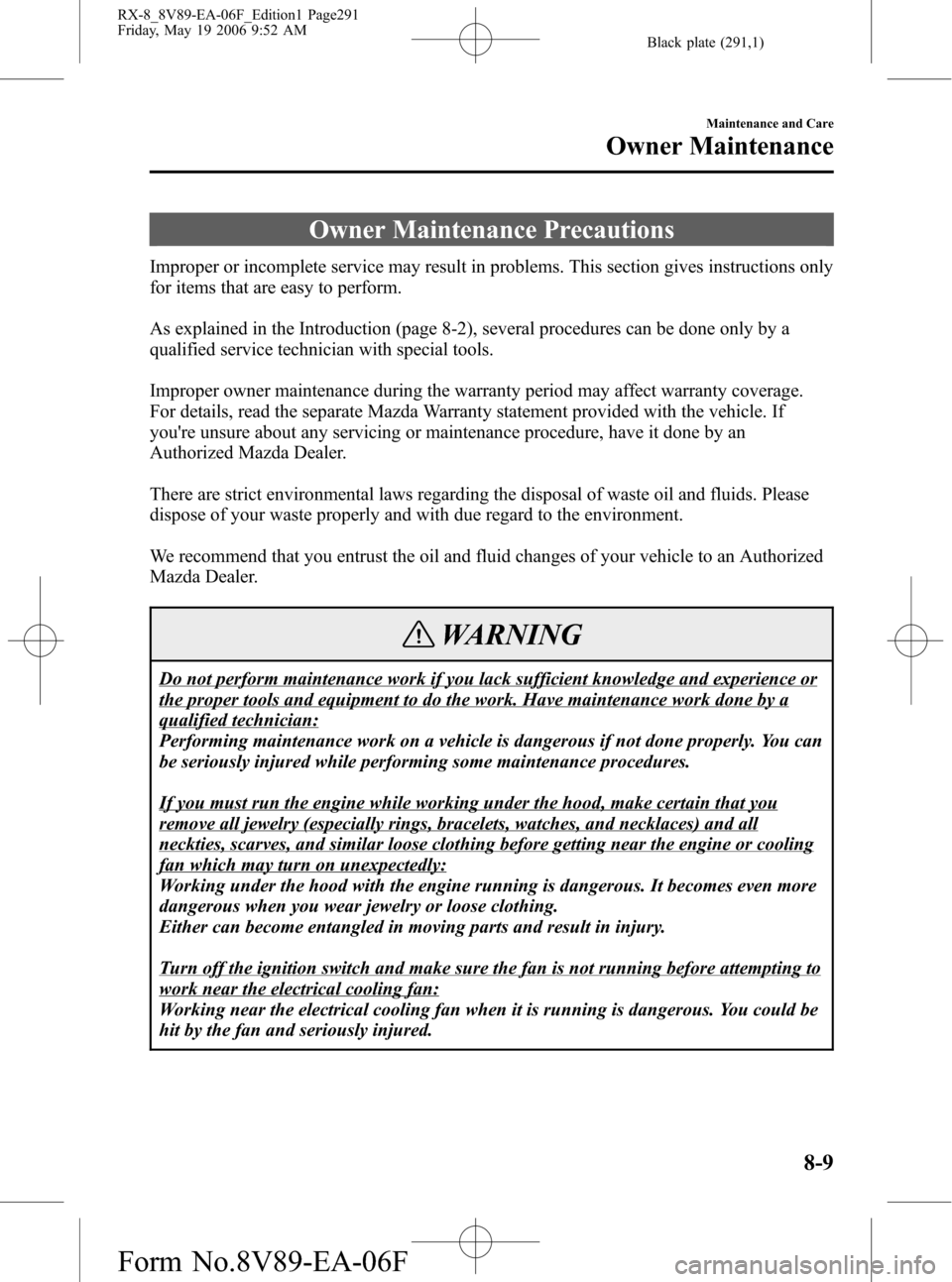

Owner Maintenance Precautions
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you're unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or
the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Turn off the ignition switch and make sure the fan is not running before attempting to
work near the electrical cooling fan:
Working near the electrical cooling fan when it is running is dangerous. You could be
hit by the fan and seriously injured.
Maintenance and Care
Owner Maintenance
8-9
RX-8_8V89-EA-06F_Edition1 Page291
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (292,1)
NOTE
Once the engine coolant exceeds a preset temperature, an electrical cooling fan turns on.
It will continue running for about 10 minutes after the ignition switch is turned to off.
8-10
Maintenance and Care
Owner Maintenance
RX-8_8V89-EA-06F_Edition1 Page292
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (293,1)
Engine Compartment Overview
BatteryEngine oil dipstick Engine oil-filler cap
Air filter Engine coolant reservoir Cooling system cap
Brake/Clutch fluid
reservoir
Windshield washer
fluid reservoir
Fuse block (next
to air filter)
Fuse block
(near battery)
Maintenance and Care
Owner Maintenance
8-11
RX-8_8V89-EA-06F_Edition1 Page293
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (294,1)
Engine Oil
CAUTION
Do not use either synthetic or semi-
synthetic motor oil. Otherwise engine
starting performance could worsen.
NOTE
lChanging the engine oil should be
done by an Authorized Mazda
Dealer.
lThe Mazda RX-8 requires regular
checking of the engine oil level. The
compact, high performance
RENESIS rotary engine in your
vehicle consumes a small amount of
engine oil due to its structural
design. An oil pump optimizes the
amount of oil injected to lubricate
the rotor seals in the combustion
cycle. Although your vehicle is
equipped with an engine oil level
warning light and an engine oil
pressure gauge, it is best to keep the
engine oil level in the range between
full and low by checking the oil
dipstick regularly. Mazda
recommends checking the oil level at
every second fuel filling. The oil
consumption of the engine depends
on engine speed and engine load.
Under extreme driving conditions,
oil consumption can be higher.
qRecommended Oil
Use SAE 5W-20 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
U.S.A. and CANADA
(ILSAC)
8-12
Maintenance and Care
Owner Maintenance
RX-8_8V89-EA-06F_Edition1 Page294
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (295,1)

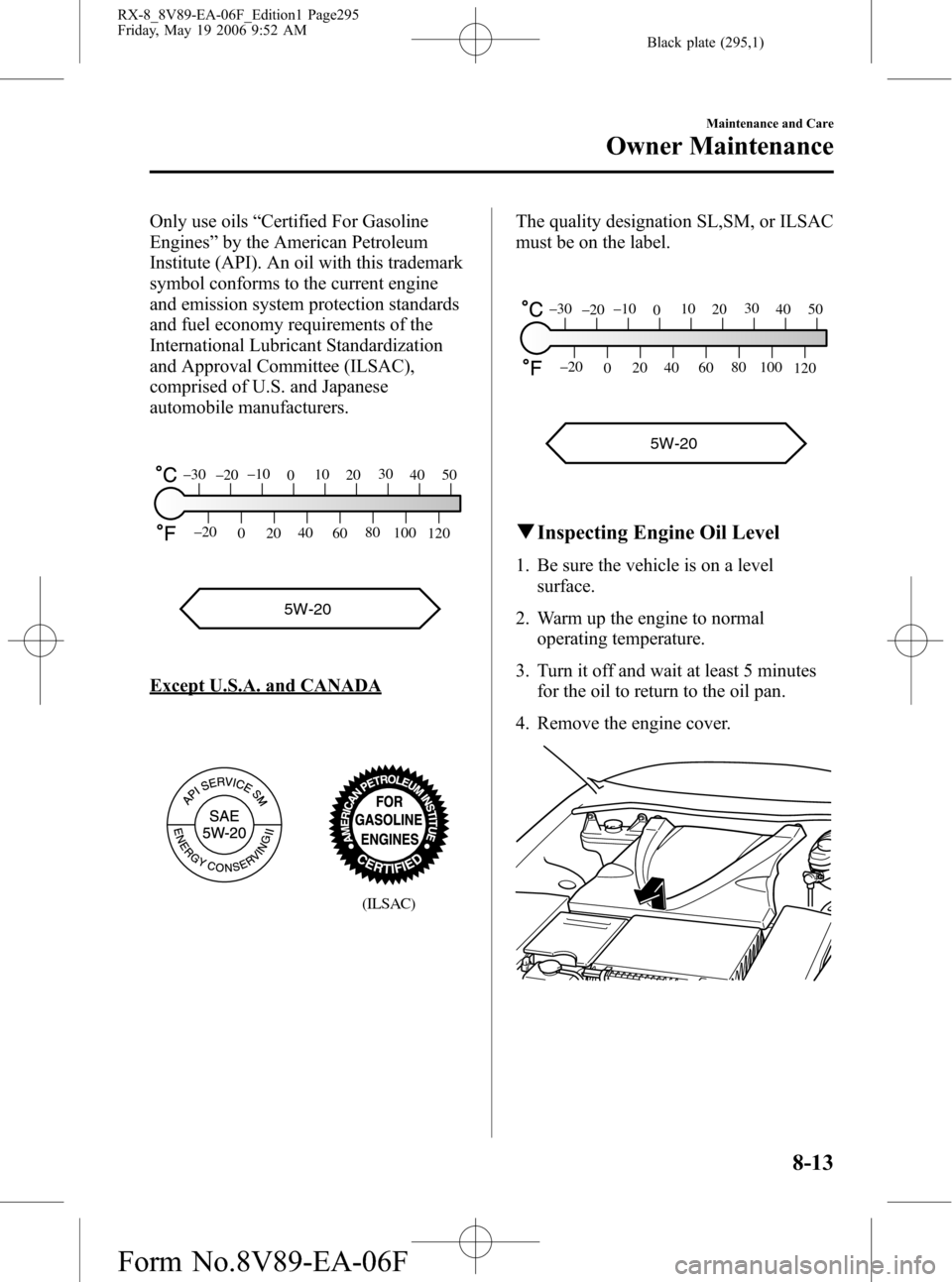

Only use oils“Certified For Gasoline
Engines”by the American Petroleum
Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
5W-20
120 100 80
60 40
20
0 –20
50 40 30
20 10
0 –10
–20 –30
Except U.S.A. and CANADA
(ILSAC)
The quality designation SL,SM, or ILSAC
must be on the label.
5W-20
120 100 80
60 40
20
0 –20
50 40 30
20 10
0 –10
–20 –30
qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Remove the engine cover.
Maintenance and Care
Owner Maintenance
8-13
RX-8_8V89-EA-06F_Edition1 Page295
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F
