2007 MAZDA MODEL MAZDASPEED 6 Owners Manual (in English)

Black plate (248,1)
Booster battery Jumper cables
Connect cables in numerical order and disconnect in reverse order.
Discharged
battery
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the strut mounting
bolt) away from the discharged
battery (4).4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
7-16
In Case of an Emergency
Emergency Starting
Mazdaspeed6_8V77-EA-06F_Edition1 Page248
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (249,1)
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has a
manual transaxle. It can damage the
emission control system.
In Case of an Emergency
Emergency Starting
7-17
Mazdaspeed6_8V77-EA-06F_Edition1 Page249
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (250,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Particularly when towing a AWD vehicle,
where all the wheels are connected to the
drive train, proper transporting of the
vehicle is absolutely essential to avoid
damaging the drive system. Government
and local laws must be followed.
Wheel dollies
A towed AWD vehicle must have all its
wheels off the ground.
CAUTION
Don't tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
7-18
In Case of an Emergency
Emergency Towing
Mazdaspeed6_8V77-EA-06F_Edition1 Page250
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (251,1)
WARNING
Always tow a AWD vehicle with all
four wheels off the ground:
Towing a AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail
away from the tow truck and cause an
accident. If the drive train has been
damaged, transport the vehicle on a
flat bed truck.
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.
qTiedown Hooks
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-3).
2. Wrap the jack lever with a soft cloth to
prevent damage to the bumper and
open the cap located on the front and
rear bumper.
Front
In Case of an Emergency
Emergency Towing
7-19
Mazdaspeed6_8V77-EA-06F_Edition1 Page251
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (252,1)
Rear
CAUTION
The cap cannot be completely removed.
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
3. Securely install the tiedown eyelet
using the lug wrench.
Front
Lug wrench
RearLug wrench
4. Hook the tying rope to the tiedown
eyelet.
Front
Rear
7-20
In Case of an Emergency
Emergency Towing
Mazdaspeed6_8V77-EA-06F_Edition1 Page252
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (253,1)
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-18) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-21
Mazdaspeed6_8V77-EA-06F_Edition1 Page253
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

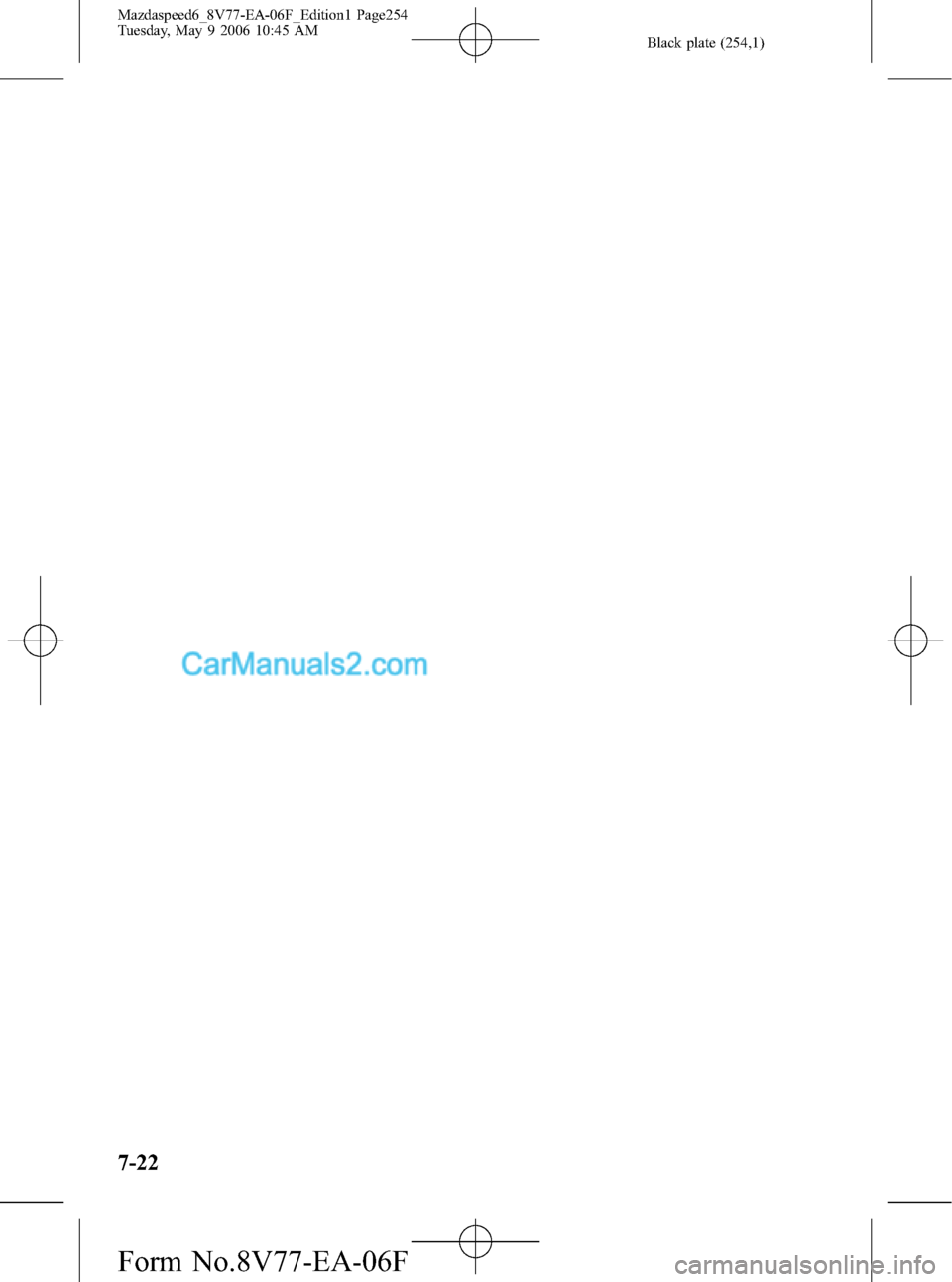

Black plate (254,1)
7-22
Mazdaspeed6_8V77-EA-06F_Edition1 Page254
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (255,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-9
Owner Maintenance Schedule .................................................. 8-9
Owner Maintenance Precautions ............................................. 8-10
Engine Compartment Overview .............................................. 8-12
Engine Oil ............................................................................... 8-13
Engine Coolant ....................................................................... 8-15
Brake/Clutch Fluid .................................................................. 8-17
Power Steering Fluid ............................................................... 8-18
Washer Fluid ........................................................................... 8-18
Body Lubrication .................................................................... 8-19
Wiper Blades ........................................................................... 8-20
Battery ..................................................................................... 8-22
Tires ........................................................................................ 8-24
Light Bulbs ............................................................................. 8-28
Fuses ....................................................................................... 8-34
Appearance Care ........................................................................ 8-39
How to Minimize Environmental Paint Damage .................... 8-39
Exterior Care ........................................................................... 8-41
Interior Care ............................................................................ 8-44
8-1
