2007 MAZDA MODEL MAZDASPEED 6 height

Black plate (16,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-4
Essential Safety Equipment
Seats
Mazdaspeed6_8V77-EA-06F_Edition1 Page16
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (19,1)
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment
Front of seat bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear of seat bottom
Raise or lower the back of the switch to
adjust the rear height of the seat bottom.
Whole seat
Raise the seat by pulling up on the center
of the switch. Release the switch at the
desired position.
Lower the seat by pressing down on the
center of the switch. Release the switch at
the desired position.
Essential Safety Equipment
Seats
2-7
Mazdaspeed6_8V77-EA-06F_Edition1 Page19
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (20,1)
qLumbar Support Adjustment
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-8
Essential Safety Equipment
íSome models.
Seats
Mazdaspeed6_8V77-EA-06F_Edition1 Page20
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (22,1)
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qArmrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright, pull on the
small fabric pull-tab to lower the armrest.
2-10
Essential Safety Equipment
Seats
Mazdaspeed6_8V77-EA-06F_Edition1 Page22
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (27,1)
qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
qShoulder Belt Adjuster (Front
Seat Belts)
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the knob and slide it down.
Make sure the adjuster is locked.
WARNING
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazdaspeed6_8V77-EA-06F_Edition1 Page27
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (55,1)
WARNING
Do not touch the components of the supplemental restraint system after the air bags
have inflated:
Touching the components of the supplemental restraint system after the air bags have
inflated is dangerous. Immediately after inflation, they are very hot. You could get
burned.
Never install any front-end equipment to your vehicle:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar, bull
bar, push bar, or other similar devices.), snowplow, or winches is dangerous. The air
bag crash sensor system could be affected. This could cause air bags to inflate
unexpectedly, or it could prevent the air bags from inflating during an accident. Front
occupants could be seriously injured.
Do not modify the suspension:
Modifying the vehicle suspension is dangerous. If the vehicle's height or the
suspension is modified, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Do not modify the supplemental restraint system:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Do not make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electrical equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of front
seats. It is important to protect the side and curtain air bag wiring and connections to
assure that the bags do not accidentally deploy and that the seats retain an
undamaged air bag connection.
Do not place luggage or other objects under the front seats:
Placing luggage or other objects under the front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of a
side collision, the appropriate air bags may not deploy, which could result in death or
serious injury. To prevent damage to the components essential to the supplemental
restraint system, do not place luggage or other objects under the front seats.
Essential Safety Equipment
SRS Air Bags
2-43
Mazdaspeed6_8V77-EA-06F_Edition1 Page55
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (281,1)
NOTE
Tires degrade over time, even when
they are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace
the spare tire when you replace the
other road tires due to the aging of the
spare tire. Regarding the manufacturing
week and year is indicated with 4 digit.
Refer to The tire labeling on page 9-18.
qReplacing a Wheel
WARNING
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
CAUTION
A wrong-sized wheel may adversely
affect:
lTire fit
lWheel and bearing life
lGround clearance
lSpeedometer calibration
lHeadlight aim
lBumper heightWhen replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-27
Mazdaspeed6_8V77-EA-06F_Edition1 Page281
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (318,1)

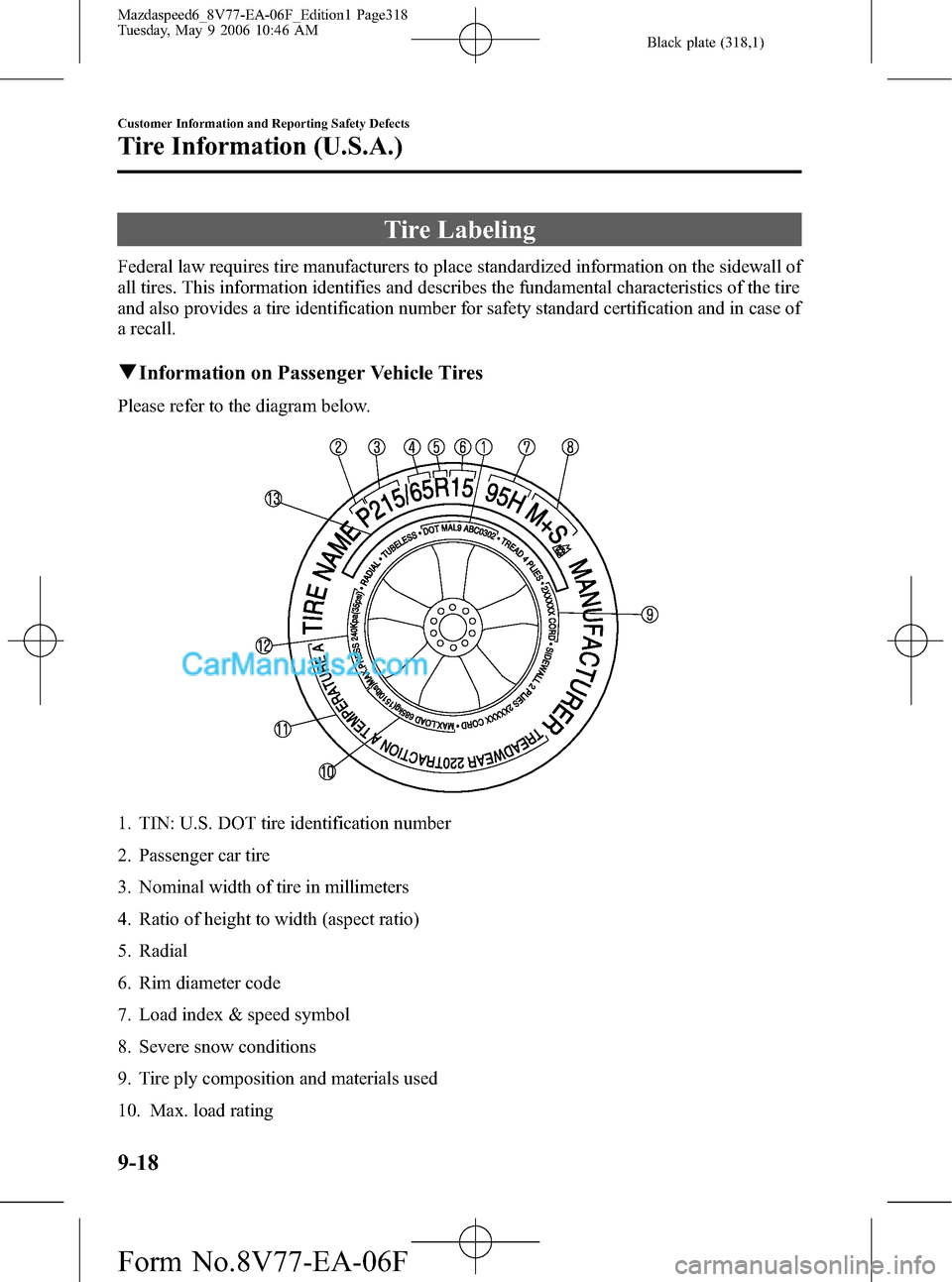

Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifies and describes the fundamental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.
qInformation on Passenger Vehicle Tires
Please refer to the diagram below.
1. TIN: U.S. DOT tire identification number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Rim diameter code
7. Load index & speed symbol
8. Severe snow conditions
9. Tire ply composition and materials used
10. Max. load rating
9-18
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazdaspeed6_8V77-EA-06F_Edition1 Page318
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F
