2007 MAZDA MODEL MAZDASPEED 6 Owners Manual (in English)

Black plate (288,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
kick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding
the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off.3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an expert
repairer install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
8-34
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page288
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (289,1)
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Maintenance and Care
Owner Maintenance
8-35
Mazdaspeed6_8V77-EA-06F_Edition1 Page289
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (290,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 SPARE 20A―
2 SPARE 15A―
3 SPARE 10A―
4 M DEF 7.5A Mirror defroster
í
5―― ―
6 INJ 15A PCM
7 ENG BAR 15A O
2Sensor, EGR control valve
8 ENG BB 5A Waste gate solenoid, Cooling fan
9 HEAD LR 15A Headlight-low beam (Right)
10 HEAD LL 15A Headlight-low beam (Left)
11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 DRL 15A DRL
í(Headlight high beams)
14 HAZARD 10A Turn signal lights
15 STOP 20A Brake lights, Horn
16 ENG+B 10A PCM, AWD
17 ETC 10A Electronic throttle
8-36
Maintenance and Care
íSome models.
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page290
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (291,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18―― ―
19 IG KEY 1 30A Engine control, SAS, Instrument cluster, Lighter
20 P.WIND 30A Power windows
21 FUEL PUMP 30A Fuel pump
22 INJ DRIVE 30A Injector
23―― ―
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 IG KEY 2 40A Wiper and washer, Climate control unit
27 DEFOG 40A Rear window defroster
28 ABS 60A DSC
29 FAN2 30A Cooling fan
30 FAN1 30A Cooling fan
31 TAIL 10A Taillights, License plate lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36―― ―
37―― ―
38 H/CLEAN 20A―
39 FOG 15A Fog lights
40 MAIN 120A For protection of all circuits
Maintenance and Care
Owner Maintenance
8-37íSome models. Mazdaspeed6_8V77-EA-06F_Edition1 Page291
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (292,1)
Fuse block (Driver's side kick-panel)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.WIND IG――
2 P.WIND――
3 D.LOCK 30A Power door lock
4 CIGAR 15A Lighter
5 MIRROR 5A Power control mirror, Audio system
6 METER ACC 5A Auto light off unit
7 R.CIGAR 15A Accessory socket
8 SPARE 10A―
9 ENGINE IG 15A Engine control system
10 SAS 10A DSC unit, SAS unit
11 METER IG 15A Instrument cluster, Reverse lights
12 WIPER 20A Windshield wiper and washer
13 SPARE 15A―
14 A/C 10A Heater
15 SEAT 15A Seat warmer
í, Rear window defroster
16 R.WIP――
17 ROOM 15A Overhead light
18 SPARE 20A―
8-38
Maintenance and Care
íSome models.
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page292
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (293,1)

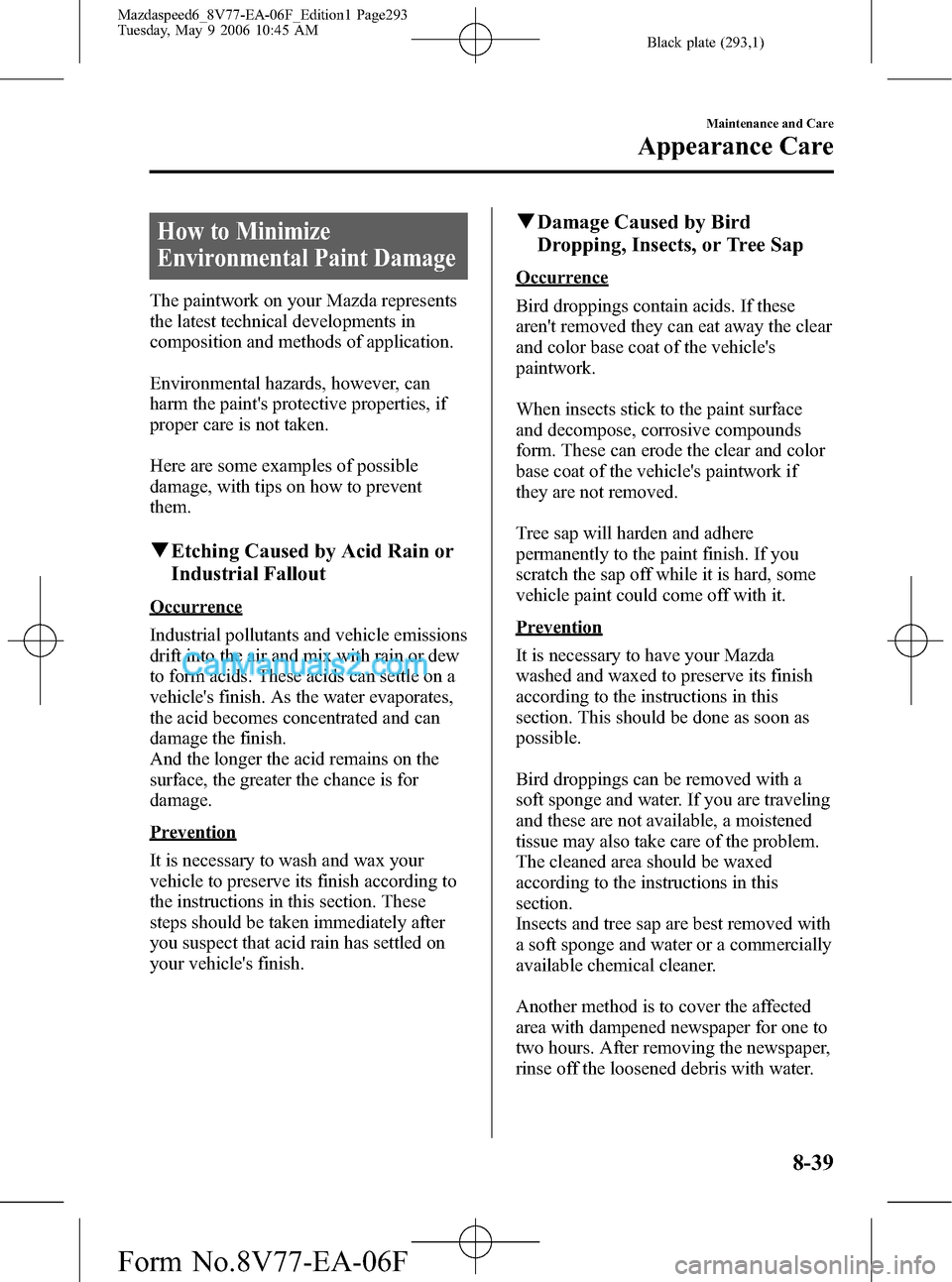

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
8-39
Mazdaspeed6_8V77-EA-06F_Edition1 Page293
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (294,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
lChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
8-40
Maintenance and Care
Appearance Care
Mazdaspeed6_8V77-EA-06F_Edition1 Page294
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (295,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
lScratches are more noticeable on
vehicles with darker paint finishes.To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
lDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
lTo prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Maintenance and Care
Appearance Care
8-41
Mazdaspeed6_8V77-EA-06F_Edition1 Page295
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F
