Light Bulbs
Headlights (Low beam) Headlights (High beam)
High-mount brake lightFog lights
Front turn signal lights/Parking lights
Some models.
License plate lights
Brake lights/Taillights Overhead light/Map lights (Front) Overhead light (Rear)
Front side marker lights
Rear turn signal lights
Rear side marker lights
Reverse lights
Luggage compartment light
Maintenance and Care
Owner Maintenance
8-33
CX-7_8V28-EA-06B_Edition2 Page329
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (330,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement is
necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.

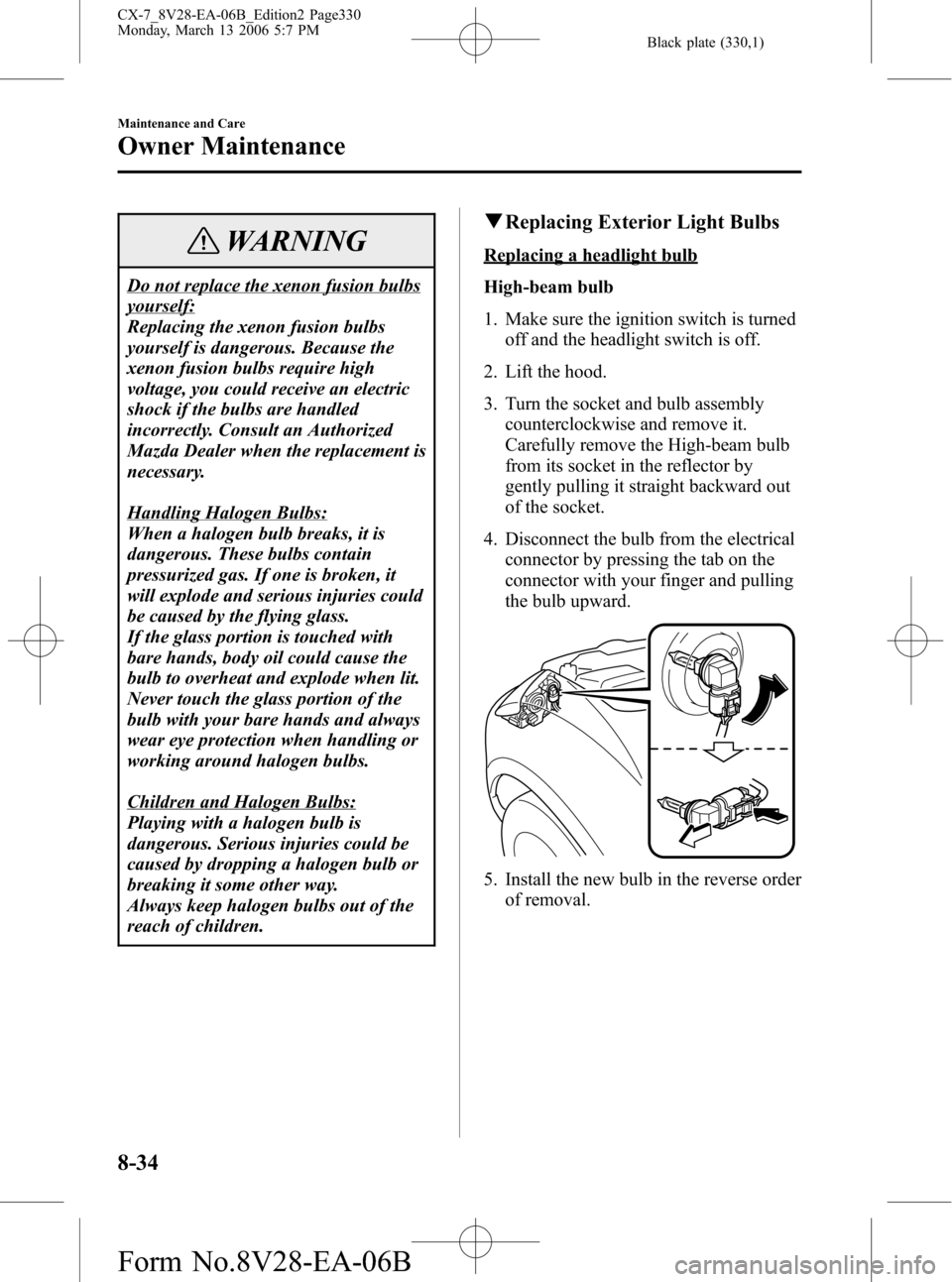

qReplacing Exterior Light Bulbs
Replacing a headlight bulb
High-beam bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the High-beam bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order
of removal.
8-34
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page330
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (331,1)
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. Make sure the headlight switch is off.
2. If you are changing the right Low-
beam bulb, start the engine, turn the
steering wheel all the way to the right,
and turn off engine. If you are
changing the left Low-beam bulb, turn
the steering wheel to the left.3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Detach the electrical connector from
the bulb by pulling it to the rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.
Maintenance and Care
Owner Maintenance
8-35
CX-7_8V28-EA-06B_Edition2 Page331
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (332,1)
7. Swing the retaining spring out and
away to free the bulb.
Sealing
cover
8. Carefully remove the bulb from the
socket by pulling it straight back.
9. Replace the bulb.
10. Install the new bulb in the reverse
order of removal.
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Front side marker lights, Front turn
signal lights/Parking lights
1. Make sure the headlight switch is off.
2. If you are changing a bulb in the right
headlight unit, start the engine, turn the
steering wheel all the way to the right,
and turn off engine. If you are
changing a bulb in the left headlight
unit, turn the steering wheel to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
8-36
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page332
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (333,1)
Front side marker lights
Front turn signal lights/Parking lights
6. Install the new bulb in the reverse order
of removal.
Fog lightsí
1. Make sure the headlight switch is off.
2. If you are changing the right fog light
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
fog light bulb, turn the steering wheel
to the left.3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-37íSome models. CX-7_8V28-EA-06B_Edition2 Page333
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (334,1)
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.

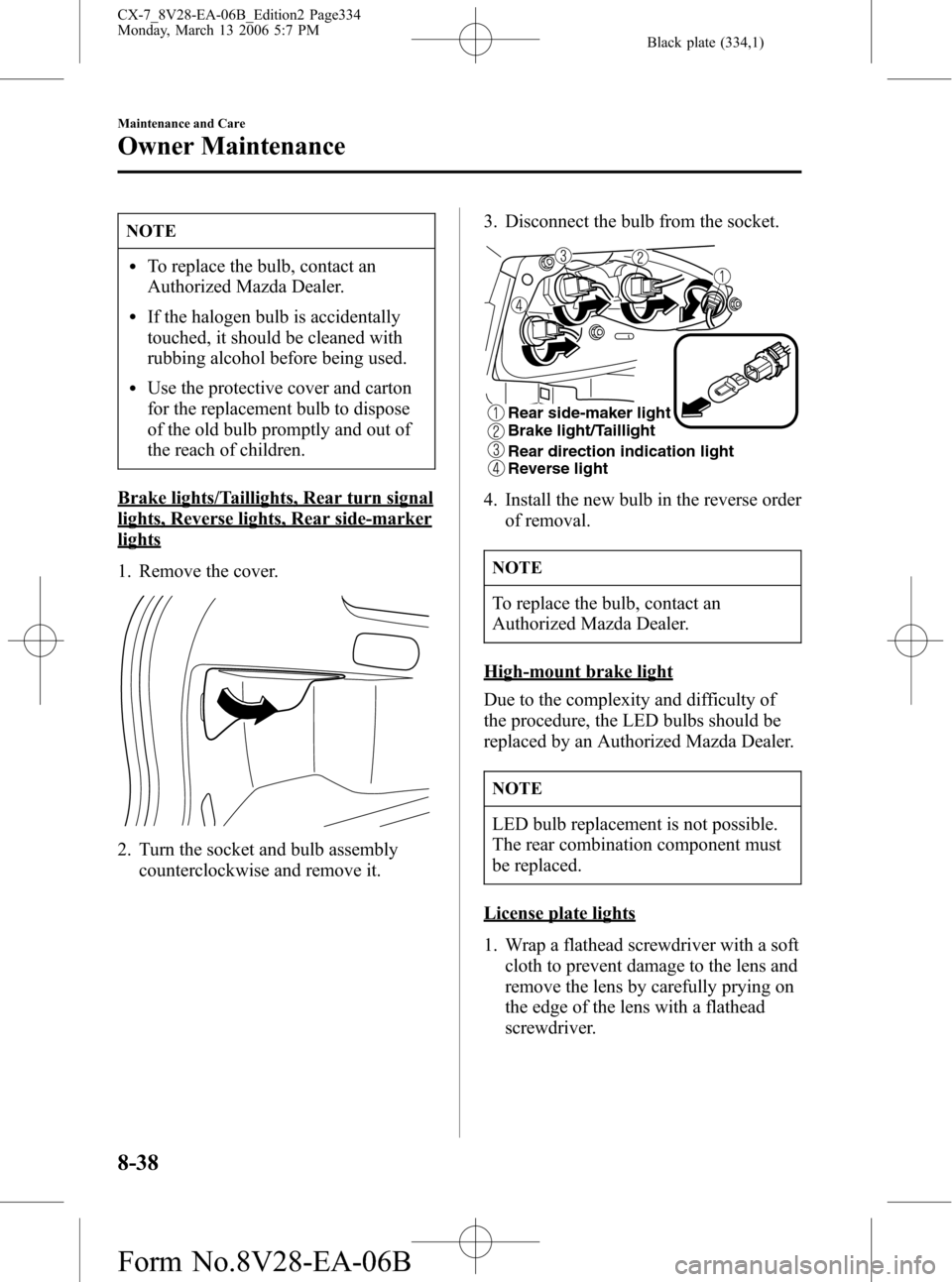

Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Rear side-marker
lights
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.3. Disconnect the bulb from the socket.
Rear side-maker light
Brake light/Taillight
Rear direction indication light
Reverse light
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible.
The rear combination component must
be replaced.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
8-38
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page334
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (335,1)
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Overhead light (Rear), Luggage
compartment light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-39
CX-7_8V28-EA-06B_Edition2 Page335
Monday, March 13 2006 5:7 PM
Form No.8V28-EA-06B

Black plate (336,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
If the electrical system doesn't work, first
inspect fuses on the driver's side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.
Fuse panel cover
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
cover for the fuse panel and the fuse
block cover inside of the engine
compartment.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
8-40
Maintenance and Care
Owner Maintenance
CX-7_8V28-EA-06B_Edition2 Page336
Monday, March 13 2006 5:7 PM
