2007 MAZDA MODEL CX-7 Owners Manual (in English)

Black plate (81,1)
qAdvanced Key Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR2025 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
or water.
lNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster when the
engine is turned off.
lThe system does not operate and the
operation indicator light does not flash
when the buttons are pressed.
lThe system's operational range is
reduced.Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Release the cap using a flathead
screwdriver, then rotate and remove the
cap.
Cap
CAUTION
Do not turn the cap excessively. The
cap may be damaged.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
CX-7_8V28-EA-06B_Edition2 Page81
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (82,1)
3. Insert a flathead screwdriver into the
crack and press the battery out.
4. Insert the new battery (CR2025 or
equivalent) with the positive pole (
)
facing the (
) mark on the cap.
5. Rotate and close the cap.
Cap
6. Reinsert the auxiliary key.
qService
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
3-6
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8V28-EA-06B_Edition2 Page82
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (83,1)
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in
places where there are high-intensity
radio waves or noise, the operational
range may become narrower or the
system may not operate.
Locking, unlocking the doors and the
liftgate
The operational range for locking/
unlocking the doors is an area of up to 80
cm (2.6 ft) from the center of the front
door handles.
The operational range for locking/
unlocking the liftgate is an area of up to
80 cm (2.6 ft) from the center of the
liftgate.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are
too close to the windows, door handles,
or liftgate.
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area except for the luggage compartment.
Interior transmitter
Operational range
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
CX-7_8V28-EA-06B_Edition2 Page83
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (84,1)
NOTE
lThe luggage compartment is out of
the operational range, however,
starting the engine may be possible.
lThe engine may not start if the
advanced key is placed in the
following areas:
lAround the dashboardlIn the storage compartments such
as the glove box
lStarting the engine may be possible
even if the advanced key is outside
of the vehicle and extremely close to
a door and window, however, always
start the engine from the driver's seat.
If the vehicle is started and the
advanced key is not in the vehicle,
the vehicle will not restart after it is
shut off and the ignition switch is
turned to the lock position.
lIf the advanced key is detected
within operational range, the
operation indicator light flashes
momentarily.
qLocking, Unlocking with Request
Switch
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors or the liftgate while the
advanced key is being carried.
Front doors
Request switch
Liftgate
Request switch
To lock
To lock the doors and the liftgate, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8V28-EA-06B_Edition2 Page84
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (85,1)

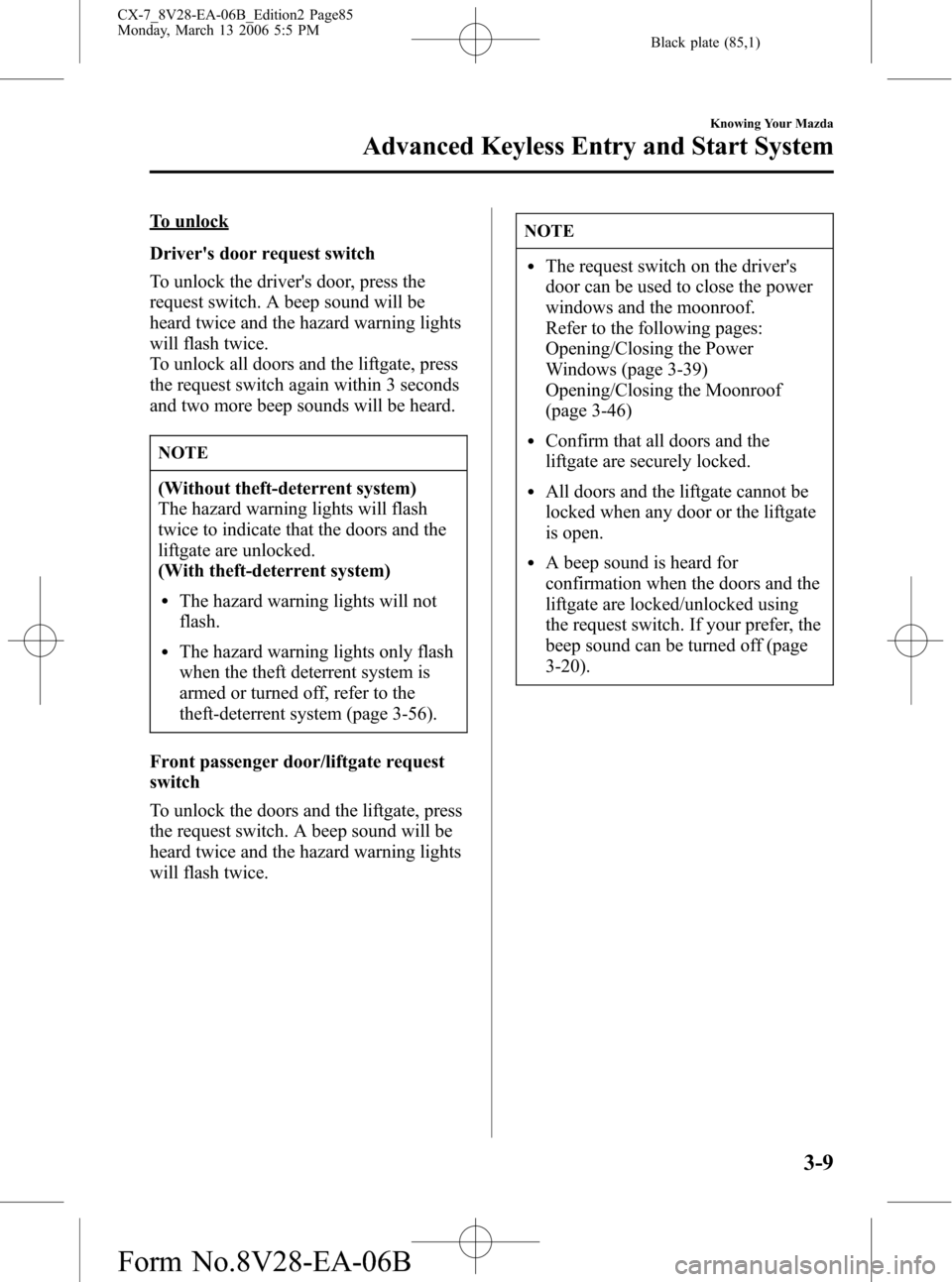

To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that the doors and the
liftgate are unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed or turned off, refer to the
theft-deterrent system (page 3-56).
Front passenger door/liftgate request
switch
To unlock the doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
lThe request switch on the driver's
door can be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power
Windows (page 3-39)
Opening/Closing the Moonroof
(page 3-46)
lConfirm that all doors and the
liftgate are securely locked.
lAll doors and the liftgate cannot be
locked when any door or the liftgate
is open.
lA beep sound is heard for
confirmation when the doors and the
liftgate are locked/unlocked using
the request switch. If your prefer, the
beep sound can be turned off (page
3-20).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
CX-7_8V28-EA-06B_Edition2 Page85
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (86,1)
NOTE
lThe setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
(Auto-lock function)
A beep sound is heard when all
doors and the liftgate are closed
while the advanced key is being
carried. All doors and the liftgate are
locked automatically after about 3
seconds when the advanced key is
out of the operational range. Also,
the hazard warning lights flash once.
(Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.)
If you are out of the operational
range before the doors and the
liftgate are completely closed or
another advanced key is left in the
vehicle, the auto-lock function will
not work. Always make sure that all
doors and the liftgate are locked
before leaving the vehicle (page
3-20).
lAfter unlocking doors and the
liftgate by pressing the request
switch, all doors and the liftgate will
automatically lock if any of the
following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will flash for confirmation.
lA door or the liftgate is opened.lThe auxiliary key is inserted into
the ignition switch.
lThe start knob is pushed.
qStarting the Engine
Ignition Switch Positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK (Released)
The steering wheel locks to help protect
against theft.
LOCK (Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Before leaving the driver's seat,
always set the parking brake and
make sure the shift lever is in P:
Leaving the driver's seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8V28-EA-06B_Edition2 Page86
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (87,1)
NOTE
lIf turning the ignition switch is
difficult, jiggle the steering wheel
from side to side.
lThe ignition switch cannot be turned
from the ACC position to the LOCK
position when the shift lever is not in
P.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System
does not function in the ACC position,
and the doors will not lock/unlock even
if they have been locked manually or
the advanced key is carried away from
the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-36).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-36).
Starting the Engine
NOTE
lEngine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
lThe advanced key must be carried
because the advanced key carries an
immobilizer chip that must
communicate with the engine
controls at short range.
lWhen starting the engine, be sure the
start knob is securely attached before
trying to operate it. If the knob
becomes detached from the ignition
switch, re-attach it by pushing it on
to the ignition switch.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
CX-7_8V28-EA-06B_Edition2 Page87
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (88,1)
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
5. Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
The starter will not operate if the shift
lever is not in P or N.
6. Push the start knob slowly all the way
in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine (page 3-21).
NOTE
In the following cases, the KEY
warning light (red) illuminates and the
engine will not start.
lThe advanced key battery is dead.
lThe advanced key is out of
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
9. Turn the ignition switch from the ACC
position to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8V28-EA-06B_Edition2 Page88
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B
