ENGINE STARTING ............................................. 184
PARKING .............................................................. 187
USING THE MECHANICAL GEARBOX ............... 188
USING THE DUAL FUNCTION
SYSTEM GEARBOX ............................................. 189
CONTAINING RUNNING COSTS.......................... 200
TOWING TRAILERS ............................................ 203
SNOW TYRES ....................................................... 206
SNOW CHAINS ..................................................... 207
CAR INACTIVITY ................................................. 208
CORRECT USE OF THE CAR

ENGINE STARTING
The car is fitted with an electronic engine lock
device. If the engine fails to start, see paragraph
“Lancia CODE system” in section “Dashboard and
controls”.
The engine may be noisier than usual during the
first seconds of operation, especially after it has not
been used for a while. This characteristic feature of
the hydraulic tappet system does not compromise
functionality or reliability. The system devised for
the Lancia Musa was designed to limit maintenance
interventions.STARTING PROCEDURE FOR PETROL
VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒Put the gear lever into neutral;
❒Press the clutch pedal down to the floor without
touching the accelerator;
❒Turn the ignition key to AVV and let it go the
moment the engine starts.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating
starting.
If, when the ignition key is on MAR, warning light
Yremains lit together with warning light U, turn
the key to STOP and then back to MAR; if the
warning light remains on, try with the other keys
provided with the car.
184
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
We recommend that during the initial period you do not drive to full vehicle performance (e.g.:
excessive acceleration, long journeys at top speed, sharp braking, etc.).
When the engine is switched off never leave the ignition key in the MAR position to prevent
pointless current absorption from draining the battery.
WARNINGRunning the engine in confined areas is extremely dangerous. The engine consumes
oxygen and produces carbon monoxide which is a highly toxic and lethal gas.

If you are still unable to start the engine, perform
the emergency start-up procedure (see “Emergency
start-up” in section “In an emergency”) and contact
Lancia Dealership.
IMPORTANT Never leave the ignition key at MAR
when the engine is off.
STARTING PROCEDURE FOR MULTIJET
VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒Put the gear lever into neutral;
❒Turn the ignition key to MAR: the warning lights
m,UandYwill light up on the instrument
panel;
❒Wait for the warning lights
Yandm. The
hotter the engine is, the quicker this will happen;
❒Press the clutch pedal down to the floor without
touching the accelerator;❒Turn the ignition key to AVV as soon as warning
light
mgoes out. If you wait too long you will
lose the benefit of the work done by the glow
plugs. Release the key as soon as the engine
starts.
IMPORTANT With cold engine, the accelerator
pedal shall be completely released while turning the
ignition key to AVV.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating
starting.
If, when the ignition key is on MAR, warning light
Y remains lit, turn the key to STOP and then back
to MAR; if the warning light remains on, try with
the other keys provided with the car.
If you still cannot start the engine, contact Lancia
Dealership.
IMPORTANT Never leave the ignition key at MAR
when the engine is off.
185
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
The warning light mwill flash for 60 seconds at start-up or during prolonged cranking to signal
a fault in the glow plug heating system. You can use the car as usual if the engine starts but you
should contact a Lancia Dealership as soon as possible.

HOW TO WARM UP THE ENGINE AFTER IT
HAS JUST STARTED (petrol and Multijet versions)
Proceed as follows:
❒Drive off slowly, letting the engine turn at
medium revs. Do not accelerate abruptly;
❒Do not drive at full performance for the initial
kilometres. Wait until the coolant temperature
gauge starts moving.
EMERGENCY START-UP
If the instrument panel warning light
Ystays on
with fixed light, the emergency start-up can be
performed by using the CODE card code
(see section “In an emergency”).STOPPING THE ENGINE
Turn the ignition to STOP while the engine is idling.
IMPORTANT After a taxing drive, you should allow
the engine to “catch its breath” before turning it off
by letting it idle to allow the temperature in the
engine compartment to fall.
186
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
Never bump start the engine by pushing, towing or coasting downhill. This could cause fuel to
flow into the catalytic exhaust system and damage it beyond repair.
A quick burst on the accelerator before turning off the engine serves absolutely no practical
purpose, it wastes fuel and is damaging especially to turbocharged engines.
Remember that the servobrake and power steering are not operational until the
engine has been started, therefore much effort than usual is required on the brake
pedal and steering wheel.
WARNING

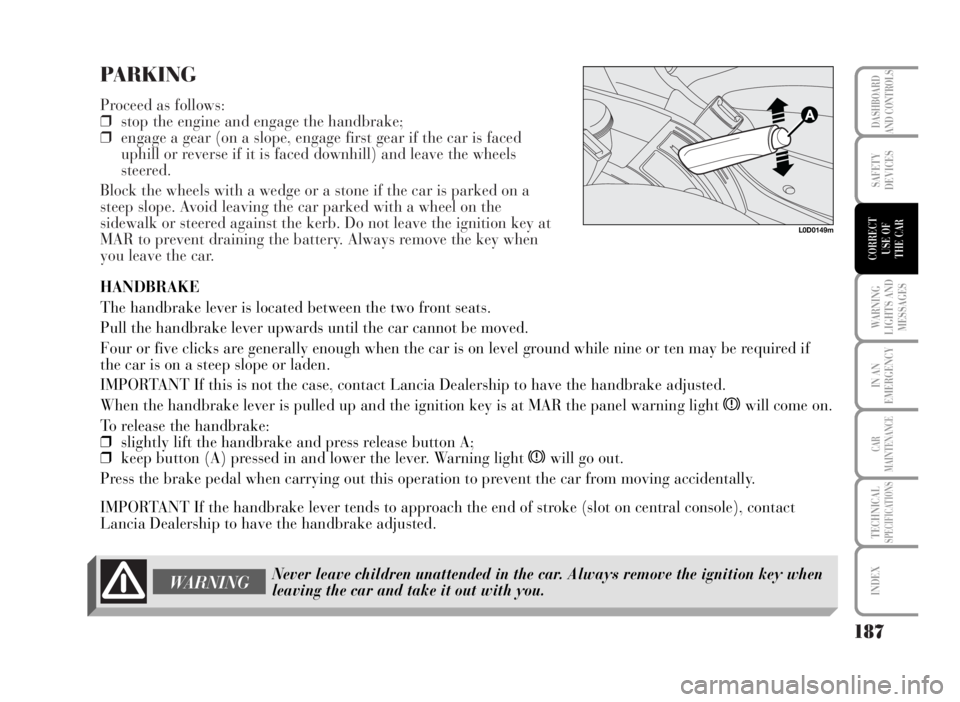

PARKING
