2007 KIA Sedona Owner's Manual

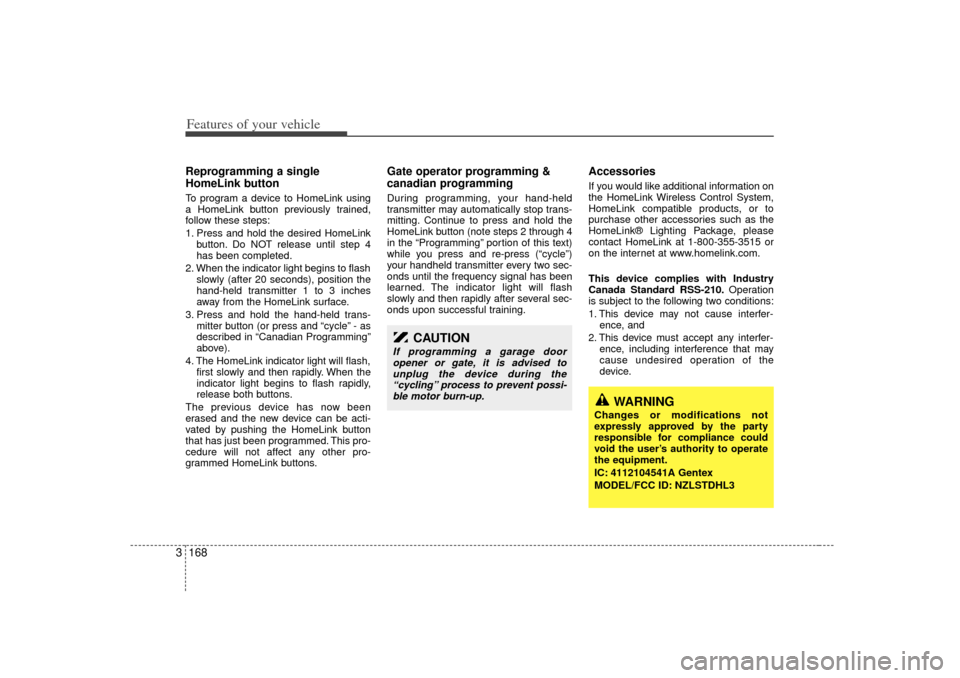

Features of your vehicle168
3Reprogramming a single
HomeLink buttonTo program a device to HomeLink using
a HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink
button. Do NOT release until step 4
has been completed.
2. When the indicator light begins to flash slowly (after 20 seconds), position the
hand-held transmitter 1 to 3 inches
away from the HomeLink surface.
3. Press and hold the hand-held trans- mitter button (or press and “cycle” - as
described in “Canadian Programming”
above).
4. The HomeLink indicator light will flash, first slowly and then rapidly. When the
indicator light begins to flash rapidly,
release both buttons.
The previous device has now been
erased and the new device can be acti-
vated by pushing the HomeLink button
that has just been programmed. This pro-
cedure will not affect any other pro-
grammed HomeLink buttons.
Gate operator programming &
canadian programmingDuring programming, your hand-held
transmitter may automatically stop trans-
mitting. Continue to press and hold the
HomeLink button (note steps 2 through 4
in the “Programming” portion of this text)
while you press and re-press (“cycle”)
your handheld transmitter every two sec-
onds until the frequency signal has been
learned. The indicator light will flash
slowly and then rapidly after several sec-
onds upon successful training.
AccessoriesIf you would like additional information on
the HomeLink Wireless Control System,
HomeLink compatible products, or to
purchase other accessories such as the
HomeLink® Lighting Package, please
contact HomeLink at 1-800-355-3515 or
on the internet at www.homelink.com.
This device complies with Industry
Canada Standard RSS-210. Operation
is subject to the following two conditions:
1. This device may not cause interfer- ence, and
2. This device must accept any interfer- ence, including interference that may
cause undesired operation of the
device.
CAUTION
If programming a garage dooropener or gate, it is advised tounplug the device during the “cycling” process to prevent possi-ble motor burn-up.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
IC: 4112104541A Gentex
MODEL/FCC ID: NZLSTDHL3

3 169
Features of your vehicle
These compartments can be used to
store small items required by the driver
or passengers.
STORAGE COMPARTMENT
CAUTION
To avoid possible theft, do not leavevaluables in the storage compart-ment.
1VQA2197/1VQA2313/1VQA2192/1VQA2314/1VQA2193
WARNING
- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
WARNING
Always keep the storage compart-
ment covers closed while driving.
Do not attempt to place so many
items in the storage compartment
that the storage compartment cover
can not close securely.
Long wheelbase

Features of your vehicle170
3Center console storage
(if equipped)These compartments can be used to
store small items required by the driver
or front passenger.FrontCups or small beverage cans may be
placed in the cup holders.CenterThe center compartment can be locked
and unlocked with a master key.
To open the center compartment, make
sure it is unlocked, then pull the lever and
raise the cover.
To remove the bucket, lift it upward.
RearTo open the rear compartment, pull the
lever and the compartment will automati-
cally open. Close the compartment after
use. The center console storage can be
removed and reinstalled.
To remove the storage, pull up the front
portion slightly while pressing the release
lever and move it forward.
To reinstall the storage, insert the rear
tap on the bottom of the storage into the
rear hole on the floor, put the front por-
tion slightly on the floor while pressing
the release lever and release the lever.
Make sure the compartment is locked in
place.
1VQA2194
1VQA2195
1VQA2196

3 171
Features of your vehicle
Glove boxThe glove box can be locked and
unlocked with a master key.
To open the glove box, make sure it is
unlocked, then pull the handle (1) and
the glove box will automatically open (2).
Close the glove box after use.
WARNING
Never leave the removed center
storage console in the vehicle
unsecured. The storage console
can be thrown about in the vehicle
in a sudden stop or an accident
causing serious injuries or death to
the vehicle occupants. Always
make sure the storage console is
locked in place.
1VQA2191
CAUTION
Since key is not fully inserted intothe center console storage key set,do not apply excessive force. Doing so may damage the parts.
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the center console storage
cover closed while driving.

Features of your vehicle172
3
Sunglass holder To open the sunglass holder, press the
cover and the holder will slowly open.
Place your sunglasses in the compart-
ment door with the lenses facing out.
Push to close.
Side table (if equipped)The side table is located on the inner por-
tion of the passenger’s seat.
To use the table, pull the table all the way
up until it locks into place. Verify the table
is locked by trying to push it down. If the
table moves down, it is not locked prop-
erly.
You can extend it by pulling the rear por-
tion backward.
To fold down the table, pull up the release
lever and press down the edge of the
table.
1VQA2198
OVQ036339
CAUTION
Since key is not fully inserted into
the glove box key set, do not apply excessive force. Doing so may dam-age the parts.
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.
CAUTION
Make sure the sunglass holder isclosed while driving.

3 173
Features of your vehicle
Cigarette lighter (if equipped)To operate the cigarette lighter, press it in
and release it. When it is heated, it auto-
matically pops out ready for use.
If the engine is not running, the ignition
switch must be in the ACC or ON position
for the lighter to operate.
Ashtray (if equipped)To use the ashtray, press the cover and
release it.
To remove the ashtray to empty or clean
it, lift it upward and pull it out.
INTERIOR FEATURES
1VQA2185
1VQA2186
CAUTION
 Do not hold the lighter in after it isalready heated because it willoverheat.
 Only a genuine Kia lighter should be used in the cigarette lightersocket. The use of plug-in acces-sories (shavers, hand-held vacu- ums, and coffee pots, for exam-ple) may damage the socket orcause electrical failure.
 If the lighter does not pop out within 30 seconds, remove it toprevent overheating.
WARNING
- Ashtray use
 Do not use the vehicle’s ashtrays as waste receptacles.
 Putting lit cigarettes or matches in an ashtray with other com-
bustible materials may cause a
fire.

Features of your vehicle174
3Cup holder
FrontTo use the cup holders, pull the cup hold-
er cover out. Push the cover to close after
use.
Center (if equipped)Cups or small beverage cans may be
placed in the cup holders.
The storage can be removed and rein-
stalled.
To remove the storage, pull up the rear
portion slightly after moving the locking
tap to the unlock position and move it
rearward.
To reinstall the storage, insert the front
tap on the bottom of the storage into the
front hole on the floor, put the rear por-
tion on the floor and move the locking tap
to the lock position. Make sure the com-
partment is locked in place.
WARNING
- Hot liquids
 Do not place uncovered cups of
hot liquid in the cup holder while
the vehicle is in motion. If the hot
liquid spills, you could be burned.
Such a burn to the driver could
cause a loss of control of the
vehicle.
 To reduce the risk of personal injury in the event of sudden stop
or collision, do not place uncov-
ered or unsecured bottles, glass-
es, cans, etc., in the cup holder
while the vehicle is in motion.
1VQA2199
CAUTION
Do not place heavy cups or cans incup holders. Cup holders could bedamaged.
OVQ036234N

3 175
Features of your vehicle
RearCups or small beverage cans may be
placed in the cup holders.
Shopping bag holder FrontTo use the holder, push the lower portion.
Rear✽ ✽NOTICEDo not hang heavy bags, since those may
damage the holder.
1VQA2202
CAUTION
Do not hang a bag weighing more
than 3 kg (7 lbs.). It may cause dam- age to the shopping bag holder.
OVQ036090NOVQ027068N
Long wheelbaseShort wheelbase
OVQ036308NOVQ037341N
Long wheelbaseShort wheelbase
