2007 JEEP WRANGLER Owners Manual

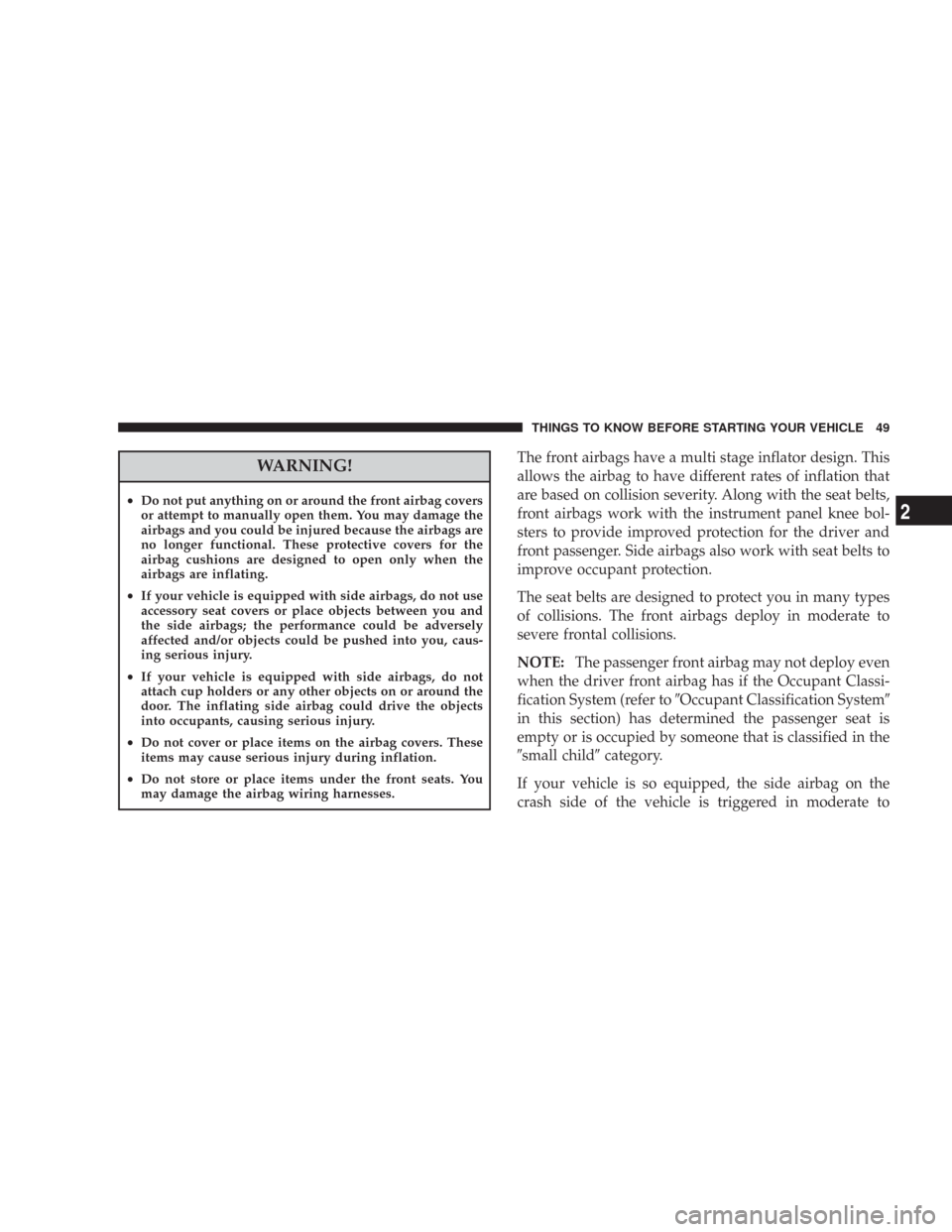

WARNING!
•Do not put anything on or around the front airbag covers
or attempt to manually open them. You may damage the
airbags and you could be injured because the airbags are
no longer functional. These protective covers for the
airbag cushions are designed to open only when the
airbags are inflating.
•If your vehicle is equipped with side airbags, do not use
accessory seat covers or place objects between you and
the side airbags; the performance could be adversely
affected and/or objects could be pushed into you, caus-
ing serious injury.
•If your vehicle is equipped with side airbags, do not
attach cup holders or any other objects on or around the
door. The inflating side airbag could drive the objects
into occupants, causing serious injury.
•Do not cover or place items on the airbag covers. These
items may cause serious injury during inflation.
•Do not store or place items under the front seats. You
may damage the airbag wiring harnesses.
The front airbags have a multi stage inflator design. This
allows the airbag to have different rates of inflation that
are based on collision severity. Along with the seat belts,
front airbags work with the instrument panel knee bol-
sters to provide improved protection for the driver and
front passenger. Side airbags also work with seat belts to
improve occupant protection.
The seat belts are designed to protect you in many types
of collisions. The front airbags deploy in moderate to
severe frontal collisions.
NOTE:The passenger front airbag may not deploy even
when the driver front airbag has if the Occupant Classi-
fication System (refer toOccupant Classification System
in this section) has determined the passenger seat is
empty or is occupied by someone that is classified in the
small childcategory.
If your vehicle is so equipped, the side airbag on the
crash side of the vehicle is triggered in moderate to
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

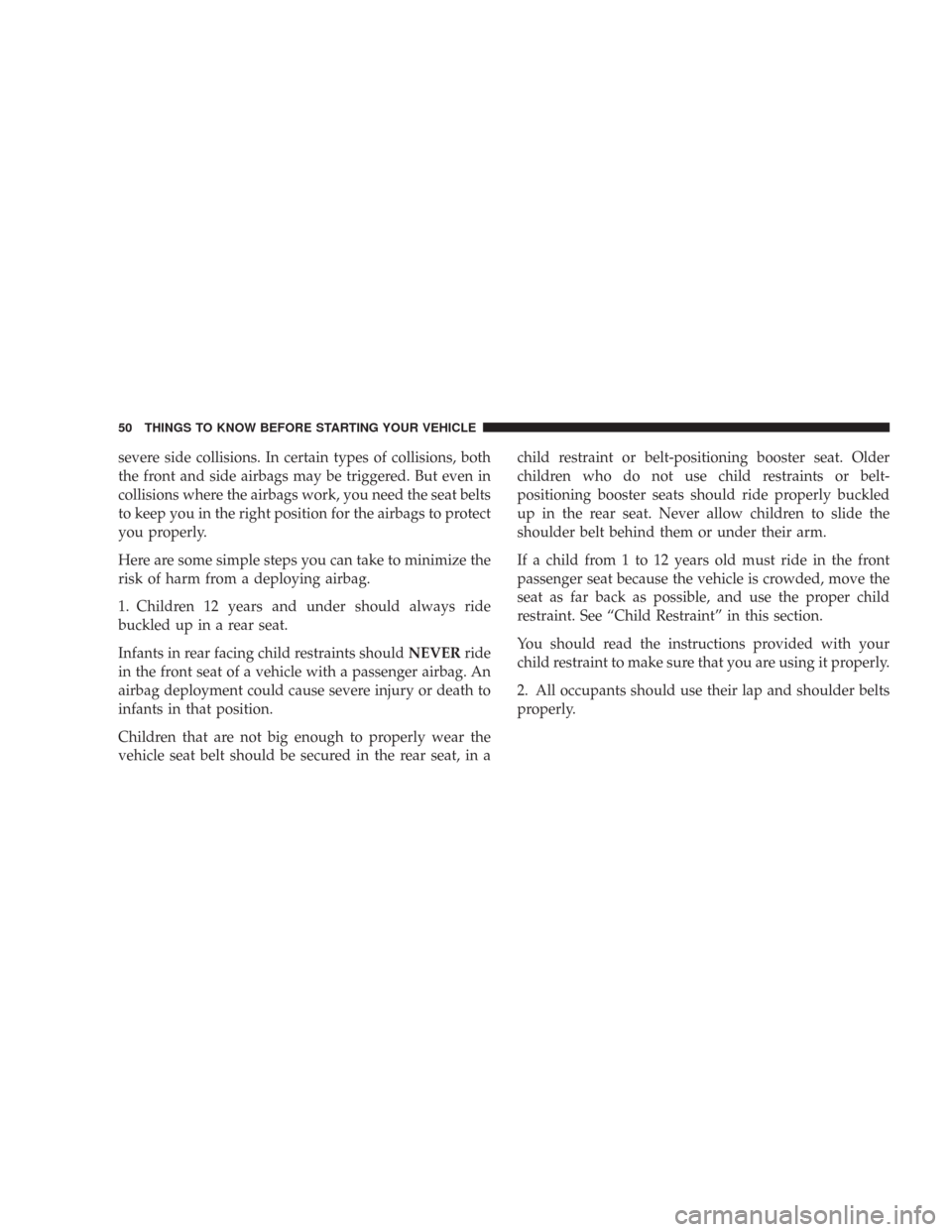

severe side collisions. In certain types of collisions, both
the front and side airbags may be triggered. But even in
collisions where the airbags work, you need the seat belts
to keep you in the right position for the airbags to protect
you properly.
Here are some simple steps you can take to minimize the
risk of harm from a deploying airbag.
1. Children 12 years and under should always ride
buckled up in a rear seat.
Infants in rear facing child restraints shouldNEVERride
in the front seat of a vehicle with a passenger airbag. An
airbag deployment could cause severe injury or death to
infants in that position.
Children that are not big enough to properly wear the
vehicle seat belt should be secured in the rear seat, in achild restraint or belt-positioning booster seat. Older
children who do not use child restraints or belt-
positioning booster seats should ride properly buckled
up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arm.
If a child from 1 to 12 years old must ride in the front
passenger seat because the vehicle is crowded, move the
seat as far back as possible, and use the proper child
restraint. See “Child Restraint” in this section.
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
2. All occupants should use their lap and shoulder belts
properly.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. The driver and front passenger seats should be moved
back as far as practical to allow the front airbags room to
inflate.
4. If your vehicle has side airbags, do not lean against the
door, airbags will inflate forcefully into the space be-
tween you and the door.
5. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact the
Customer Center. Phone numbers are provided under “If
You Need Assistance” in Section 9 of this manual.WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury. Airbags need room to inflate. Sit back,
comfortably extending your arms to reach the
steering wheel or instrument panel.
•If the vehicle has side airbags, they also need room
to inflate. Do not lean against the door. Sit upright
in the center of the seat.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Control Module
•Airbag Warning Light
•Driver Airbag
•Passenger Airbag
•Front Seat Mounted Side Airbags (If Equipped)
•Steering Wheel and Column
•Instrument Panel
•Interconnecting Wiring
•Knee Impact Bolsters
•Front Acceleration Sensors
•Driver and Front Passenger Seat Belt Pretensioner
•Occupant Classification System (OCS) — Front Pas-
senger Seat Only
Occupant Classification Module
Passenger Airbag Disable (PAD) Indicator Light
Weight Sensors
How The Airbag System Works
•
TheOccupant Restraint Control (ORC) Modulede-
termines if a frontal, or side collision is severe enough
to require the front and/or side airbags to inflate. The
front airbag inflators are designed to provide different
rates of airbag inflation from direction provided by the
ORC. The ORC may also modify the rate of inflation
based on the occupant size provided by the Occupant
Classification Module.
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or ON positions. These include all of the
items listed above except the knee bolster, the instru-
ment panel, and the steering wheel and column. If the
key is in the LOCK position, in the ACC position, or
not in the ignition, the airbags are not on and will not
inflate.
Also, the ORC turns on the “Airbag Warning
Light” and “PAD Indicator Light” for 6 to 8
seconds for a self-check when the ignition is
first turned on. After the self-check, the
“Airbag Warning Light” will turn off. The “PAD
Indicator Light” will function normally (Refer toPas-
senger Airbag Disable (PAD) Indicator Lightin this
section). If the ORC detects a malfunction in any part
of the system, it turns on the “Airbag Warning Light”either momentarily or continuously. A single chime
will sound if the light comes on again after initial start
up.
WARNING!
Ignoring the “Airbag Warning Light” in your instru-
ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

•TheOccupant Classification System (OCS)is part of
a Federally regulated safety system required for this
vehicle. It is designed to turn off the front passenger
airbag in the unlikely event that a rear-facing infant
seat is in the front passenger seat.
NOTE:Children 12 years and under should always ride
buckled up in a rear seat in an appropriate child restraint.
•ThePassenger Airbag Disable (PAD) Indicator Light
(an amber light located in the lower switch bank) tells
the driver and front passenger when the front passen-
ger airbag is turned off. The “PAD Indicator Light”
illuminates the wordsPASS AIR BAG OFFto show
that the passenger airbag will not inflate during a
collision requiring airbags. When the right front pas-
senger seat is empty or when very light objects are
placed on the seat, the passenger airbag will not inflate
even though the “PAD Indicator Light” is not illumi-
nated.
Indicator Light Location
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

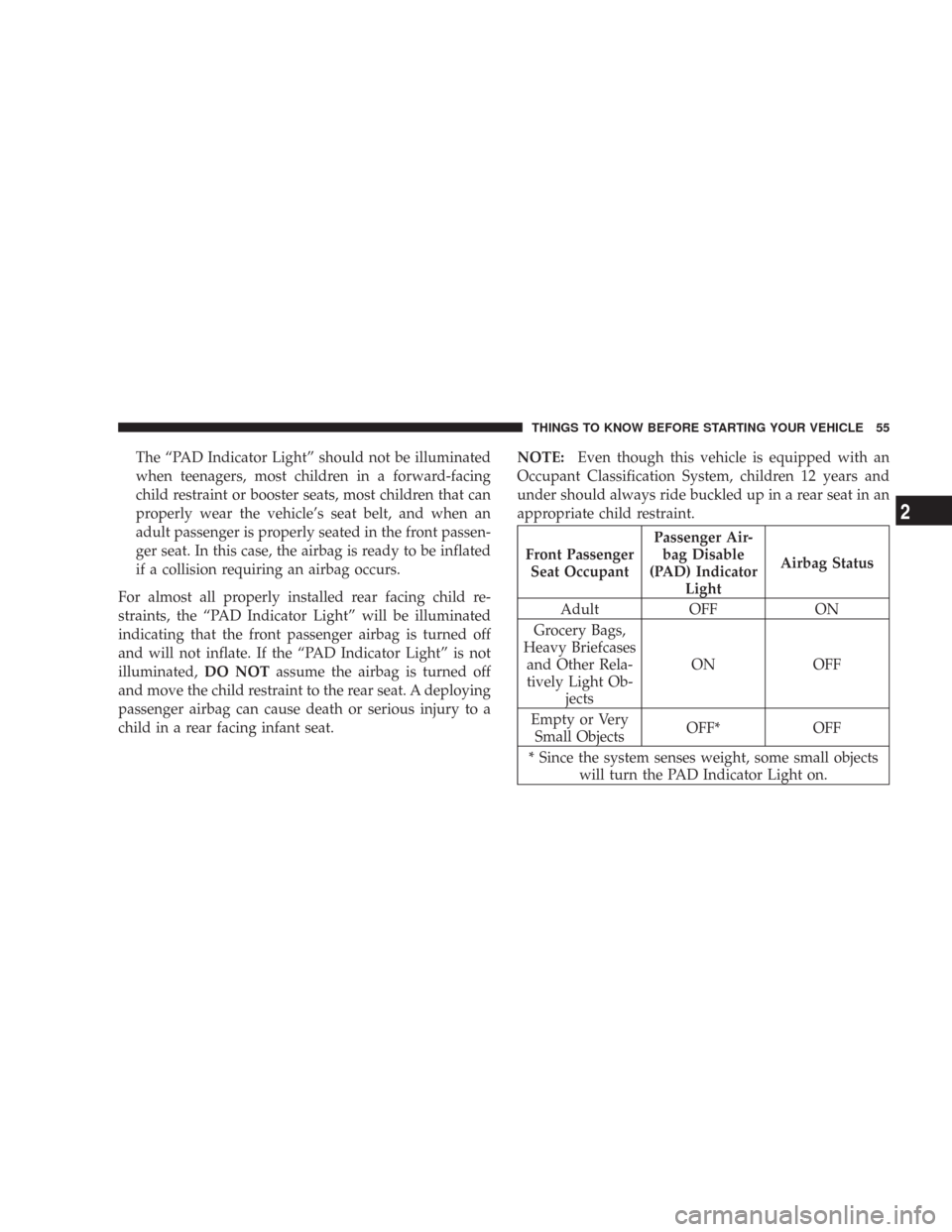

The “PAD Indicator Light” should not be illuminated
when teenagers, most children in a forward-facing
child restraint or booster seats, most children that can
properly wear the vehicle’s seat belt, and when an
adult passenger is properly seated in the front passen-
ger seat. In this case, the airbag is ready to be inflated
if a collision requiring an airbag occurs.
For almost all properly installed rear facing child re-
straints, the “PAD Indicator Light” will be illuminated
indicating that the front passenger airbag is turned off
and will not inflate. If the “PAD Indicator Light” is not
illuminated,DO NOTassume the airbag is turned off
and move the child restraint to the rear seat. A deploying
passenger airbag can cause death or serious injury to a
child in a rear facing infant seat.NOTE:Even though this vehicle is equipped with an
Occupant Classification System, children 12 years and
under should always ride buckled up in a rear seat in an
appropriate child restraint.
Front Passenger
Seat OccupantPassenger Air-
bag Disable
(PAD) Indicator
LightAirbag Status
Adult OFF ON
Grocery Bags,
Heavy Briefcases
and Other Rela-
tively Light Ob-
jectsON OFF
Empty or Very
Small ObjectsOFF* OFF
* Since the system senses weight, some small objects
will turn the PAD Indicator Light on.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55
2

The OCS classifies an occupant using weight sensors
mounted in the base of the front passenger seat. Any
weight on the seat will be sensed by the system. Objects
hanging on the seat or other passengers pushing down
on the seat will also be sensed. The weight of an adult
will cause the system to turn the airbag on. In this case,
the OCS has classified the occupant of the seat as an
adult. An adult occupant needs to sit in a normal position
(with their feet on or near the floor) in order to be
properly classified. Reclining the seat back too far may
change how an occupant is classified by the OCS.
Drivers and adult passengers should verify that the
“PAD Indicator Light” is not illuminated when an adult
is riding in the front passenger seat. If an adult occu-
pant’s weight is transferred to another part of the vehicle
(like the door or instrument panel), the weight sensors in
the seat may not properly classify the occupant. Objects
lodged under the seat or between the seat and the center
console can prevent the occupant’s weight from beingmeasured properly and may result in the occupant being
improperly classified. Ensure that the front passenger
seat back does not touch anything placed on the back seat
because this can also affect occupant classification. Also,
if you fold down the rear seat check to be sure it doesn’t
touch the front passenger seat.
If the front passenger seat is damaged in any way, it
should only be serviced by an authorized dealer. If the
seat is removed (or even if the seat attachment bolts are
loosened or tightened in any way), take the vehicle to an
authorized dealer.
If there is a fault present in the OCS, the “Airbag Warning
Light” (a red light located in the center of the instrument
cluster directly in front of the driver) will be turned on.
This indicates that you should take the vehicle to an
authorized dealer. The “Airbag Warning Light” is turned
on whenever there is fault that can affect the operation of
the airbag system. If there is a fault present in the OCS,
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
