2007 ISUZU KB P190 differential

FRONT WHEEL DRIVE 4C1-29
Major Components


RTW 54CLF000201

Reassembly Steps
1. Diff. carrier
▲ 2. Outer bearing outer race
▲ 3. Inner bearing outer race
▲ 4. Adjust shim
▲ 5. Inner bearing
▲ 6. Collapsible spacer
7. Pinion gear
8. Outer bearing
▲ 9. Oil seal
10. Dust cover


11. Flange
▲ 12. Flange nut
▲ 13. Adjust shim
▲ 14. Side bearing
15. Bearing outer race
16. Diff. cage assembly
▲ 17. Bearing cap
▲ 18. Bolt
19. Axle case
▲ 20. Differential assembly
21. Bolt



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

FRONT WHEEL DRIVE 4C1-33
(7) Select the shim using the chart;

mm(in)
Pinion
marking
+10 +8 +6 +4 +2 0 -2 -4 -6 -8 -10 Dial indicator
reading (inches)
0.081 2.18 (0.0858)0.082 2.18 (0.0858) 2.20 (0.0866)0.083 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882)0.084 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890)0.085 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898)0.086 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913)0.087 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921)0.088 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929)0.089 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937 )0.090 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953)0.091 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961)0.092 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969)0.093 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976)0.094 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992)0.095 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000)0.096 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008)0.097 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.098 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.099 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.001 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.002 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.003 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.004 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.005 2.54 (0.1000) 2.56 (0.1008) 0.006 2.56 (0.1008)
Note :
When ordering shims, find the part number in the Parts Catalog by using the thickness of the shims listed
in the above table.








5. Inner Bearing
Place the shim on the drive pinion, with the chamfered side
turned towards the pinion head then install the inner bearing on
to the pinion using an installer and a press.
Installer : 9-8522-1165-0
Note:
Do not apply pressure to the roller cage.
Apply pressure only to the inner race.



6. Collapsible Spacer
Discard the used collapsible spacer and install a new one.








9. Oil Seal
Use oil seal installer to install a new oil seal that has been
soaked in rear axle lubricant.
Installer : 9-8522-1275-0
Note :
Take care not to use a rear differential oil seal instead of
the front differential oil seal.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

4C1-34 FRONT WHEEL DRIVE







12. Flange Nut and Washer

(1) Apply lubricant to the pinion threads.
(2) Tighten the nut to the specified torque using the pinion flange holder.
Pinion flange holder : 5-8840-0133-0
Torque N ⋅m (kgf ⋅m/lb ⋅ft
)
177 - 275 (18 - 28/130 - 202)
Discard used flange nut and install new one.






(3) Pinion bearing preload
(a) Measure the bearing preload by using a torque meter. Note the scale reading required to rotate the flange.
(b) continue tightening until the specified starting torque is obtained.
Starting Torque N⋅m (kgf ⋅m/lb ⋅in
)
0.63 - 1.13 (0.06 – 0.12/5 - 10)


13. Adjust Shim
(1)
Attach the side bearing to the differential assembly without
shims. Support the opposite side using a pilot to prevent
bearing damage.

1 Installer : 9-8522-1164-0
2 Drive handle : 5-8840-0007-0
3 Pilot : 9-8521-1743-0




(2) Insert the differential cage assembly with bearing oute
r
races into the side bearing bores of the carrier.



(3) Using two sets of feeler gauges, insert a feeler stock o
f
sufficient thickness between each bearing outer race and
the carrier to remove all end plat. Make certain the feele
r
stock is pushed to the bottom of the bearing bores.
Mount the dial indicator on the carrier so that the indicato
r
stem is at right angles to a tooth on the ring gear.
Dial indicator : 5-8840-0126-0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

FRONT WHEEL DRIVE 4C1-37
















20. Differential Assembly
(1) Clean the faces of the front axle case and differential carrier.

Apply the recommended liquid gasket or its equivalent to
the sealing side of the axle case and the carrier.
(2)
Attach the differential case and the carrier assembly to the
front axle case and tighten the nuts and bolts. The axle
case bolt is used for drainage.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
26 (2.7/20)
(3) Install the axle shaft assemblies as instructed earlier in this section under “Axle Shaft Replacement”.
(4) Fill the axle case with hypoid gear lubricant, to just belo
w
the filler hole.
Lubricant capacity liter (US/UK gal)
1.4 (0.37/0.31)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

FRONT WHEEL DRIVE 4C1-67
4. NOISES IN FRONT AXLE
Checkpoint Trouble Cause Countermeasure

Replenish the gear oilInsufficient gear oil
NG
Replace the wheel bearing
Replace the pinion shaft
bearing
Replace the ring gear pinion
gear or side gear
Replace the gear oil
W heel bearingWorn
Pinion shaft bearingWorn
W orn or chipped
W rong or poor grade gear oil
Ring gear, pinion gear or side
gear
Adjust the backlashDrive pinion to ring gear
backlashToo much or too little backlash
NG
NG
NG
NG
NG
OK
OK
OK
OK
Oil level
Tighten or replaceDifferential bearingLoose or worn
NG
OK



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

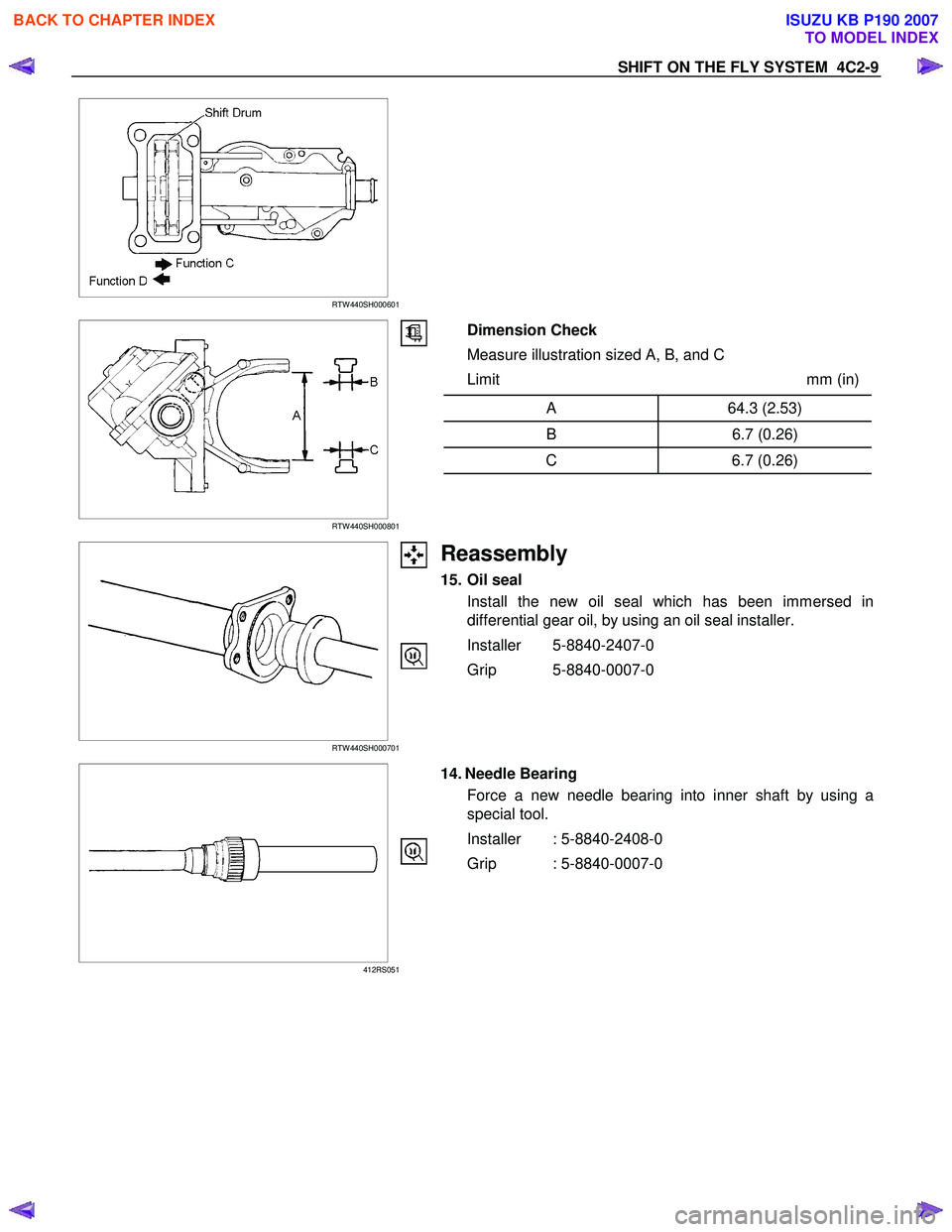

SHIFT ON THE FLY SYSTEM 4C2-9
