Removal and Installation NES000IT
REMOVAL
1. Remove cowl top panel and hood. Refer to EI-18, "COWL TOP" , EI-17, "HOOD" .
2. Install engine slinger, and then hoist engine. Refer to EM-119, "
Removal and Installation (AWD Models)" .
3. Remove tires from vehicle with a power tool.
4. Remove wheel sensor from steering knuckle. Refer to BRC-54, "
WHEEL SENSOR" .
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose bracket. Refer to BR-11, "
BRAKE TUBE AND HOSE" .
6. Remove undercover with a power tool.
7. Remove cotter pin (1), and then loosen the nut.
8. Remove steering outer socket (2) from steering knuckle (3) so
as not to damage ball joint boot (4) using the ball joint remover
(suitable tool).
CAUTION:
Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover (suitable tool) from
suddenly coming off.
9. Remove the mounting nut on the upper side of stabilizer con-
necting rod with a power tool, and then remove stabilizer con-
necting rod from transverse link.
10. Separate steering gear assembly and lower joint. Refer to PS-13, "
STEERING COLUMN" .
11. Remove front cross bar. Refer to FSU-26, "
Components" .
12. Remove steering hydraulic piping bracket from front suspension member. Refer to PS-39, "
HYDRAULIC
LINE" .
13. Remove the mounting nut and bolt on the lower side of shock absorber arm with a power tool, and then
remove shock absorber arm from transverse link.
14. Remove cotter pin of transverse link and steering knuckle, and then loosen nut.
15. Remove transverse link from steering knuckle so as not to damage ball joint boot using the ball joint
remover (suitable tool).
CAUTION:
Temporarily tighten the nut to prevent damage to threads and to prevent ball joint remover (suit-
able tool) from suddenly coming off.
16. Set jack under front suspension member.
17. Remove the mounting nuts of engine mounting insulator. Refer to EM-114, "
ENGINE ASSEMBLY" .
18. Remove the mounting bolts of member bracket, and then remove member bracket from front suspension
member with a power tool. Refer to FSU-26, "
Components" .
19. Remove the mounting nuts of front suspension member with a power tool. Refer to FSU-26, "
Compo-
nents" .
20. Gradually lower a jack to remove front suspension assembly from vehicle.
1. Shock absorber mounting bracket 2. Bound bumper 3. Rubber seat
4. Coil spring 5. Shock absorber 6. Shock absorber arm
7. Upper link 8. Steering knuckle 9. Transverse link
10. Steering stopper bracket 11. Washer 12. Stabilizer connecting rod
13. Stabilizer bar 14. Stabilizer bushing 15. Stabilizer clamp
16. Front suspension member 17. Front cross bar 18. Member bracket
19. Clamp 20. Cotter pin 21. Stopper rubber
Refer to GI-11, "
Components" , for the symbols in the figure.
SGIA1183E

COIL SPRING AND SHOCK ABSORBER
FSU-29
[AWD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45

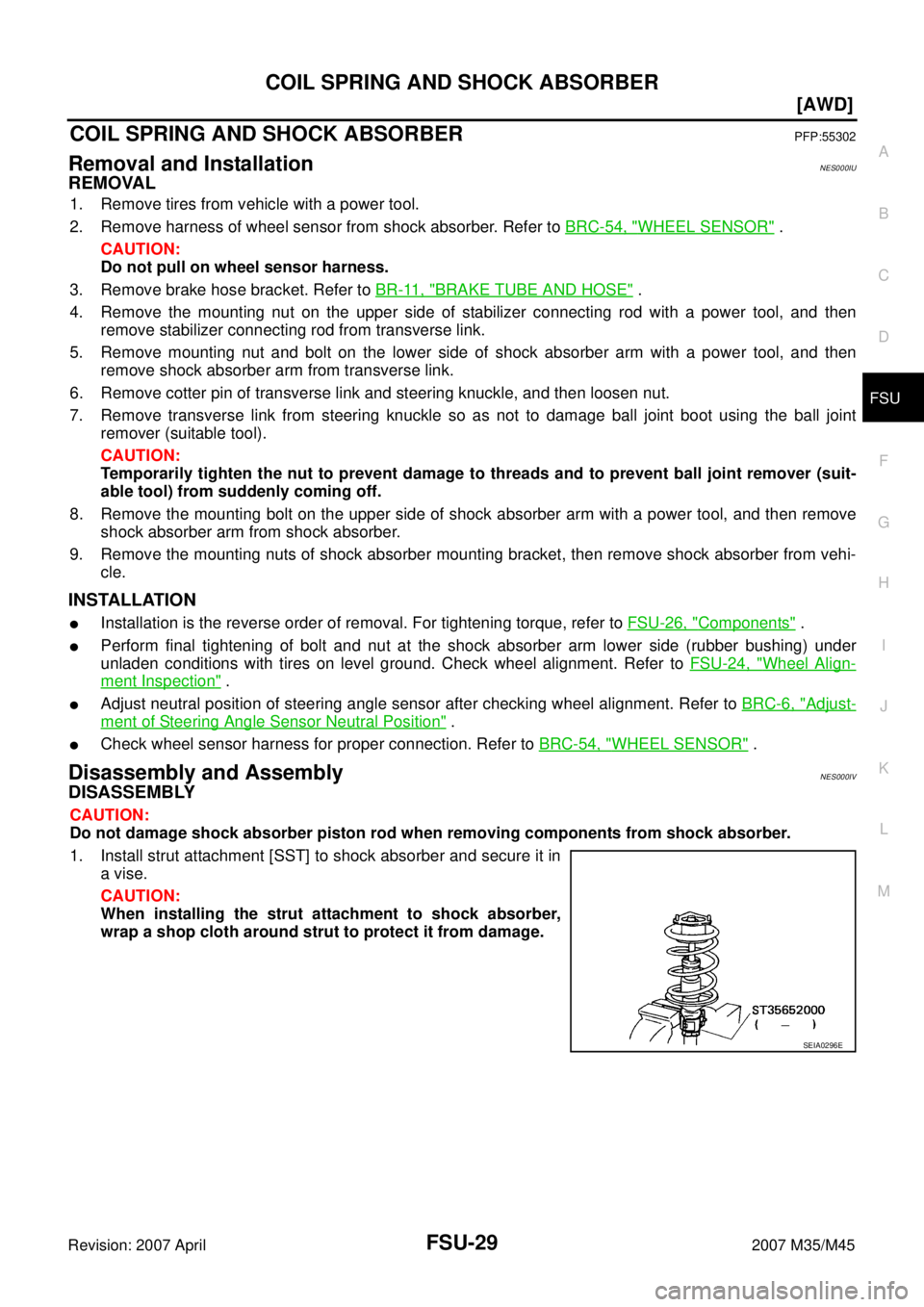

COIL SPRING AND SHOCK ABSORBERPFP:55302
Removal and InstallationNES000IU
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Remove harness of wheel sensor from shock absorber. Refer to BRC-54, "
WHEEL SENSOR" .
CAUTION:
Do not pull on wheel sensor harness.
3. Remove brake hose bracket. Refer to BR-11, "
BRAKE TUBE AND HOSE" .
4. Remove the mounting nut on the upper side of stabilizer connecting rod with a power tool, and then
remove stabilizer connecting rod from transverse link.
5. Remove mounting nut and bolt on the lower side of shock absorber arm with a power tool, and then
remove shock absorber arm from transverse link.
6. Remove cotter pin of transverse link and steering knuckle, and then loosen nut.
7. Remove transverse link from steering knuckle so as not to damage ball joint boot using the ball joint
remover (suitable tool).
CAUTION:
Temporarily tighten the nut to prevent damage to threads and to prevent ball joint remover (suit-
able tool) from suddenly coming off.
8. Remove the mounting bolt on the upper side of shock absorber arm with a power tool, and then remove
shock absorber arm from shock absorber.
9. Remove the mounting nuts of shock absorber mounting bracket, then remove shock absorber from vehi-
cle.
INSTALLATION

Installation is the reverse order of removal. For tightening torque, refer to FSU-26, "Components" .

Perform final tightening of bolt and nut at the shock absorber arm lower side (rubber bushing) under
unladen conditions with tires on level ground. Check wheel alignment. Refer to FSU-24, "
Wheel Align-
ment Inspection" .

Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

Check wheel sensor harness for proper connection. Refer to BRC-54, "WHEEL SENSOR" .
Disassembly and AssemblyNES000IV
DISASSEMBLY
CAUTION:
Do not damage shock absorber piston rod when removing components from shock absorber.
1. Install strut attachment [SST] to shock absorber and secure it in
a vise.
CAUTION:
When installing the strut attachment to shock absorber,
wrap a shop cloth around strut to protect it from damage.
SEIA0296E
