BL-82
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
AUTO RELOCK TIMERAuto door lock timer mode can select the following with this mode.
1 min

5 min

OFF: Non-operation
PANIC ALARM DELAYPanic alarm button's pressing time on Intelligent Key remote control button can be selected from
the following with this mode. The operation mode will be changed when “CHANGE SETT” on
CONSULT-II screen is touched.

0.5 sec

1.5 sec

OFF: Non-operation
TRUNK/GLASS HATCH OPENBuzzer reminder function mode by trunk opener request switch can be changed to operate (ON)
or not operate (OFF) with this mode. The operation mode will be changed when “CHANGE
SETT” on CONSULT-II screen is touched.
TRUNK OPEN DELAYTrunk button's pressing time on Intelligent Key button can be selected from the following with this
mode. The operation mode will be changed when “CHANGE SETT” on CONSULT-II screen is
touched.

0.5 sec

1.5 sec

OFF: Non-operation
P/W DOWN DELAYUnlock button's pressing time on Intelligent Key button can be selected from the following with
this mode. The operation mode will be changed when “CHANGE SETT” on CONSULT-II screen
is touched.

3 sec

5 sec

OFF: Non-operation
ENGINE START BY I-KEYEngine start function mode can be changed to operate (ON) or not operate (OFF) with this mode.
The operation mode will be changed when “CHANGE SETT” on CONSULT-II screen is touched.
LOCK/UNLOCK BY I-KEYDoor lock/unlock function by door request switch (driver side, passenger side and trunk) mode
can be changed to operate (ON) or not operate (OFF) with this mode. The operation mode will be
changed when “CHANGE SETT” on CONSULT-II screen is touched. Monitor item Description

BL-84
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
Trouble Diagnosis Symptom ChartNIS001XK
ALL FUNCTIONS OF INTELLIGENT KEY SYSTEM DOES NOT OPERATE
NOTE:

Before performing the diagnosis in the following table, check “Trouble Diagnosis Procedure”. Refer to BL-
77, "Trouble Diagnosis Procedure" .

Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis,
and check each symptom.

If the following “symptoms” are detected, check systems shown in the “Diagnosis/service procedure” col-
umn in this order.
Conditions of Vehicle (Operating Conditions)

“ENGINE START BY I-KEY” and “LOCK/UNLOCK BY I-KEY” are ON when setting on CONSULT-II.

All doors are closed.
DOOR LOCK/UNLOCK FUNCTION MALFUNCTION
NOTE:

Before performing the diagnosis in the following table, check “Trouble Diagnosis Procedure”. Refer to BL-
77, "Trouble Diagnosis Procedure" .

Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis,
and check each symptom.

If the following “symptoms” are detected, check systems shown in the “Diagnosis/service procedure” col-
umn in this order.
Conditions of Vehicle (Operating Conditions)

“LOCK/UNLOCK BY I-KEY” is ON when setting on CONSULT-II.

Intelligent Key is out of key slot.

All doors are closed.
ENGINE SW ILLUMIThis test is able to check push-ignition switch illumination operation.
Push-ignition switch illumination illuminates when “ON” on CONSULT-II screen is touched.
LOCK INDCATORThis test is able to check LOCK indicator in push-ignition switch operation.
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-II screen is touched.
ACC INDCATORThis test is able to check ACC indicator in push-ignition switch operation.
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-II screen is touched.
IGNITION ON INDThis test is able to check INGITION ON indicator in push-ignition switch operation.
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-II screen is touched.
KEY SLOT ILLUMIThis test is able to check key slot illumination operation.
Key slot illumination flash when “ON” on CONSULT-II screen is touched. Test item Description
Symptom Diagnosis/service procedure Reference page
All function of Intelligent Key system dose not
operate.1.Check Intelligent Key unit power supply and ground
circuit.BL-91
2. Check Intelligent Key battery inspection.BL-124
3. Check remote keyless entry receiver.BL-115
4. Replace Intelligent Key unit.BL-123
Symptom Diagnosis/service procedure Reference page
Door lock/unlock do not operate by door
request switch.1.Check Intelligent Key unit power supply and ground
circuit.BL-91
2. Check door switch.BL-94
3. Check key slot.BL-92
4. Replace Intelligent Key unit.BL-123

INTELLIGENT KEY SYSTEM
BL-85
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION
NOTE:

Before performing the diagnosis in the following table, check “Trouble Diagnosis Procedure”. Refer to BL-
77, "Trouble Diagnosis Procedure" .

Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis,
and check each symptom.

If the following “symptoms” are detected, check systems shown in the “Diagnosis/service procedure” col-
umn in this order.
Conditions of Vehicle (Operating Conditions)

Intelligent Key is out of key slot.

Ignition switch is not ON position.

All doors are closed.
Door lock/unlock does not operate by request
switch (driver side).1. Check door request switch (driver side).BL-992. Check outside key antenna (driver side).BL-106
3. Replace Intelligent Key unit.BL-123
Door lock/unlock does not operate by request
switch (passenger side).1. Check door request switch (passenger side).BL-992. Check outside key antenna (passenger side).BL-106
3. Replace Intelligent Key unit.BL-123
Selective unlock function does not operate by
door request switch (driver side) (other door
lock function operate).1.Check “SELECT UNLOCK FUNCTION” setting in
“WORK SUPPORT”.BL-81
2.Check selective unlock function with a remote control-
ler or door key cylinder.BL-26
3. Replace BCM.BCS-15
Selective unlock function does not operate by
door request switch (passenger side) (other
door lock function operate).1.Check “SELECT UNLOCK FUNCTION” setting in
“WORK SUPPORT”.BL-81
2. Replace Intelligent Key unit.BL-123
Auto lock function does not operate.1.Check “AUTO RELOCK TIMER” setting in “WORK
SUPPORT”.BL-812. Check door switch.BL-94
3. Check key slot.BL-92
4. Replace BCM.BCS-15
Key reminder function does not operate.1.Check “ANTI KEY LOCK IN FUNCTION” setting in
“WORK SUPPORT”.BL-81
2. Check door switch.BL-94
3. Check inside key antenna.BL-110
4. Check unlock sensor.BL-103
5. Check Intelligent Key battery inspection.BL-124
6. Replace Intelligent Key unit.BL-123
Symptom Diagnosis/service procedure Reference page
Symptom Diagnosis/service procedureReference
page
All of the remote keyless entry functions
do not operate.1. Check Intelligent Key battery inspection.BL-124
2. Replace Intelligent Key unit.BL-123
Selective unlock function does not operate
by Intelligent Key.1.Check “SELECT UNLOCK FUNCTION” setting in “WORK SUP-
PORT”.BL-81
2. Check Intelligent Key battery inspection.BL-124
3. Replace Intelligent Key unit.BL-123

BL-126
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2007 April2007 M35/M45
System DescriptionNIS001Y8

The engine start function of Intelligent Key system is a system that makes it possible to start and stop the
engine without removing the key. It verifies the electronic ID using two-way communications when press-
ing the push-button ignition switch while carrying the Intelligent Key, which operates based on the results
of electronic ID verification for Intelligent Key using two-way communications between the Intelligent Key
and the vehicle (Intelligent Key unit).
NOTE:
The driver should always carry the intelligent key at all times.

Intelligent Key has 2 IDs (for Intelligent Key and for immobilizer). It can perform the door lock/unlock oper-
ation and the push-button ignition switch operation when carrying the registered Intelligent Key.

When the Intelligent Key battery is discharged, it can be used as emergency by inserting the Intelligent
Key to the key slot. At that time, perform the immobilizer ID verification. If it is used when carrying the
Intelligent Key, perform the Intelligent Key ID verification.

If the ID is successfully verified, and when push-button ignition switch is pressed, steering lock will be
released and initiating the engine will be possible.

If the door lock/unlock operation is performed when the Intelligent Key battery is discharged, all doors
lock/unlock can be performed by operating the driver door key cylinder using the mechanical key set into
the Intelligent Key.

Intelligent Key can be registered up to 4 keys (Including the standard Intelligent Key) on request from the
owner.
NOTE:

Refer to BL-43, "INTELLIGENT KEY SYSTEM" for any functions other than engine start function of
Intelligent Key system.

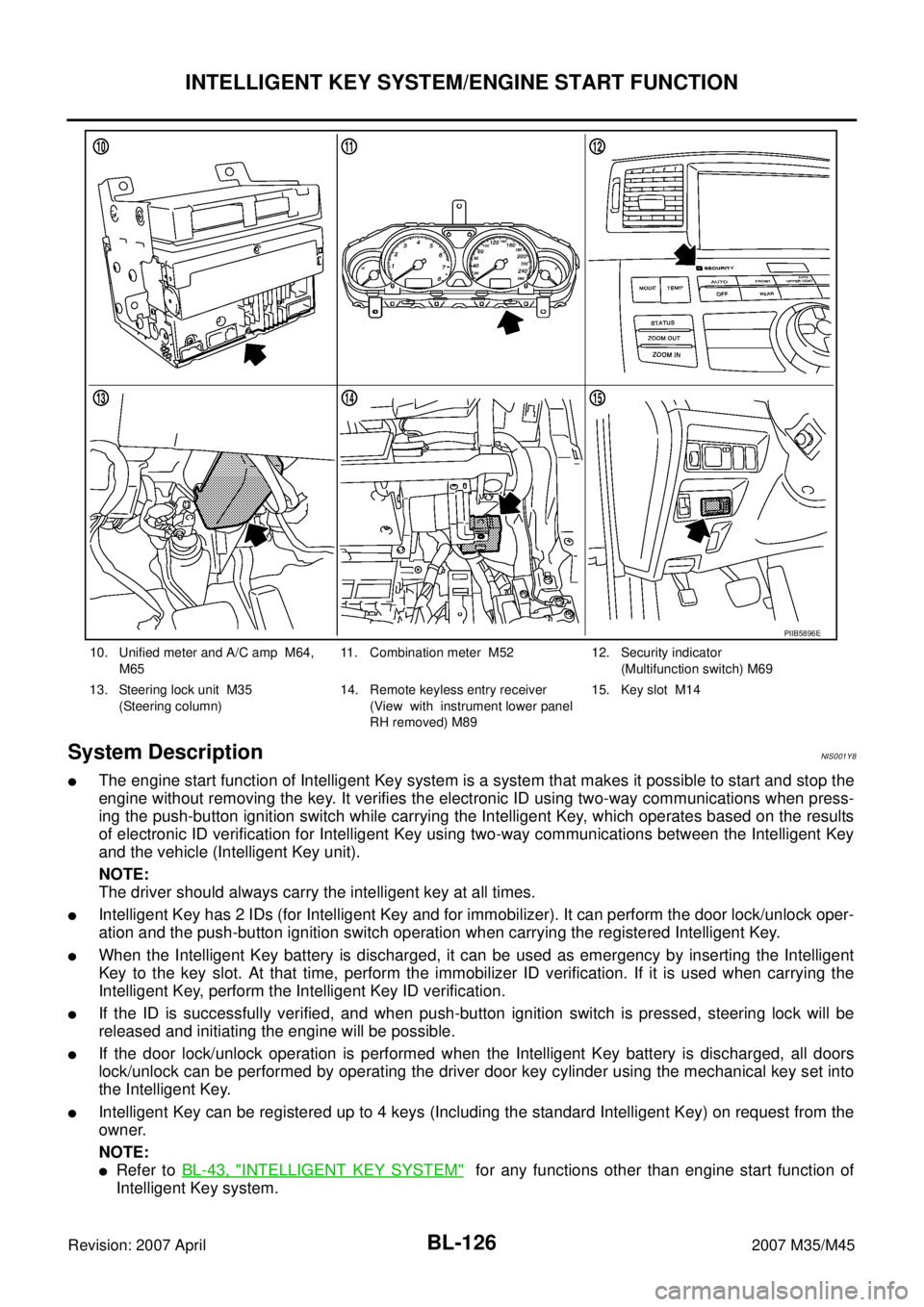

10. Unified meter and A/C amp M64,
M6511. Combination meter M52 12. Security indicator
(Multifunction switch) M69
13. Steering lock unit M35
(Steering column)14. Remote keyless entry receiver
(View with instrument lower panel
RH removed) M89 15. Key slot M14
PIIB5896E

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-127
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

In the Intelligent Key system of model Y50, the transponder (the chip for immobilizer ID verifica-
tion) is integrated into the Intelligent Key. (For the conventional models, it is integrated into the
mechanical key.) Therefore, the mechanical key cannot perform the ID verification, and thus it can-
not start the engine. Instead of it, the immobilizer ID verification can be performed by inserting the
Intelligent Key into the key slot, and then it can start the engine.

When registering the Intelligent Key, 2 registration procedures (immobilizer ID registration and
Intelligent Key ID registration) should be performed. The immobilizer ID registration is the proce-
dure that registers the ID stored into the transponder (integrated into Intelligent Key) to the BCM.
The Intelligent Key ID registration is the procedure that registers the ID to the Intelligent Key unit.
Each registration is a different procedure.

When performing the Intelligent Key ID registration only, the engine cannot be started by inserting
the key into the key slot. When performing the engine immobilizer ID registration only, the engine
cannot be started by the operation when carrying the key. The registrations of both systems
should be performed.
Operation DescriptionNIS001Y9
SYSTEM DIAGRAM
OPERATION WHEN INTELLIGENT KEY IS CARRIED
Description
1. When the push-button switch is pressed, the Intelligent Key unit signals the inside key antenna and sends
the request signal to the Intelligent Key.
2. The Intelligent Key receives the request signal and sends the Intelligent Key ID signal to the Intelligent
Key unit via the remote keyless entry receiver.
3. The Intelligent Key receives the Intelligent Key ID signal and verifies it with the registered ID.
4. If the ID is successfully verified, the Intelligent Key unit sends the steering unlock signal to the steering
lock unit. Then, it sends each power supply request signal to PDU (Power Distribution Unit) after unlock-
ing the steering lock.
5. If the Intelligent Key unit judges that the engine start condition is satisfied, it sends the starter request sig-
nal via CAN communication to IPDM E/R and turns the starter motor relay ON.
6. The steering lock unit unlocks the steering lock when receiving the signal. PDU starts the power supply
distribution according to the push-button ignition switch operation when receiving the signal. If it enters the
engine start permission mode, the power supply is supplied from PDU to the starter motor relay and the
cranking is started.
CAUTION:
If a malfunction is detected in the Intelligent Key system, the “KEY” warning lamp in the combina-
tion meter illuminates for 15 seconds. At that time, the engine cannot be started.
7. When Intelligent Key unit received feedback signal from ECM acknowledging the engine has been initi-
ated, the Intelligent Key unit sends a stop signal to IPDM E/R and stops the cranking by turning OFF the
PIIB6272E

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45

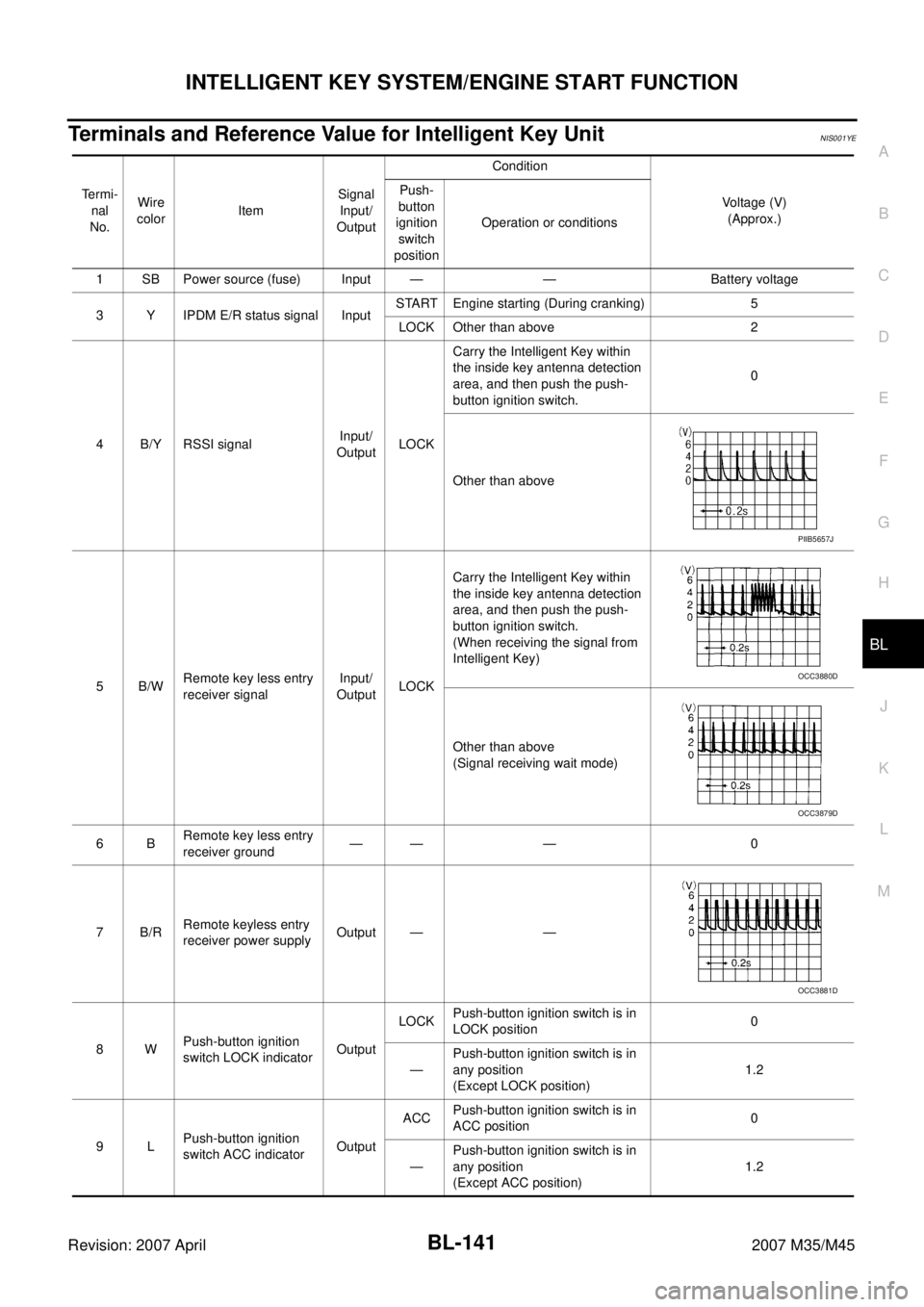

Terminals and Reference Value for Intelligent Key UnitNIS001YE
Termi-
nal
No.Wire
colorItemSignal
Input/
OutputCondition
Voltage (V)
(Approx.) Push-
button
ignition
switch
positionOperation or conditions
1 SB Power source (fuse) Input — — Battery voltage
3 Y IPDM E/R status signal InputSTART Engine starting (During cranking) 5
LOCK Other than above 2
4 B/Y RSSI signalInput/
OutputLOCKCarry the Intelligent Key within
the inside key antenna detection
area, and then push the push-
button ignition switch.0
Other than above
5B/WRemote key less entry
receiver signalInput/
OutputLOCKCarry the Intelligent Key within
the inside key antenna detection
area, and then push the push-
button ignition switch.
(When receiving the signal from
Intelligent Key)
Other than above
(Signal receiving wait mode)
6BRemote key less entry
receiver ground—— — 0
7B/RRemote keyless entry
receiver power supplyOutput — —
8WPush-button ignition
switch LOCK indicatorOutputLOCKPush-button ignition switch is in
LOCK position0
—Push-button ignition switch is in
any position
(Except LOCK position)1.2
9LPush-button ignition
switch ACC indicatorOutputACCPush-button ignition switch is in
ACC position0
—Push-button ignition switch is in
any position
(Except ACC position)1.2
PIIB5657J
OCC3880D
OCC3879D
OCC3881D

BL-148
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2007 April2007 M35/M45
Work FlowNIS001YJ
1. LISTEN TO CUSTOMER COMPLAINT OR REQUEST
Get symptoms or listen to customer complaints or request.
NOTE:
In case of request for Intelligent Key or IVIS (NATS) system repair, the key ID re-registration might be neces-
sary. Keep all the Intelligent Keys before work for the re-registration.
Key ID registration request>>Resister Intelligent Key by referring to Technical Bulletin.
Request for malfunction repair.>>GO TO 2.
2. CHECK DOOR LOCK AND REMOTE KEYLESS ENTRY FUNCTION
Check that Door Lock and remote control function of Intelligent Key operate normally.
Door Lock or remote keyless entry function is malfunctioning.>>Malfunction of Door Lock and remote control
function, Refer to BL-43, "
INTELLIGENT KEY SYSTEM" .
Door Lock and remote keyless entry function are normal.>>GO TO 3.
3. CONFIRMATION BEFORE DIAGNOSIS
Before performing diagnostic procedure, grasp the operating systems with referring to the items below.

“System operation with carrying Intelligent Key”. Refer to BL-127, "OPERATION WHEN INTELLIGENT
KEY IS CARRIED" .

“System operation by using Key slot”. Refer to BL-128, "OPERATION WHEN KEY SLOT IS USED" .
>> GO TO 4.
4. CONFIRM SELF DIAGNOSIS 1
Start CONSULT-II with Push-button ignition switch in lock position and confirm SELF DIAG RESULT “Intelli-
gent Key”. Refer to BL-150, "
CONSULT-II Inspection Procedure" .
No malfunction>>GO TO 5.
Malfunction exist>>Repair the items displayed in “SELF DIAG RESULTS”. Refer to BL-150, "
SELF-DIAG-
NOSTIC RESULTS" .
5. CONFIRM SELF DIAGNOSIS 2
Start CONSULT-II with Push-button ignition switch in lock position and confirm SELF DIAG RESULTS “NATS
BCM or S/ENT” and “NATS I-KEY”. Refer to BL-265, "
CONSULT-II INSPECTION PROCEDURE" .
NOTE:
NATS program card is necessary to display “SELF DIAG RESULTS”.
No malfunction>>GO TO 6.
Malfunction exist>>Repair the items displayed in “SELF DIAG RESULTS”. Refer to BL-268, "
“NATS BCM OR
S/ENT” SELF-DIAGNOSTIC RESULTS ITEM CHART" and BL-269, "“NATS I-KEY” SELF-DIAG-
NOSTIC RESULTS ITEM CHART" .

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-151
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
CAUTION:
When CAN COMM CIRCUIT [U1000] and CONTROL UNIT (CAN) [U1010] are displayed, give priority to performing trouble diag-
nosis.
DATA MONITOR
IGN POWER CIRCUIT
[B2553]It continues for 2 seconds or more that ON power sup-
ply input to Intelligent Key unit is excessively low when
the power supply position is in ON positionCheck Intelligent Key
unit ON power supply
inputBL-161
ACC POWER CIRCUIT
[B2554]It continues for 2 seconds or more that ACC power
supply input to Intelligent Key unit is excessively low
when the power supply position is in ACC or ON posi-
tionCheck Intelligent Key
unit ACC power supply
inputBL-162
STOP LAMP CIRCUIT
[B2555]5V or less is detected at both the stop lamp switch sig-
nal input circuit that is input to Intelligent Key unit and
the monitor input before stop lamp switchCheck stop lamp switchBL-165
ENG START SW
[B2556]Condition that push-button ignition switch is pushed is
detected continuously for 100 seconds or moreCheck push-button igni-
tion switchBL-166
VEHICLE SPEED
[B2557]Some differences occur on one or more vehicle speed
inputs of Intelligent Key unitCheck vehicle speed sig-
nalBL-167
SHIFT POSITION
[B2558]

There is a difference between the shift position input
via CAN communication and the P position input by
detent switch

Vehicle speed (5 km/h or more) is detected continu-
ously for 10 seconds or more even if the shift posi-
tion is detected in P position when the power supply
position is in ON positionCheck shift position inputBL-170
PDU
[B2559]Internal malfunction is detected in PDU Replace PDUBL-172
START POW SUP CIRC
[B2560]Though the engine start operation is not performed,
starter relay in IPDM E/R is ONCheck starter power sup-
plyBL-172
LOW VOLTAGE
[B2562]Battery power supply input to Intelligent Key unit (8.8V
or less) is detected continuously for 1.5 seconds or
moreCheck battery low volt-
ageBL-175
HI VOLTAGE
[B2563]Battery power supply input to Intelligent Key unit (18V
or more) is detected continuously for 90 seconds or
moreCheck for battery high
voltageBL-176
NATS MALFUNCTION
[B2590]Malfunction is detected in immobilizer systemCheck (IVIS) NATS trou-
ble diagnosis procedureBL-265
Suspect Systems
[DTC]Diagnostic item is detected when... Repair work Reference page
Monitor item Content
DR REQ SW Indicates [ON/OFF] condition of door request switch (driver side).
AS REQ SW Indicates [ON/OFF] condition of door request switch (passenger side).
BD/TR REQ SW Indicates [ON/OFF] condition of trunk opener request switch.
ON POS Indicates [ON/OFF] condition of ignition switch in ON position.
ACC POS Indicates [ON/OFF] condition of ignition switch in ACC position.
DOOR STAT SW Indicates [ON/OFF] condition of door unlock sensor.
STOP LAMP SW Indicates [ON/OFF] condition of stop lamp switch.
P RANGE SW Indicates [ON/OFF] condition of park position switch.
TR CANCEL SW* Indicates [ON/OFF] condition of trunk cancel switch.
DOOR LOCK SIG* Indicates [ON/OFF] condition of door lock signal from Intelligent Key remote controller button.
DOOR UNLOCK SIG* Indicates [ON/OFF] condition of door unlock signal from Intelligent Key remote controller button.
KEYLESS TRUNK* Indicates [ON/OFF] condition of trunk open signal from Intelligent Key remote controller button.
KEYLESS PANIC* Indicates [ON/OFF] condition of panic alarm signal from Intelligent Key remote controller button.
