INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-125
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONPFP:285F1

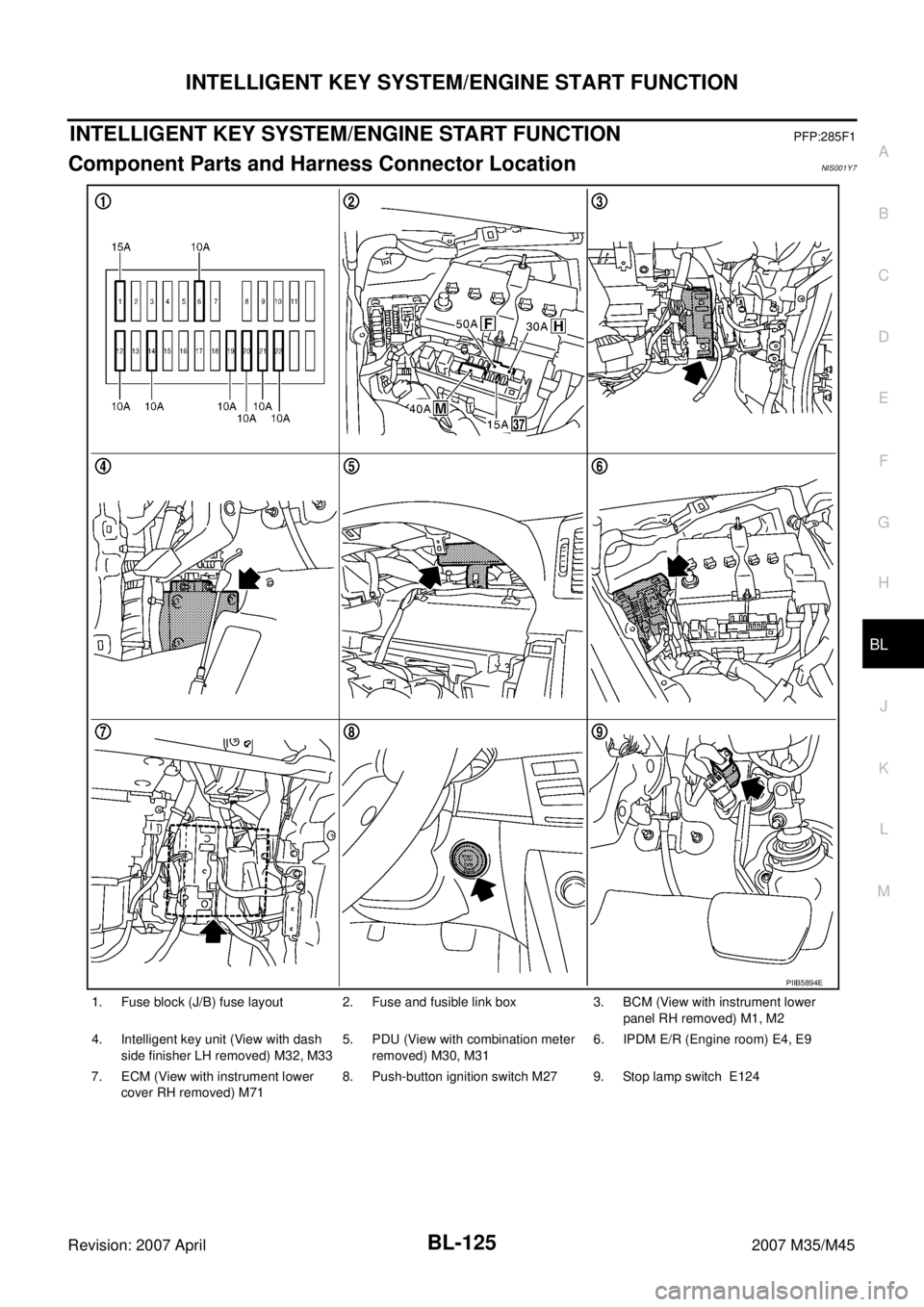

Component Parts and Harness Connector LocationNIS001Y7
1. Fuse block (J/B) fuse layout 2. Fuse and fusible link box 3. BCM (View with instrument lower
panel RH removed) M1, M2
4. Intelligent key unit (View with dash
side finisher LH removed) M32, M335. PDU (View with combination meter
removed) M30, M316. IPDM E/R (Engine room) E4, E9
7. ECM (View with instrument lower
cover RH removed) M718. Push-button ignition switch M27 9. Stop lamp switch E124
PIIB5894E

TRUNK LID OPENER
BL-207
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
TRUNK LID OPENERPFP:84640

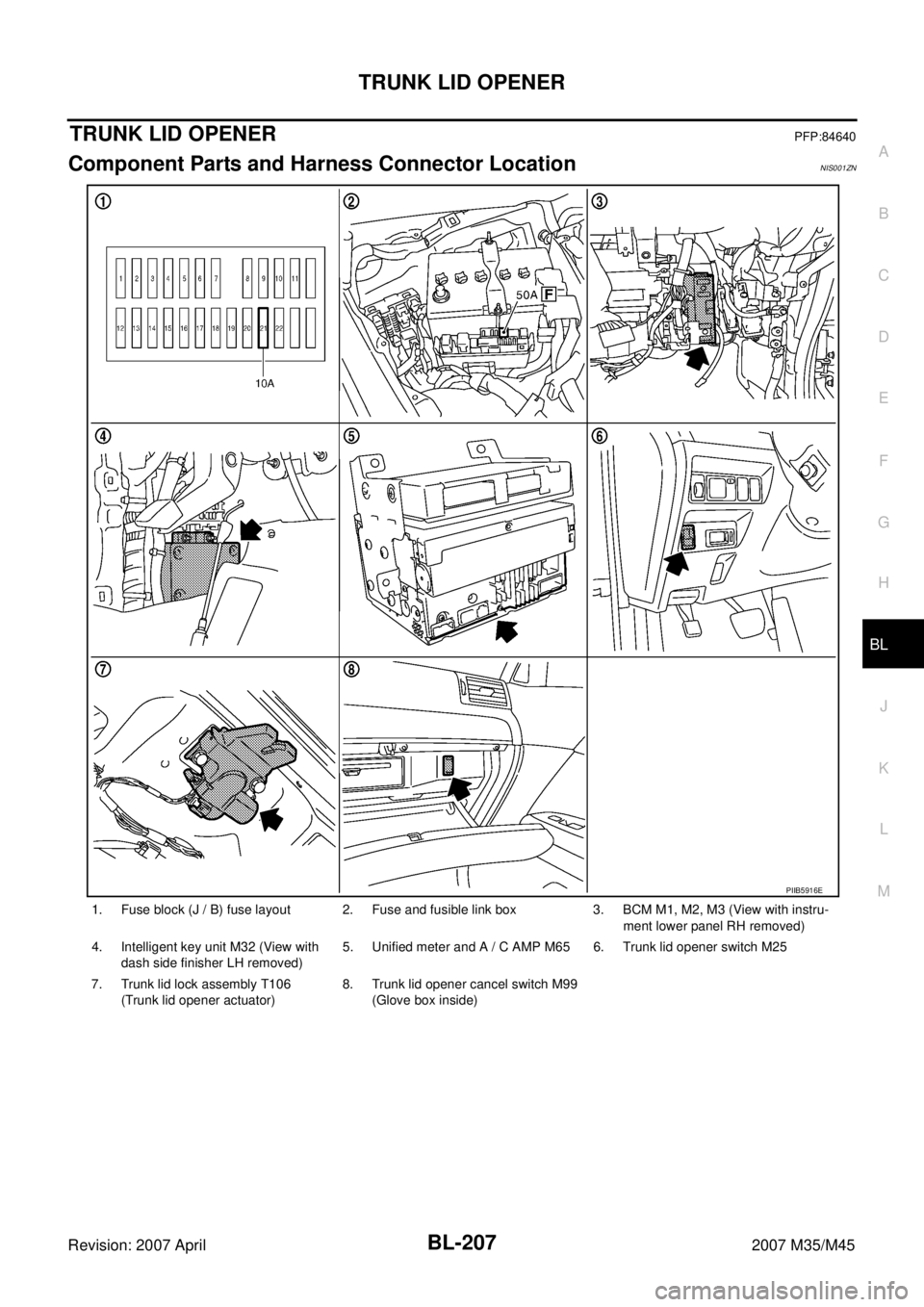

Component Parts and Harness Connector LocationNIS001ZN
1. Fuse block (J / B) fuse layout 2. Fuse and fusible link box 3. BCM M1, M2, M3 (View with instru-
ment lower panel RH removed)
4. Intelligent key unit M32 (View with
dash side finisher LH removed)5. Unified meter and A / C AMP M65 6. Trunk lid opener switch M25
7. Trunk lid lock assembly T106
(Trunk lid opener actuator)8. Trunk lid opener cancel switch M99
(Glove box inside)
PIIB5916E

BL-208
TRUNK LID OPENER
Revision: 2007 April2007 M35/M45
System DescriptionNIS001ZO
Power is supplied at all times

through 50A fusible link (letter F, located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No.21, located in the fuse block (J/B)]

to BCM terminal 42.
Ground is supplied

to BCM terminal 52

through body grounds M16 and M70.
When trunk lid opener cancel switch is ON and trunk lid opener switch is ON (pushed)
Ground is supplied

to BCM terminal 30

through trunk lid opener switch terminals 1and 2

through trunk lid opener cancel switch terminals 1and 3 and

through body grounds M16 and M70.
And power is supplied

through BCM terminal 68

to trunk lid opener actuator terminal 3.
Ground is supplied

to trunk lid opener actuator terminal 2

through body grounds B402,B405.
Then BCM open trunk lid opener actuator.
TRUNK LID OPENER OPERATION
When trunk lid opener switch or trunk button of Intelligent Key is ON, BCM opens trunk opener actuator.
BCM can open trunk lid opener actuator when

vehicle speed is less than 5 km/h (3MPH)

vehicle security system is disarmed or pre-armed phase
BCM does not open trunk lid opener actuator when

trunk lid opener cancel switch is OFF (CANSEL)

vehicle speed is more than 5 km/h (3MPH)

vehicle security system is armed or alarm phase

Intelligent Key is inserted in key slot

BL-218
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2007 April2007 M35/M45
1. Fuse block (J/B) fuse layout 2. IPDM E/R fuse layout 3. Fuse and fusible link box
4. BCM M1, M2 (View with instrument
lower panel RH removed)5. IPDM E/R E8, E9
(Engine room)6. Security indicator M69
(Multifunction switch)
7. Key slot M14 8. Hood switch E44
(Hood lock assembly)9. Intelligent key unit M32 (View with
dash side finisher LH removed)
10. Remote keyless entry receiver M89
(View with instrument lower panel RH
removed)11. Power window main switch
D10, D11 (Driver side)12. Power window sub switch
D46 (Passenger side)
13. Front door lock assembly LH D14
(Key cylinder switch)14. Front door switch B11
(Driver side)15. Rear door switch LH B53
16. trunk lid lock assembly T106
(Trunk room lamp switch)17. Trunk lid key cylinder switch T104 18. Horn (low) E56, E57 (View with front
fender protector LH removed)
19. Horn (high) E64, E65 (View with front
grille removed)
PIIB5893E

BL-220
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2007 April2007 M35/M45
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 50A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No. 21, located in the fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 71, located in the IPDM E/R]

to IPDM E/R internal CPU,

through 15A fuse [No. 78, located in the IPDM E/R]

to IPDM E/R internal CPU,

through 15A fuse [No. 37, located in the fuse block (J/B)]

to multi-function switch (security indicator) terminal 1.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through body grounds M16 and M70.
INITIAL CONDITION TO ACTIVATE THE SYSTEM
The operation of the vehicle security system is controlled by the doors, hood and trunk.
To activate the vehicle security system, BCM must receive signals indicating the doors, hood and trunk are
closed and the doors are locked by key fob.
When a door is open, terminal 12 (passenger side door), 13 (rear RH door), 62 (driver side door), 63 (rear LH
door) receives a ground signal from each door switch.
When front door LH is unlocked by power window main switch (door lock and unlock switch), BCM terminal 22
receives an unlock signal from terminal 14 of power window main switch with power window serial link.
When front door RH is unlocked by power window sub-switch (passenger side) (door lock and unlock switch),
BCM terminal 22 receives an unlock signal from terminal 16 of power window sub-switch (passenger side)
with power window serial link.
When front door key cylinder switch is in LOCK position, ground is supplied

to power window main switch terminal 4

through front door key cylinder switch terminals 6 and 4

through body grounds M16 and M70.
When the hood is open, IPDM E/R receives a ground signal

to IPDM E/R terminal 60

through hood switch terminal 2

through hood switch terminal 1

through body grounds E22, and E43.
The IPDM E/R then sends a signal to BCM via CAN communication line.
When the trunk is open, ground is supplied

to BCM terminal 57

through trunk room lamp switch terminal 1

through trunk room lamp switch terminal 2

through body grounds B402 and B405.

BL-244
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2007 April2007 M35/M45
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:28591
Component Parts and Harness Connector LocationNIS0020C
1. Fuse block (J/B) fuse layout 2. Fuse and fusible link box 3. BCM M1, M2, M3 (View with instru-
ment lower panel RH removed)
4. Intelligent key unit M32, M33 (View
with dash side finisher LH removed) 5. PDU M30, M31 (View with combina-
tion meter removed)6. IPDM E/R E4, E9
(Engine room)
7. ECM M71 (View with instrument
lower panel RH removed)8. Push-button ignition switch M27 9. Stop lamp switch E124
PIIB5894E

BL-276
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2007 April2007 M35/M45
2. CHECK POWER SUPPLY CIRCUIT FOR BCM
Check voltage between BCM and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Check the following.

50A fusible link (letter F , located in the fuse and fusible link box)

10A fuse [No.21, located in the fuse block (J/B)]

15A fuse [No. 1, located in the fuse block (J/B)]

Harness for open or short between fusible link and BCM

Harness for open or short between fuse and BCM
3. CHECK GROUND CIRCUIT FOR BCM
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. REPLACE BCM
1. Replace BCM
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.
Does the engine start?
Yes >> BCM is malfunctioning.

Replace BCM.

Perform initialization with CONSULT-II

For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”
No >> ECM is malfunctioning.

Replace ECM.

Perform initialization or re-communicating function

For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”

For re-communicating function, refer to BL-248, "ECM Re-Communicating Function"
Te r m i n a l s
Condition of
ignition switchVoltage (V)
(Approx.) (+)
(–)
BCM connector Terminal
M1 38
GroundON
Battery voltage
M242
OFF
55
PIIB5934E
BCM connector Terminal
GroundContinuity
M2 52 Yes
PIIB5935E

GI-18
HOW TO USE THIS MANUAL
Revision: 2007 April2007 M35/M45

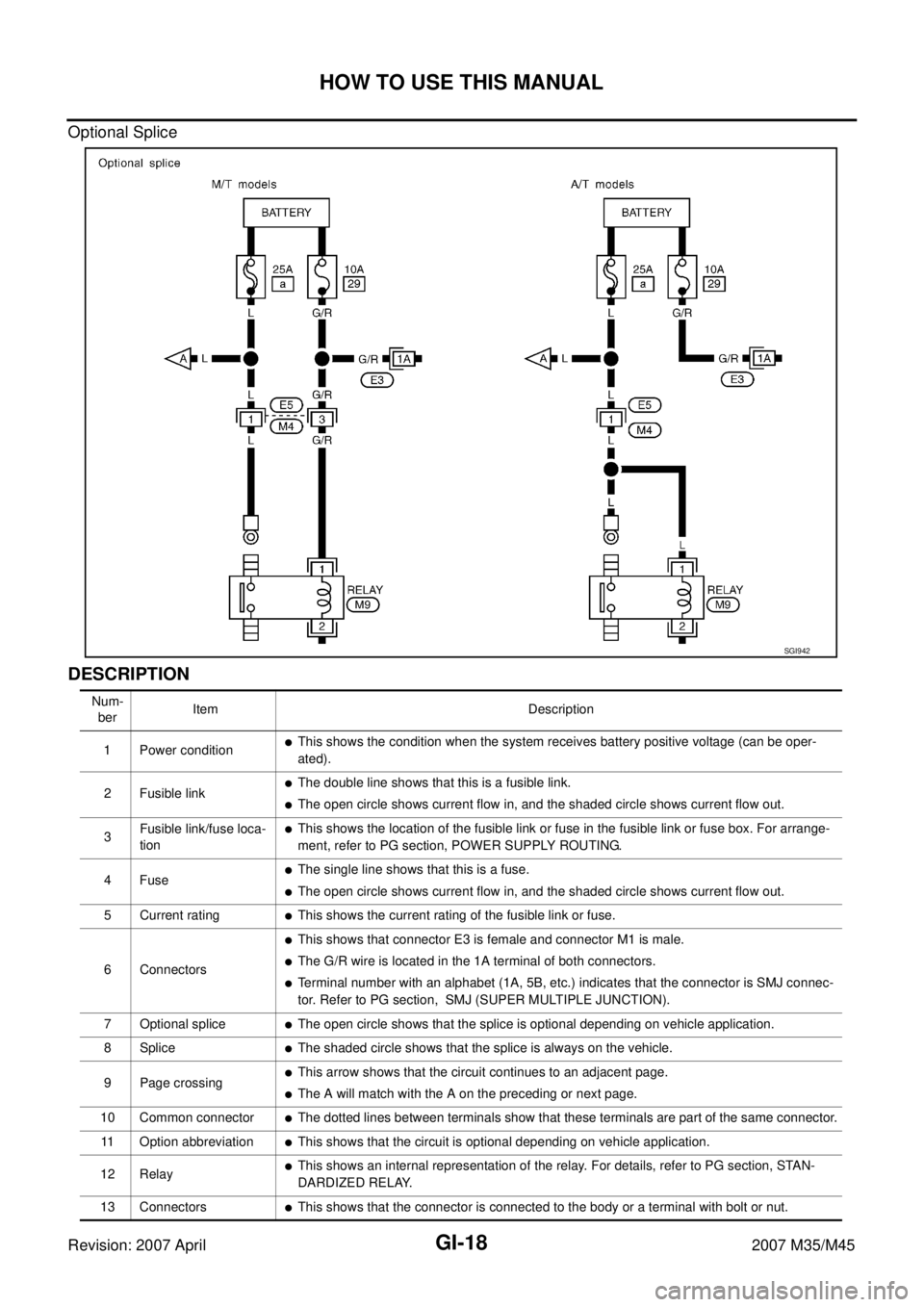

Optional Splice
DESCRIPTION
SGI942
Num-
berItem Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.
