DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-1227
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

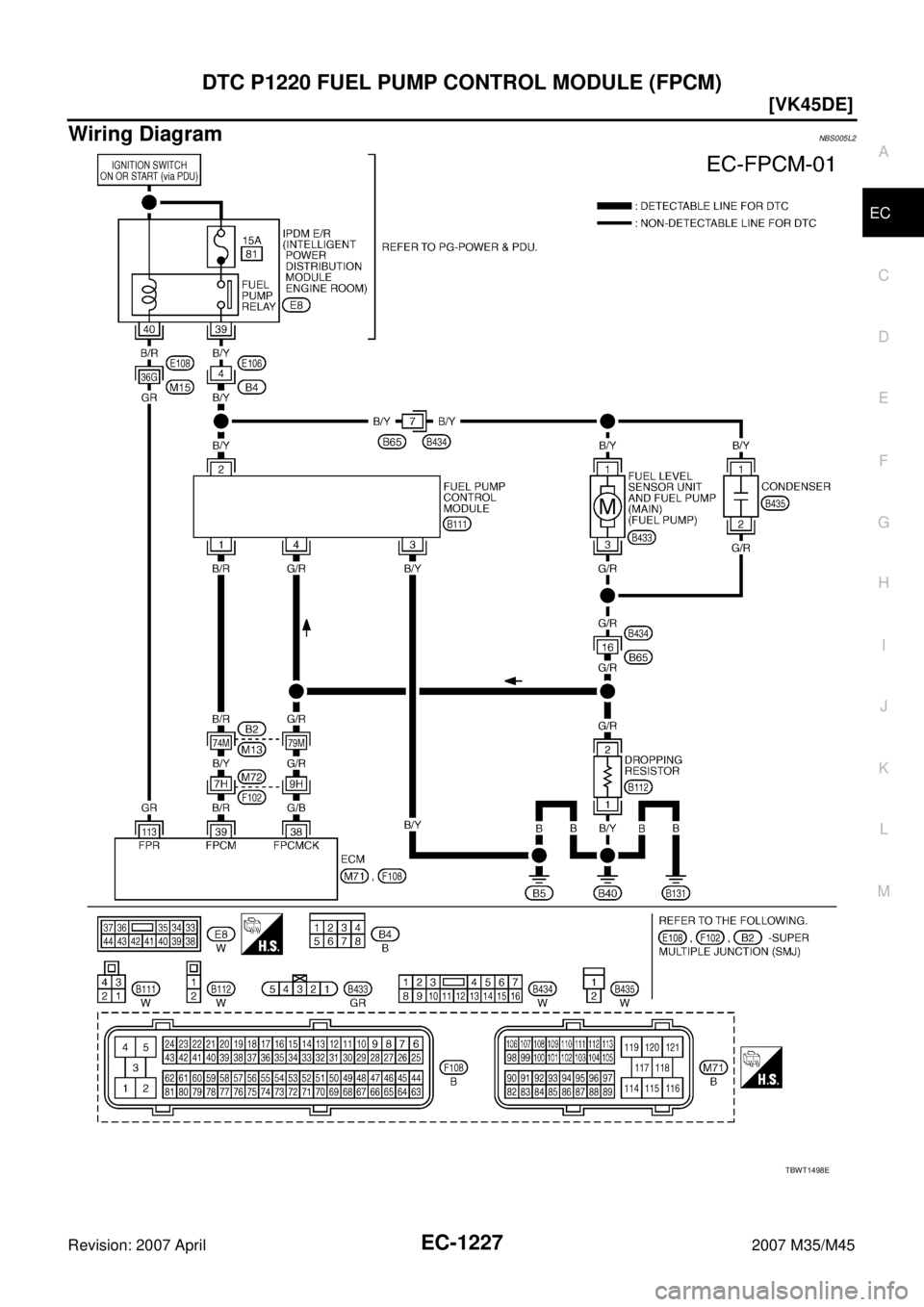

Wiring DiagramNBS005L2
TBWT1498E

EC-1228
[VK45DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005L3
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-864, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
38 G/BFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]

Warm-up condition

Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]

Warm-up condition

Idle speed8 - 12V
11 3 G R F u e l p u m p r e l a y[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
1. Body ground M70 2. Body ground M16
PBIB2782E

DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-1229
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK FPCM POWER SUPPLY CIRCUIT
1. Disconnect fuel pump control module (FPCM) harness connector.
2. Turn ignition switch ON.

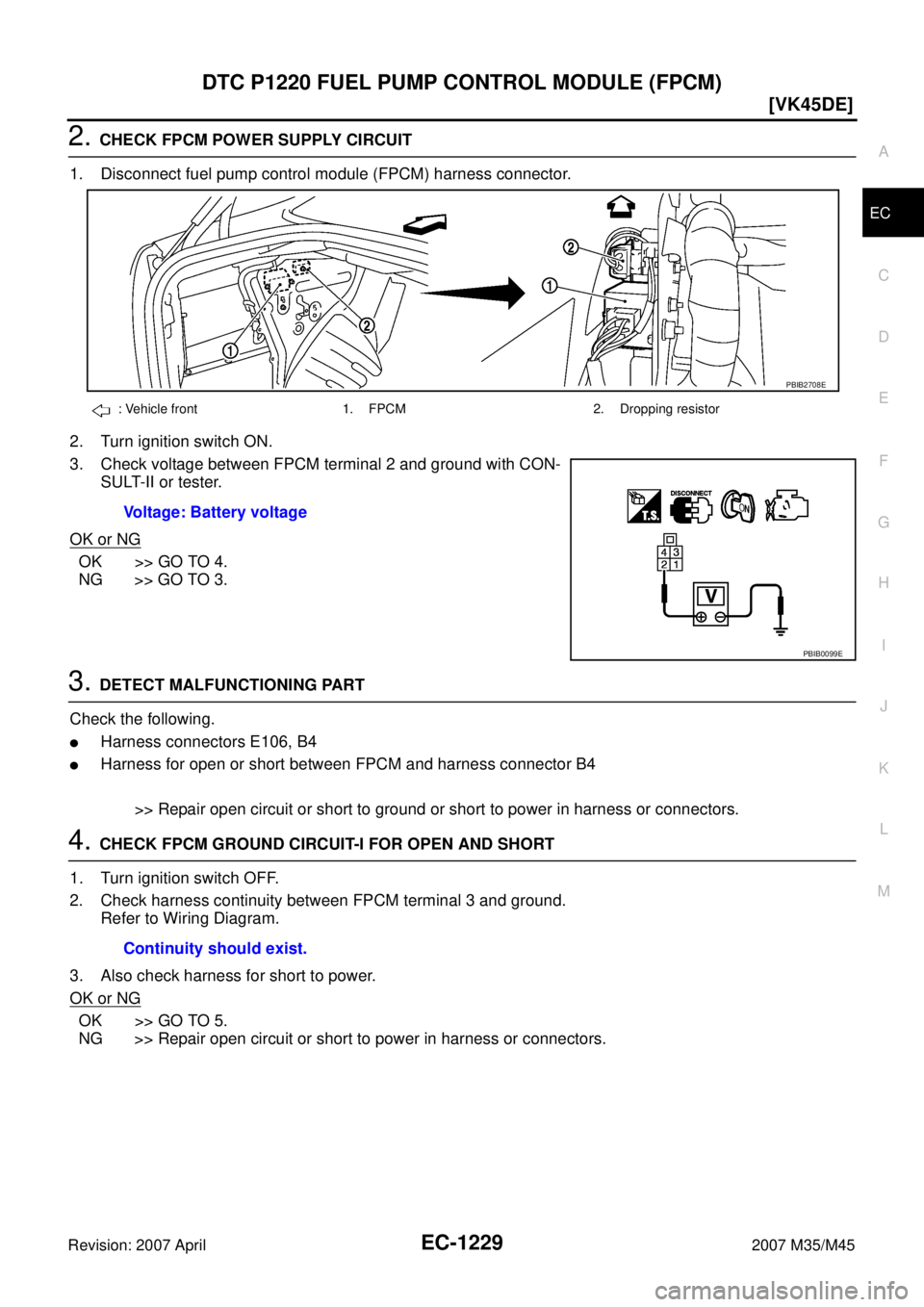

3. Check voltage between FPCM terminal 2 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E106, B4

Harness for open or short between FPCM and harness connector B4
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FPCM GROUND CIRCUIT-I FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between FPCM terminal 3 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to power in harness or connectors.
: Vehicle front 1. FPCM 2. Dropping resistor
Voltage: Battery voltage
PBIB2708E
PBIB0099E
Continuity should exist.

EC-1230
[VK45DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2007 April2007 M35/M45
5. CHECK FPCM GROUND CIRCUIT-II FOR OPEN AND SHORT
1. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector (1).
–Illustration shows the view with rear seat cushion and inspection
hole cover (RH) removed.
–: Vehicle front
2. Disconnect dropping resistor harness connector.
3. Check harness continuity between the following;
“fuel level sensor unit and fuel pump” terminal 3 and dropping resistor terminal 2,
FPCM terminal 4 and dropping resister terminal 2.
Refer to Wiring Diagram.
4. Check harness continuity between the following;
“fuel level sensor and fuel pump” terminal 3 and ground,
FPCM terminal 4 and ground.
Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B434, B65

Harness for open or short between “fuel level sensor unit and fuel pump” and dropping resistor

Harness for open or short between FPCM and dropping resistor

Harness for open or short between “fuel level sensor unit and fuel pump” and ground

Harness for open or short between FPCM and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2706E
: Vehicle front 1. FPCM 2. Dropping resistor
Continuity should exist.
Continuity should not exist.
PBIB2708E

DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-1231
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
7. CHECK FPCM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 38 and FPCM terminal 4.
Refer to Wiring Diagram.
3. Check harness continuity between ECM terminal 38 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B2, M13

Harness connectors M72, F102

Harness for open or short between ECM and FPCM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK FPCM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 39 and FPCM terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B2, M13

Harness connectors M72, F102

Harness for open or short between ECM and FPCM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK FPCM
Refer to EC-1232, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace FPCM.Continuity should exist.
Continuity should not exist.
Continuity should exist.

EC-1232
[VK45DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2007 April2007 M35/M45
12. CHECK INTERMITTENT INCIDENT
Refer to EC-857, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005L4
FUEL PUMP CONTROL MODULE
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Check voltage between FPCM terminal 4 and ground under the
following conditions.
4. If NG, replace fuel pump control module.
: Vehicle front 1. FPCM 2. Dropping resistor
Condition Voltage
When engine cranking Approx. 0V
After starting engine Approx. 5V
PBIB2708E
PBIB0101E

DTC P1225 TP SENSOR
EC-1233
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1225 TP SENSORPFP:16119
Component DescriptionNBS005L5
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicNBS005L6
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureNBS005L7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Turn ignition switch ON.
5. If 1st trip DTC is detected, go to EC-1234, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position
learning performanceClosed throttle position learning value is excessively
low.

Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y

EC-1234
[VK45DE]
DTC P1225 TP SENSOR
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNBS005L8
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve (1)
and the housing.
–This illustration shows the view with intake air duct removed.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-788, "
Throttle Valve Closed Position Learning" .
3. Perform EC-788, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationNBS005L9
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-179, "INTAKE MANIFOLD" .
PBIB2722E
