EC-594
[VQ35DE]
DTC P1805 BRAKE SWITCH
Revision: 2007 April2007 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E101

10A fuse

Harness for open or short between battery and stop lamp switch

Harness for open or short between battery and ICC brake hold relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 101 and stop lamp switch terminal 2,
ECM terminal 101 and ICC brake hold relay terminal 5.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E108, M15

Harness for open or short between ECM and stop lamp switch

Harness for open or short between ECM and ICC brake hold relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK STOP LAMP SWITCH
Refer to EC-597, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace stop lamp switch.
8. CHECK ICC BRAKE HOLD RELAY
Refer to EC-575, "
Component Inspection" .
OK >> GO TO 9.
NG >> Replace ICC brake hold relay.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

DTC P1805 BRAKE SWITCH
EC-597
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Component InspectionNBS0055W
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Check continuity between ICC brake hold relay terminals 3 and
5 under the following conditions.
2. If NG, replace ICC brake hold relay.
Condition Continuity
When brake pedal: Fully released. Should not exist.
When brake pedal: Slightly depressed. Should exist.
PBIA9489J
Condition Continuity
12V direct current supply between terminals
1 and 2Should not exist
No current supply Should exist
PBIB0098E

EC-598
[VQ35DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2007 April2007 M35/M45
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionNBS0055X
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-II Reference Value in Data Monitor ModeNBS0055Y
Specification data are reference values.
On Board Diagnosis LogicNBS0055Z
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MlL lights up.
DTC Confirmation ProcedureNBS00560
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100
With CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR””mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-601, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY

Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100
2100Throttle control motor
relay circuit openECM detects a voltage of power source for
throttle control motor is excessively low.

Harness or connectors
(Throttle control motor relay circuit is
open)

Throttle control motor relay
P2103
2103Throttle control motor
relay circuit shortECM detect the throttle control motor relay is
stuck ON.

Harness or connectors
(Throttle control motor relay circuit is
shorted)

Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-599
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
PROCEDURE FOR DTC P2103
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V.
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If DTC is detected, go to EC-601, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
SEF058Y

EC-600
[VQ35DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2007 April2007 M35/M45

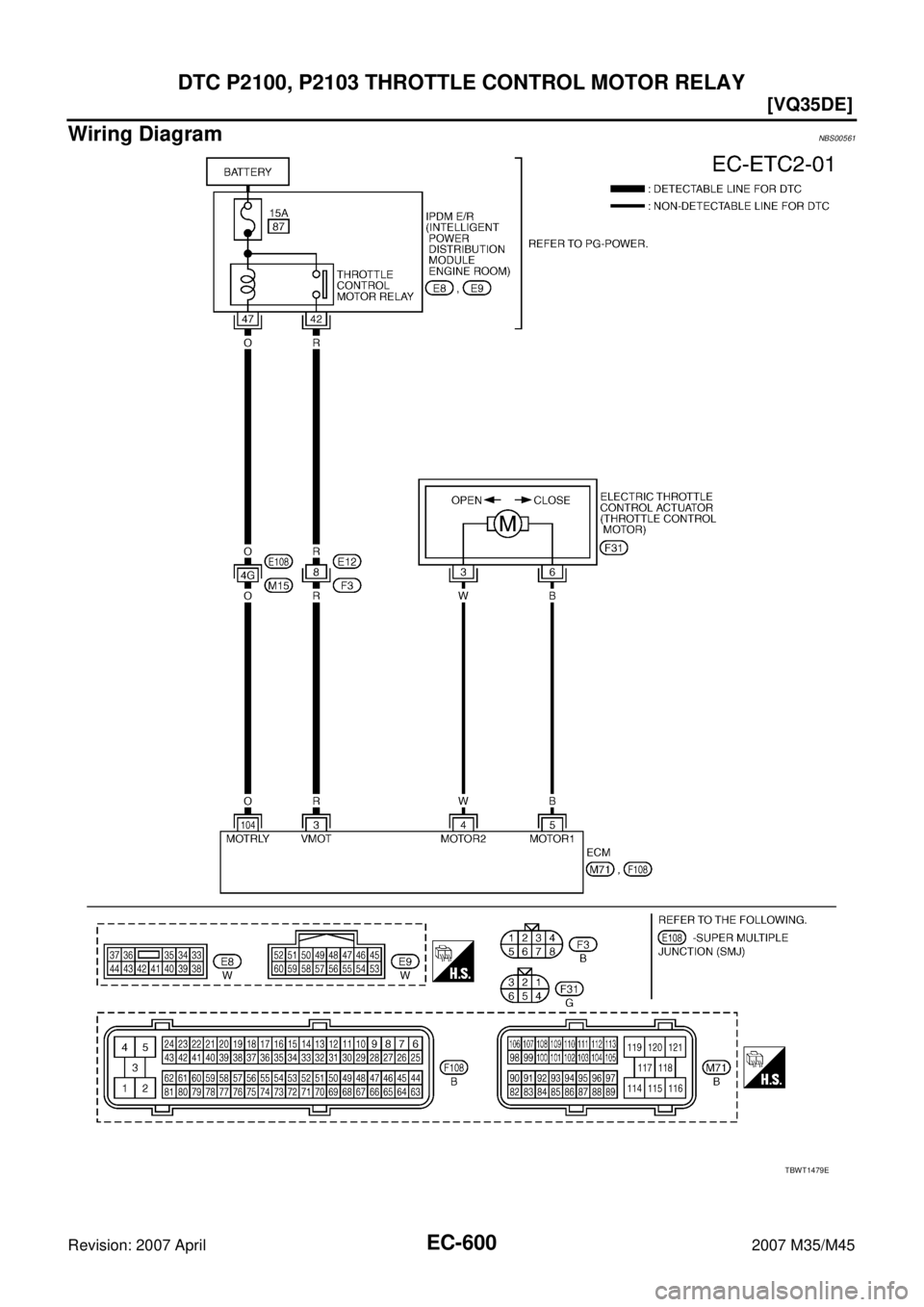

Wiring DiagramNBS00561
TBWT1479E

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-601
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS00562
1. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Check voltage between ECM terminal 104 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
3RThrottle control motor relay
power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4WThrottle control motor
(Close)[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released0 - 14V
5BThrottle control motor
(Open)[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed0 - 14V
104 O Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
PBIB1104E
PBIB1105E
Voltage: Battery voltage
PBIB1171E

EC-602
[VQ35DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2007 April2007 M35/M45
2. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E108, M15

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUSE
1. Disconnect 15A fuse.
2. Check 15A fuse for blown.
OK or NG
OK >> GO TO 8.
NG >> Replace 15A fuse.
5. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
Check voltage between ECM terminal 3 and ground under the fol-
lowing conditions with CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E8.
4. Check continuity between ECM terminal 3 and IPDM E/R terminal 42.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.Continuity should exist.
Ignition switch Voltage
OFF Approximately 0V
ONBattery voltage
(11 - 14V)
MBIB0028E
Continuity should exist.

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-603
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E12, F3

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.
