12. DETECT MALFUNCTIONING PART
Check the following.

10A fuse

Fuse block (J/B) connector E102

50A fusible link

Harness for open or short between cooling fan relay and fuse

Harness for open or short between cooling fan relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK COOLING FAN CONTROL MODULE POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E9.
3. Check harness continuity between the following;
Cooling fan relay terminal 2 and IPDM E/R terminal 56,
Cooling fan relay terminal 5 and cooling fan control module terminal 3.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK COOLING FAN RELAY
Refer to EC-509, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace cooling fan relay.
15. CHECK INTERMITTENT INCIDENT
Perform EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness connectors.
Main 12 Causes of OverheatingNBS00538
Continuity should exist.
Engine Step Inspection item Equipment Standard Reference page
OFF 1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual No blocking —
2

Coolant mixture
Coolant tester 50 - 50% coolant mixtureMA-13, "Anti-Freeze
Coolant Mixture Ratio"
3
Coolant level
Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckMA-15, "Changing
Engine Coolant"
4
Radiator cap
Pressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit)CO-16, "
Checking Radia-
tor Cap"

DTC P1217 ENGINE OVER TEMPERATURE
EC-509
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Component InspectionNBS00539
COOLING FAN MOTORS -1 AND -2
1. Disconnect cooling fan control module harness connectors.
2. Supply cooling fan control module terminals with battery voltage
and check operation.
Make sure that cooling fan operates.
If NG, replace cooling fan motor.
COOLING FAN RELAY
1. Disconnect cooling fan relay harness connector.
2. Check continuity between terminals 3 and 5 under the following
conditions.
If NG, replace cooling fan relay.
Cooling fan motorTerminals
(+) (−)
145
267
PBID0262J
Conditions Continuity
12V direct current supply
between terminals 1 and 2Ye s
No current supply No
SEF090M

DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-513
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0053F
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-160, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
38 G/RFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]

Warm-up condition

Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]

Warm-up condition

Idle speed8 - 12V
113 GR Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
1. Body ground M70 2. Body ground M16
PBIB2782E

DTC P1572 ICC BRAKE SWITCH
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS00550
When the brake pedal is depressed, ICC brake switch (2) is turned
OFF and stop lamp switch (1) is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS00551
Specification data are reference values.
On Board Diagnosis LogicNBS00552
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:

If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-483, "
DTC P0605 ECM" .

This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2705E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)

Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1572
1572ICC brake switchA)ON signals from the stop lamp switch and
the ICC brake switch are sent to ECM at
the same time.

Harness or connectors
(The stop lamp switch circuit is shorted.)

Harness or connectors
(The ICC brake switch circuit is shorted.)

Stop lamp switch

ICC brake switch

ICC brake hold relay

Incorrect stop lamp switch installation

Incorrect ICC brake switch installation

ECM B)ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving

DTC P1572 ICC BRAKE SWITCH
EC-573
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
9. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
–ICC brake switch (2)
3. Disconnect ICC brake hold relay (1) harness connector.
–: Vehicle front
4. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
5. Check voltage between ICC brake hold relay terminal 3 and
ground with CONSULT -II or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
PBIB2705E
PBIB2699E
Voltage: Battery voltage
PBIA9488J
Voltage: Battery voltage
PBIB2740E

EC-574
[VQ35DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2007 April2007 M35/M45
10. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E101

10A fuse

Harness for open or short between battery and stop lamp switch

Harness for open or short between battery and ICC brake hold relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 101 and stop lamp switch terminal 2,
ECM terminal 101 and ICC brake hold relay terminal 5.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E108, M15

Harness for open or short between ECM and stop lamp switch

Harness for open or short between ECM and ICC brake hold relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK STOP LAMP SWITCH
Refer to EC-575, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace stop lamp switch.
14. CHECK ICC BRAKE HOLD RELAY
Refer to EC-575, "
Component Inspection" .
OK >> GO TO 15.
NG >> Replace ICC brake hold relay.
15. CHECK INTERMITTENT INCIDENT
Refer to EC-153, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

DTC P1572 ICC BRAKE SWITCH
EC-575
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Component InspectionNBS00556
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check continuity between ICC brake switch terminals 1 and 2
under the following conditions.
4. If NG, adjust ICC brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Check continuity between ICC brake hold relay terminals 3 and
5 under the following conditions.
2. If NG, replace ICC brake hold relay.
Condition Continuity
Brake pedal: Fully released Should exist
Brake pedal: Slightly depressed Should not exist
PBIB1536E
Condition Continuity
Brake pedal: Fully released Should not exist
Brake pedal: Slightly depressed Should exist
PBIA9489J
Condition Continuity
12V direct current supply between terminals
1 and 2Should not exist
No current supply Should exist
PBIB0098E

DTC P1805 BRAKE SWITCH
EC-593
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

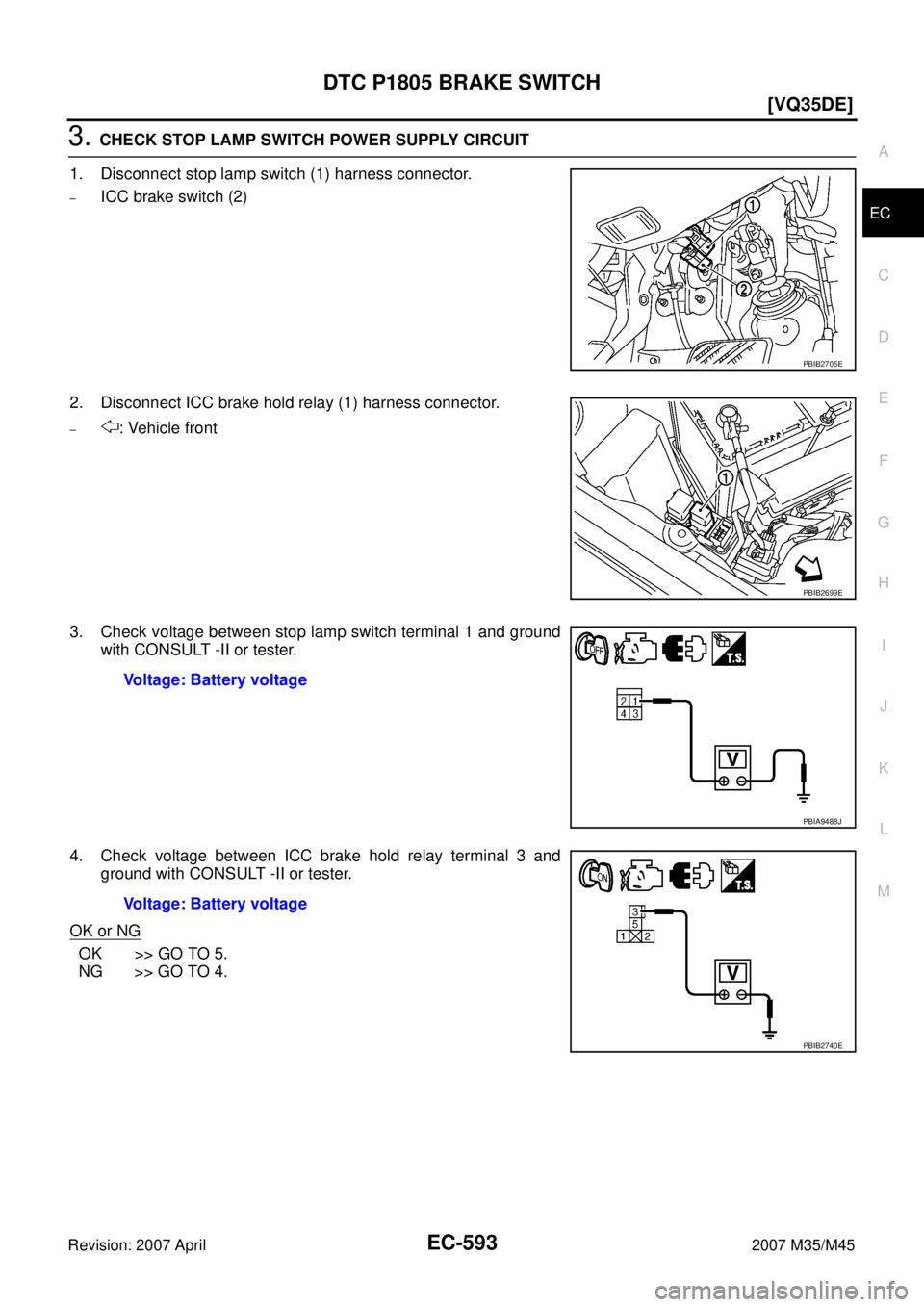

3. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch (1) harness connector.
–ICC brake switch (2)
2. Disconnect ICC brake hold relay (1) harness connector.
–: Vehicle front
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
4. Check voltage between ICC brake hold relay terminal 3 and
ground with CONSULT -II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
PBIB2705E
PBIB2699E
Voltage: Battery voltage
PBIA9488J
Voltage: Battery voltage
PBIB2740E
