Judgement Self-diagnosis Code

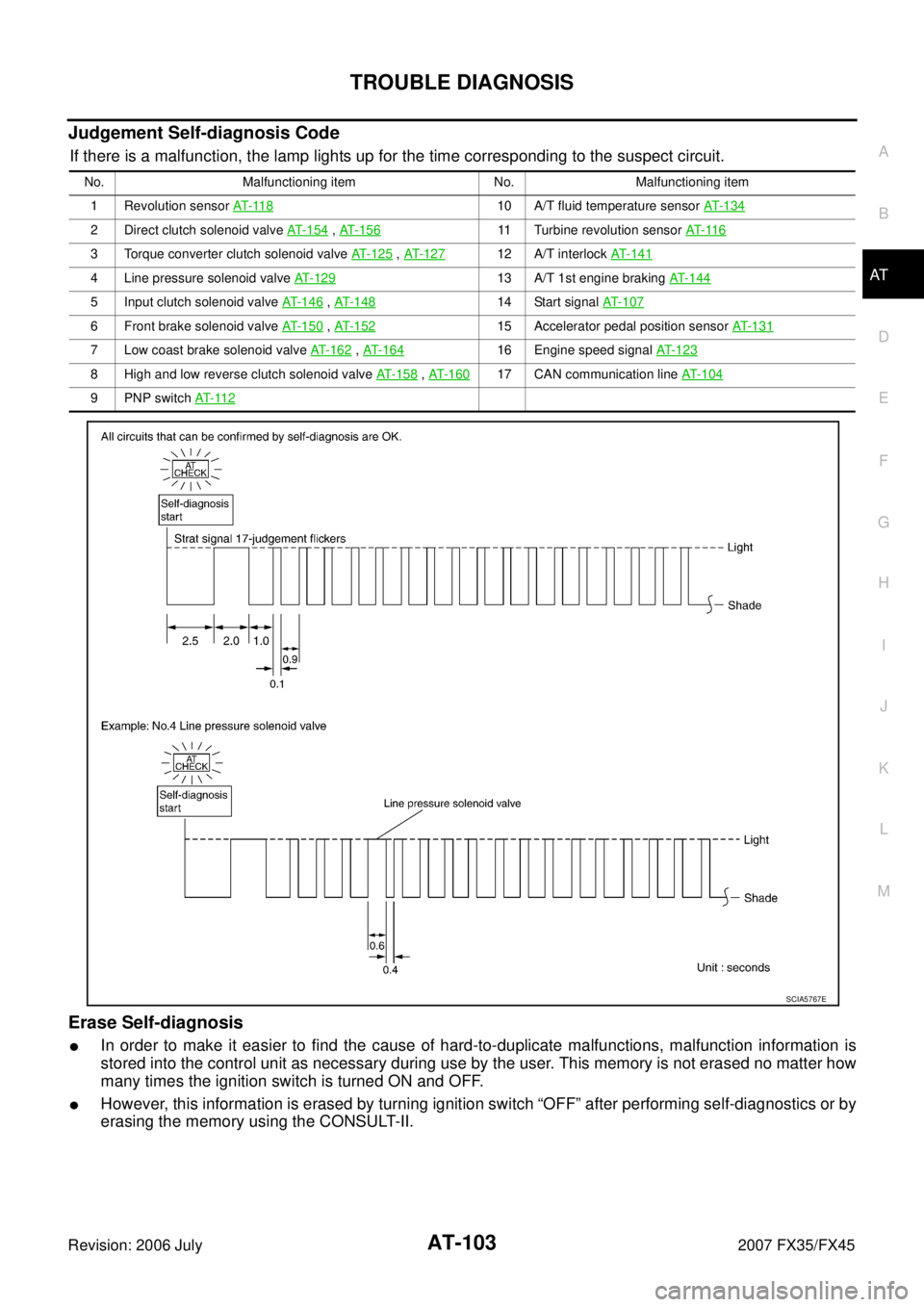

If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.
Erase Self-diagnosis

In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is
stored into the control unit as necessary during use by the user. This memory is not erased no matter how
many times the ignition switch is turned ON and OFF.

However, this information is erased by turning ignition switch “OFF” after performing self-diagnostics or by
erasing the memory using the CONSULT-II.
No. Malfunctioning item No. Malfunctioning item
1 Revolution sensor AT- 11 8
10 A/T fluid temperature sensor AT- 1 3 4
2 Direct clutch solenoid valve AT-154 , AT-15611 Turbine revolution sensor AT- 11 6
3 Torque converter clutch solenoid valve AT-125 , AT- 1 2 712 A/T interlock AT- 1 4 1
4 Line pressure solenoid valve AT-12913 A/T 1st engine braking AT-144
5 Input clutch solenoid valve AT- 1 4 6 , AT- 1 4 814 Start signal AT-107
6 Front brake solenoid valve AT- 1 5 0 , AT- 1 5 215 Accelerator pedal position sensor AT- 1 3 1
7 Low coast brake solenoid valve AT- 1 6 2 , AT- 1 6 416 Engine speed signal AT- 1 2 3
8 High and low reverse clutch solenoid valve AT- 1 5 8 , AT- 1 6 017 CAN communication line AT- 1 0 4
9 PNP switch AT- 11 2
SCIA5767E

DTC P1730 A/T INTERLOCK AT-141
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
DTC P1730 A/T INTERLOCKPFP:00000
DescriptionNCS001ED
Fail-safe function to detect interlock conditions.
On Board Diagnosis LogicNCS001EE

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1730 A/T INTERLOCK” with CONSULT-II or 12th judgement flicker without
CONSULT-II is detected when TCM does not receive the proper voltage signal from the sensor and
switch.

TCM monitors and compares gear position and conditions of each ATF pressure switch when gear is
steady.
Possible CauseNCS001EF

Harness or connectors
(Solenoid and switch circuit is open or shorted.)

Low coast brake solenoid valve

ATF pressure switch 2
DTC Confirmation ProcedureNCS001EG
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
SLCT LVR POSI: “D” position
6. If DTC is detected, go to AT- 1 4 2 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Judgement of A/T InterlockNCS001EH
When A/T Interlock is judged to be malfunctioning, the vehicle should be fixed in 2nd gear, and should be set
in a condition in which it can travel.
When one of the following fastening patterns is detected, the fail-safe function in correspondence with the indi-
vidual pattern should be performed.
NOTE:
When the vehicle is driven fixed in 2nd gear, a turbine revolution sensor malfunction is displayed, but
this is not a turbine revolution sensor malfunction.
BCIA0031E

AT-144
DTC P1731 A/T 1ST ENGINE BRAKING
Revision: 2006 July 2007 FX35/FX45
DTC P1731 A/T 1ST ENGINE BRAKINGPFP:00000
DescriptionNCS001EJ
Fail-safe function to prevent sudden decrease in speed by engine brake other than at M1 position.
CONSULT-II Reference ValueNCS001EK
On Board Diagnosis LogicNCS001EL

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P1731 A/T 1ST E/BRAKING” with CONSULT-II or 13th judgement flicker without
CONSULT-II is detected under the following conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–When TCM monitors each ATF pressure switch and solenoid monitor value, and detects as irregular when
engine brake of 1st gear acts other than at M1 position.
Possible CauseNCS001EM

Harness or connectors
(Sensor circuit is open or shorted.)

Low coast brake solenoid valve

ATF pressure switch 2
DTC Confirmation ProcedureNCS001EN
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously preformed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “ENGINE
SPEED”, “MANU MODE SW” and “GEAR”.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
ENGINE SPEED: 1,200 rpm
MANU MODE SW: ON
GEAR: “1” position
6. If DTC is detected, go to AT- 1 4 5 , "
Diagnostic Procedure" .
Item name Condition Display value
ON OFF SOL Low coast brake engaged. Refer to
AT- 2 2
.ON
Low coast brake disengaged. Refer to AT- 2 2
.OFF
ATF PRES SW 2 Low coast brake engaged. Refer to
AT- 2 2
.ON
Low coast brake disengaged. Refer to AT- 2 2
.OFF
BCIA0031E

DTC P1731 A/T 1ST ENGINE BRAKING AT-145
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNCS001EO
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start the engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “M” position (1st gear), and confirm the ON/ OFF actuation of “ATF PRES SW 2” and “ON OFF SOL”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 1 4 4 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
ON OFF SOL Low coast brake engaged. Refer to
AT- 2 2
.ON
Low coast brake disengaged. Refer to AT- 2 2
.OFF
ATF PRES
SW 2 Low coast brake engaged. Refer to
AT- 2 2
.ON
Low coast brake disengaged. Refer to AT- 2 2
.OFF
SCIA4670E

AT-150
DTC P1757 FRONT BRAKE SOLENOID VALVE
Revision: 2006 July 2007 FX35/FX45
DTC P1757 FRONT BRAKE SOLENOID VALVEPFP:31940
DescriptionNCS001F1
Front brake solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehicle
speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the
optimum position.
CONSULT-II Reference ValueNCS001F2
On Board Diagnosis LogicNCS001F3

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1757 FR/B SOLENOID/CIRC” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseNCS001F4

Harness or connectors
(Solenoid circuit is open or shorted.)

Front brake solenoid valve
DTC Confirmation ProcedureNCS001F5
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “ACCELE POSI”,
“SLCT LVR POSI” and “GEAR”.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”
“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
6. If DTC is detected go to AT- 1 5 1 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 A
BCIA0031E

DTC P1757 FRONT BRAKE SOLENOID VALVE AT-151
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNCS001F6
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Read out the value of “FR/B SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 11 6 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 ASCIA4793E

AT-152
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION
Revision: 2006 July 2007 FX35/FX45
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTIONPFP:31940
DescriptionNCS001F7

Front brake solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehi-
cle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be
shifted to the optimum position.

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.
CONSULT-II Reference ValueNCS001F8
On Board Diagnosis LogicNCS001F9

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1759 FR/B SOLENOID FNCT” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 1 is irregular during depressing accelerator pedal. (Other than during shift change)
–When TCM detects that relation between gear position and condition of ATF pressure switch 1 is irregular
during releasing accelerator pedal. (Other than during shift change)
Possible CauseNCS001FA

Harness or connectors
(Solenoid and switch circuits are open or shorted.)

Front brake solenoid valve

ATF pressure switch 1
DTC Confirmation ProcedureNCS001FB
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions. ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”
“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step “2” again.
4. Turn ignition switch OFF, then perform step “1” to “3” again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT- II. If DTC (P1759) is detected, go to AT- 1 5 3 , "
Diagnostic Procedure" .
If DTC (P1757) is detected, go to AT- 1 5 1 , "
Diagnostic Procedure" .
If DTC (P1841) is detected, go to AT- 1 7 2 , "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 1 Front brake engaged. Refer to
AT- 2 2
.ON
Front brake disengaged. Refer to AT- 2 2
.OFF
BCIA0031E

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION AT-153
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureNCS001FC
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle in the “D” position (3rd
4th gear), and confirm
the ON/OFF actuation of the “ATF PRES SW 1” and electrical
current value of “FR/B SOLENOID”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 9 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform AT- 1 5 2 , "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
Item name Condition Display value
(Approx.)
FR/B SOLENOID Front brake engaged. Refer to
AT- 2 2
. 0.6 - 0.8 A
Front brake disengaged. Refer to AT- 2 2
. 0 - 0.05 A
ATF PRES SW 1 Front brake engaged. Refer to
AT- 2 2
.ON
Front brake disengaged. Refer to AT- 2 2
.OFF
SCIA4796E
