DIAGNOSIS FLOWCHART
SFIA3272E

TROUBLE DIAGNOSIS BRC-13
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
ASKING COMPLAINTS

Complaints against malfunction vary depending on each person.
It is important to clarify customer complaints.

Ask customer about what symptoms are present and under
what conditions. Use information to reproduce symptom while
driving.

It is also important to use diagnosis sheet so as not to miss infor-
mation.
EXAMPLE OF DIAGNOSIS SHEET
SBR339B
SFIA3265E

BRC-14
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Component Installation LocationNFS000NC
SFIA2785E

TROUBLE DIAGNOSIS BRC-15
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
SchematicNFS000ND
TFWM0229E

BRC-16
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

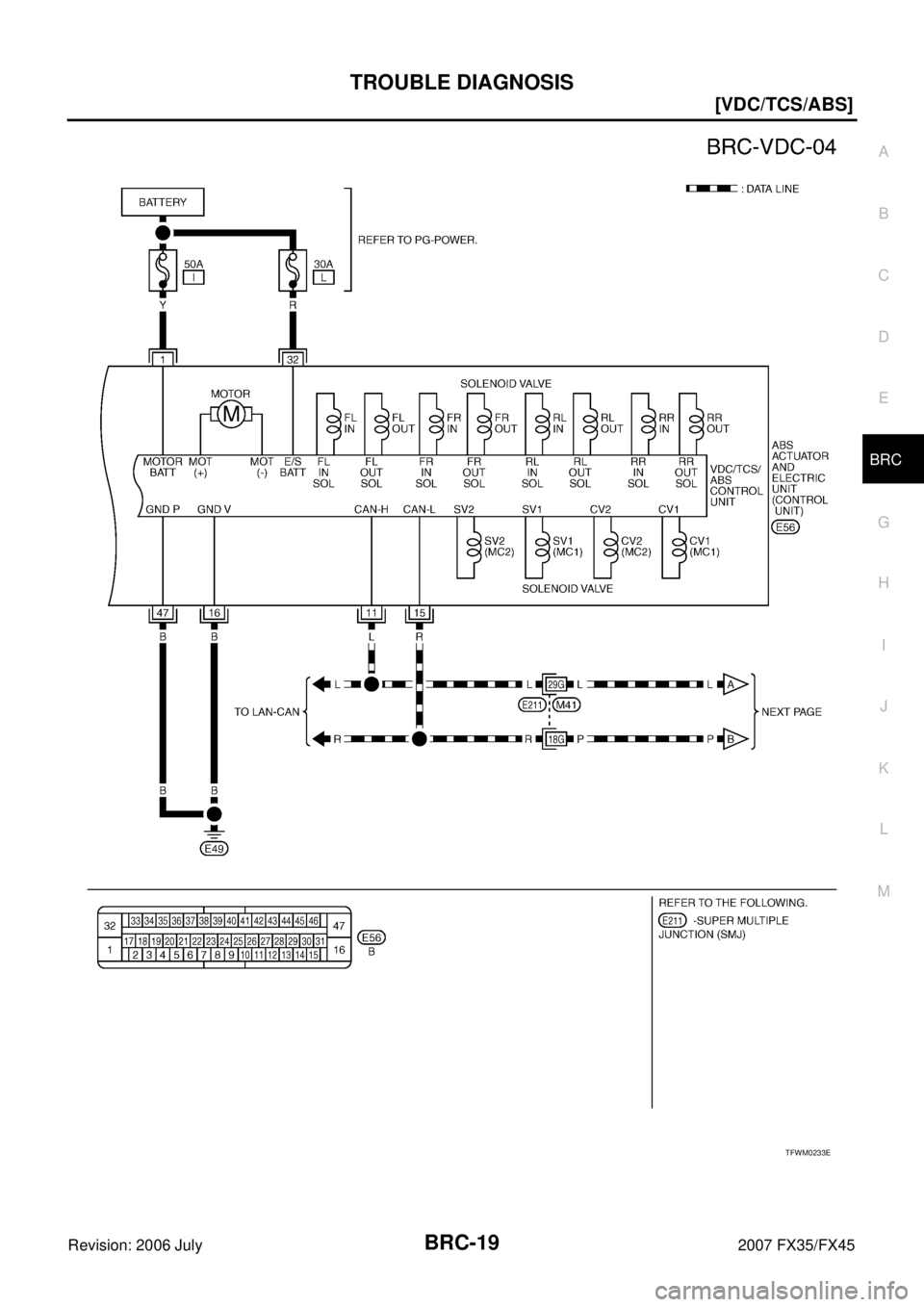

Wiring Diagram — VDC —NFS000NE
TFWM0230E

TROUBLE DIAGNOSIS BRC-17
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
TFWM0231E

BRC-18
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TFWM0232E

TROUBLE DIAGNOSIS BRC-19
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
TFWM0233E
