4. CHECK GROUND
1. Check continuity between parking lamp RH harness connector E23 terminal 3 and ground.
2. Check continuity between parking lamp LH harness connector E43 terminal 3 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK BULB
Inspect bulbs of lamp which do not illuminate.
OK or NG
OK >> GO TO 6.
NG >> Replace bulb.
6. CHECK DAYTIME RELAY CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between daytime lamp relay harness connec- tor E15 terminal 1 and combination meter harness connector
M20 terminal 10.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK INPUT SIGNAL
1. Connect combination meter connector.
2. Start engine running.
3. Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor, make sure “ENGINE RUN” turns ON-OFF linked with operation
of engine running or stop.
4. Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor, make sure “PKB SW” turns ON-OFF linked with operation of
parking brake switch.
OK or NG
OK >> Replace BCM. Refer to BCS-14, "Removal and Installation of BCM" .
NG >> GO TO 8. 3 – Ground : Continuity should exist.
3 – Ground : Continuity should exist.
PKIC9688E
1 – 10 : Continuity should exist.
PKIA5216E
Engine running : ENGINE RUN ON
Engine stop : ENGINE RUN OFF
Parking brake ON : PKB SW ON
Parking brake OFF : PKB SW OFF
PKIA7591E

LT-68
AUTO LIGHT SYSTEM
Revision: 2006 July 2007 FX35/FX45
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “OFF” deactivates the operation.
Display Item List
NOTE: 1. Vehicles without daytime light lamp system display this item, but cannot be tested.
2. This item is displayed, but cannot be tested.
CONSULT-II Functions (IPDM E/R)NKS002WN
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE ” screen.
2. Touch “ALL SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
3. Touch the required monitoring item on “SELECTION FROM MENU”. In “ALL SIGNALS”, all items are monitored. In “MAIN SIGNALS”, predetermined items are monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording, touch “STOP”.
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON-OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON-OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON-OFF.
DTRL
NOTE 1Allows day time light lamp operate by switching ON-OFF.
CORNERING LAMP
NOTE 2—
Check Item, Diagnosis Mode Description
SELF-DIAGNOSTIC RESULTS Refer to PG-19, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.
ALL SIGNALS Monitors all items.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Selects items and monitors them.

AUTO LIGHT SYSTEM LT-69
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested, and check operation.
3. Touch “START”.
4. Touch “OFF” while testing to stop the operation.
Symptom ChartNKS002WO
Item name CONSULT-II
screen display Display
or unit Monitor item selection
Description
ALL
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Position lights request TAIL & CLR REQ ON/OFF ×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF ×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF ×× ×Signal status input from BCM
Front fog lights request FR FOG REQ ON/OFF ×× ×Signal status input from BCM
Te s t i t e m CONSULT-II
screen display Description
Headlamp relay (HI, LO) output LAMPS Allows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON,
LO ON) at your option (Head lamp high beam repeats ON-OFF every 1 second).
Front fog lamp relay output Allows fog lamp relay to operate by switching operation ON-OFF at your option.
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON-OFF at your option.
Trouble phenomenon Malfunction system and reference

Parking, license plate, side marker and tail lamps and
headlamps will not illuminate when outside of the vehicle
becomes dark. (Lighting switch 1ST position and 2ND posi-
tion operate normally.)

Parking, license plate, side marker and tail lamps and
headlamp will not go out when outside of the vehicle
becomes light. (Lighting switch 1ST position and 2nd posi-
tion operate normally.)

Headlamps go out when outside of the vehicle becomes
light, but parking lamps stay on.

Refer to LT- 6 6 , "WORK SUPPORT" .

Refer to LT- 7 0 , "Lighting Switch Inspection" .

Refer to LT- 7 0 , "Optical sensor System Inspection" .
If above systems are normal, replace BCM.
Shut off delay feature will not operate.

CAN communication line inspection between BCM and combina-
tion meter. Refer to BCS-13, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .

Refer to BL-40, "Check Door Switch" .
If above system is normal, replace BCM.

LT-78
FRONT FOG LAMP
Revision: 2006 July 2007 FX35/FX45
FRONT FOG LAMPPFP:26150
Component Parts and Harness Connector LocationNKS002WW
System DescriptionNKS002WX
Control of the front fog lamps is dependent upon the position of the combination switch (lighting switch). The
lighting switch must be in the 2ND position or AUTO position (headlamp is ON) for front fog lamp opera-
tion.When the lighting switch is placed in the front fog lamp on position the BCM (body control module)
receives input signal requesting the front fog lamps to illuminate. When the headlamps are illuminated, this
input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) through the
CAN communication lines. The CPU (central processing unit) located in the IPDM E/R controls the front fog
lamp relay coil. When activated, this relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times

to ignition relay, located in IPDM E/R, from battery direct,

through 15A fuse (No. 88, located in IPDM E/R)

to front fog lamp relay, located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R.

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied

to ignition relay (located IPDM E/R)

through 15A fuse [No. 1, located in fuse block (J/B)]
PKIB3475E

FRONT FOG LAMP LT-79
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

to BCM terminal 38.
When ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85,

to IPDM E/R terminals 38 and 60

through grounds E21, E50 and E51.
FRONT FOG LAMP OPERATION
The front fog lamp switch is built into combination switch. The lighting switch must be in the 2ND position or
AUTO position (headlamp is ON) and the front fog lamp switch must be ON for front fog lamp operation.
With the front fog lamp switch in the ON position, the CPU located in the IPDM E/R grounds the coil side of the
front fog lamp relay. The front fog lamp relay then directs power

through IPDM E/R terminal 36

to front fog lamp RH terminal 1,

through IPDM E/R terminal 37

to front fog lamp LH terminal 1.
Ground is supplied

to front fog lamp RH and LH terminals 2

through grounds E21, E50 and E51.
With power and grounds supplied, front fog lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), the front fog lamp switch is ON, and
the ignition switch is turned from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the front fog lamps (and headlamps) remain illuminated for 5 minutes, then the front fog
lamps (and headlamps) are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionNKS002WY
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS002WZ
Refer to LAN-49, "CAN System Specification Chart" .

PARKING, LICENSE PLATE AND TAIL LAMPS LT-131
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550

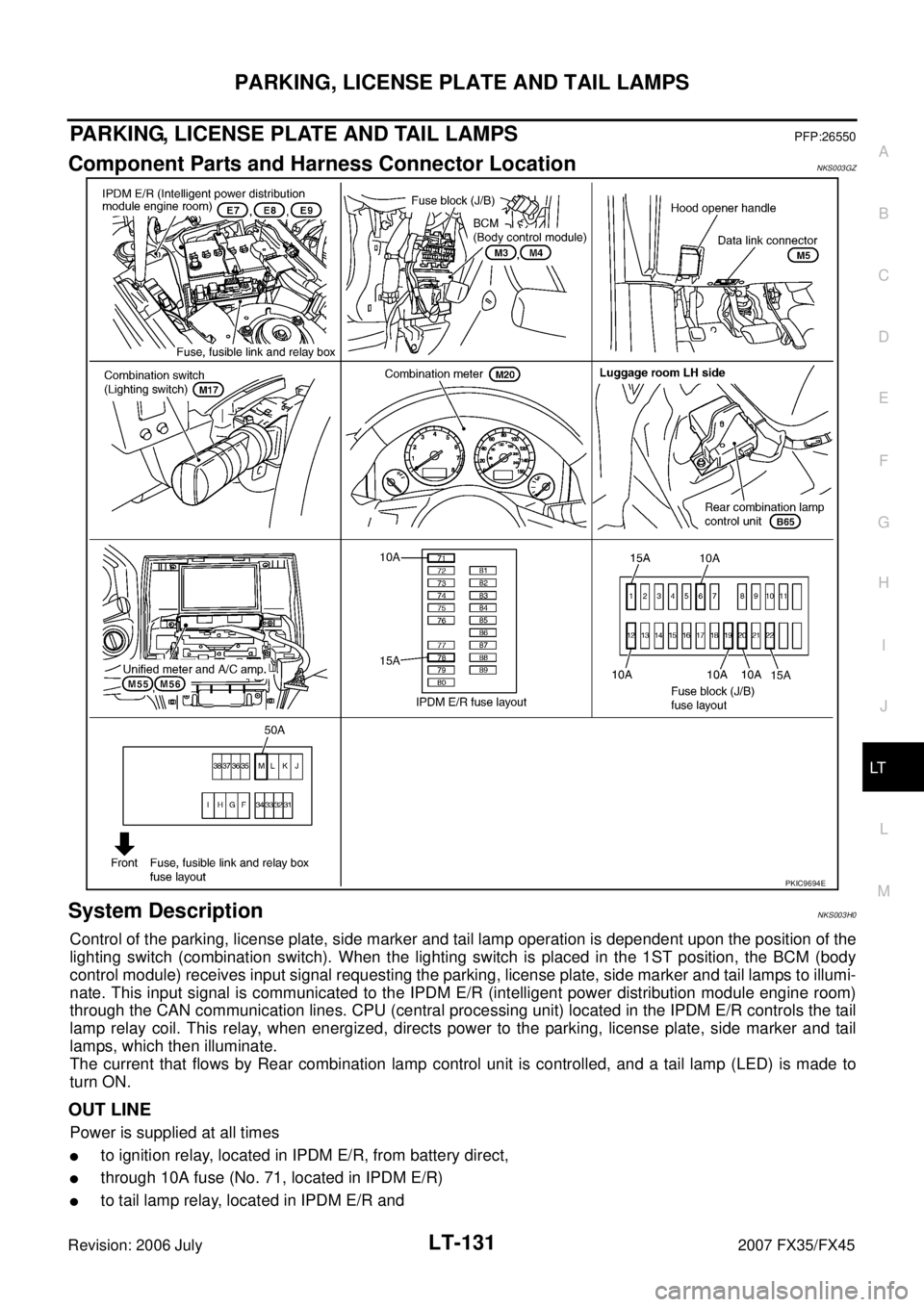

Component Parts and Harness Connector LocationNKS003GZ
System DescriptionNKS003H0
Control of the parking, license plate, side marker and tail lamp operation is dependent upon the position of the
lighting switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body
control module) receives input signal requesting the parking, license plate, side marker and tail lamps to illumi-
nate. This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room)
through the CAN communication lines. CPU (central processing unit) located in the IPDM E/R controls the tail
lamp relay coil. This relay, when energized, directs power to the parking, license plate, side marker and tail
lamps, which then illuminate.
The current that flows by Rear combination lamp control unit is controlled, and a tail lamp (LED) is made to
turn ON.
OUT LINE
Power is supplied at all times

to ignition relay, located in IPDM E/R, from battery direct,

through 10A fuse (No. 71, located in IPDM E/R)

to tail lamp relay, located in IPDM E/R and
PKIC9694E

LT-132
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 July 2007 FX35/FX45

to CPU located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R.

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8 and

to unified meter and A/C amp. terminal 21.
With the ignition switch in ON or START position, power is supplied

through ignition relay, located in IPDM E/R, from battery direct,

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7 and

through 10A fuse [No. 12, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 22.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to rear combination lamp control unit terminal 7 and

to IPDM E/R terminals 38 and 60

through grounds E21, E50 and E51,

to BCM terminals 49 and 52

to combination meter terminals 5, 6 and 15, and

to unified meter and A/C amp. terminals 29 and 30

through grounds M35, M45 and M85.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R through the CAN communication. The CPU located in the IPDM E/R controls
the tail lamp relay coil, which when energized, directs power.

through IPDM E/R terminal 22

to front side marker lamp LH terminal 1

to parking lamp LH terminal 2

to license plate lamp LH terminal 1

to rear combination lamp LH terminal 1

to rear combination lamp control unit terminal 2

to front side marker lamp RH terminal 1

to parking lamp RH terminal 2

to license plate lamp RH terminal 1 and

to rear combination lamp RH terminal 1.
Ground is supplied at all times

to front side marker lamp LH terminal 2

through grounds E21, E50 and E51,

PARKING, LICENSE PLATE AND TAIL LAMPS LT-149
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
5. CHECK REAR COMBINATION LAMPS CIRCUIT
1. Disconnect rear combination lamp RH and LH connectors.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 11 and rear combination lamp
LH harness connector B57 terminal 3.
3. Check continuity between rear combination lamp control unit harness connector B65 terminal 10 and rear combination lamp
LH harness connector B57 terminal 4.
4. Check continuity between rear combination lamp control unit harness connector B65 terminal 9 and rear combination lamp RH harness connector B219 terminal 3.
5. Check continuity between rear combination lamp control unit harness connector B65 terminal 8 and rear combination lamp RH harness connector B219 terminal 4.
OK or NG
OK >> Replace rear combination lamp control unit or rear combination lamp, and then check if turn signal lamps is illuminated.
NG >> Repair harness or connector.
Parking, License Plate, Side Maker and Tail Lamps Do Not Turn OFF (After
Approx. 10 Minutes)
NKS003HD
1. CHECK IPDM E/R
1. Turn ignition switch ON. Turn combination switch (lighting switch) to the OFF position. Turn ignition switch OFF.
2. Verify that parking, license plate, and tail lamps turn on and off after approximately 10 minutes.
OK or NG
OK >> Ignition relay malfunction. Refer to PG-18, "Function of Detecting Ignition Relay Malfunction" .
NG >> INSPECTION END 11 – 3 : Continuity should exist.
10 – 4 : Continuity should exist.
9 – 3 : Continuity should exist.
8 – 4 : Continuity should exist.
SKIA5910E
