EC-762
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Engine Control Component Parts LocationNBS00421
1. IPDM E/R 2. ICC brake hold relay
(ICC models only) 3. Refrigerant pressure sensor
4. Intake valve timing control position sensor (Bank 2) 5. Intake valve timing control solenoid
valve (Bank 2) 6. Electric throttle control actuator
7. Cooling fan motor 8. Intake valve timing control solenoid valve (Bank 1) 9. Intake valve timing control position
sensor (Bank 1)
10. Camshaft position sensor (PHASE) 11. Mass air flow sensor (with intake air temperature sensor) 12. Ignition coil (with power transistor)
and spark plug (Bank 1)
13. Vacuum tank 14. VIAS control solenoid valve 15. Engine coolant temperature sensor
16. Fuel injector (Bank 1) 17. Power valve actuator 18. Knock sensor (Bank 1)
19. Knock sensor (Bank 2) 20. Fuel injector (Bank 2) 21. EVAP canister purge volume control solenoid valve
22. EVAP service port 23. Ignition coil (with power transistor) and spark plug (Bank 2)
PBIB3224E

EC-766
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
: Vehicle front
1. Fuel pump fuse 2. IPDM E/R 3. ICC brake hold relay (ICC models only)
4. Crankshaft position sensor (POS) 5. Power steering pressure sensor 6. EVAP canister vent control valve
7. EVAP canister 8. EVAP control system pressure sensor
PBIB3228E

EC-768
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

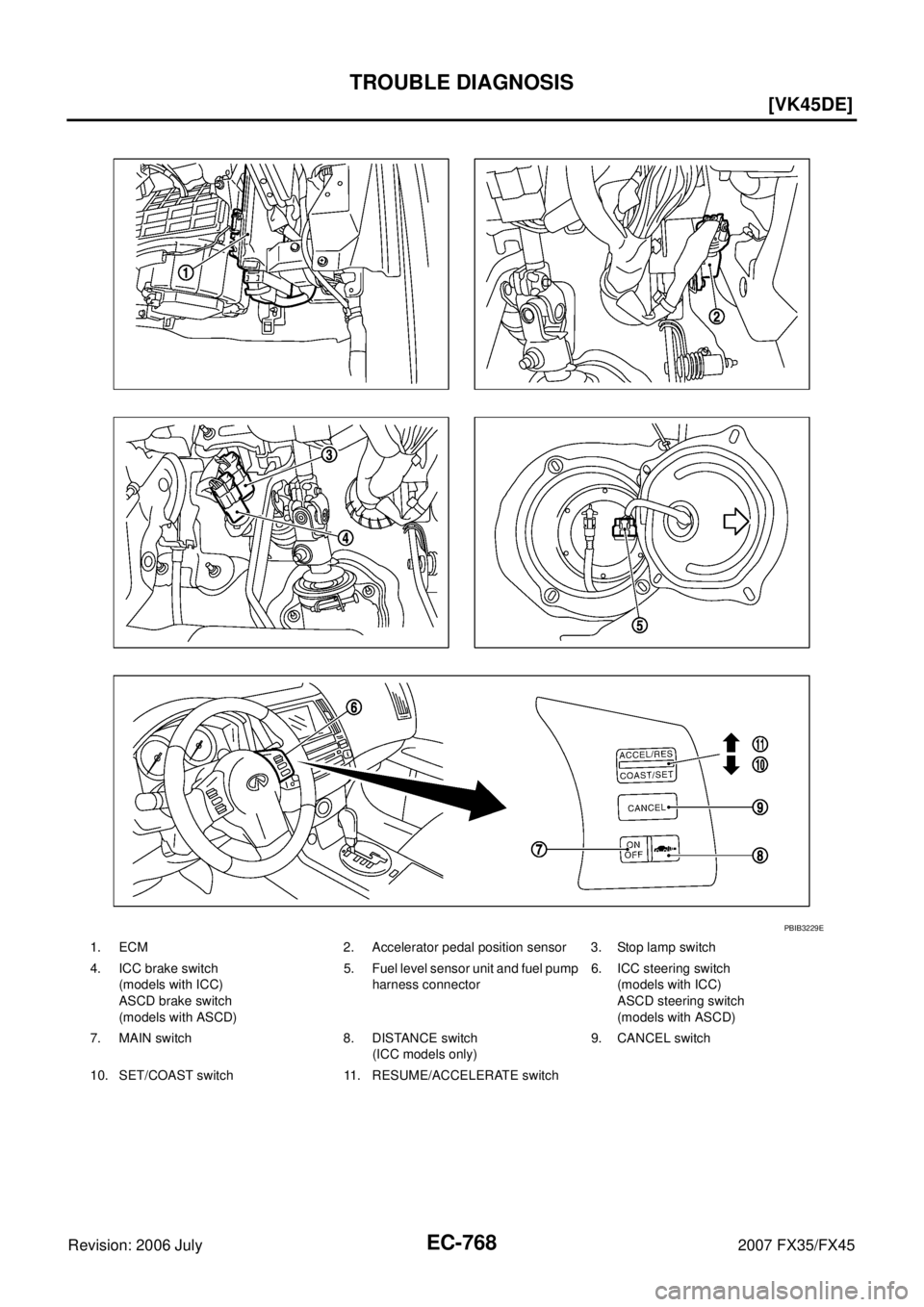

1. ECM 2. Accelerator pedal position sensor 3. Stop lamp switch
4. ICC brake switch (models with ICC)
ASCD brake switch
(models with ASCD) 5. Fuel level sensor unit and fuel pump
harness connector 6. ICC steering switch
(models with ICC)
ASCD steering switch
(models with ASCD)
7. MAIN switch 8. DISTANCE switch (ICC models only) 9. CANCEL switch
10. SET/COAST switch 11. RESUME/ACCELERATE switch
PBIB3229E

TROUBLE DIAGNOSIS EC-779
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
99 G/Y ICC steering switch
(models with ICC system) [Ignition switch: ON]

ICC steering switch: OFF
Approximately 4.3V
[Ignition switch: ON]

MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]

CANCEL switch: Pressed Approximately 1.3V
[Ignition switch: ON]

RESUME/ACCELERATE switch: Pressed Approximately 3.7V
[Ignition switch: ON]

SET/COAST switch: Pressed Approximately 3V
[Ignition switch: ON]

DISTANCE switch: Pressed Approximately 2.2V
99 G/Y ASCD steering switch
(models with ASCD system) [Ignition switch: ON]

ASCD steering switch: OFF
Approximately 4V
[Ignition switch: ON]

MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]

CANCEL switch: Pressed Approximately 1V
[Ignition switch: ON]

RESUME/ACCELERATE switch: Pressed Approximately 3V
[Ignition switch: ON]

SET/COAST switch: Pressed Approximately 2V
101 P/L Stop lamp switch [Ignition switch: OFF]

Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
102 LG/B PNP switch [Ignition switch: ON]

Selector lever: P or N
Approximately 0V
[Ignition switch: ON]

Selector lever: Except above BATTERY VOLTAGE
(11 - 14V)
104 L/OR Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed 3.9 - 4.7V
107 PU/W Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 SB ICC brake switch (models
with ICC system)
ASCD brake switch (models
with ASCD system) [Ignition switch: ON]

Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]

Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)

EC-782
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
Item DIAGNOSTIC TEST MODE
WORK SUP-
PORT SELF-DIAGNOS-
TIC RESULTS DATA
MONI-
TOR DATA
MONI- TOR
(SPEC) ACTIVE
TEST DTC & SRT
CONFIRMATION
DTC*1 FREEZE
FRAME
DATA*2 SRT
STATUS DTC
WORK SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS) ××××
Camshaft position sensor
(PHASE) ××××
Mass air flow sensor ×××
Engine coolant temperature sen-
sor ×××××
Air fuel ratio sensor 1 ×××××
Heated oxygen sensor 2 ×××××
Wheel sensor ××××
Accelerator pedal position sensor ×××
Throttle position sensor ××××
Fuel tank temperature sensor ××××
EVAP control system pressure
sensor ×××
Intake air temperature sensor ××××
Knock sensor ×
Refrigerant pressure sensor ××
Closed throttle position switch
(accelerator pedal position sensor
signal) ××
Air conditioner switch ××
Park/neutral position (PNP) switch ×××
Stop lamp switch ×××
Power steering pressure sensor ×××
Battery voltage ××
Load signal ××
Snow mode switch ××
Intake valve timing control position
sensor ×××
Fuel level sensor ×××
ICC steering switch ×××
ASCD steering switch ×××
ICC brake switch ×××
ASCD brake switch ×××

EC-786
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
THRTL SEN 1 [V]××
The throttle position sensor signal voltage
is displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, they differs from
ECM terminal voltage signal.
THRTL SEN 2 [V]
×
FUEL T/TMP SE
[ ° C] or [ °F] ×

The fuel temperature (determined by the
signal voltage of the fuel tank tempera-
ture sensor) is displayed.
INT/A TEMP SE
[ ° C] or [ °F] ××

The intake air temperature (determined
by the signal voltage of the intake air tem-
perature sensor) is indicated.
EVAP SYS PRES
[V] ×

The signal voltage of EVAP control sys-
tem pressure sensor is displayed.
FUEL LEVEL SE
[V] ×

The signal voltage of the fuel level sensor
is displayed.
START SIGNAL
[ON/OFF] ××

Indicates start signal status [ON/OFF]
computed by the ECM according to the
signals of engine speed and battery volt-
age.

After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS
[ON/OFF] ××

Indicates idle position [ON/OFF] com-
puted by ECM according to the accelera-
tor pedal position sensor signal.
AIR COND SIG
[ON/OFF] ××

Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF] ××

Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF] ××

[ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor
signal) is indicated.
LOAD SIGNAL
[ON/OFF] ××

Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF] ×

Indicates [ON/OFF] condition from igni-
tion switch signal.
HEATER FAN SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec] ×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC] ×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%]

“Calculated load value” indicates the
value of the current air flow divided by
peak air flow.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

EC-788
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
I/P PULLY SPD
[rpm]
Indicates the engine speed computed
from the turbine revolution sensor signal.
VEHICLE SPEED
[km/h] or [MPH]

The vehicle speed computed from the
vehicle speed signal sent from TCM is
displayed.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle air volume learning has not
been performed yet.
CMPLT: Idle air volume learning has
already been performed successfully.
TRVL AFTER MIL
[km] or [mile]

Distance traveled while MIL is activated.
SNOW MODE SW
[ON/OFF]

Indicates [ON/OFF] condition from the
snow mode switch signal.
A/F S1 HTR (B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes
larger as the value increases.
A/F S1 HTR (B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant
pressure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CAN-
CEL switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from
RESUME/ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop
lamp switch signal.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
VHCL SPD CUT
[NON/CUT]

Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to exces-
sively high compared with the ASCD set
speed, and ASCD operation is cut off.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

DTC P0130, P0150 A/F SENSOR 1 EC-903
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
7. Release accelerator pedal fully.
NOTE:
Never apply brake during releasing the accelerator pedal.
8. Make sure that “TESTING” changes to “COMPLETED”. If “TESTING” changed to “OUT OF CONDITION”, retry from
step 6.
9. Make sure that “OK” is displayed after touching “SELF-DIAG RESULT”.
If “NG” is displayed, go to EC-907, "
Diagnostic Procedure" .
Overall Function CheckNBS004KJ
PROCEDURE FOR MALFUNCTION B
Use this procedure to check the overall function of the A/F sensor 1 circuit. During this check, a 1st trip DTC
might not be confirmed.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle at a speed of 80 km/h (50 MPH) for a few minutes in the suitable gear position.
3. Set D position, then release the accelerator pedal fully until the vehicle speed decreases to 50 km/h (30 MPH).
NOTE:
Never apply brake during releasing the accelerator pedal.
4. Repeat steps 2 to 3 for five times.
5. Stop the vehicle and turn ignition switch OFF.
6. Wait at least 10 seconds and restart engine.
7. Repeat steps 2 to 3 for five times.
8. Stop the vehicle and connect GST to the vehicle.
9. Make sure that no DTC is displayed. If the DTC is displayed, go to EC-907, "
Diagnostic Procedure" .
SEF577Z
SEF578Z
