COIL SPRING AND STRUT FSU-11
C
D
F
G H
I
J
K L
M A
B
FSU
Revision: 2006 July 2007 FX35/FX45

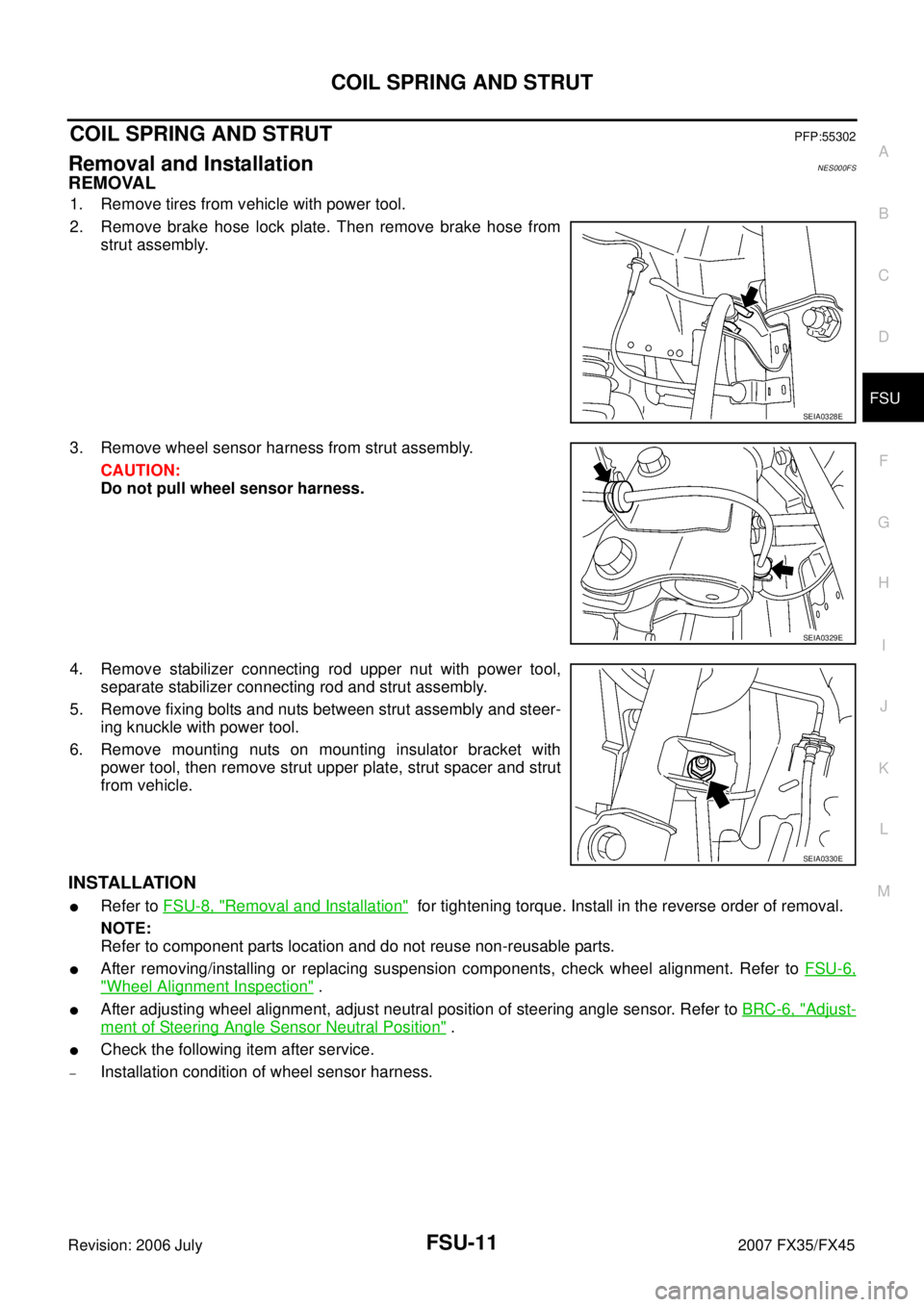

COIL SPRING AND STRUTPFP:55302
Removal and InstallationNES000FS
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove brake hose lock plate. Then remove brake hose from strut assembly.
3. Remove wheel sensor harness from strut assembly. CAUTION:
Do not pull wheel sensor harness.
4. Remove stabilizer connecting rod upper nut with power tool, separate stabilizer connecting rod and strut assembly.
5. Remove fixing bolts and nuts between strut assembly and steer- ing knuckle with power tool.
6. Remove mounting nuts on mounting insulator bracket with power tool, then remove strut upper plate, strut spacer and strut
from vehicle.
INSTALLATION
Refer to FSU-8, "Removal and Installation" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.
After removing/installing or replacing suspension components, check wheel alignment. Refer to FSU-6,
"Wheel Alignment Inspection" .
After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .
Check the following item after service.
–Installation condition of wheel sensor harness.
SEIA0328E
SEIA0329E
SEIA0330E
Page 3193 of 4366
HOW TO USE THIS MANUAL GI-11
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45

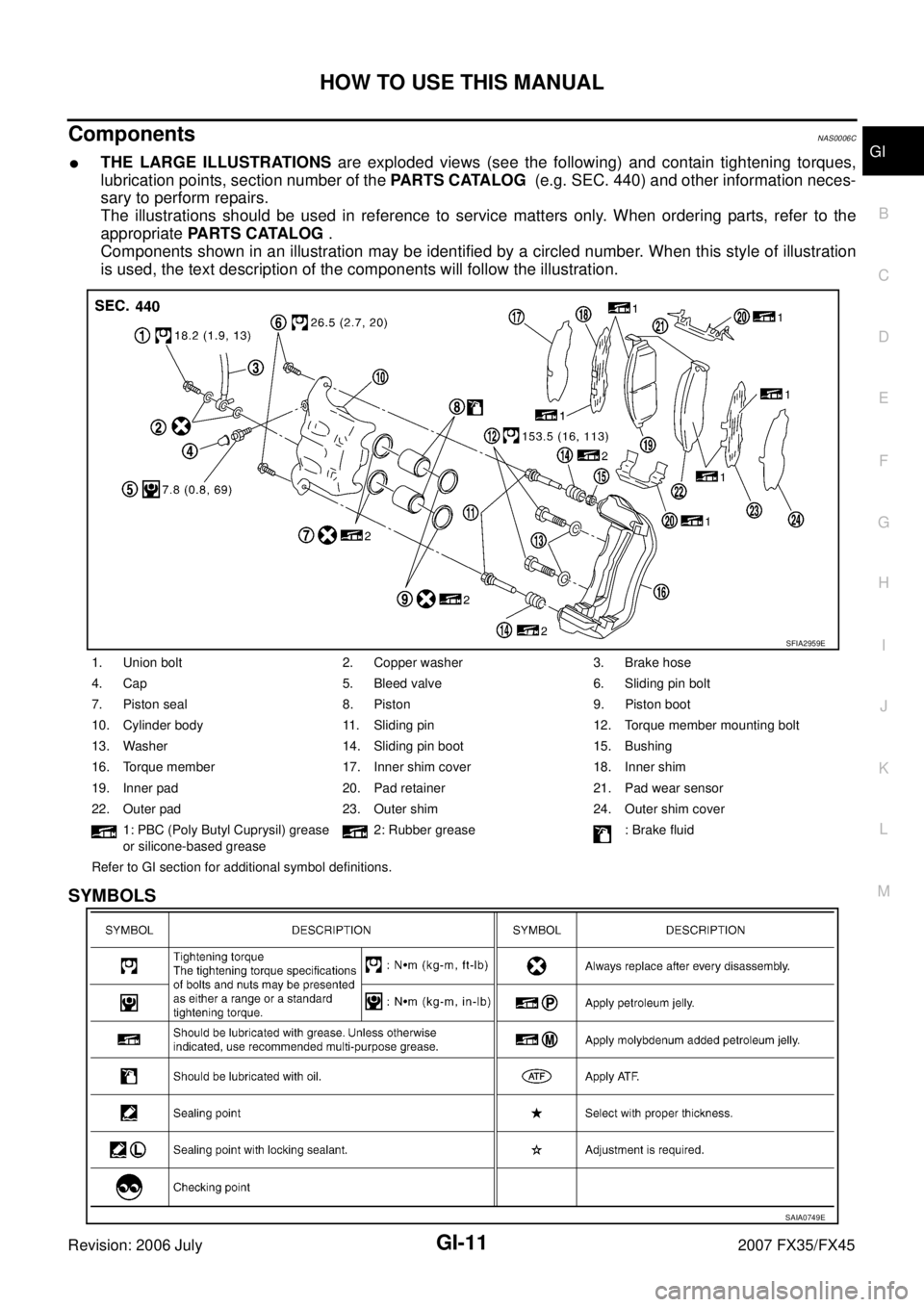

ComponentsNAS0006C
THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques,
lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information neces-
sary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the
appropriate PARTS CATALOG .
Components shown in an illustration may be identified by a circled number. When this style of illustration
is used, the text description of the components will follow the illustration.
SYMBOLS
1. Union bolt 2. Copper washer 3. Brake hose
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Piston seal 8. Piston 9. Piston boot
10. Cylinder body 11. Sliding pin 12. Torque member mounting bolt
13. Washer 14. Sliding pin boot 15. Bushing
16. Torque member 17. Inner shim cover 18. Inner shim
19. Inner pad 20. Pad retainer 21. Pad wear sensor
22. Outer pad 23. Outer shim 24. Outer shim cover 1: PBC (Poly Butyl Cuprysil) grease
or silicone-based grease 2: Rubber grease : Brake fluid
Refer to GI section for additional symbol definitions.
SFIA2959E
SAIA0749E
Page 3340 of 4366
IDX-2
ALPHABETICAL INDEX
A
A/C air flow ...................................................... ATC-37
A/C component layout ..................................... ATC-26
A/C compressor clutch removal and installation ...........
ATC-142
A/C compressor mounting ........... ATC-140, ATC-142,
ATC-146
, ATC-147, ATC-148, ATC-149, ATC-150,
ATC-152
, ATC-153, ATC-154, ATC-155
A/C compressor precaution ............................. ATC-13
A/C compressor special service tool ................ ATC-17
A/C control operation (auto A/C) ...................... ATC-34
A/C diagnostic work flow (auto A/C) .............. ATC-101
A/C evaporator ............................................... ATC-154
A/C HFC134a (R134a) system precaution ........ ATC-6
A/C HFC134a (R134a) system service procedure .......
ATC-137
A/C HFC134a (R134a) system service tools ... ATC-18
A/C HFC134a system service equipment precaution ...
ATC-13
A/C lubricant (R134a) ...................................... ATC-27
A/C lubrication oil ........................................... ATC-160
A/C operational check ...................................... ATC-60
A/C self-diagnoses (auto A/C) ........ ATC-52, ATC-101
A/C service data specification ........................ ATC-160
A/C system description (auto A/C) ................... ATC-30
A/C trouble diagnoses (auto A/C) .................... ATC-40
A/C, A - Wiring diagram ................................... ATC-45
A/T fluid checking ...................... AT-13, AT-53, MA-29
A/T fluid cooler cleaning .................................... AT-15
A/T fluid replacement ............................. AT-12, MA-31
A/T fluid temperature sensor ........................... AT-134
A/T IND - Wiring diagram .................................... DI-53
A/T self-diagnoses ........................................... AT-102
A/T shift lock system ........................................ AT-232
A/T shift lock system - Wiring diagram ............ AT-233
A/T trouble diagnoses ........................................ AT-44
Accelerator pedal position (APP) sensor ........ EC-576,
EC-583
, EC-597, EC-1258, EC-1265, EC-1279
Accelerator pedal released position learning .... EC-83,
EC-745
AF1B1-Wiring diagram ...... EC-232, EC-241, EC-250,
EC-260
, EC-607, EC-904, EC-913, EC-922, EC-932,
EC-1289
AF1B2-Wiring diagram ...... EC-234, EC-243, EC-252,
EC-262
, EC-609, EC-906, EC-915, EC-924, EC-934,
EC-1291
AF1HB1-Wiring diagram .................... EC-166, EC-838
AF1HB2-Wiring diagram .................... EC-168, EC-840
Air bag .............................................................. SRS-3
Air bag precautions ........................................... SRS-3
Air cleaner and air duct(VK45DE) ................... EM-177
Air cleaner and air duct(VQ35DE) .................... EM-17
Air cleaner filter replacement ............................ MA-25
Air cleaner filter replacement(VQ35DE) ........... MA-18
Air cleaner filter(VQ35DE) ................................ EM-18
Air conditioner cut control .................... EC-34, EC-696
Air flow meter - See Mass air flow sensor ...... EC-187,
EC-196
, EC-859, EC-868
Air fuel ratio sensor 1 ......... EC-229, EC-239, EC-248,
EC-257
, EC-605, EC-901, EC-911, EC-920, EC-929,
EC-1287
Air fuel ratio sensor 1 heater ............. EC-164, EC-837
Air mix. door motor ......................... ATC-71, ATC-131
Ambient sensor ............................. ATC-103, ATC-116
Angular tightening application ............................. EM-6
Angular tightening application(VK45DE) ........ EM-165
APPS1 - Wiring diagram ................. EC-578, EC-1260
APPS2 - Wiring diagram ................. EC-585, EC-1267
APPS3 - Wiring diagram ................. EC-599, EC-1281
ASC/BS - Wiring diagram ............... EC-541, EC-1217
ASC/SW - Wiring diagram .............. EC-524, EC-1200
ASCBOF - Wiring diagram .............. EC-618, EC-1300
ASCD .................................................. EC-35, EC-697
ASCD (automatic speed control device) ........... ACS-3
ASCD brake switch .......................................... EC-539
ASCD indicator lamp ....................................... EC-624
ASCD steering switch ...................................... EC-522
ASCIND - Wiring diagram ............... EC-625, EC-1307
AT indicator lamp ................................................ DI-52
Auto air conditioner - Wiring diagram ............. ATC-45
Auto amp ...................................................... ATC-115
Auto anti-dazzling inside mirror ....................... GW-65
Automatic amplifier ........... ATC-50, ATC-62, ATC-115
Automatic transmission fluid replacement ........ MA-32
AV communication line ........................ AV-64, AV-108
AWD - Wiring diagram ....................................... TF-17
Axle ................................................................... MA-37
Axle housing (rear) ........................................... RAX-7
B
Back Door ........................................................ BL-158
Back door ......................................................... BL-158
Back door opener - See Back door .................. BL-162
Basic inspection .................................. EC-76, EC-738
Battery ................................................................. SC-5
Battery/Starting/Charging System Tester SC-8, SC-14,
SC-27
BCM (Body control module) .............................. BCS-3
Block heater(VK45DE) .................................... EM-248
Block heater(VQ35DE) ................................... EM-123
Blower motor ................................... ATC-77, ATC-122
Blower unit .................................................... ATC-120
Brake booster .................................................... BR-15
Brake fluid level ................................................ MA-35
Brake hydraulic line ........................................... BR-11
Brake inspection ............................................... MA-36
Brake lines and cables inspection .................... MA-35
Brake master cylinder ........................................ BR-13
Brake switch ................................... EC-552, EC-1233
BRK/SW - Wiring diagram .............. EC-553, EC-1234
Bulb specifications ........................................... LT-201
Bumper, front ...................................................... EI-14
Bumper, rear ....................................................... EI-17
Page 3342 of 4366
IDX-4
ALPHABETICAL INDEX
Electrical units location ...................................... PG-67
Electronic ignition (EI) system ............. EC-32, EC-694
Engine control circuit diagram ......................... EC-107
Engine control component parts location ......... EC-100
Engine control module (ECM) .......... EC-480, EC-1148
Engine control system diagram ........... EC-29, EC-691
Engine coolant temperature sensor (ECTS) ... EC-209,
EC-221
, EC-880, EC-893
Engine coolant(VK45DE) .................................. CO-38
Engine coolant(VQ35DE) ................................. CO-11
Engine fail-safe system ...................................... EC-95
Engine oil filter replacement ............................. MA-26
Engine oil filter replacement(VQ35DE) ............. MA-19
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-18
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-243
Engine removal(VQ35DE) .............................. EM-113
Engine room cover(VK45DE) ......................... EM-173
ETC1 - Wiring diagram .................... EC-564, EC-1245
ETC2 - Wiring diagram .................... EC-559, EC-1240
ETC3 - Wiring diagram .................... EC-570, EC-1252
EVAP canister ...................................... EC-41, EC-703
EVAP canister purge volume control solenoid valve ....
EC-396
, EC-404, EC-1065, EC-1073
EVAP canister vent control valve ...... EC-411, EC-418,
EC-1080
, EC-1087
EVAP control system (small leak) diagnosis .. EC-387,
EC-449
, EC-1056, EC-1118
EVAP control system pressure sensor ........... EC-424,
EC-427
, EC-433, EC-1093, EC-1096, EC-1102
EVAP control system purge flow monitoring diagnosis
EC-382
, EC-1051
EVAP vapor lines inspection ................. MA-21, MA-28
Evaporative emission (EVAP) system . EC-38, EC-700
Evaporator ..................................................... ATC-154
Exhaust manifold(VK45DE) ............................ EM-183
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-29
Expansion valve ............................................. ATC-155
F
F/PUMP - Wiring diagram ................ EC-637
, EC-1319
Final drive pre-inspection .................. FFD-20, RFD-19
Final drive removal and installation .. FFD-13, FFD-15,
RFD-16
Floor trim ............................................................. EI-41
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-134
Fluorescent leak detector .............................. ATC-156
Freeze frame data ............................... EC-59, EC-721
Front axle ................................ FAX-4, FAX-10, RAX-5
Front brake solenoid valve ................. AT-150, AT-152
Front bumper ...................................................... EI-14
Front door ............................. BL-148, BL-152, GW-58
Front passenger air bag .................................. SRS-46
Front seat belt ...................................................... SB-4
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-52
Front suspension .............................................. FSU-6
FTS - Wiring diagram ....................................... AT-135
FTTS - Wiring diagram .... EC-329, EC-334, EC-1000,
EC-1005
Fuel cut control (at no load high engine speed) EC-33,
EC-695
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) ......... EC-304, EC-316,
EC-976
, EC-987
Fuel injection system (Bank 2) ......... EC-304, EC-316,
EC-976
, EC-987
Fuel injector ..................................................... EC-629
Fuel injector and fuel tube(VK45DE) .............. EM-194
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-459, EC-461, EC-463, EC-1127,
EC-1129
, EC-1131
Fuel line inspection .................................. FL-3, MA-25
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-85, EC-747
Fuel pressure release ......................... EC-85, EC-747
Fuel pump ....................................... EC-636, EC-1318
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-327, EC-333,
EC-998
, EC-1004
Fuel tank vacuum relief valve ............. EC-41, EC-703
FUELB1 - Wiring diagram .. EC-306, EC-318, EC-978,
EC-989
FUELB2 - Wiring diagram .. EC-308, EC-320, EC-980,
EC-991
Fuse .................................................................. PG-16
Fuse and fusible link box .................................. PG-81
Fusible link ........................................................ PG-16
G
Gauges ................................................................. DI-5
Generic scan tool (GST) .................................. EC-129
Glass ...................................... GW-11, GW-58, GW-62
Grille - See Exterior ............................................ EI-22
Ground distribution ........................................... PG-29
H
Harness connector ............................................ PG-71
Harness layout .................................................. PG-43
Headlining - See Roof trim .................................. EI-43
Heated oxygen sensor 2 (bank 1) .... EC-269, EC-280,
EC-293
, EC-941, EC-952, EC-965
Heated oxygen sensor 2 (bank 2) .... EC-269, EC-280,
EC-293
, EC-941, EC-952, EC-965
Heated oxygen sensor 2 heater (bank 1) ....... EC-172,
EC-844
Heated oxygen sensor 2 heater (bank 2) ....... EC-172,
Page 3343 of 4366
IDX-5
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
EC-844
Heated seat .......................................................
SE-94
Heater and cooling unit (Heater core) ........... ATC-125
HFC134a (R134a) system precaution ............... ATC-6
HFC134a (R134a) system service procedure ATC-137
HFC134a (R134a) system service tools .......... ATC-18
HFC134a system service equipment precaution ..........
ATC-13
High and low reverse clutch solenoid valve .... AT-158,
AT-160
Hood ................................................................... BL-13
How to erase DTC for OBD system ..... EC-58, EC-728
HSEAT - Wiring diagram ................................... SE-95
I
IATS - Wiring diagram ....................... EC-206
, EC-877
ICC - Wiring diagram ....................................... ACS-21
ICC/BS - Wiring diagram ................. EC-532, EC-1208
ICC/SW - Wiring diagram ................ EC-517, EC-1193
ICCBOF - Wiring diagram ................ EC-643, EC-1325
Idle air volume learning ....................... EC-83, EC-745
Idle speed .............................. EC-81, EC-738, EC-743
Idle speed control (ISC) .... EC-467, EC-469, EC-1135,
EC-1137
Ignition coil ....................................... EC-650, EC-1332
Ignition coil(VK45DE) ...................................... EM-191
Ignition coil(VQ35DE) ........................................ EM-42
Ignition control system ..................... EC-650, EC-1332
Ignition timing ........................ EC-81, EC-738, EC-743
IGNSYS - Wiring diagram ................ EC-651, EC-1333
In vehicle sensor ........................... ATC-106, ATC-117
INF/D - Wring diagram ....................................... AV-57
INJECT - Wiring diagram ................. EC-630, EC-1312
Injector ........................................................... EC-1311
Input clutch solenoid valve ................. AT-146, AT-148
Instrument panel .................................................. IP-10
Intake air temperature sensor ........... EC-204, EC-224,
EC-875
, EC-896
Intake door control linkage adjustment ............ ATC-76
Intake door motor ........................... ATC-74, ATC-123
Intake manifold collector(VQ35DE) ................... EM-19
Intake manifold(VK45DE) ................................ EM-179
Intake manifold(VQ35DE) .................................. EM-24
Intake sensor ................................ ATC-112, ATC-119
Intake valve timing control (Bank 1) .. EC-160, EC-825
Intake valve timing control (Bank 2) .. EC-160, EC-825
Intake valve timing control position sensor (Bank 1) ....
EC-1161
Intake valve timing control position sensor (Bank 2) ....
EC-1161
Intake valve timing control solenoid valve (Bank 1) ......
EC-180
, EC-852
Intake valve timing control solenoid valve (Bank 2) ......
EC-180
, EC-852
Integrated homelink transmitter ........................ BL-226
Intelligent cruise control (ICC) system ............... ACS-6
Interior ................................................................. EI-38
IPDM (Intelligent power distribution module engine room) .................................................................
PG-17
IVCB1 - Wiring diagram ..................... EC-181, EC-853
IVCB2 - Wiring diagram ..................... EC-183, EC-855
IVCSB1 - Wiring diagram ............................... EC-1163
IVCSB2 - Wiring diagram ............................... EC-1165
IVIS (Infiniti vehicle immobilizer system) precautions ...
GI-3
IVTB1 - Wiring diagram ................................... EC-828
IVTB2 - Wiring diagram ................................... EC-830
K
Knock sensor (KS) ........................... EC-355
, EC-1026
KS - Wiring diagram ......................... EC-356, EC-1027
L
LAN system circuit ........................................... ATC-64
Lane Departure Warning System ....................... DI-77
Laser beam aiming adjustment ....................... ACS-14
Latch (lower anchors and tether for children) system ...
SB-10
LDW .................................................................... DI-77
LDW - Wiring Diagram ........................................ DI-89
Line pressure solenoid valve ........................... AT-129
Line pressure test (A/T) ..................................... AT-54
Liquid gasket application ......................... EM-6, LU-21
Liquid gasket application(VQ35DE) ........... LU-3, CO-3
Location of electrical units ................................. PG-67
Low coast brake solenoid valve ......... AT-162, AT-164
Lubricant (R134a) A/C ..................................... ATC-27
Lubrication circuit (engine)(VK45DE) ................ LU-23
Lubrication circuit (engine)(VQ35DE) .................. LU-5
Lubrication oil A/C .......................................... ATC-160
M
M/ANT - Wiring diagram .................................... AV-49
MAFS - Wiring diagram ..... EC-190, EC-198, EC-862,
EC-870
Magnet clutch ................................. ATC-82, ATC-142
MAIN - Wiring diagram ........ EC-148, EC-813, AT-179
Maintenance (engine)(VQ35DE) ...................... MA-14
Major overhaul (Final drive) .............. FFD-17, RFD-18
Major overhaul (Transfer) .................................. TF-45
Malfunction indicator lamp (MIL) .......... EC-67, EC-730
Mass air flow sensor (MAFS) ............ EC-187, EC-196,
EC-859
, EC-868
Meter ..................................................................... DI-5
METER - Wiring diagram .................................... DI-12
MIL data link connectors circuit ....... EC-673, EC-1364
MIL/DL - Wiring diagram .................. EC-673, EC-1364
Mirror, door ....................................................... GW-98
Mirror, out side .................................................. GW-98
Misfire .............................................. EC-345, EC-1016
MMSW - Wiring diagram .................................. AT-167
Mode door control linkage adjustment ............. ATC-70
Mode door motor ............................ ATC-68, ATC-130
Molding - See Exterior ................... EI-25, EI-30, EI-33
Page 3344 of 4366
IDX-6
ALPHABETICAL INDEX
Multiport fuel injection (MFI) system .... EC-30, EC-692
Multiport fuel injection precautions ....................... GI-7
N
NATS - Wiring diagram .................................... BL-208
NAVI - Wiring diagram ..................................... AV-100
Navigation system ............................................. AV-93
NONDTC - Wiring diagram .............................. AT-186
NVH troubleshooting (EM) .............................. EM-171
NVH troubleshooting (EM)(VQ35DE) ............... EM-13
NVH troubleshooting (Final drive) ......... FFD-6, RFD-7
NVH troubleshooting (Propeller shaft) ................. PR-3
NVH troubleshooting (Transfer) ........................... TF-8
NVIS (Nissan vehicle immobilizer system) precautions
GI-3
O
O2H2B1 - Wiring diagram .................. EC-174
, EC-846
O2H2B2 - Wiring diagram .................. EC-176, EC-848
O2S2B1 - Wiring diagram .. EC-272, EC-283, EC-296,
EC-944
, EC-955, EC-968
O2S2B2 - Wiring diagram .. EC-274, EC-285, EC-298,
EC-946
, EC-957, EC-970
Oil cooler (engine)(VQ35DE) ............................. LU-14
Oil filter(VK45DE) .............................................. LU-28
Oil filter(VQ35DE) .............................................. LU-10
Oil pan (engine)(VK45DE) .............................. EM-187
Oil pan (engine)(VQ35DE) ................................ EM-30
Oil pressure (engine)(VK45DE) ......................... LU-25
Oil pressure (engine)(VQ35DE) ........................... LU-8
Oil pressure relief valve (engine)(VQ35DE) ........ LU-6
Oil pump (A/T) ................................................. AT-312
Oil pump (engine)(VK45DE) .............................. LU-31
Oil pump (engine)(VQ35DE) .............................. LU-17
Oil pump regulator valve (engine)(VK45DE) ..... LU-31
Oil pump regulator valve (engine)(VQ35DE) ..... LU-17
Oil seal replacement (engine)(VK45DE) ......... EM-228
Oil seal replacement (engine)(VQ35DE) .......... EM-98
Oil seal replacement (front of final drive) .......... FFD-9,
RFD-10
Oil seal replacement (side of final drive) ......... FFD-11,
RFD-14
On board diagnostic system .............................. EC-53
ORVR (On-board Refueling Vapor Recovery) .. EC-45,
EC-707
Out side mirror .................................................. GW-98
Overheat .......................................... EC-496, EC-1173
P
Park/Neutral position switch ............ EC-488
, EC-1156
Park/neutral position switch (A/T) .................... AT-112
Parking brake control ........................................... PB-4
PCV (positive crankcase ventilation) ... EC-50, EC-712
PGC/V - Wiring diagram .. EC-398, EC-406, EC-1067,
EC-1075
PHASE - Wiring diagram ............................... EC-1040
PHSB1 - Wiring diagram .................................. EC-369
PHSB2 - Wiring diagram .................................. EC-371
Pilot bushing replacement - See Pilot
converter(VQ35DE) ........................................ EM-124
Piston assembly(VK45DE) ............................. EM-259
Piston assembly(VQ35DE) ............................. EM-136
Piston pin inspection(VK45DE) ....................... EM-265
Piston pin inspection(VQ35DE) ...................... EM-141
Piston ring inspection(VK45DE) ..................... EM-266
Piston ring inspection(VQ35DE) ..................... EM-142
Piston to bore clearance(VK45DE) ................. EM-269
Piston to bore clearance(VQ35DE) ................ EM-145
PNP/SW - Wiring diagram . EC-490, EC-1158, AT-113
POS - Wiring diagram ..................... EC-362, EC-1033
POWER - Wiring diagram ................................... PG-4
Power door mirror .............................................. BL-21
Power seat ......................................................... SE-92
Power steering fluid level ........................ PS-8, MA-37
Power steering gear ........................................... PS-18
Power steering hydraulic pressure .................... PS-30
Power steering oil pump .................................... PS-30
Power steering pressure (PSP) sensor ........... EC-471
Power steering system bleeding .......................... PS-8
Power supply routing .......................................... PG-3
Power window .................................................. GW-15
PRE/SE - Wiring diagram EC-429, EC-435, EC-1098,
EC-1104
Precations for Leak detection dye .................. ATC-16
Precautions (General) ........................................... GI-4
Pressure switch 1 .............................. AT-152, AT-171
Pressure switch 2 ............................................ AT-164
Pressure switch 3 .............................. AT-148, AT-173
Pressure switch 5 .............................. AT-156, AT-175
Pressure switch 6 .............................. AT-160, AT-177
Pressure test (A/T) ............................................. AT-54
Propeller shaft ........................................... PR-4, PR-7
Propeller shaft on vehicle service ............. PR-4, PR-7
Propeller shaft vibration ............................ PR-4, PR-7
PS/SEN - Wiring diagram ............... EC-472, EC-1140
R
R/VIEW - Wiring diagram .................................. DI-116
Radiator(VK45DE) ............................................ CO-41
Radiator(VQ35DE) ............................................ CO-14
Rear bumper ....................................................... EI-17
Rear combination lamp removal and installation ..........
LT-151
Rear door ............................................ BL-148, GW-62
Rear seat ......................................................... SE-104
Rear suspension ............................................... RSU-5
Rear view monitor ............................................. DI-113
Rear window defogger ..................................... GW-67
Refrigerant connection precaution .................... ATC-8
Refrigerant discharging evacuating charging ATC-137
Refrigerant general precaution ......................... ATC-7
Refrigerant lines ............................................ ATC-137
Refrigerant pressure sensor .......... EC-663, EC-1345,
ATC-89
, ATC-154
Page 3345 of 4366
IDX-7
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
Refrigeration cycle ...........................................
ATC-21
Removal and installation (A/T) ........... AT-266, AT-269
Removal and installation (Transfer) .................... TF-44
Revolution sensor (A/T) ...................... AT-118, AT-259
Rocker cover(VK45DE) ................................... EM-200
Rocker cover(VQ35DE) ..................................... EM-51
RP/SEN - Wiring diagram ................ EC-664, EC-1346
S
SAE J1979 - Service $01 - 09 ........... EC-129
, EC-715
Seal - See Exterior .............................................. EI-27
Seat belt inspection ............................................. SB-7
Seat belt, front ..................................................... SB-4
Seat, rear ......................................................... SE-104
Self-diagnosis (Transfer) .................................... TF-22
Self-diagnostic results ....................................... EC-70
SEN/PW - Wiring diagram ............... EC-484, EC-1152
SHIFT - Wiring diagram ................................... AT-233
Shift lock system .............................................. AT-232
Shift schedule .................................................. AT-359
Shock absorber (rear) ....................................... RSU-9
Side air bag (satellite) sensor .......................... SRS-51
Side curtain air bag .......................................... SRS-48
Side trim .............................................................. EI-38
SMJ (super multiple junction) ............................ PG-76
SNOW MODE SW ........................... EC-668, EC-1350
SNOWSW - Wiring diagram ............ EC-669, EC-1351
Spark plug replacement ..................................... MA-27
Spark plug replacement(VQ35DE) .................... MA-20
Spark plug(VK45DE) ....................................... EM-192
Spark plug(VQ35DE) ......................................... EM-43
Specification value ............................. EC-137, EC-802
Speedometer ........................................................ DI-5
Spiral cable ...................................................... SRS-44
SROOF - Wiring diagram ..................... BL-166, RF-13
SRS - See Supplemental Restraint System ...... SRS-5
SRS - Wiring diagram ...................................... SRS-12
SRS Trouble diagnoses ..................................... SRS-8
Stabilizer bar (rear) ......................................... RSU-16
Stall test (A/T) .................................................... AT-53
Standardized relay ............................................. PG-78
START - Wiring diagram ................................... SC-12
Starter ................................................................ SC-11
Starting system .................................................. SC-11
Steering gear and linkage inspection ................ MA-36
Steering linkage ................................................. PS-18
Steering wheel and column ................... PS-10, PS-13
Stop lamp switch ............................. EC-552, EC-1233
STSIG - Wiring diagram .................................. AT-108
Sun roof, electric ................................................ RF-10
Sunload sensor ............................. ATC-109, ATC-118
Sunroof .................................................. RF-10, RF-23
Supplemental Restraint System ........................ SRS-5
Supplemental restraint system - Wiring diagram ..........
SRS-12
Suspension ........................................................ MA-37
Symbols and abbreviations ..................... GI-11, GI-24
Symptom matrix chart ........................................ EC-96
System readiness test (SRT) code ...... EC-59, EC-721
T
Tachometer ........................................................... DI-5
TCM circuit diagram ........................................... AT-52
TCM inspection table ......................................... AT-89
Thermostat(VK45DE) ....................................... CO-53
Thermostat(VQ35DE) ....................................... CO-27
Three way catalyst function (Bank 1) EC-376, EC-1045
Three way catalyst function (Bank 2) EC-376, EC-1045
Three way catalyst precautions ............................ GI-6
Three way catalyst(VK45DE) .......................... EM-183
Three way catalyst(VQ35DE) ........................... EM-26
Throttle control motor ....................... EC-569, EC-1251
Throttle control motor relay .............. EC-557, EC-1238
Throttle position sensor (TPS) .......... EC-214, EC-338,
EC-509
, EC-511, EC-590, EC-886, EC-1009, EC-1185,
EC-1187
, EC-1272
Throttle valve closed position learning . EC-83, EC-745
Tie-rod ............................................................... PS-18
Timing chain(VK45DE) ................................... EM-203
Timing chain(VQ35DE) ..................................... EM-64
Tire rotation ....................................................... MA-35
Top tether strap child restraint ........................... SB-11
Torque converter installation AT-267, AT-268, AT-272
Torque convertor clutch solenoid valve AT-125, AT-127
TPS1 - Wiring diagram .................... EC-340, EC-1011
TPS2 - Wiring diagram ...................... EC-216, EC-888
TPS3 - Wiring diagram .................... EC-592, EC-1274
Traction control system circuit (engine) .......... EC-494,
EC-495
Transfer control unit inspection table ................. TF-21
Transverse link (front) ...................................... FSU-14
TRNSCV - Wiring diagram ............................... BL-226
Trouble diagnoses .............................................. GI-12
Two trip detection logic ........................ EC-53, EC-715
Tyre pressure monitoring system - trouble diagnoses ..
WT-15
Tyre pressure monitoring system - wiring diagram .......
WT-16
U
Unified meter and A/C amp. ............................... DI-28
V
Vacuum hose (brake system) ............................ BR-17
Vacuum hose drawing (Engine control) ........... EC-106
Valve clearance(VK45DE) .............................. EM-222
Valve clearance(VQ35DE) ................................ EM-93
Valve guide ..................................................... EM-108
Valve guide(VK45DE) ..................................... EM-239
Valve lifter ......................................................... EM-87
Valve seat(VK45DE) ....................................... EM-241
Valve seat(VQ35DE) ...................................... EM-110
Valve spring(VK45DE) .................................... EM-242
Valve spring(VQ35DE) ................................... EM-111
Page 3415 of 4366
![INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS LAN-51
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
Front fog light request signal T R
Front wiper request signal T R
High beam request signal T](/manual-img/42/57018/w960_57018-3414.png "INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS LAN-51
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
Front fog light request signal T R
Front wiper request signal T R
High beam request signal T")
TROUBLE DIAGNOSIS LAN-51
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
Front fog light request signal T R
Front wiper request signal T R
High beam request signal T R R
Horn chirp signal T R
Ignition switch signal T R R
Key fob door unlock signal T R
Key fob ID signal T R
Key switch signal T R
Low beam request signal T R
Oil pressure switch signal RT
TR
Position light request signal T R R
Rear window defogger switch signal T R
Run flat tire warning lamp signal T R
Sleep wake up signal TRRR
RT
Theft warning horn request signal T R
Tire pressure warning lamp signal T R
Turn indicator signal T R
Alarm request signal R T
Back door open request signal R T
Door lock/unlock request signal R T
Ignition knob switch signal R T
Key warning signal T R
Power window open request signal R T
Steering angle sensor signal T R
Distance to empty signal R T
Fuel level low warning signal R T
Fuel level sensor signal R T
Manual mode shift down signal R T
Manual mode shift up signal R T
Manual mode signal R T
Not manual mode signal R T
Snow mode switch signal R T
Stop lamp switch signal R T
Turn LED burnout status signal R T
Vehicle speed signal RT
RRRRR T R
A/T shift schedule change demand signal R T
ABS operation signal T
ABS warning lamp signal RT
Brake warning lamp signal RT
SLIP indicator lamp signal RT
Signals
ECM
DISP TCM
BCM
I-KEY
STRG M&AABS
ADP
IPDM-E
