2007 Hyundai Accent Owner's Manual

1
FEATURES OF YOUR HYUNDAI
93
If you must re-enter the vehicle, you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other gasoline source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refueling. Static electricity dis- charge from the container canignite fuel vapors causing a fire. Once refueling has begun, con- tact with the vehicle should bemaintained until the filling is complete. Use only portable fuel containers designed to carry andstore gasoline.
- Do not use cellular phones
around a gas station or whilerefueling any vehicle. Electric current and/or electronic inter- ference from cellular phones canpotentially ignite fuel vapors causing a fire. If you must use your cellular phone use it in aplace away from the gas station.o Automotive fuels are flammable/ explosive materials. When refuel- ing, please note the followingguidelines carefully. Failure to follow these guidelines may re- sult in severe personal injury, se-vere burns or death by fire or explosion.
- Before refueling always note the
location of the Emergency Gaso- line Shut-Off, if available, at the gas station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerousstatic electricity discharge by touching another metal part of the front of the vehicle, a safedistance away from the fuel filler neck, nozzle, or other gas source.
- Do not get back into a vehicle once you have begun refueling.Do not touch, rub or slide againstany item or fabric (polyester, satin, nylon, etc.) capable of pro- ducing static electricity. Staticelectricity discharge can ignite fuel vapors resulting in explo- sion.- When refueling always shut theengine off. Sparks produced by electrical components related tothe engine can ignite fuel va- pors causing a fire. Always in- sure that the engine is OFF be-fore and during refueling. Once refueling is complete, check to make sure the fuel filler cap anddoor are securely closed, before starting the engine.
- Do not light any fire around a gas station. DO NOT use matchesor a lighter and DO NOT SMOKE or leave a lit cigarette in yourvehicle while at a gas station especially during refueling. Au- tomotive fuel is highly flammableand can, when ignited, result in explosion by flames.
- If a fire breaks out during refuel- ing, leave the vicinity of the ve-hicle, and immediately contact the manager of the gas stationor contact the police and local fire department. Follow any safety instructions they provide.

1FEATURES OF YOUR HYUNDAI
94
B540D01MC-GAT Remote Trunk Lid Release (4 Door) (If Installed)
OMC025011
To open the trunk lid without using the key, pull up the lid release lever. To close, lower the trunk lid, then press down on it until it locks. To be sure thetrunk lid is securely fastened, check by trying to pull it up again.
!
TRUNK LID/TAIL GATE
B540A01MC-GAT
WARNING:
The trunk lid or the tail gate should always be kept completely closedwhile the vehicle is in motion. If it is left open or ajar, poisonous exhaust gases may enter the car resulting inserious illiness or death to the occu- pants. See additional warnings con- cerning exhaust gases on page 2-2. Trunk Lid (4 Door)
o The trunk lid is opened by first turn-
ing the key clockwise to release the lock, then raising the door manually.
o To close, lower the trunk lid, then
press down on it until it locks. To besure the trunk lid is securely fas- tened, try to pull it up again.
Tail Gate (3 Door) To open the tail gate, unlock it by turning the key clockwise, then pull theoutside handle toward you. To close, lower the tail gate and shut firmly to engage the latch. Lock the tailgate by turning the key counterclock- wise. If the vehicle is equipped with centraldoor locking, the tail gate can be locked without a key. Push the front portion of the central door locking switch afterclosing the tail gate. If the tail gate is open when the front portion of the central door locking switchis pushed, the tail gate will be locked when it is fully closed.
OMC025010

1
FEATURES OF YOUR HYUNDAI
95
!WARNING:
The trunk lid should always be kept completely closed while the vehicle is in motion. If it is left open or ajar,exhaust gases may enter the car and serious illness may result.
!
CAUTION:
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky ob- jects in the luggage compartment.!
WARNING:
Avoid eye injury. DO NOT over- stretch. The luggage net ALWAYS keep your face and body out of its recoil path. DO NOT use when thestrap has visible signs of wear or damage.
When loading objects in the luggage compartment, use the four rings lo-cated in the luggage compartment to attach the luggage net as shown illus- tration. This will help prevent the ob-jects from sliding.
1JBA3113
LUGGAGE NET
B540D02O-AAT (If Installed)
B540D01MC
Type A
Type B

1FEATURES OF YOUR HYUNDAI
96SUN VISOR
B580A01MC-AAT
B580A01MC
Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade. To reduce glare or to shut out direct rays of the sun, turn the sun visor down. A ticket holder is provided on the back of the sun visor for the driver. Vanity mirrors are provided on the back of thesunvisor for the driver and the front passenger (If Installed). NOTE: The Supplemental Restraint System (SRS) label containing useful infor-mation can be found on the topside of the sun visor.B580A02MC
CARGO AREA COVER
B650A01A-GAT (3 Door)
Nothing should be carried on top of the luggage cover. Loose materials could result in injury to vehicle occupants during sudden braking.
B650A01MC

1
FEATURES OF YOUR HYUNDAI
97

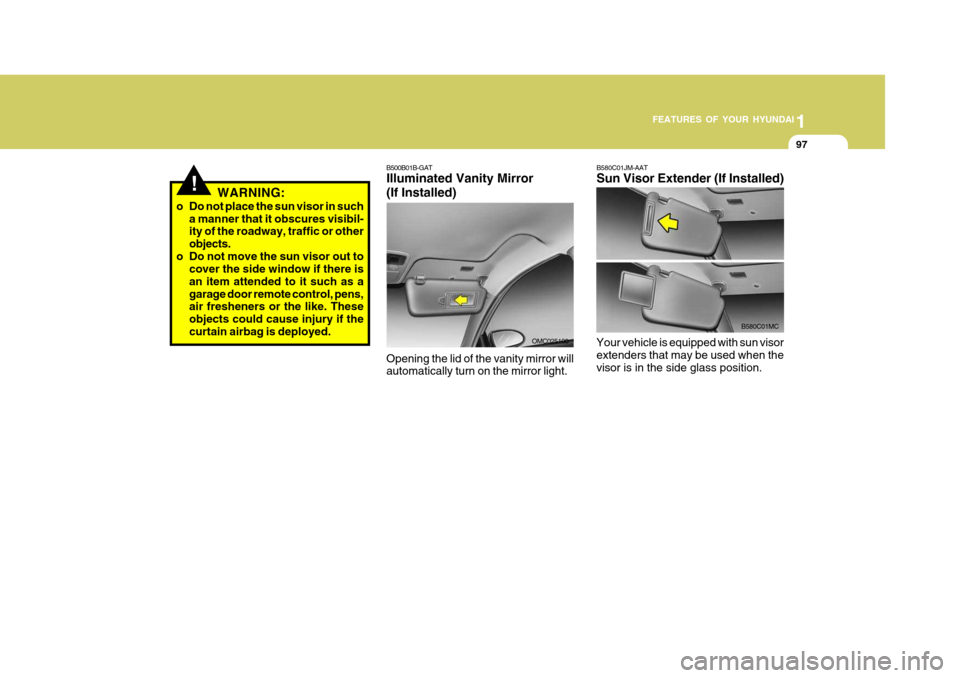

B580C01JM-AAT Sun Visor Extender (If Installed)
Your vehicle is equipped with sun visor extenders that may be used when the visor is in the side glass position.
B580C01MC
B500B01B-GAT Illuminated Vanity Mirror (If Installed) Opening the lid of the vanity mirror will automatically turn on the mirror light. OMC025100
!WARNING:
o Do not place the sun visor in such a manner that it obscures visibil- ity of the roadway, traffic or other objects.
o Do not move the sun visor out to cover the side window if there isan item attended to it such as agarage door remote control, pens, air fresheners or the like. These objects could cause injury if thecurtain airbag is deployed.

1FEATURES OF YOUR HYUNDAI
98HORN
B610B01L-GAT
Press the pad on the steering wheel to sound the horn.
OMC025046
!
STEERING WHEEL TILT LEVER
B600A01A-AAT
To Adjust the Steering Wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward.
WARNING:
Do not attempt to adjust the steering wheel while driving as this may re-sult in loss of control of the vehicle which may cause serious injury or death.
OMC025045

1
FEATURES OF YOUR HYUNDAI
99
1
FEATURES OF YOUR HYUNDAI
99
1
FEATURES OF YOUR HYUNDAI
99HEATING AND COOLING CONTROL
B710A01TB-GAT (If Installed)
1. Side Defroster Nozzle
2. Side Ventilator
3. Windshield Defroster Nozzle
4. Center Ventilator B710B01MC-AAT Center Ventilator/Side Ventilator
B710A01MC
B710B01MC
The center ventilators are located in the middle of the dashboard. The side ven- tilators are located on each side of dashboard. To change the direction ofthe air flow, move the knob in the center of the vent up-and-down and side-to- side.The vents are opened when the vent knob is moved to "
" position. The
vents are closed when the vent knob is moved to "
". Keep these vents clear
of any obstructions.

1FEATURES OF YOUR HYUNDAI

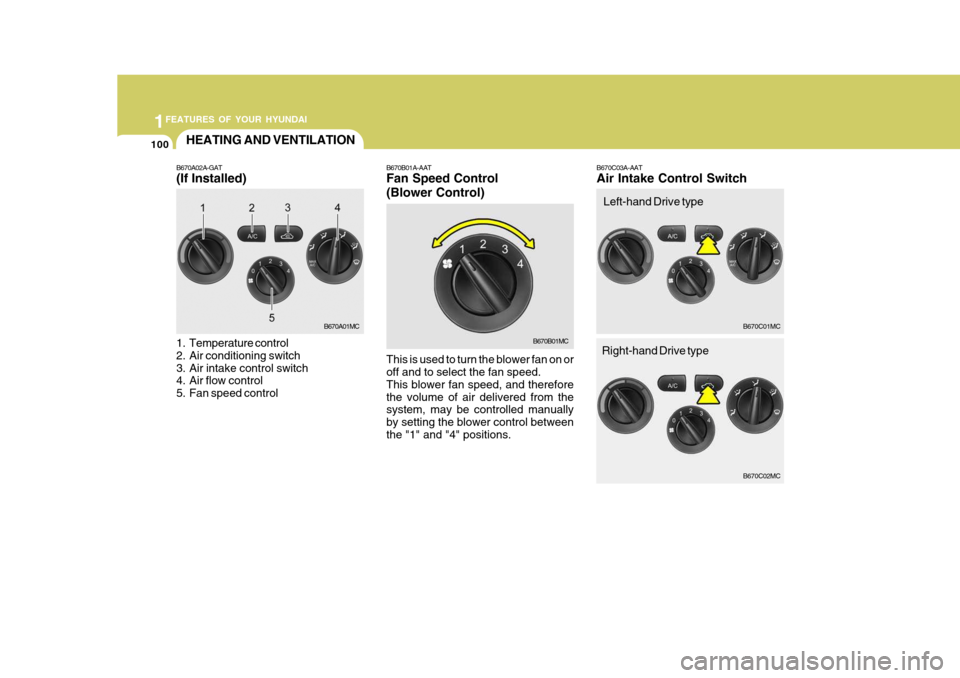

100HEATING AND VENTILATION
B670A02A-GAT
(If Installed)
1. Temperature control
2. Air conditioning switch
3. Air intake control switch
4. Air flow control
5. Fan speed control B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe "1" and "4" positions. B670C03A-AAT Air Intake Control Switch
B670A01MC
B670B01MC B670C01MC
B670C02MC
Left-hand Drive type
Right-hand Drive type
