This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. This
indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
information display. See page for
more information on the
maintenance minder.
This indicator goes off when your
dealer resets it after completing the
required maintenance service.
Ifitcomesonandstaysonatany
other
time, or if it does not come on
wh en you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
for more information on the
VSA system. It
comes on along with the VSA
system indicator if there is a
problem with the VSA system.
It
flashes when VSA is active (see
page ).
Itcomesonasareminderthatyou
have
turned off the vehicle
stability assist (VSA) system.
This
indicator has three functions:
This
indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see
page .
1.
2.
3.
210 210
210 235
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Maintenance Minder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
67

To switch the information display
between the odometer, trip meter
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SELECT button repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated. Odometer
Gauges
70
SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE FUEL GAUGE
SELECT
BUTTON
TRIP METER RESET
BUTTON
OUTSIDE
TEMPERATURE
INDICATOR
U.S. model is shown. INFORMATION
DISPLAY
ODOMETER/
TIGHTEN FUEL
CAP MESSAGE

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: TRIP A
and TRIP B. Switch between these
displays by pressing the SELECT
button repeatedly. Each trip meter
works independently, so you can
keep track of two dif f erent distances.To reset a trip meter, display it, and
then press and hold the RESET
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected. And both continue to
track mileage, even when only one is
displayed. When you turn the ignition switch to
the ON (II) position, the meter you
last selected is displayed.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
Trip Meter Fuel Gauge
Gauges
Inst rument s and Cont rols
71
SELECT BUTTON
RESET BUTTON
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

¶¶µµ
µµµ
µµµ
This
indicator displays the outside
temperature in Fah renheit (U.S.
models) or Cen tigrade (Canadian
models).
The temperature sensor is in the
front bumper. Therefore, the
temperature reading can be affected
by heat reflection from the road
surface, engine heat, and the
exhaust from surrounding traffic.
This can cause an incorrect
te mperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the indicator
update until it reaches the correct
outside temperature. This may take
several minutes.
If the outside temperature is
inco rrectly displayed, you can adjust
it up 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler. NOTE:
The temperature must be
stabilized before doing this
procedure.
To adjust the outside temperature
indicator, make sure the outside
temperature indicator is shown in
thedisplay,thenpressandholdthe
RESET button for 10 seconds (the
TRIP A or B is also reset). The
following sequence will appear for 1
secondeach:0,1,2,3,4,5, 5, 4,
3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
When it reaches the desired value,
release the RESET button. You
should see the new outside
te mperature displayed.
In certain weather conditions,
temperature readings near freezing
(32°F, 0°C) could mean that ice is
forming on the road surface.
This
shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page . 286
If equipped
Temperature Gauge Outside Temperature Indicator
Gauges
72

The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free driving. Refer to page for
more information.
If
your fuel fill cap is loose or
missing, a ‘‘TIGHTEN FUEL CAP’’
message appears on the information
display after you start the engine.
Turn the engine off, and confirm the
fuel cap is installed. If it is, loosen it,
then retighten it until it clicks at least
once. When you restart the engine,
the message appears again. The
message goes off after several days
of normal driving once you tighten
or replace the fuel cap. To scroll to
another message, press the select
button. If
the system still detects a leak in
your vehicle's evaporative emissions
system, the malfunction indicator
lamp (MIL) comes on. If the fuel cap
was not already tightened, turn the
engine off, and check or retighten the
fuel cap until it clicks at least once.
The MIL goes off after several days of
normal driving once the cap is
tightened or replaced. If the MIL does
not go off, have your vehicle inspected 235
Maintenance
Minder Display
Tighten Fuel Cap Message
Gauges
Instrument sand Cont ro ls
73
by a dealer. For more information, see
page 289.

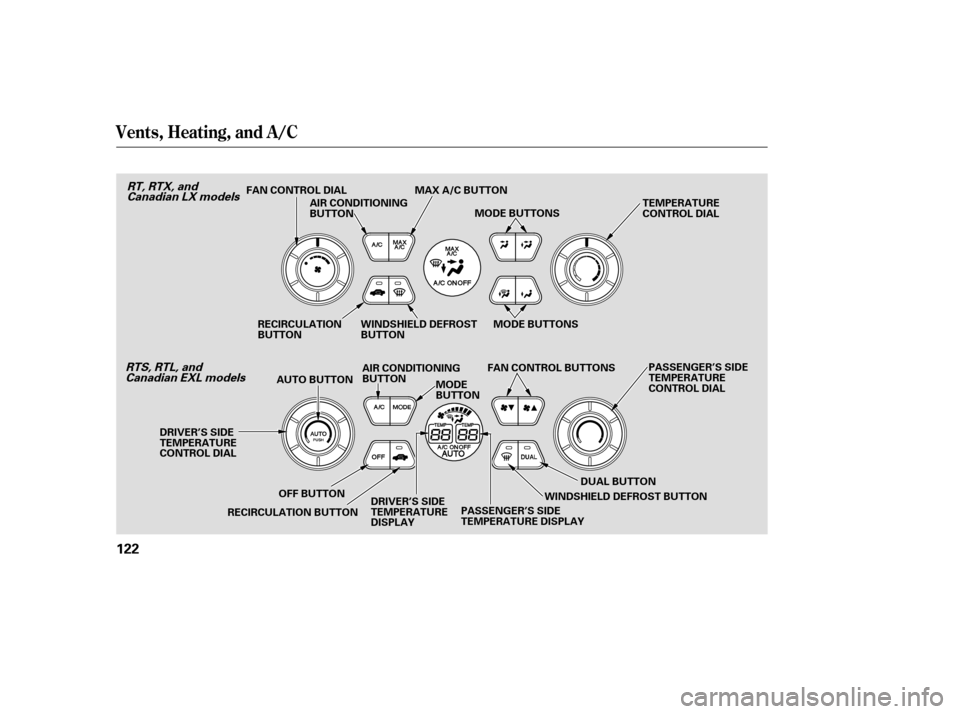

Vents, Heating, and A/C
122
FAN CONTROL DIALMODE BUTTONSTEMPERATURE
CONTROL DIAL
RECIRCULATION
BUTTON WINDSHIELD DEFROST
BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL OFF BUTTON WINDSHIELD DEFROST BUTTONDUAL BUTTON
AIR CONDITIONING
BUTTON
MAX A/C BUTTON
MODE BUTTONS
AIR CONDITIONING
BUTTON
AUTO BUTTON
DRIVER’S SIDE
TEMPERATURE
DISPLAY
RECIRCULATION BUTTON
PASSENGER’S SIDE
TEMPERATURE DISPLAY
MODE
BUTTON
FAN CONTROL BUTTONS
RTS, RTL, and
Canadian EXL models
RT,RTX,and
Canadian LX models

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it. Tu
rning this dial clockwise increases
the temperature of the airflow.
On
RTS, RTL, and Canadian EXL
models, see pages and for
info rmation on automatic climate
control and semi-automatic operation.
Select the fan speed by pressing the
fan control buttons ( or ).
The fan speed is shown in vertical
bars on the display. When
the indicator in the DUAL
button is off, both sides adjust to the
driver’s side temperature.
Push
the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.
The
driver and passenger can select
independent temperature settings. You
can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator on). When the
indicator in the DUAL button is off,
you can adjust both sides to the
same temperature with the driver’s
side temperature control dial. Press the DUAL button to select
dual temperature control mode (see
page ). 130
128 129
CONT INUED
On RTS, RTL, and Canadian EXL
models
On RT, RTX, and Canadian LX models On RTS, RTL, and Canadian EXL
models
On RTS, RTL, and Canadian EXL models On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
Fan Control
Temperature Control Dual Button
Features
