2007 HONDA ACCORD HYBRID Owners Manual

If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.Fill the f uel tank.
Change the engine oil and f ilter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Vehicle Storage
Checking the 12 Volt Battery, Vehicle Storage
230
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.
06/08/08 14:53:24 31SDR620_235

Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
Leave the parking brake off. Put
the transmission in Park.
Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Reconnect the 12 volt battery and
drive your vehicle every month f or
about 30 minutes. This will keep
the IMA battery charged and in
good condition.
Disconnect the 12 volt battery.
Vehicle Storage
Maint enance
231
If this vehicle is unused f or over one
month, the service lif e of the 144V
Nickel-Metal Hydride battery will be
reduced and the battery may be
permanently damaged.
06/08/08 14:53:34 31SDR620_236

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.
......................Compact Spare Tire . 234
....................Changing a Flat Tire . 235
.............If the Engine Won’t Start . 239
Nothing Happens or the
Starter Motor Operates
............................Very Slowly . 239
The Starter Operates
................................Normally . 240
................................Jump Starting . 241
..............If the Engine Overheats . 243
.........Low Oil Pressure Indicator . 245
..........Charging System Indicator . 245
.......Malf unction Indicator Lamp . 246
.......................Readiness Codes . 246
...............Brake System Indicator . 247
..................Closing the Moonroof . 248
..............................................Fuses . 249
..............................Fuse Locations . 253
......................Emergency Towing . 255
Taking Care of the Unexpected
T aking Care of t he Unexpect ed
233
06/08/08 14:53:40 31SDR620_238

Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:
Follow these precautions:Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving. Do not mount snow chains on the
compact spare tire.
Do not use the compact spare tire
if you are towing a trailer.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
samewheel.Thesparetireisnot
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Turn of f the VSA system (see
pages and ). Driving with
thecompactsparetiremay
activate the VSA.183 184
Compact Spare Tire
234
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
06/08/08 14:53:51 31SDR620_239

Unscrew the wing bolt and take
the spare tire out of its well. Take the tool tray out of the trunk,
and take the tools out of the tool
tray.
Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
If you are towing a trailer, unhitch
the trailer.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
The tools are in the trunk. Open
the trunk and raise the trunk f loor
by lif ting up on the back edge.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
5. 4.
3. 2. 1.
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
235
TOOL TRAY
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
06/08/08 14:54:01 31SDR620_240

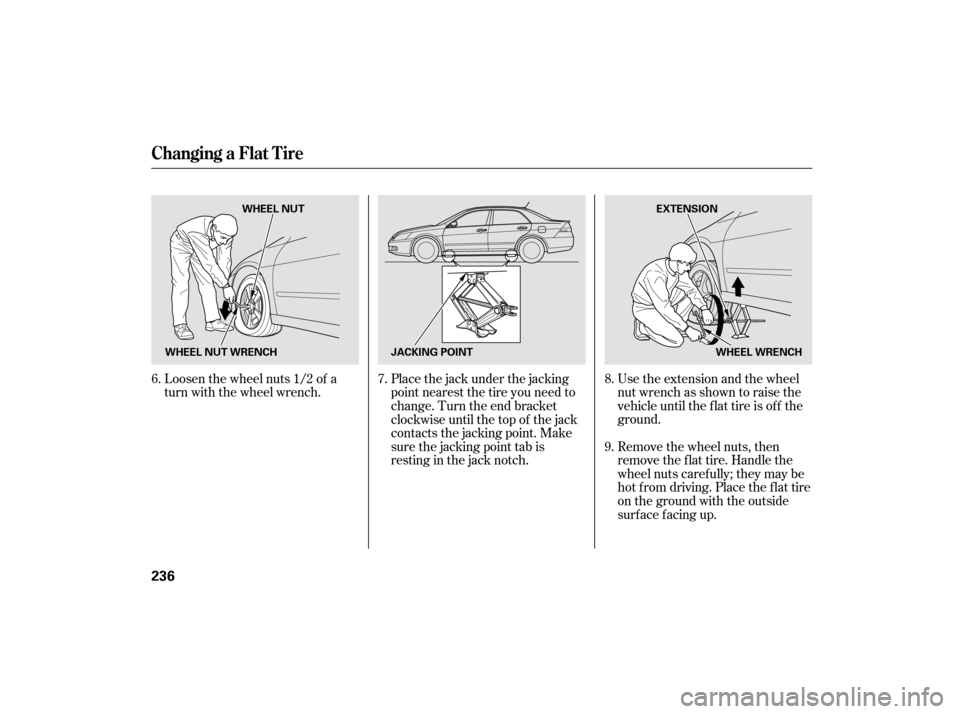

Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot f rom driving. Place the f lat tire
on the ground with the outside
surface facing up.
Place the jack under the jacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Loosen the wheel nuts 1/2 of a
turn with the wheel wrench.
8.
9.
7.
6.
Changing a Flat Tire
236
EXTENSION
WHEEL WRENCH
JACKING POINT
WHEEL NUT
WHEEL NUT WRENCH
06/08/08 14:54:09 31SDR620_241

CONT INUED

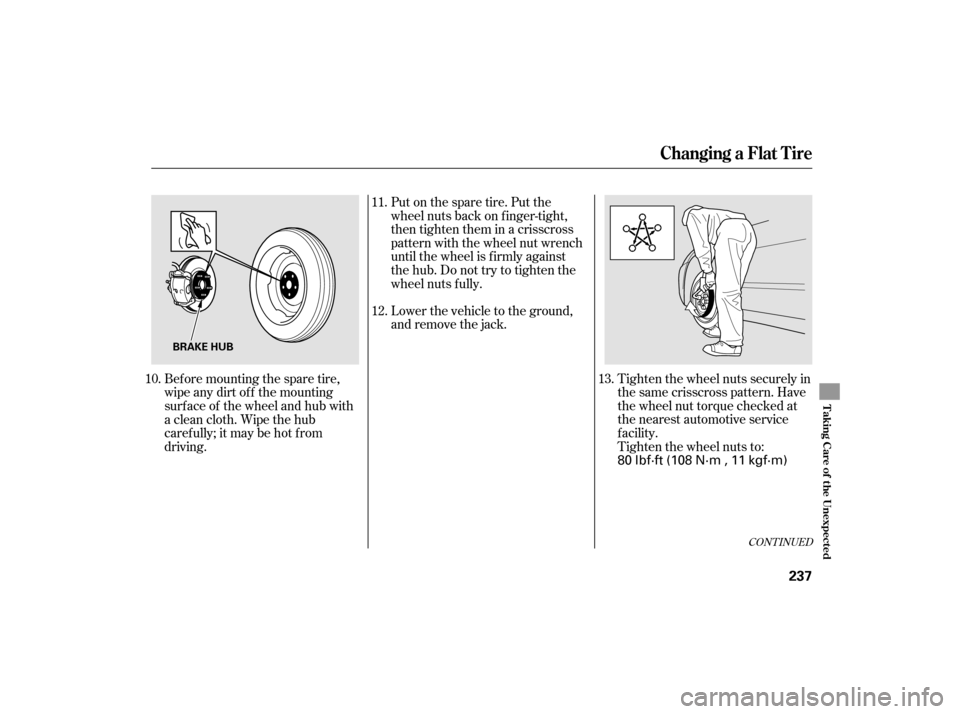

Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
Lower the vehicle to the ground,
and remove the jack.
Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving. 13.
11.
12.
10.
Changing a Flat Tire
T aking Care of t he Unexpect ed
237
BRAKE HUB
80 lbf·ft (108 N·m , 11 kgf·m)
06/08/08 14:54:18 31SDR620_242
