2007 HONDA ACCORD HYBRID Owners Manual

With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.The instrument panel will illuminate
with reduced brightness when you
open the driver’s door. The
brightness will increase slightly
when you insert the key in the
ignitionswitch,thengotonormalbrightness when you turn the
ignition switch to the ON (II)
position.
The Select/Reset knob on the
instrument panel controls the
brightness of the instrument panel
lights. Turn the knob to adjust the
brightness. If you do not insert the key in the
ignition switch af ter opening the
driver’s door, the illumination turns
of f about 30 seconds af ter you close
the door.
To reduce glare at night, the instru-
ment panel illumination dims when
you turn the light switch to or
. Turning the Select/Reset
knob f ully to the right until you hear
a click will cancel the reduced bright-
ness. If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
Instrument Panel Brightness
Daytime Running L ights
Turn Signal and Headlights, Instrument Panel Brightness
78
SELECT/RESET KNOB
06/08/08 14:29:16 31SDR620_083

Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your vehicle is disabled.The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and of f . The indicator in
the button comes on to show the
def ogger is on. It shuts of f when you
turn of f the ignition. You have to
turn the def ogger on again when you
restart the vehicle.Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Def ogger
Hazard Warning
Hazard Warning L ight, Rear Window Def ogger
Inst rument s and Cont rols
79
Vehicles without navigation system
Vehicles with navigation system
HAZARD WARNING BUTTON
06/08/08 14:29:27 31SDR620_084

Make any steering wheel adjustment
bef ore you start driving.Move the steering wheel up or
down, and in or out to the desired
position. Make sure you can see
the instrument panel gauges and
the indicator lights.
Insert the key in the ignition
switch, and unlock the steering
column.
Push the lever under the steering
column all the way down.
1.
2.
3.
Steering Wheel A djustment
80
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
06/08/08 14:29:35 31SDR620_085

Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the trunk
release handle, rear seat trunk
access, and glove box locked when
you leave your vehicle and the valet
key at a parking f acility.
Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
4.
5.
Keys and Locks
Steering Wheel A djustment, K eys and L ocks
Inst rument s and Cont rols
81
KEY
NUMBER
TAG
VALET KEY
(LIGHT GREY)
MASTER
KEYS WITH
REMOTE
TRANSMITTER
06/08/08 14:29:45 31SDR620_086

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undrivable.
If you lose your key and you cannot
start the engine, contact your dealer.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine will not
start.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on f or
a f ew seconds, then go of f . If the
indicator starts to blink, it means the
system does not recognize the
coding of the key. Turn the ignition
switch to the LOCK (0) position,
remove the key, reinsert it, and turn
the ignition switch to the ON (II)
position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer System
82
06/08/08 14:29:55 31SDR620_087

µµ
µ
µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), START (III) Bef ore removing the key f rom the
ignition switch, make sure the shif t
lever is in the Park position.
You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly. If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
lights on the instrument panel come
on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
LOCK (0) A CCESSORY (I)
ON (II)
ST A RT (III)
Ignition Switch
Inst rument s and Cont rols
83
06/08/08 14:30:05 31SDR620_088

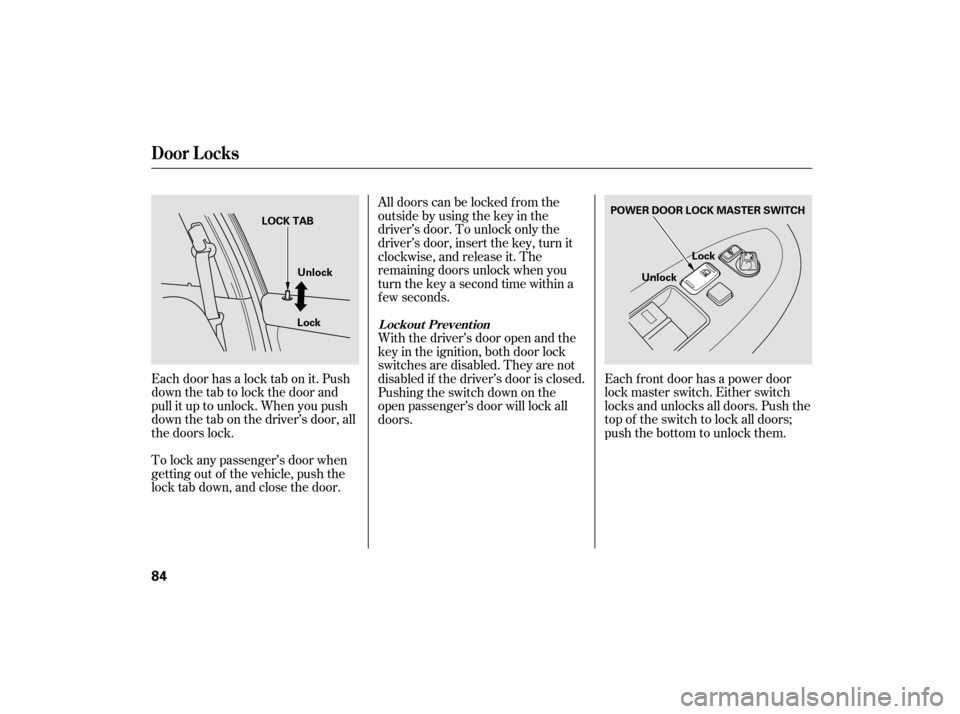

Each f ront door has a power door
lock master switch. Either switch
locks and unlocks all doors. Push the
top of the switch to lock all doors;
push the bottom to unlock them.
Each door has a lock tab on it. Push
down the tab to lock the door and
pull it up to unlock. When you push
down the tab on the driver’s door, all
the doors lock.
To lock any passenger’s door when
getting out of the vehicle, push the
lock tab down, and close the door. All doors can be locked f rom the
outsidebyusingthekeyinthe
driver’s door. To unlock only the
driver’s door, insert the key, turn it
clockwise, and release it. The
remaining doors unlock when you
turn the key a second time within a
f ew seconds.
With the driver’s door open and the
key in the ignition, both door lock
switches are disabled. They are not
disabled if the driver’s door is closed.
Pushing the switch down on the
open passenger’s door will lock all
doors.
L ockout Prevent ion
Door L ocks
84
POWER DOOR LOCK MASTER SWITCH
LOCK TAB
Unlock
Lock Unlock
Lock
06/08/08 14:30:15 31SDR620_089

µµ
The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. When the
lock lever is pushed down, the door
cannot be opened f rom the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle. Pressthisbuttononceto
lock all doors. Some exterior lights
will f lash once. When you push
LOCK twice within 5 seconds, you
will hear a horn to verif y that the
doors are locked. You cannot lock
the doors if any door is not f ully
closed or the key is in the ignition
switch. Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the other doors.
Some exterior lights will f lash twice
each time you press the button.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
any door, the light stays on f or about
30 seconds, then f ades out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go of f
immediately.
CONT INUED
Remote Transmitter
Childproof Door L ocks
LOCKUNL OCK
Door Locks, Remote Transmitter
Inst rument s and Cont rols
85
LEVER
LOCK
BUTTON
UNLOCK
BUTTON
PANIC
BUTTON LED
TRUNK
RELEASE
BUTTON
UNLOCK
LOCK
06/08/08 14:30:25 31SDR620_090
