2007 GMC CANYON lock

Fuses Usage
RT HDLP Passenger’s Side Headlamp
LT HDLP Driver’s Side Headlamp
AUX PWR 2 Accessory Power 2
FOG/LAMP Fog Lamps (If Equipped)
A/C CMPRSR Air Conditioning Compressor
WSW Wiper/Washer Switch
RVC Regulated Voltage Control
PWR/WNDW Power Windows (If Equipped)
FUEL/PUMP Fuel Pump
STRTR Starter Solenoid Relay
WPR Wiper
ABS 2Anti-lock Brake System 2
(ABS Pump)
DR/LCK Power Door Locks (If Equipped)
ETC Electronic Throttle Control (ETC)
02 SNSROxygen Sensors, Air Injection
Reactor (AIR) Relay
CRUISECruise Control Switch, Inside
Rearview Mirror, Transfer Case
Control Module, Brake Switch,
Clutch Disable
HTD/SEAT Heated Seat (If Equipped)
AIRBAGSupplemental Inatable Restraint
System, Sensing and Diagnostic
ModuleFuses Usage
ABSAnti-lock Brake System (ABS),
ABS module, Four-Wheel Drive,
Gravity Sensor
BCK/UP Back-up Lights
FRT/AXLE Front Axle Actuator
TRN/HAZRD
REARRear Turn/Hazard Lights
ERLSMass Air Flow (MAF) Sensor, Can
Purge Solenoid, Air Injection
Reactor (AIR) Relay
PCMI Powertrain Control Module (PCM)
TRANS Transmission Solenoid
IGNIgnition, Clutch Starter Switch,
Neutral Safety Back-Up
Switch, Ignition Coils 1-5, Air
Conditioning Relay
INJ Injectors
ABS 1Anti-lock Brake System 1
(ABS Logic)
FRT PRK
LAMPFront Park/Turn Lamps, Driver
and Passenger’s Side Power
Window Switches Lighting
REAR PRK
LAMPRear Parking Lamp 1,
Passenger’s Side Taillamp,
License Plate Lamps
428

Maintenance Footnotes
(a)Visually inspect brake lines and hoses for
proper hook-up, binding, leaks, cracks, chang, etc.
Inspect disc brake pads for wear and rotors for
surface condition. Inspect drum brake linings/shoes
for wear or cracks. Inspect other brake parts,
including drums, wheel cylinders, calipers, parking
brake, etc. Check parking brake adjustment.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing
parts or signs of wear. Inspect power steering lines
and hoses for proper hook-up, binding, leaks,
cracks, chang, etc. Visually check constant
velocity joints, rubber boots, and axle seals
for leaks.
(c)Visually inspect hoses and have them replaced
if they are cracked, swollen, or deteriorated.
Inspect all pipes, ttings, and clamps; replace with
genuine GM parts as needed. To help ensure
proper operation, a pressure test of the cooling
system and pressure cap and cleaning the outside
of the radiator and air conditioning condenser is
recommended at least once a year.(d)Visually inspect wiper blades for wear or
cracking. Replace wiper blades that appear worn
or damaged or that streak or miss areas of
the windshield.
(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for any
other loose or damaged safety belt system parts.
If you see anything that might keep a safety belt
system from doing its job, have it repaired. Have
any torn or frayed safety belts replaced. Also look
for any opened or broken airbag coverings, and
have them repaired or replaced. The airbag system
does not need regular maintenance.
(f)Lubricate all key lock cylinders, body door and
fuel door hinges, latches and locks (including glove
box and console doors), hood latch assembly,
secondary latch, pivots, spring anchor, release
pawl, and any moving seat hardware. Lubricate
hood safety lever pivot and prop rod pivot and
tailgate latch bolt, handle assembly pivot points,
and hinges. More frequent lubrication may be
required when exposed to a corrosive environment.
Applying silicone grease on weatherstrips with a
clean cloth will make them last longer, seal better,
and not stick or squeak.
441

Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 130.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to ON,
but do not start the engine. Without applying
the regular brake, try to move the shift lever
out of PARK (P) with normal effort. If the shift
lever moves out of PARK (P), contact your
GM Goodwrench
®dealer for service.
Ignition Transmission Lock Check
While parked, and with the parking brake set,
try to turn the ignition to LOCK in each shift
lever position.
With an automatic transmission, the ignition
should turn to LOCK only when the shift
lever is in PARK (P). The ignition key should
come out only in LOCK.
With a manual transmission, the ignition key
should come out only in LOCK.
Contact your GM Goodwrench
®dealer if service
is required.
445

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication may be obtained
from your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certied for Gasoline
Engines starburst symbol.
GM Goodwrench
®oil meets all
the requirements for your vehicle.
To determine the proper viscosity
for your vehicle’s engine, see
Engine Oil on page 325.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant
on page 337.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid
or equivalent DOT-3 brake uid.
Windshield
WasherGM Optikleen
®Washer Solvent.
Usage Fluid/Lubricant
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Manual
TransmissionManual Transmission Fluid
(GM Part No. U.S. 89021806,
in Canada 89021807).
Hydraulic
Clutch SystemHydraulic Clutch Fluid
(GM Part No. U.S. 12345347,
in Canada 10953517) or equivalent
DOT-3 brake uid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
447

Roadside Assistance Program
In the U.S. call,1-800-GMC-8782
(1-800-462-8782)
In Canada, call1-800-268-6800
Service available 24 hours a day, 365 days a year
As the owner of a new GMC vehicle, you are
automatically enrolled in the GMC Roadside
Assistance program. This value-added service is
intended to provide you with peace of mind as you
drive in the city or travel the open road.
Who is Covered?
Roadside Assistance coverage is for the vehicle
operator, regardless of ownership. A person driving
this vehicle without the consent of the owner is
not eligible for coverage.The following services are provided in the U.S.
during the Bumper-to-Bumper warranty period and,
in Canada, during the Base Warranty coverage
period of the New Vehicle Limited Warranty, up to
a maximum coverage of $100.
Fuel Delivery:Delivery of enough fuel for the
customer to get to the nearest service station
(approximately $5 in the U.S. and 10 litres
in Canada). Service to provide diesel may be
restricted. For safety reasons, propane
and other alternative fuels will not be provided
through this service.
Lock-out Service:To ensure security, the
driver must present the vehicle registration and
personal ID before lock-out service is provided.
Lock-out service will be covered at no charge if
you are unable to gain entry into your vehicle.
If your vehicle will not start, Roadside
Assistance will arrange to have your vehicle
towed to the nearest authorized dealership.
In the U.S., replacement keys made at the
customer’s expense will be covered within
10 miles (16 km).
462

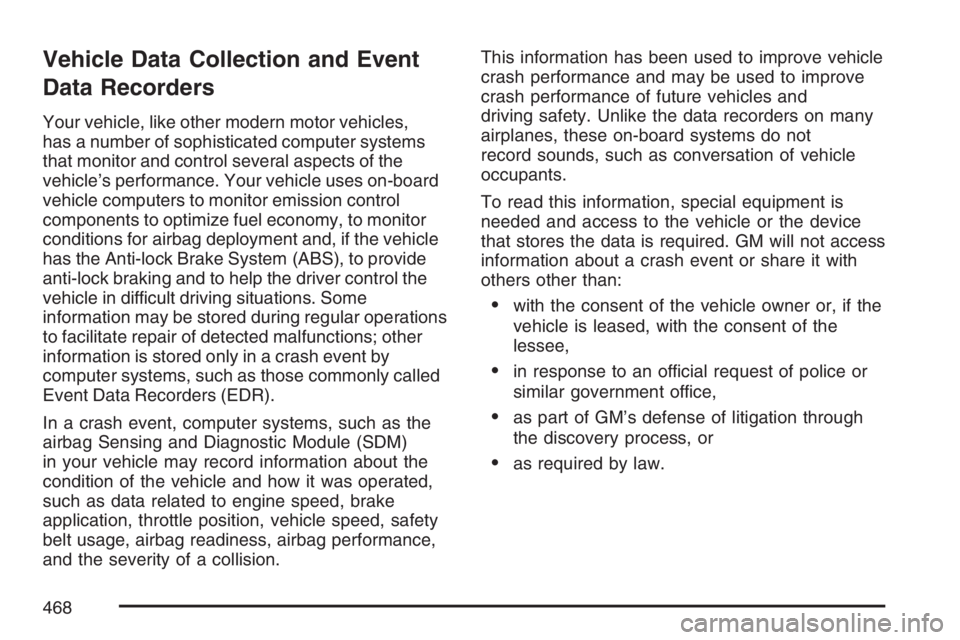

Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles,
has a number of sophisticated computer systems
that monitor and control several aspects of the
vehicle’s performance. Your vehicle uses on-board
vehicle computers to monitor emission control
components to optimize fuel economy, to monitor
conditions for airbag deployment and, if the vehicle
has the Anti-lock Brake System (ABS), to provide
anti-lock braking and to help the driver control the
vehicle in difficult driving situations. Some
information may be stored during regular operations
to facilitate repair of detected malfunctions; other
information is stored only in a crash event by
computer systems, such as those commonly called
Event Data Recorders (EDR).
In a crash event, computer systems, such as the
airbag Sensing and Diagnostic Module (SDM)
in your vehicle may record information about the
condition of the vehicle and how it was operated,
such as data related to engine speed, brake
application, throttle position, vehicle speed, safety
belt usage, airbag readiness, airbag performance,
and the severity of a collision.This information has been used to improve vehicle
crash performance and may be used to improve
crash performance of future vehicles and
driving safety. Unlike the data recorders on many
airplanes, these on-board systems do not
record sounds, such as conversation of vehicle
occupants.
To read this information, special equipment is
needed and access to the vehicle or the device
that stores the data is required. GM will not access
information about a crash event or share it with
others other than:
with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the
lessee,
in response to an official request of police or
similar government office,
as part of GM’s defense of litigation through
the discovery process, or
as required by law.
468

A
Accessories and Modications..................... 316
Accessory Power Outlet(s).......................... 172
Adding Equipment to Your Airbag-
Equipped Vehicle....................................... 93
Additives, Fuel............................................ 319
Add-On Electrical Equipment....................... 425
Air Cleaner/Filter, Engine............................. 330
Air Conditioning........................................... 173
Airbag
Passenger Status Indicator....................... 182
Readiness Light....................................... 181
Airbag Sensing and Diagnostic Module
(SDM)...................................................... 468
Airbag System............................................... 76
Adding Equipment to Your
Airbag-Equipped Vehicle......................... 93
How Does an Airbag Restrain?.................. 84
Passenger Sensing System....................... 86
Servicing Your Airbag-Equipped Vehicle..... 92
What Makes an Airbag Inate?.................. 84
What Will You See After an Airbag
Inates?................................................. 85Airbag System (cont.)
When Should an Airbag Inate?................. 82
Where Are the Airbags?............................. 79
AM-FM Radio.............................................. 205
Antenna, Fixed Mast................................... 239
Antenna, XM™ Satellite Radio Antenna
System.................................................... 240
Anti-Lock Brake System (ABS).................... 247
Anti-Lock Brake, System Warning Light....... 186
Appearance Care
Aluminum or Chrome-Plated Wheels........ 421
Care of Safety Belts................................ 418
Chemical Paint Spotting........................... 423
Cleaning Exterior Lamps/Lenses.............. 419
Cleaning the Inside of Your Vehicle.......... 415
Fabric/Carpet........................................... 416
Finish Care.............................................. 419
Finish Damage......................................... 422
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 418
Leather.................................................... 417
Sheet Metal Damage............................... 422
Tires........................................................ 422
Underbody Maintenance........................... 423
477

Appearance Care (cont.)
Vehicle Care/Appearance Materials.......... 423
Washing Your Vehicle.............................. 419
Weatherstrips........................................... 418
Windshield and Wiper Blades................... 420
Ashtray(s).................................................... 173
Assist Handles............................................ 150
Audio System(s).......................................... 203
AM-FM Radio.......................................... 205
Care of Your CD Player........................... 239
Care of Your CDs.................................... 239
Chime Level Adjustment........................... 240
Fixed Mast Antenna................................. 239
Radio with CD......................................... 208
Radio with Six-Disc CD............................ 217
Setting the Time for Radios with Radio
Data Systems (RDS)............................ 205
Setting the Time for Radios without Radio
Data Systems (RDS)............................ 204
Theft-Deterrent Feature...................237, 238
Understanding Radio Reception............... 238
XM™ Satellite Radio Antenna System...... 240Automatic Headlamp System....................... 168
Automatic Transmission
Fluid........................................................ 331
Operation................................................. 120
B
Battery........................................................ 353
Electric Power Management..................... 171
Run-Down Protection............................... 171
Battery Warning Light.................................. 184
Before Leaving on a Long Trip.................... 276
Brake
Anti-Lock Brake System (ABS)................. 247
Emergencies............................................ 249
Parking.................................................... 130
System Warning Light.............................. 185
Brakes........................................................ 350
Braking....................................................... 246
Braking in Emergencies............................... 249
Break-In, New Vehicle................................. 115
478
