2007 FORD FOCUS Owners Manual

ENGINE DATA
Engine 2.0L I4 engine 2.3L I4 engine
Cubic inches 121 138
Required fuel 87 octane 87 octane
Firing order 1–3–4–2 1–3–4–2
Ignition system C.O.P C.O.P
Compression ratio 10.1:1 9.7:1
Spark plug gap .051 inch +/- .002
1.3 mm +/- .05.051 inch +/- .002
1.3 mm +/- .05
Engine drivebelt routing
•2.0L / 2.3L I4 Engine without A/C
•2.0L / 2.3L I4 Engine with A/C
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
209

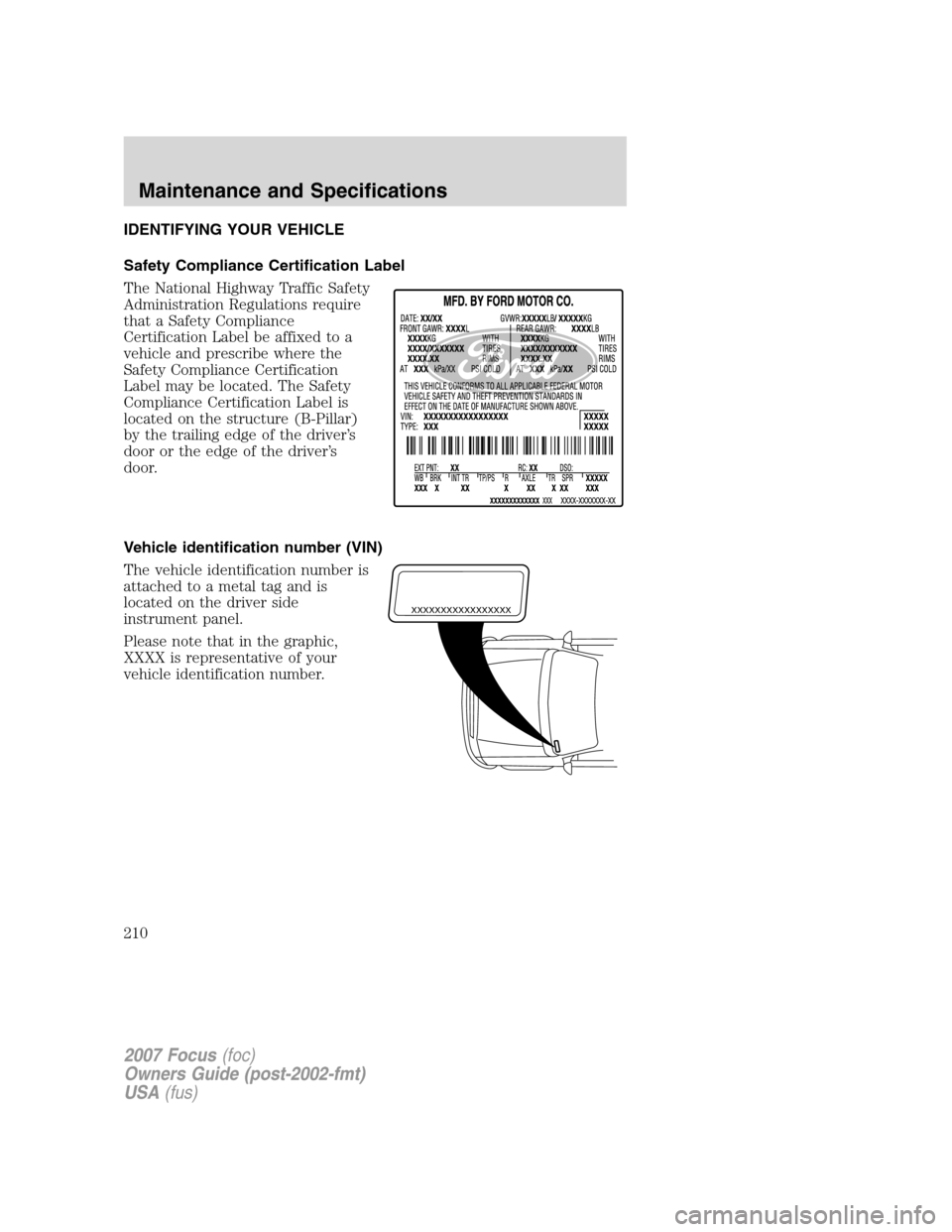

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
210

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic 2
Five-speed manual (MTX75) Z
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
211

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessories will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim kits
Front end covers
Fog lights
Splash guards
Wheels
Interior style
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
212

Lifestyle
Ash cup / smoker’s package
Cargo organization and management
TripTunes
Peace of mind
Mobile-Easehands free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
213

A
Air cleaner filter .......................204
Airbag supplemental restraint
system ....................................83, 92
and child safety seats ..............85
description ..........................83, 92
disposal ......................................94
driver airbag ........................85, 93
indicator light ...........................91
operation .............................85, 93
passenger airbag .................85, 93
side airbag .................................92
Antifreeze
(see Engine coolant) ................185
Anti-lock brake system
(see Brakes) ..............................133
Anti-theft system ..................60, 62
arming the system ....................62
disarming a triggered system ..62
triggering ...................................62
Audio system (see Radio) ...16, 20
Automatic transaxle
fluid, adding ............................202
fluid, checking ........................202
fluid, specification ..................206
Automatic transmission ............136
driving an automatic
overdrive .................................137
fluid, refill capacities ..............206
Axle
refill capacities ........................206
B
Battery .......................................183
acid, treating emergencies .....183
jumping a disabled battery ....157
maintenance-free ....................183
replacement, specifications ...204servicing ..................................183
BeltMinder
.................................78
Brakes ................................132–133
anti-lock ...................................133
anti-lock brake system (ABS)
warning light ...........................133
fluid, checking and adding ....201
fluid, refill capacities ..............206
fluid, specifications .................206
lubricant specifications ..........206
parking ....................................133
shift interlock ..........................136
Break-in period .............................5
Bulbs ............................................32
C
Capacities for refilling fluids ....206
Cargo cover .................................50
Cell phone use ..............................7
Child safety restraints ................95
child safety belts ......................95
Child safety seats ........................99
attaching with tether straps ..103
in front seat ............................100
in rear seat ..............................100
LATCH .....................................105
Cleaning your vehicle
engine compartment ..............171
instrument panel ....................173
interior .....................................174
interior trim ............................174
plastic parts ............................172
washing ....................................170
waxing .....................................170
wheels ......................................171
wiper blades ............................172
Climate control (see Air
conditioning or Heating) ......25–26
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
214

Clutch
fluid ..........................................201
operation while driving ..........139
recommended shift speeds ....140
Console
overhead ....................................41
Controls
steering column ........................48
Coolant
checking and adding ..............185
refill capacities ................188, 206
specifications ..........................206
Cruise control
(see Speed control) ....................45
Customer Assistance ................142
Ford Extended Service
Plan ..........................................167
Getting assistance outside the
U.S. and Canada .....................168
Getting roadside assistance ...142
Getting the service you
need .........................................163
Ordering additional owner’s
literature .................................168
Utilizing the
Mediation/Arbitration
Program ...................................166
D
Daytime running lamps
(see Lamps) ................................30
Defrost
rear window ..............................28
Dipstick
automatic transmission
fluid ..........................................202
engine oil .................................181
Driving under special
conditions ..................................139through water .........................141
E
Emergencies, roadside
jump-starting ..........................157
Emission control system ..........199
Engine ........................................209
cleaning ...................................171
coolant .....................................185
fail-safe cooling .......................189
idle speed control ...................183
lubrication specifications .......206
refill capacities ........................206
service points ..........................179
starting after a collision .........144
Engine block heater .................132
Engine fan .................................179
Engine oil ..................................181
change oil soon warning,
message center .......................181
checking and adding ..............181
dipstick ....................................181
filter, specifications ........182, 204
recommendations ...................182
refill capacities ........................206
specifications ..........................206
Exhaust fumes ..........................131
F
Fail safe cooling ........................189
Fan, Engine Cooling .........177, 179
Floor mats ...................................50
Fluid capacities .........................206
Foglamps .....................................29
Fuel ............................................191
calculating fuel economy .......196
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
215

cap ...........................................193
capacity ...................................206
choosing the right fuel ...........194
comparisons with EPA fuel
economy estimates .................199
detergent in fuel .....................195
filling your vehicle with
fuel ...........................191, 193, 196
filter, specifications ........191, 204
fuel pump shut-off switch .....144
improving fuel economy ........196
octane rating ...................195, 209
quality ......................................195
running out of fuel .................195
safety information relating to
automotive fuels .....................191
Fuel pump shut-off switch .......144
Fuses ..................................145–146
G
Garage door opener ....................42
Gas cap (see Fuel cap) ............193
Gas mileage
(see Fuel economy) .................196
Gauges .........................................14
H
Hazard flashers .........................144
Headlamps ...................................29
aiming ........................................30
bulb specifications ....................33
daytime running lights .............30
flash to pass ..............................29
high beam .................................29
replacing bulbs .........................34
turning on and off ....................29
Heating
heater only system ...................25Hood ..........................................178
I
Ignition ...............................129, 209
Infant seats (see Safety seats) ..99
Inspection/maintenance (I/M)
testing ........................................201
Instrument panel
cleaning ...................................173
cluster ........................................10
lighting up panel and
interior .......................................30
J
Jump-starting your vehicle ......157
K
Keyless entry system
autolock .....................................53
Keys .......................................53, 60
positions of the ignition .........129
L
Lamps
bulb replacement
specifications chart ..................33
daytime running light ...............30
fog lamps ...................................29
headlamps .................................29
headlamps, flash to pass ..........29
instrument panel, dimming .....30
interior lamps .....................32–33
replacing bulbs .........................34
Lane change indicator
(see Turn signal) ........................32
Liftgate ........................................51
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
216
