•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED)
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the ON position unless the brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed:
1. Apply the parking brake, turn ignition key to LOCK, then remove the
key.
When the key is in the ignition and in the OFF position, the
automatic transmission shift lever can be moved from the P
(Park) position without the brake pedal depressed. To avoid unwanted
vehicle movement, always set the parking brake.
2. Using a screwdriver (or similar
tool), remove the protective cover
to the interlock access hole on the
console. Insert the key to release
the interlock.
3. Apply the parking brake, then shift to N (Neutral).
4. Start the vehicle.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
Emergencieschapter.
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
136

FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue — Yellow
70A — — Tan — Brown
80A — — Natural — Black
15
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
145

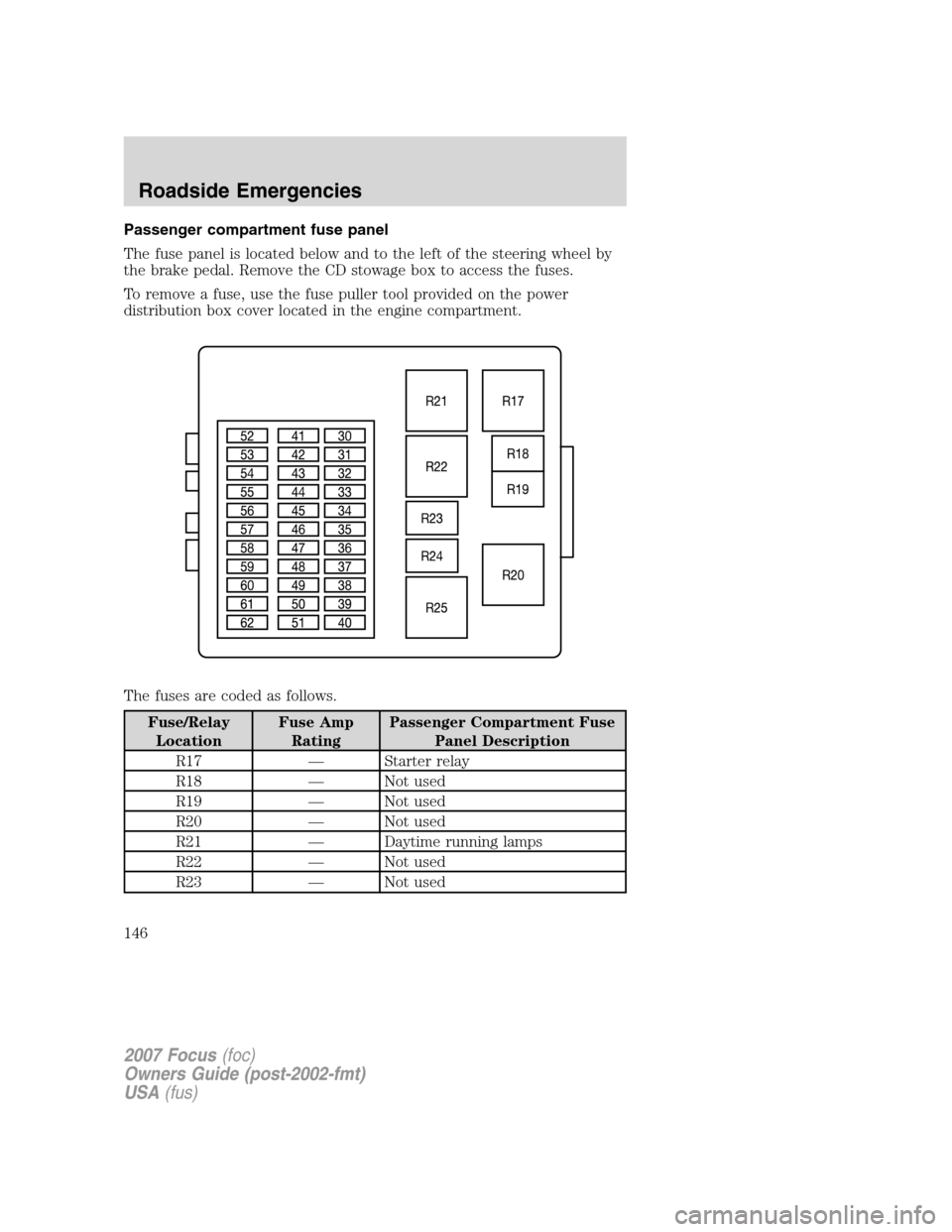

Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the CD stowage box to access the fuses.
To remove a fuse, use the fuse puller tool provided on the power
distribution box cover located in the engine compartment.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
R17 — Starter relay
R18 — Not used
R19 — Not used
R20 — Not used
R21 — Daytime running lamps
R22 — Not used
R23 — Not used
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
146

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
R24 — Not used
R25 — Rear defrost/Heated mirror relay
30 10A Parking lamps
31 20A Radio
32 15A Turn signal (GEM)
33 20A Sunroof
34 20A Horn
35 7.5A A/C switch, Instrument cluster
36 7.5A Interior lamps, Power mirrors
37 — Not used
38 — Not used
39 2A PCM relay coil
40 25A Rear defroster
41 — Not used
42 10A Stop lamps, Shift interlock
43 15A Rear wiper, Sunroof (ignition)
44 15A Daytime Running Lamps (DRL)
45 7.5A Recirculated air, Air conditioning
46 — Not used
47 20A Cigar lighter/Power point
48 10A Data link connector
49 7.5A Heated mirror, Heated backlite
indicator
50 10A Back- up lamps (automatic
transaxle only)
51 7.5A Front passenger sensing system
52 15A Heated seats
53 10A Back-up lamps (manual transaxle
only), Speed control
54 25A Rear power windows
55 25A Front power windows
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
147

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
56 20A Front wipers
57 7.5A Radio and cluster (accessory)
58 — Not used
59 7.5A Light switch (headlamps)
60 7.5A Air bag module
61 7.5A PATS modules, Instrument cluster
62 7.5A Radio (Start)
63 20A Power locks (GEM)
Fuse 63 is located on the back of the fuse panel. See your authorized
dealer for service of this fuse.
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
148

To remove a fuse, use the fuse puller tool provided on the power
distribution box cover.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 40A Main power supply (to passenger
compartment fuse panel)
2 — Not used
3 — Not used
4 30A Air pump motor (PZEV engine
only)
5 30A Anti-lock Brake System (ABS)
(pumps)
6 50A Engine cooling fan (Primary fuse)
7 40A Main power supply (to passenger
compartment fuse panel)
8 30A Ignition switch, Starter solenoid
9 20A Engine management
2007 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
149

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
10 1A Battery voltage sense
11 30A Subwoofer
12 15A Fuel pump motor
13 20A Anti-lock Brake System (ABS)
(valves)
14 — Not used
15 — Not used
16 10A Low beam (left-hand side)
17 10A Low beam (right-hand side)
18 15A Heated Exhaust Gas Oxygen
(HEGO) sensors
19 40A Heater blower motor
20 10A Engine module (KAP)
21 10A A/C
22 20A Low beams
23 15A High beams, Fog lamps
24 — Not used
25 — Not used
26 — Not used
27 — Not used
28 — Not used
29 10A ABS module, Speed control
R1 — Ignition relay
R2 — High beam relay, Fog lamps relay
R3 — Cooling fan (high-speed)
R4 — Cooling fan (low-speed)
R5 — A/C relay
R6 — Low beams relay
R7 — Fuel pump relay
R8 — Engine management relay
R9 — Cooling fan relay
