2007 FORD FIESTA sensor

Engine Cooling - I .3L Duratec-8V
(Rocam)llm25L Duratec-1 6V (Sigma)ll.4L
303-03A-17 Duratec-1 6V (Sigma)/lm6L Duratec-1 6V (Sigma) 303-03A-17
DIAGNOSIS AND TESTING
RPM - engine speed
i DSRPM - desired engine speed
The IAT sensor output is useful if the engine being
tested is cold or after an over-night cold soak. The
ECT sensor or CHT sensor and the IAT sensor
should either indicate the same value or be within
1 to 2 degrees Celsius of each other.
The ECT sensor output is important to display as
it indicates the engine warm-up and opening
temperature for the thermostat. It will initially
indicate a slightly higher reading just before the
thermostat opens and then drops back before
settling to a near flat line output (see graphic
below).
Item Description
I A I Thermostat opens I
B Thermostat settles into a cyclic open and
I I closure pattern
A CAUTI0N:lf the ECT sensor output reaches
the
120°C default line under normal cooling
system pressure, internal damage may be
caused to the engine and a diagnostic
trouble code (DTC) will be set in the PCM.
The test should be stopped and the cause
located and corrected. If the cooling
system does not pressurize, the coolant
will boil at
100°C which may also damage
the engine. CARRY OUT the Coolant
Expansion Tank Cap Pressure Test
Component Test in this section.
If the WDS only allows the ECT sensor to be
displayed in volts, refer to the following table for
corresponding Celsius values:
Volts
OCelsius
The CHT sensor output is useful to examine the
cylinder head temperature rise during the warm-up
cycle and later during the normal light throttle cruise
test. This sensor output may vary between vehicles
with manual transmission and vehicles with
automatic transmission and should be used for
reference only.
Volts
0.78
0.60
0.46
0.35
0.27
The
LOAD display is used for reference as it is
necessary to maintain a stable load line during the
test. It is necessary to carry out the test under
normal light throttle cruise driving conditions and
average loads, typically
40% to 70% of the load
value.
OCelsius
80
90
100
11 0
120
The VSS output is used for reference but can help
to identify misfires and sensors which fail during
the warm-up cycle.
The RPM display indicates the engine speed and can be compared with the DSRPM.
The DSRPM is the desired or calculated idle speed
which the PCM commands the engine to reach. If
the thermostat opens too early (before the correct
opening temperature has been reached), the
engine will not reach this value.
When using the WDS in data logger mode, the
signals recorded should remain within the
DEFAULT values set by the WDS.
3m AWARNING:M~~~ sure that the WDS is
placed in the vehicle so that it does not
interfere with the safe operation of the
vehicle. Do not place the WDS in the
deployment path of any air bag. Failure to
follow these instructions may result in personal injury.
N0TE:The road test is best carried out with the
aid of another technician in the vehicle to enable
the vehicle to be driven safely while the sensor
outputs are monitored within datalogger. If there
is only one technician available, the WDS can be
set up (using the
recordlcapture mode camera
icon) before leaving the workshop to record a
16
km (1 0 mile) test.
2006.0 Fiesta 1212006 GI 46258en
procarmanuals.com

Engine Cooling - 1.3L Duratec-8V
(Rocam)ll125L Duratec-1 6V (Sigma)ll14L
3-03A-18 Duratec-I 6V (Sigma)ll.GL Duratec-1 6V (Sigma) 303-03A-18
DIAGNOSIS AND TESTING
N0TE:The results from the test are more thermostats may increase the coolant temperature
conclusive if the engine is cold when the test is up to 1
OO°C (212OF) under light engine load
started. conditions.
Carry out a road test. The
engine should start cleanly and the ECT value
REFER to:
RoadlRoller Testing (1 00-00 General
Information, Description and Operation).
4. Drive the vehicle at a constant throttle opening
and set speed until the ECT value settles into
a shallow rise and fall signal, close to a straight
line. This indicates that the thermostat is
functioning correctly.
N0TE:Some thermostats indicate the
temperature(s) in Celsius and Fahrenheit.
The graphic below shows the location and an
example of the opening temperature
(88OC) and
fully open temperature (1
02OC) of a thermostat. will
risequite quickly with smooth progression.
If
the ECT signal appears unstable or erratic, the
ECT sensor, electrical connector and wiring
harness to the PCM need to be visually inspected
for damage, chafing or water ingress.
The temperature should rise to approximately
90°C
for a thermostat that has an 88OC value. The signal
value will then fall as cooler coolant enters the
engine.
If the ECT value fails to maintain a constant value
and falls back to lower figures, typically between
60°C (140°F) and 70°C (1 50°F), the thermostat
and its sealing function within the thermostat
housing must be checked.
5. INSTALL a new thermostat.
REFER to: Thermostat
- 1.3L Duratec-8V
(Rocam) (303-03 Engine Cooling - 1.3L
Duratec-8V (Rocam)ll.25L Duratec-I 6V
(Sigma)ll.4L Duratec-I 6V (Sigma)ll .6L
Duratec-1
6V (Sigma), Removal and
Installation)
I Thermostat - 1.25L Duratec-I 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V
(Sigma) (303-03 Engine Cooling - 1.3L
Duratec-8V (Rocam)ll.25L Duratec-I 6V
The graphic below shows an alternative method (Sigma)/l.4L Duratec-1 6V (Sigma)ll .6L
used to show the opening temperature
(88OC) and Duratec-1 6V (Sigma), Removal
and
fully open temperature (1
12OC) of a thermostat. Installation).
6. Carry out another road test from step 1 using
the same criteria to confirm that the concern
has been rectified.
7. Using the WDS, clear the PCM keep alive
memory (KAM) or electrically erasable
programmable read only memory (EEPROM)
so that new drive values can be learnt.
Item Description
I A 1 Opening temperature I
I B I Fully open temperature I
NOTE:Generally, most thermostats maintain a
coolant temperature between
88OC (1 90°F) and
92OC (1 98OF) although dual stage electric
2006.0 Fiesta 1212006 GI 46258en
procarmanuals.com

303-03B-6 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-6
DESCRIPTION AND OPERATION
Coolant Outlet Connector
I 1 I Coolant outlet connector I
1 2 1 Engine coolant temperature (ECT) sensor I
1 3 1 Coolant outlet connector gasket I
The coolant outlet connector is located on the
cylinder head above the transmission.
The ECT sensor is located in the coolant outlet
connector.
2006.0 Fiesta 1212006 G421219en
procarmanuals.com

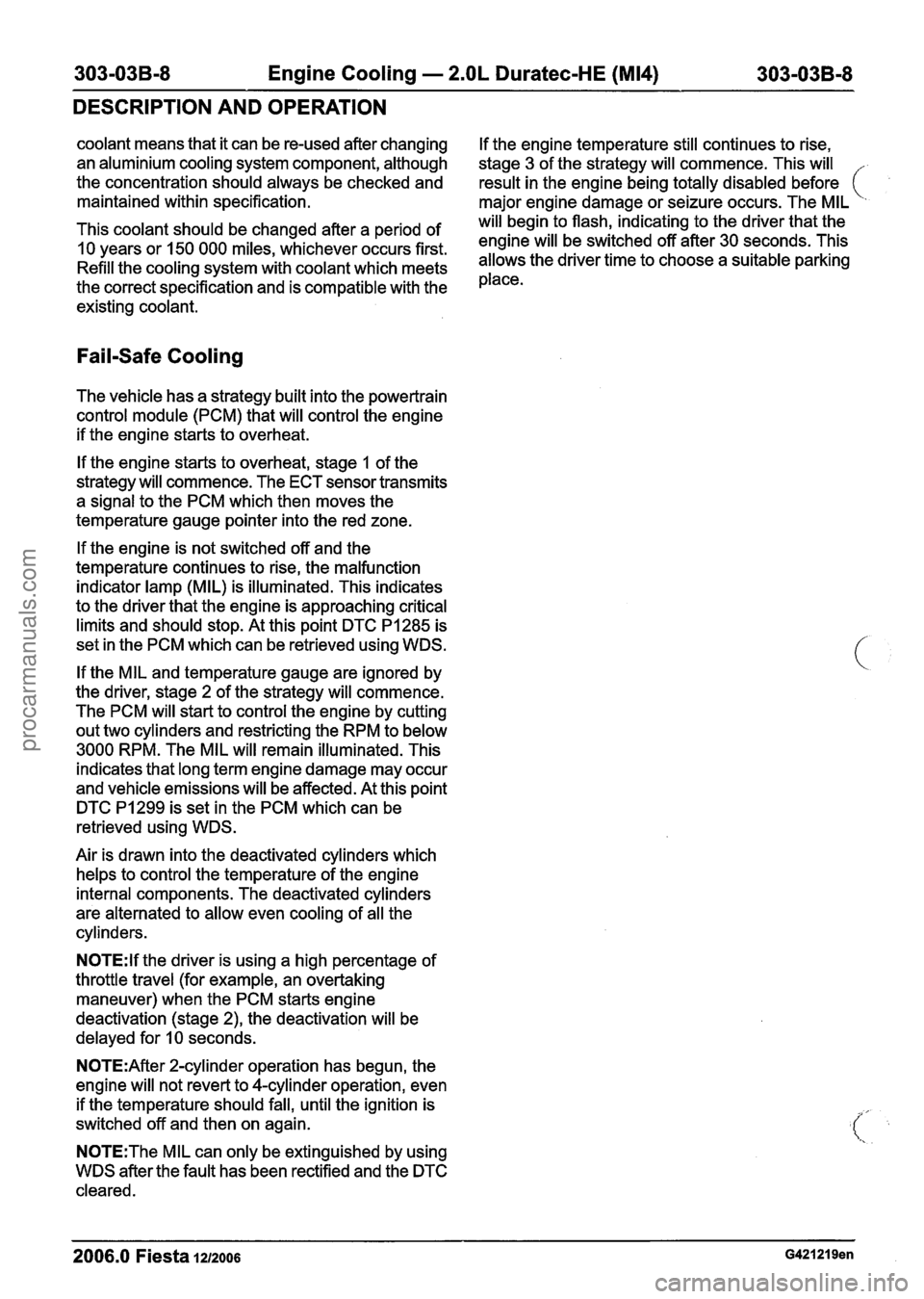

303-03B-8 Engine Cooling - 2.OL Duratec-HE (M14) 303-038-8
DESCRIPTION AND OPERATION
coolant means that it can be re-used after changing If the engine temperature still continues to rise,
an aluminium cooling system component, although
stage
3 of the strategy will commence. This will
the concentration should always be checked and
result in the engine being totally disabled before
(
maintained within specification.
major engine damage or seizure occurs. The MIL .
This coolant should be changed after a period of will begin-to
flash, indicating to the driver that the
10 years or 150 000 miles, whichever occurs first. engine will
be switched off after 30 seconds. This
Refill the cooling system with coolant which meets allows the driver time to choose a suitable parking
the correct specification and is compatible with the place.
existing coolant.
Fail-Safe Cooling
The vehicle has a strategy built into the powertrain
control module (PCM) that will control the engine
if the engine starts to overheat.
If the engine starts to overheat, stage
1 of the
strategy will commence. The ECT sensor transmits
a signal to the PCM which then moves the
temperature gauge pointer into the red zone.
If the engine is not switched off and the
temperature continues to rise, the malfunction
indicator lamp (MIL) is illuminated. This indicates
to the driver that the engine is approaching critical
limits and should stop. At this point DTC
PI285 is
set in the PCM which can be retrieved using WDS.
If the MIL and temperature gauge are ignored by
the driver, stage 2 of the strategy will commence.
The PCM will start to control the engine by cutting
out two cylinders and restricting the RPM to below
3000 RPM. The MIL will remain illuminated. This
indicates that long term engine damage may occur
and vehicle emissions will be affected. At this point
DTC
PI299 is set in the PCM which can be
retrieved using WDS.
Air is drawn into the deactivated cylinders which
helps to control the temperature of the engine
internal components. The deactivated cylinders
are alternated to allow even cooling of all the
cylinders.
N0TE:lf the driver is using a high percentage of
throttle travel (for example, an overtaking
maneuver) when the PCM starts engine
deactivation (stage 2), the deactivation will be
delayed for 10 seconds.
N0TE:After 2-cylinder operation has begun, the
engine will not revert to 4-cylinder operation, even
if the temperature should fall, until the ignition is
switched off and then on again.
N0TE:The MIL can only be extinguished by using
WDS after the fault has been rectified and the DTC
cleared.
2006.0 Fiesta 1212006 G421219en
procarmanuals.com

303-03B-9 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-9
DIAGNOSIS AND TESTING
.Engine Cooling
' . Special Tool(s)
Pressure Tester, Cooling
System
303-396 (24-001 A)
Inspection and Verification
1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical
( I or electrical damage. Visual
lns~ection Chart
I Mechanical I Electrical I
Coolant leak(s)
Coolant
level
Gasket(s) or seal(s)
Core plug(s)
Hose(s) or hose
joints
Coolant expansion
tank cap and seal
Coolant expansion
tank
Radiator
Coolant pump
Thermostat housing
Heater core
Accessory drive belt
Coolant outlet
connector
Fuse(s)
Relay(s)
Wiring harness
Electrical
connector(s)
Engine coolant
temperature (ECT) sensor
Cooling fan motor
Powertrain control
module (PCM)
3. If an obvious cause for an observed or reported
concern is found, correct the cause (if possible)
before proceeding to the next step
4. If the cause is not visually evident, verify the
symptom and refer to the Symptom Chart.
Symptom Chart
Symptom Chart
Symptom
Loss of coolant Possible Sources
Action
Hose(s) or hose joint(s).
Radiator. INSPECT
the hoses and hose
joints. INSTALL a new
hose(s)
as necessary.
INSPECT the radiator for leaks.
CARRY OUT the Pressure Test
Component Test in this section.
INSTALL a new radiator as
necessary.
REFER to: Radiator (303-03
Engine Cooling
- 2.OL
Duratec-H E (M 14), Removal
and Installation).
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

Engine Cooling - 2.OL Duratec-HE (M14)
DIAGNOSIS AND TESTING
Symptom Possible Sources
Action
I Accessory drive belt. CHECK the condition of the
accessory drive belt.
REFER to: Accessory Drive
(303-05 Accessory Drive,
Diagnosis and Testing).
Cooling fan.
CHECK the operation of the
I cooling fan. REFER to WDS.
Engine. INSPECT the engine, cylinder
head, cylinder block and
cylinder head gasket.
REFER to: Cylinder Head
(303-
01 Engine - I .3L Duratec-8V
(Rocam), I n-vehicle Repair).
The engine does not reach
normal operating temperature. CHECK the ECT sensor.
I REFER to WDS.
Temperature gauge. CHECK the instrument cluster
engine temperature gauge.
REFER to: lnstrument Cluster
- Vehicles Built Up To:
1012005 (41 3-01 lnstrument
Cluster, Diagnosis and
Testing)
I lnstrument Cluster - Vehicles
Built From:
1012005 (41 3-01
lnstrument Cluster, Removal
and Installation).
Thermostat. CARRY OUT the Thermostat
Test Component Test in this
section. INSTALL a new ther-
mostat housing and thermostat
housing gasket as necessary.
REFER to: Thermostat Housing (303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
Removal and Installation).
Component Tests
Pressure Test
A WARNING:When releasing the cooling
system pressure, cover the coolant
expansion tank cap with a thick cloth to
- prevent the possibility of coolant scalding.
Failure to follow this instruction may result
in personal injury.
N0TE:lf the coolant expansion tank cap is rotated
counterclockwise by 1 12 a full turn, the pressurized
coolant will be vented to the underside of the
coolant expansion tank cap.
1. Remove the coolant expansion tank cap.
2. Install the special tools 303-396 and 303-396-01
to the coolant expansion tank.
3. Pressurize the system to the coolant expansion
tank cap release pressure.
REFER to: Specifications (303-03 Engine
Cooling
- 2.OL Duratec-HE (M14),
Specifications).
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

303-03B-14 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-14
DIAGNOSIS AND TESTING
4. Observe the cooling system pressure tester make sure the pressure test reading
is
gauge reading for approximately two minutes. repeatable
and within acceptable gauge reading
The pressure should not drop during this time. limits of
the coolant expansion tank cap.
( If the system holds Pressure, proceed to Step 5. If the pressure test gauge readings are not 7. If the system does not hold pressure, check
within the acceptable gauge reading limits,
it thoroughly for coolant leaks.
INSTALL a new coolant expansion tank cap.
5. Check the engine for coolant leaks. Drain the
cooling system, repair any coolant leaks found
and fill and bleed the cooling system as
Thermostat Test
necessaw.
REFER to: Cooling System Draining, Filling and
Bleeding (303-03 Engine Cooling
- 2.OL
Duratec-HE (M14), General Procedures).
.Recheck the system by repeating Steps 3 and
4 at least twice.
Radiator Leak Test, Removed From Vehicle
CAUTI0N:Radiator internal pressure must
not exceed
130 kpa (20 psi) or damage may
result.
Clean the radiator thoroughly before leak testing
it, to prevent contamination of the water in the test
tank. Leak test the radiator in clean water with 138
kpa (20 psi) air pressure. Check it thoroughly for
air leaks. INSTALL a new radiator if necessary.
REFER to: Radiator (303-03 Engine Cooling
- 2.OL
Duratec-HE (M14), Removal and Installation).
Coolant Expansion Tank Cap Pressure Test
A WARNING:When releasing the system
pressure, cover the expansion tank cap
with a thick cloth to prevent the possibility
of coolant scalding, Failure to follow this
instruction may result in personal injury.
1. Remove the coolant expansion tank cap.
2. Use water to clean the area of the rubber seal
and pressure relief valve. Install the pressure
tester and adapter and immerse the coolant
-
expansion tank cap in water.
N0TE:lf the plunger of the pump is depressed too
quickly, an erroneous pressure reading will result.
3. Slowly depress the plunger of the pressure test
pump until the pressure gauge reading stops
increasing, and note the highest pressure
reading obtained.
4. Release pressure by turning the pressure relief
screw counterclockwise. Tighten the pressure
relief screw and repeat step 3 at least twice to
I. Connect the WDS to the data link connector
(DLC).
2. Using the WDS datalogger function, SELECT
the following sensors (as applicable to the
application):
IAT
- intake air temperature (IAT) sensor
ECT
- engine coolant temperature (ECT) sensor
CHT
- cylinder head temperature (CHT) sensor
LOAD
- engine load
VSS
- vehicle speed sensor (VSS)
RPM
- engine speed
DSRPM
- desired engine speed
The IAT sensor output is useful if the engine being
tested is cold or after an over-night cold soak. The
ECT sensor or CHT sensor and the IAT sensor
(
should either indicate the same value or be within
1 to 2 degrees Celsius of each other.
The ECT sensor output is important to display as
it indicates the engine warm-up and opening
temperature for the thermostat. It will initially
indicate a slightly higher reading just before the
thermostat opens and then drops back before
settling to a near flat line output (see graphic
below).
Item Description 1'. .
) A 1 Thermostat opens I\
B Thermostat settles into a cyclic open and
I I closure pattern
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

303-03B-15 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-15
DIAGNOSIS AND TESTING
A CAUTI0N:lf the ECT sensor output reaches
the
120°C default line under normal cooling
system pressure, internal damage may be
caused to the engine and a diagnostic
trouble code (DTC) will be set in the PCM.
The test should be stopped and the cause
located and corrected. If the cooling
system does not pressurize, the coolant
will boil at
1 OO°C which may also damage
the engine. CARRY
OUT the Coolant
Expansion Tank Cap Pressure Test
Component Test in this section.
If the WDS only allows the ECT sensor to be
displayed in volts, refer to the following table for
corresponding Celsius values:
The CHT sensor output is useful to examine the
cylinder head temperature rise during the warm-up
cycle and later during the normal light throttle cruise
test. This sensor output may vary between vehicles
with manual transmission and vehicles with automatic transmission and should be used for
reference only.
Volts
1.33
1.02
0.78
0.60
0.46
0.35 0.27
The LOAD display is used for reference as it is
necessary to maintain a stable load line during the
test. It is necessary to carry out the test under
normal light throttle cruise driving conditions and
average loads, typically 40% to 70% of the load
value.
OCelsius
60
70
80
90
100
110
120 '
The VSS output is used for reference but can help
to identify misfires and sensors which fail during
the warm-up cycle.
The RPM display indicates the engine speed and
can be compared with the DSRPM.
The DSRPM is the desired or calculated idle speed
which the PCM commands the engine to reach. If
the thermostat opens too early (before the correct
opening temperature has been reached), the
engine will not reach this value. When
using the WDS in data logger mode, the
signals recorded should remain within the
DEFAULT values set by the WDS.
3m AWARNING:M~~~ sure that the WDS is
placed in the vehicle so that it does not
interfere with the safe operation of the
vehicle. Do not place the WDS in the
deployment path of any air bag. Failure to
follow these instructions may result in personal injury.
N0TE:The road test is best carried out with the
aid of another technician in the vehicle to enable
the vehicle to be driven safely while the sensor
outputs are monitored within datalogger. If there
is only one technician available, the WDS can be
set up (using the
recordlcapture mode camera
icon) before leaving the workshop to record a 16
km (1 0 mile) test.
N0TE:The results from the test are more
conclusive if the engine is cold when the test is
started.
Carry out a road test.
REFER to:
RoadIRoller Testing (1 00-00 General
Information, Description and Operation).
4. Drive the vehicle at a constant throttle opening
and set speed until the ECT value settles into
a shallow rise and fall signal, close to a straight
line. This indicates that the thermostat is
functioning correctly.
N0TE:Some thermostats indicate the
temperature(s) in Celsius and Fahrenheit.
The graphic below shows the location and an
example of the opening temperature
(88OC) and
fully open temperature (1
02OC) of a thermostat.
The graphic below shows an alternative method used to show the opening temperature
(88OC) and
fully open temperature
(112OC) of a thermostat.
2006.0 Fiesta 1212006 G426582en
procarmanuals.com
