2007 FORD FIESTA clutch

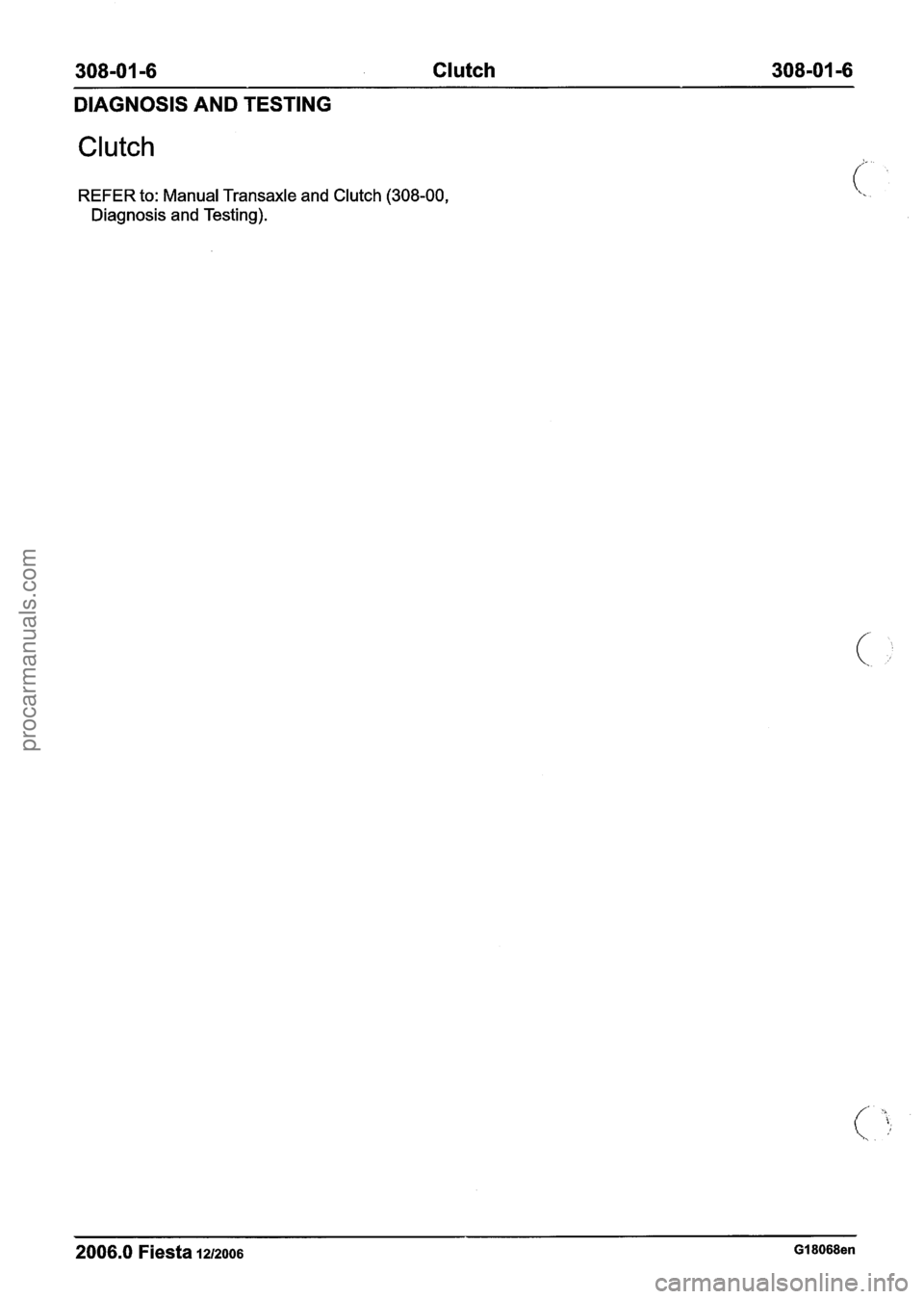

308-01 -6 Clutch 308-01 -6
DIAGNOSIS AND TESTING
Clutch
REFER to: Manual Transaxle and Clutch (308-00,
Diagnosis and Testing).
-- -- - - - -
2006.0 Fiesta 1212006 GI 8068en
procarmanuals.com

308-01 -7 Clutch 308-01 -7
REMOVAL AND INSTALLATION
Clutch Disc and Pressure Plate(l6 724 4)
S~ecial Tool(s1 Installation
Removal
I. Remove the transaxle.For additional
information, refer to: (308-03A Manual
Transmission/Transaxle - Vehicles With:
5Speed Manual Transaxle (iB5))
Transaxle - I .6L Duratec-1 6V (Sigma)ll .6L
Duratec-16V Ti-VCT (sigma)- (~'m'val) 9 2. nCAUTION :Tighten the clutch pressure Transaxle - 1.8L Duratec-HE (M14) (Removal). plate retaining bolts finger tight and then
2m &AUTION:LOOS~~ the clutch pressure evenly
by two turns at a time in the sequence
plate retaining bolts by two turns at a time shown
to the specified torque.
in the
sequence shown. N0TE:lnstall new clutch pressure plate retaining I Remove the clutch disc and pressure plate. bolts.
Discard the bolts.
2006.0 Fiesta 121~0o6 G28811 en
procarmanuals.com

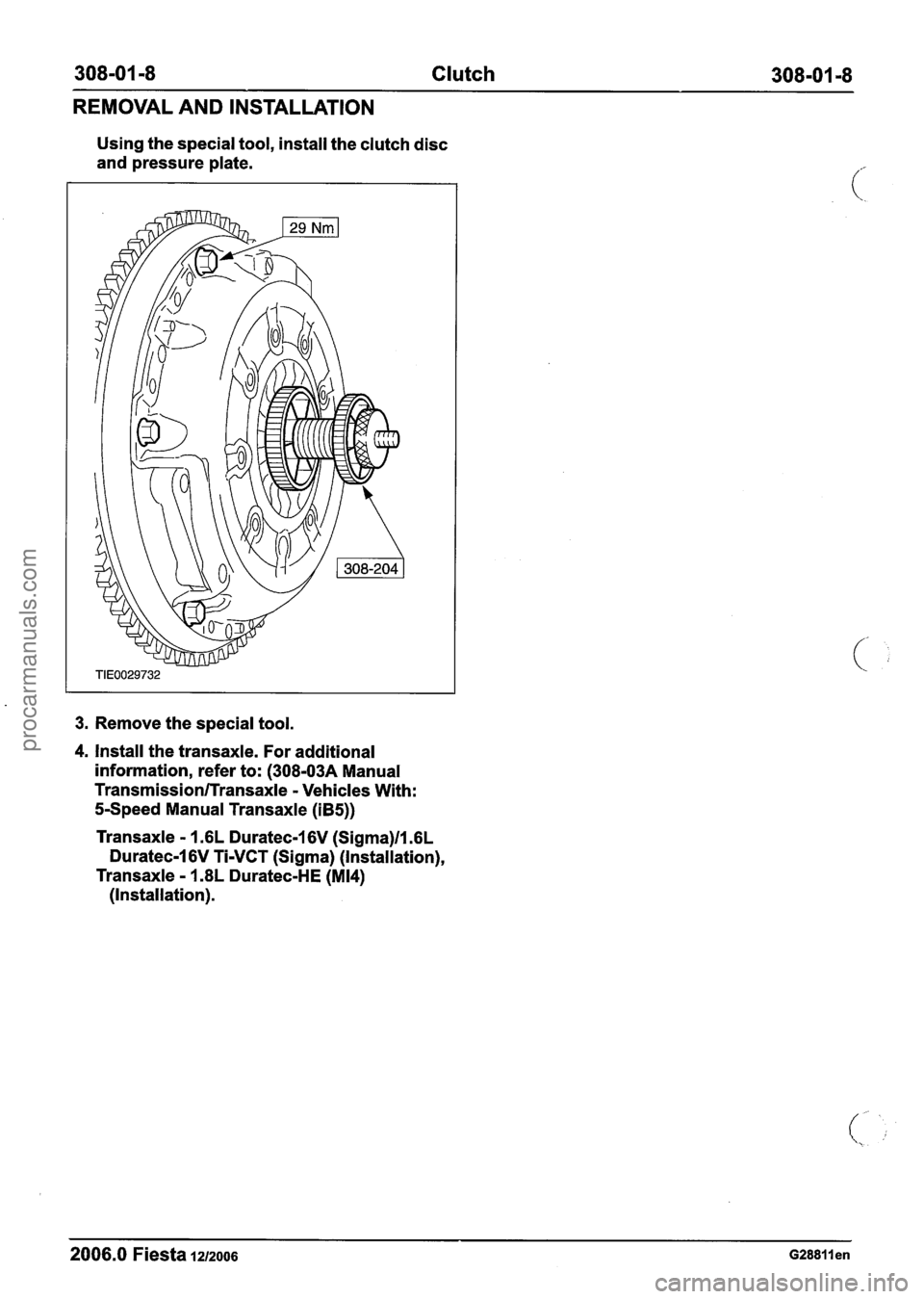

308-01 -8 Clutch 308-01 -8
REMOVAL AND INSTALLATION
Using the special tool, install the clutch disc
and pressure
plate.
3. Remove the special tool.
4. Install the transaxle. For additional
information, refer to: (308-03A Manual
Transmission/Transaxle - Vehicles With:
5-Speed
Manual Transaxle (iB5))
Transaxle - 1.6L Duratec-1 6V (Sigma)ll.GL
Duratec-1 6V Ti-VCT (Sigma) (Installation),
Transaxle - 1.8L Duratec-HE (M14)
(Installation).
2006.0 Fiesta 1212006 ~28811 en
procarmanuals.com

308-02-1 Clutch Controls 308-02-1
SECTION 308-02 Clutch Controls
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308-02-2
DESCRIPTION AND OPERATION
Clutch Controls ........................................................................\
........................................... 308-02-3
Overview ........................................................................\
.................................................... 308-02-3
Function.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308-02-4
DIAGNOSIS AND TESTING
Clutch Controls ........................................................................\
........................................... 308-02-5
REMOVAL AND INSTALLATION
Clutch Slave Cylinder ........................................................................\
............. (1 6 862 4) 308-02-6
Clutch Master Cylinder ........................................................................\
........ (16 856 0) 308-02-7
i
procarmanuals.com

308-02-2 Clutch Controls 308-02-2
SPECIFICATIONS
Lubricants, Fluids, Sealers and Adhesives
Specificat
I ions 1
High-temperature grease
I Clutch slave cylinder retaining bolts I 10 I I 89 I -
Torque Specifications
1 Clutch master cylinder retaining bolts I 8 I I 71 I -
Item
I Pedal pivot shaft retaining nut I 25 I 18 I - I
2006.0 Fiesta 1212006 GII 3286en
Nm I b-ft Ib-in
procarmanuals.com

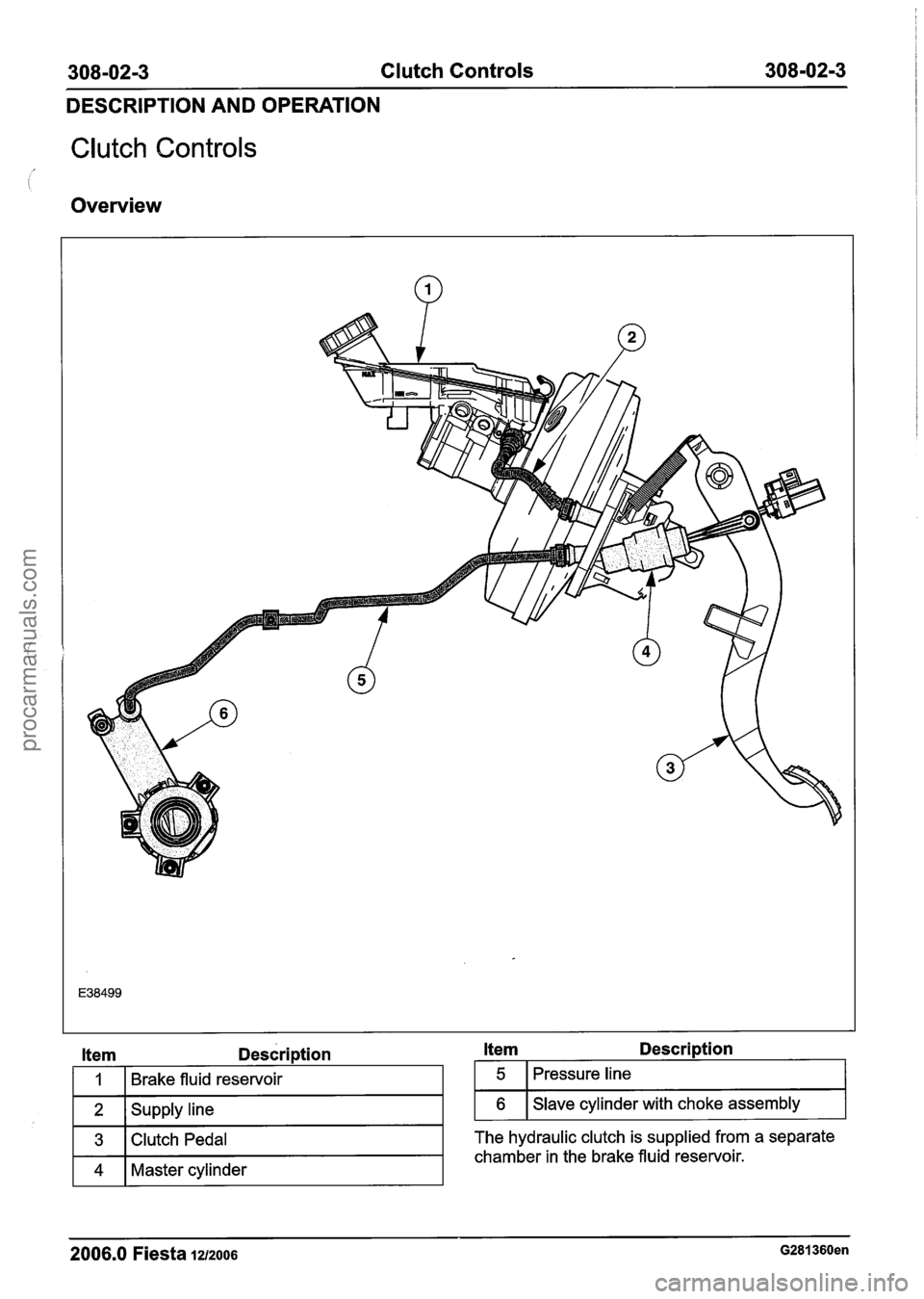

308-02-3 Clutch Controls 308-02-3
DESCRIPTION AND OPERATION
Clutch Controls
Overview
Description Item Description
2006.0 Fiesta 1212006 G281360en
5
6
4
Pressure line
Slave cylinder with choke assembly
The hydraulic clutch is supplied from a separate
Master cylinder chamber in
the brake fluid reservoir.
procarmanuals.com

Clutch Controls
DESCRIPTION
AND OPERATION
Because of this separate chamber, the braking
system remains operational if a leak occurs in the
hydraulic clutch system.
Function
Pressure is created in the master cylinder when
the clutch pedal is operated.
The hydraulic fluid in the master cylinder is put
under pressure and fed through the pressure pipe
to the slave cylinder.
The displaced hydraulic fluid moves the piston in
the slave cylinder and this in turn slides the release
bearing axially.
The release bearing pushes the bearing inner ring
against the tongues of the diaphragm spring.
The spring induced grip between the clutch disc
and the flywheel is broken.
When the clutch pedal is released the diaphragm
spring presses the piston in the slave cylinder back
to its starting position. The spring induced grip
between the clutch disc and the flywheel is created
again.
A spring in the slave cylinder ensures preload on
the release bearing.
The release bearing is always touching the
pressure plate because of this preload. The extra
travel caused by clutch lining wear is compensated
for by the preload.
There is a choke assembly in the slave cylinder
which helps to increase smoothness when pulling
away.
Because of the choke assembly, the pressure drop
of the fluid leaving the slave cylinder and returning
to the reservoir is delayed.
Because of this, the clutch closing time is delayed
when the clutch pedal is released suddenly, and
a soft and comfortable clutch engagement is
achieved.
Choking does not occur during clutch
disengagement.
A CAUTI0N:Vehicles with an automated shift
manual (ASM) transmission have
a slave
cylinder without
a choke assembly. The
slave cylinders must not be exchanged for
one another.
N0TE:The clutch pedal travel cannot be adjusted.
The release bearing is an interference fit in the
slave cylinder and cannot be renewed separately.
2006.0 Fiesta 1212006 G281360en
procarmanuals.com

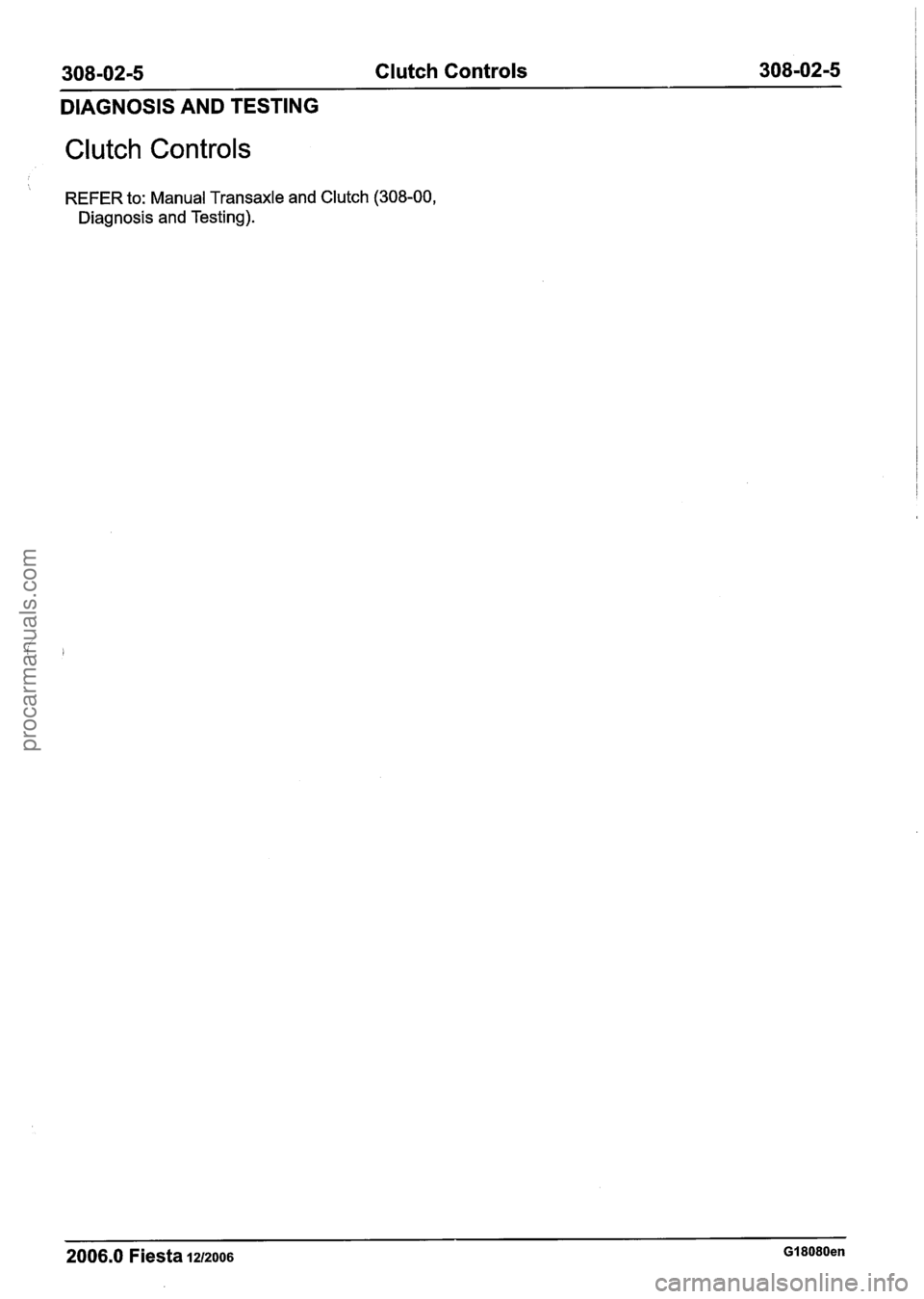

308-02-5 Clutch Controls 308-02-5
DIAGNOSIS AND TESTING
Clutch Controls
REFER to: Manual Transaxle and Clutch (308-00,
Diagnosis and Testing).
2006.0 Fiesta 1212006 GI 8080en
