2007 FORD F650 headlamp

Replacing brake/tail/rear turn signal/back-up/license plate lamp
bulbs
The brake/tail/turn
signal/back-up/license plate lamp
bulbs are located in the same
portion of the tail lamp assembly.
Follow the same steps to replace
any of these bulbs:
1. Make sure the headlamp control
is in the
position and the turn
signals are off, then remove the four
screws and the lamp lens from lamp
assembly.
2. Carefully pull the bulb straight out of the socket and push in the new
bulb.
3. Install the lens on the lamp assembly with the four screws.
2007 F-650/750(f67)
Supplement
USA(fus)
Lights
57

Deactivating/Activating the BeltMinder feature
Read Steps1-9thoroughly before proceeding with the
deactivation/activation programming procedure.
The BeltMinder feature can be deactivated/activated by performing the
following procedure:
Before following the procedure, make sure that:
•The parking brake is set.
•The gearshift is in P (Park) (automatic transmission) or the neutral
position (manual transmission).
•The ignition switch is in the OFF position.
•All vehicle doors are closed.
•The driver’s safety belt is unbuckled.
•The headlamp control is in the
position.
While the design allows you to deactivate your BeltMinder
,this
system is designed to improve your chances of being safely
belted and surviving an accident. We recommend you leave the
BeltMinder
system activated for yourself and others who may use the
vehicle. To reduce the risk of injury, do not deactivate/activate the
BeltMinder
feature while driving the vehicle.
BeltMinder activation and deactivation procedure
1. Turn the ignition switch to the RUN (or ON) position. (DO NOT
START THE ENGINE.)
2. Wait until the safety belt warning light turns off. (Approximately 1–2
minutes.)
•Steps 3–5 must be completed within 60 seconds or the procedure will
have to be repeated.
3. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled. This can be done before or during BeltMinder
warning activation.
4. Turn on the parklamps/headlamps, turn off the parklamps/headlamps.
5. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled.
•After step 5 the safety belt warning light will be turned on for three
seconds.
2007 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
82

Note:When starting the engine, do not press the accelerator as engine
damage may result.
1. Ensure headlamps and all accessories are turned off, the parking
brake is applied and the transmission is in the neutral position (or P
[Park] for Allison 2200 transmissions).
2. Turn the key to ON, but do not start the engine. In cooler weather,
the air intake heater may activate the WAIT TO START light in the
instrument cluster.
If the WAIT TO START light
illuminates,do notcrank the engine
until the light goes off.
If equipped with an air intake heater, DO NOT use ether or any
other starting fluids. The use of starting fluids (ether) in an
engine equipped with an air intake heater could cause an explosion
and result in property damage and/or personal injury.
3. When the WAIT TO START light turns off, turn the key to START;
when the engine starts, release the key.
If the engine does not start after 30 seconds of cranking, allow two
minutes for the starter to cool before trying again. Excessive cranking
may damage the starter.
After the engine starts:
•On some engines, the WAIT TO
START light should illuminate
after the engine starts. Allow the
engine to idle about three
minutes or until the engine
coolant temperature gauge begins to rise. Maintain idle speed until the
WAIT TO START light cycles off to indicate the air intake heater has
shut off (approximately six minutes). Operating the engine at higher
speeds will reduce the effectiveness of the air inlet heater.
WAIT
TO
START
WAIT
TO
START
2007 F-650/750(f67)
Supplement
USA(fus)
Driving
92

Passenger compartment fuse panel
Fuse/Relay
LocationFuse Amp
RatingFuse Description
1 20A Horn
2 15A Turn/Hazard lamps
3 20A Cigar lighter
4 10A Diagnostic connectors, Power park brake
chime
5 15A Back-up lamps, DRL relays, Blend door
actuator, Heated seat module, Trailer ABS
relay, Exhaust brake, Climate mode switch
6 — Not used
7 — Not used
8 5A Radio, GEM
9 5A Switch illumination (Headlamp, Power
windows, Power door locks), Power window
relay
10 15A Heated/Lighted mirrors
11 5A Wiper motor, Washer pump relay
2007 F-650/750(f67)
Supplement
USA(fus)
Roadside Emergencies
142

Fuse/Relay
LocationFuse Amp
RatingFuse Description
12 10A Stoplamp switch (Hydraulic brake vehicles
only)
13 20A Radio, Cluster
14 10A Interior lamps
15 10A GEM, Interior lamp relay, Map lamps
16 15A High beams
17 — Not used
18 5A Headlamp switch
19 15A Engine ECM (Caterpillar and Cummins
engines)
Engine ECM, Accel, Crank (6.0L Power
Stroke engine only)
20 5A Starter relay
21 10A Daytime Running Lamps (DRL)
22 15A Air solenoid 4–pack (Air horn, Air suspension
dump, Differential lock axle and Two-speed
axle)
23 10A Electronic flasher
24 15A Vacuum pump, Air dryer, ABS, Fuel
heater/Fuel transfer pump relay, Heated
drain valve, 6.0L Power Stroke Water In Fuel
(WIF) module
25 10A Blower motor relay
26 10A RH low beam headlamp
27 — Not used
28 10A LH low beam headlamp
29 10A Cluster (Power, Warning lamps), Hydraulic
ABS relay, Air traction control, GEM,
Hourmeter, Transmission temp
30 15A Allison transmissions
31 15A Not used
Relay 1 — Interior lamps
2007 F-650/750(f67)
Supplement
USA(fus)
Roadside Emergencies
143

Fuse/Relay
LocationFuse Amp
RatingFuse Description
105 20A** Power door locks
106 30A** Headlamps
107 50A** Junction box battery feed (1, 2, 3, 4, 12, 13,
14, 15)
108 40A** Fuel heater (Cummins engine only)
109 40A** Power windows
110 30A** Wiper power relay (Park, Low/High speed)
111 30A** Body builder prep - park lamps
112 40A** Blower motor
113 30A** Heated seats
114 25A** WABCO ABS battery feed (Hydraulic brake
vehicles only)
115 20A** Ignition switch, Central Junction Box fuses 8,
9, 10, 11, Starter motor relay
116 30A** Body builder prep - left/right turn relays,
Back-up lamps
117 20A** Body builder prep/trailer socket stop
(Caterpillar and Cummins engines only)
118 60A** Hydraulic brake trailer tow fuse block
119/120 60A** Hydraulic brake trailer tow fuse block
Air brake trailer tow fuse block
121/122 60A** HydroMax motor
Air brake trailer tow fuse block
201 — Washer pump relay
202 — Wiper speed relay
203 — Wiper run/park relay
204 — Wiper power relay
205 — RH stop/turn relay
206 — LH stop/turn relay
207 — Hydraulic ABS event relay
208 — Back-up lamps relay
2007 F-650/750(f67)
Supplement
USA(fus)
Roadside Emergencies
146

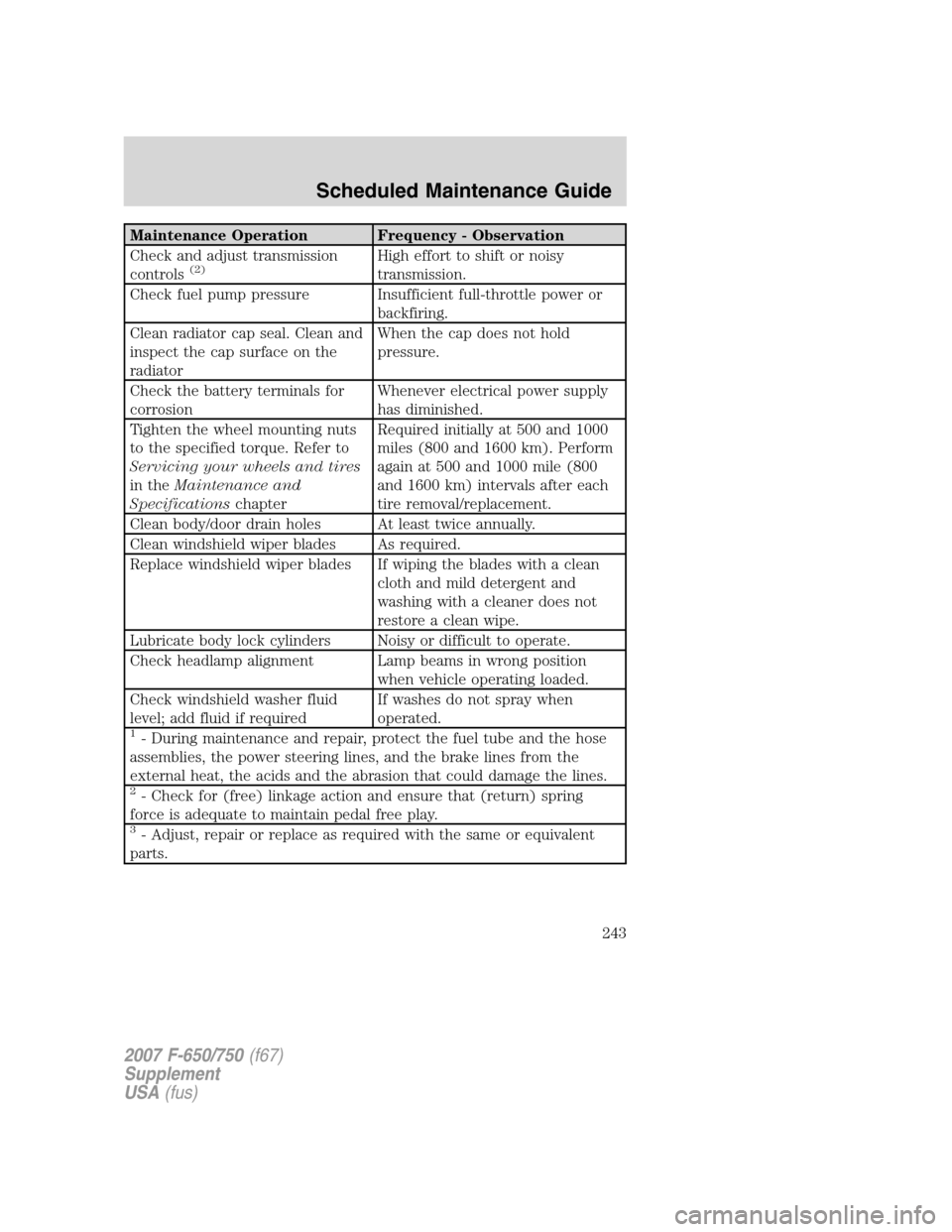

Maintenance Operation Frequency - Observation
Check and adjust transmission
controls
(2)High effort to shift or noisy
transmission.
Check fuel pump pressure Insufficient full-throttle power or
backfiring.
Clean radiator cap seal. Clean and
inspect the cap surface on the
radiatorWhen the cap does not hold
pressure.
Check the battery terminals for
corrosionWhenever electrical power supply
has diminished.
Tighten the wheel mounting nuts
to the specified torque. Refer to
Servicing your wheels and tires
in theMaintenance and
SpecificationschapterRequired initially at 500 and 1000
miles (800 and 1600 km). Perform
again at 500 and 1000 mile (800
and 1600 km) intervals after each
tire removal/replacement.
Clean body/door drain holes At least twice annually.
Clean windshield wiper blades As required.
Replace windshield wiper blades If wiping the blades with a clean
cloth and mild detergent and
washing with a cleaner does not
restore a clean wipe.
Lubricate body lock cylinders Noisy or difficult to operate.
Check headlamp alignment Lamp beams in wrong position
when vehicle operating loaded.
Check windshield washer fluid
level; add fluid if requiredIf washes do not spray when
operated.
1- During maintenance and repair, protect the fuel tube and the hose
assemblies, the power steering lines, and the brake lines from the
external heat, the acids and the abrasion that could damage the lines.
2- Check for (free) linkage action and ensure that (return) spring
force is adequate to maintain pedal free play.
3- Adjust, repair or replace as required with the same or equivalent
parts.
2007 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
243

engine oil pressure gauge ........27
fuel gauge ..................................27
odometer ...................................27
speedometer .............................27
tachometer ................................27
trip odometer ............................27
H
Hazard flashers .........................141
Headlamps ...................................52 aiming ........................................53
daytime running lights .............52
high beam .................................52
warning chime ..........................22
Heating ..................................49–50 heater only system ...................49
manual heating and air
conditioning system .................50
Hood ..........................................173
I
Ignition .........................................91 chime .........................................22
Infant seats
(see Safety seats) .......................86
Instrument panel cleaning ...................................162
lighting up panel and
interior .......................................53
J
Jump-starting your vehicle ......148
K
Keys key in ignition chime ...............22
positions of the ignition ...........91 L
Lamps
bulb replacement
specifications chart ..................54
cargo lamps ...............................53
daytime running light ...............52
headlamps .................................52
high beams ................................52
instrument panel, dimming .....53
interior lamps ...........................54
replacing bulbs ...................54–57
Lane change indicator
(see Turn signal) ........................53
Lights, warning and indicator ....22 air suspension ...........................22
anti-lock brakes (ABS) ....22, 118
brake ..........................................22
charging system ........................22
safety belt .................................22
service engine soon ..................22
traction control off ...................22
turn signal indicator .................22
Lubricant specifications ...........214
M
Manual transmission .................125 lubricant specifications ..........214
Mirrors .........................................61 fold away ...................................63
heated ........................................62
side view mirrors (power) .......61
O
Odometer .....................................27
P
Paint chips, repairing ...............160
2007 F-650/750 (f67)
Supplement
USA (fus)
Index
273
