2007 FIAT SEDICI ECU

135
❒Unhook the strap (2) by pushing down
the hook as shown in the illustration.
❒Hook the strap (2) to the front seat
head restraint as shown in the illustra-
tion.
IMPORTANT When securing the folded
rear seat with a strap, adjust the strap
length so that the rear seat will not move.
❒Fold the entire seat forward.
79J124
(2)
79J125
(2)
63J059
When you unlatch the rear
seat cushion, be careful that
your face or hands are not injured
from the seat popping up.
WARNING
Luggage or other cargo
should be stowed in the lug-
gage compartment with the rear seat
in an upright position, whenever pos-
sible. If you need to carry cargo in the
passenger compartment with the rear
seat back folded forward, be sure to
secure the cargo or it may be thrown
about, causing injury. Never pile car-
go higher than the seatbacks.
WARNING
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 135

136
❒Pull down the seat cushion until it locks
into place.IMPORTANT When returning the rear
seat cushion to the normal position, make
sure that there is nothing around the strik-
er. This prevents the seat cushion from
being locked securely. When returning the
rear seat cushion to the normal position,
make sure that there is nothing under the
seat cushion. This prevents damage to the
seat cushion.
❒Raise the seatback until it locks into
place.
After returning the seat, try moving the
seat and seatback to make sure they are
securely latched. To return the seat to the normal position,
follow the procedure below.
❒Unhook the strap from the head re-
straint and stow the strap to the back
of the seat cushion.
79J12679J12963J130
When returning the rear seat
cushion to the normal posi-
tion, be careful that your finger is not
caught between the lock and the
floor.
WARNING
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 136

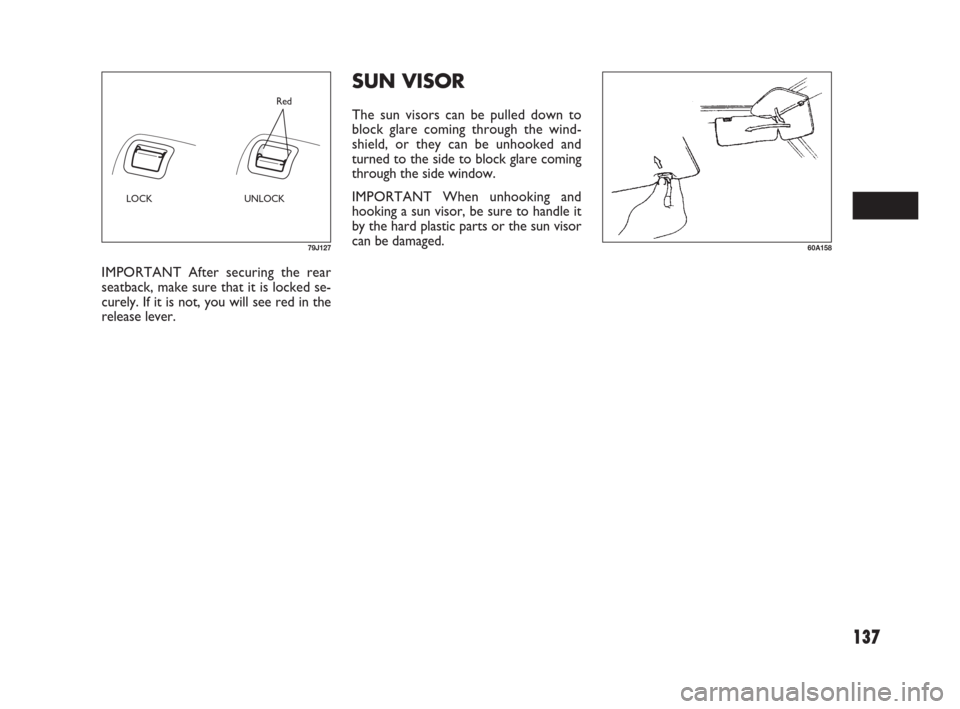

137
SUN VISOR
The sun visors can be pulled down to
block glare coming through the wind-
shield, or they can be unhooked and
turned to the side to block glare coming
through the side window.
IMPORTANT When unhooking and
hooking a sun visor, be sure to handle it
by the hard plastic parts or the sun visor
can be damaged.
IMPORTANT After securing the rear
seatback, make sure that it is locked se-
curely. If it is not, you will see red in the
release lever.
60A15879J127
LOCK UNLOCKRed
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 137

144
TIRE CHANGING TOOL
The jack, wheel brace, jack handle are
stowed in the luggage compartment.
To remove the spare tire, turn its bolt
counterclockwise and remove it.
To remove the jack, turn its shaft coun-
terclockwise and pull the jack out of the
storage bracket.
To stow the jack, place it in the storage
bracket and turn the shaft clockwise un-
til the jack is securely held in place.
79J082
79J083
79J084
79J085
The jack shall only be used
for changing wheels on the
vehicle with which it is provided or on
cars of the same model. It must not be
used for other purposes such as for in-
stance raising vehicles of other mod-
els. In no case should it be used for re-
pairs under the vehicle. Incorrect po-
sitioning of the jack may cause the
jacked vehicle to fall. Do not use the
jack for higher capacities than stated
on its label.
WARNING
After using the tire changing
tools, be sure to stow them
securely or they can cause injury if an
accident occurs.
WARNING
79J086
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 144

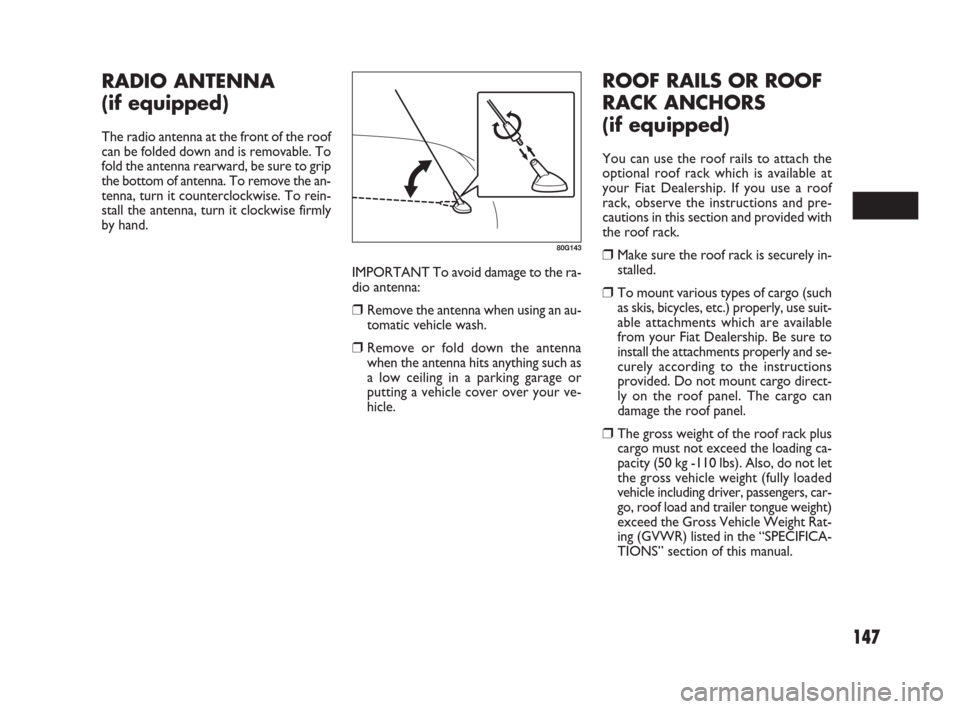

147
IMPORTANT To avoid damage to the ra-
dio antenna:
❒Remove the antenna when using an au-
tomatic vehicle wash.
❒Remove or fold down the antenna
when the antenna hits anything such as
a low ceiling in a parking garage or
putting a vehicle cover over your ve-
hicle.
RADIO ANTENNA
(if equipped)
The radio antenna at the front of the roof
can be folded down and is removable. To
fold the antenna rearward, be sure to grip
the bottom of antenna. To remove the an-
tenna, turn it counterclockwise. To rein-
stall the antenna, turn it clockwise firmly
by hand.
80G143
ROOF RAILS OR ROOF
RACK ANCHORS
(if equipped)
You can use the roof rails to attach the
optional roof rack which is available at
your Fiat Dealership. If you use a roof
rack, observe the instructions and pre-
cautions in this section and provided with
the roof rack.
❒Make sure the roof rack is securely in-
stalled.
❒To mount various types of cargo (such
as skis, bicycles, etc.) properly, use suit-
able attachments which are available
from your Fiat Dealership. Be sure to
install the attachments properly and se-
curely according to the instructions
provided. Do not mount cargo direct-
ly on the roof panel. The cargo can
damage the roof panel.
❒The gross weight of the roof rack plus
cargo must not exceed the loading ca-
pacity (50 kg -110 lbs). Also, do not let
the gross vehicle weight (fully loaded
vehicle including driver, passengers, car-
go, roof load and trailer tongue weight)
exceed the Gross Vehicle Weight Rat-
ing (GVWR) listed in the “SPECIFICA-
TIONS” section of this manual.
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 147

148
❒Mount and secure the cargo onto the
roof rack properly according to the in-
structions provided. Be sure to stow
the heaviest items at the bottom and
distribute the cargo as evenly as possi-
ble.
❒Do not carry items so large that they
hang over the bumpers or the sides of
the vehicle, or block your view.
❒Secure the front and rear ends of long
items – such as wood panels, surf-
boards and so forth – to both the front
and rear of the vehicle. You should pro-
tect the painted surfaces of the vehi-
cle from scuffing caused by tie-down
ropes.
❒Check periodically to make sure the
roof rack is securely installed and free
from damage.
❒For vehicles with roof rack anchors,
make sure the anchors are covered
with the caps when not in use.
79J088
79J089
Roof rails
Roof rack anchors
Abrupt maneuvers or failure
to properly secure cargo can
allow the cargo to fly off the vehicle
and hit others, causing personal in-
jury or property damage.
Mount cargo securely and avoid
abrupt maneuvers such as “jackrab-
bit” starts, sharp turns, fast cornering
and sudden braking. Check periodi-
cally to make sure that cargo is se-
curely fastened.
Large, bulky, long, or flat items can
affect vehicle aerodynamics or be
caught by the wind, and can reduce
vehicle control resulting in an acci-
dent and personal injury. Drive cau-
tiously at reduced speed when carry-
ing this type of cargo.
WARNING
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 148

151
Once a week, or each time you fill your
fuel tank, perform the following under-
hood checks:
❒Engine oil level
❒Coolant level
❒Brake fluid level
❒Power steering (if equipped) fluid level
❒Windshield washer fluid level
❒Battery solution level
❒Hood latch operation
Pull the hood release handle inside the
vehicle. Make sure that you cannot
open the hood all the way without re-
leasing the secondary latch. Be sure to
close the hood securely after check-
ing for proper latch operation. See “All
latches, hinges & locks” of “CHASSIS
AND BODY” in the “Periodic Main-
tenance Schedule” in the “INSPEC-
TION AND MAINTENANCE” section
for lubrication schedule.Once a month, or each time you fill your
fuel tank, check the tire pressure using a
tire pressure gauge. Also check the tire
pressure of the spare tire.❒Adjust the seat and adjustable head re-
straint (if equipped).
❒Check the brake pedal and the park-
ing brake lever.
❒Adjust the mirrors.
❒Make sure that you and all passengers
have properly fastened your seat belts.
❒Make sure that all warning lights come
on as the key is turned to the “ON” or
“START” position.
❒Check all gauges.
❒Make sure that the BRAKE SYSTEM
WARNING light turns off when the
parking brake is released.
60A187S
Make sure the hood is fully
closed and latched before
driving. If it is not, it can fly up un-
expectedly during driving, obstructing
your view and resulting in an acci-
dent.
WARNING
149-166 Fiat16 New GB 27-11-2007 11:27 Pagina 151

172
TRAILER TOWING
Your Fiat was originally designed to car-
ry people and a normal amount of cargo,
not to tow a trailer. Fiat does not rec-
ommend you use your vehicle to tow a
trailer if there is not any local regulation
about towing capacity permitted (for ex-
ample, registered or statutory towing ca-
pacity). Towing a trailer can adversely af-
fect handling, durability, and fuel economy.
Some countries have regulations which
specifically allow trailer towing up to a
specified maximum trailer weight (regis-
tered or statutory towing capacity,
whichever is smaller); vehicles sold in
these countries can be used to tow a light
trailer, provided the trailer does not ex-
ceed the maximum trailer weight specified
in the country’s regulations.
If you use your Fiat to tow a trailer, you
should always observe the requirements
and recommendations in this section. If
you intend to tow a trailer, it is essential
to select a trailer and trailer towing equip-
ment which are compatible. A reputable
towing specialist can help you.
VEHICLE LOADING
Your vehicle was designed for specific
weight capacities. The weight capacities of
your vehicle are indicated by the Gross
Vehicle Weight Rating (GVWR) and the
Gross Axle Weight Rating (GAWR, front
and rear). The GVWR and GAWR (front
and rear) are listed in the “SPECIFICA-
TIONS” section.
GVWR – Maximum permissible overall
weight of the fully loaded vehicle (includ-
ing all the occupants, accessories and car-
go plus the trailer nose weight if towing
a trailer).
GAWR – (Front and Rear) Maximum per-
missible weight on an individual axle.
Actual weight of the loaded vehicle and ac-
tual loads at the front and rear axles can
only be determined by weighing the vehi-
cle. Compare these weights to the GVWR
and GAWR (front and rear). If the gross
vehicle weight or the load on either axle
exceeds these ratings, you must remove
enough weight to bring the load down to
the rated capacity.Never overload your vehicle.
The gross vehicle weight
(sum of the weights of the vehicle, all
the occupants, accessories, cargo plus
trailer nose weight if towing a trailer)
must never exceed the Gross Vehicle
Weight Rating (GVWR). In addition,
never distribute a load so that the
weight on either the front or rear axle
exceeds the Gross Axle Weight Rat-
ing (GAWR).
WARNING
Always distribute cargo
evenly. To avoid personal in-
jury or damage to your vehicle, al-
ways secure cargo to prevent it from
shifting if the vehicle moves sudden-
ly. Place heavier objects on the floor
and as far forward in the cargo area
as possible. Never pile cargo higher
than the top of the seat backs.
WARNING
171-180 Fiat16 New GB 27-11-2007 11:29 Pagina 172
