2007 FIAT SEDICI light

184
15 30 45 60 75 90 105 120 135 150 165 180
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●● ●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●
●●
●●●●●●●●●●●●
●● ●●●●
SERVICE SCHEDULE PETROL VERSIONS
Service coupons shall be carried out every 15,000 km
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check electric system operation headlights,
direction indicators, hazard lights, passenger compartment/
boot light, instrument panel warning lights, etc.)
Check windscreen wiper operation, adjust nozzles if required
Check windscreen blade position/wear
Check front disk brake pad wear conditions and brake
pad wear indicator operation
Check rear disk brake pad or shoes conditions and wear
Sight inspect conditions and integrity of: bodywork and
underbody protection, pipes (exhaust, fuel, brakes),
rubber parts (boots, sleeves, bushes, etc.), brake and
fuel system hoses, axles and axle shafts
Top up fluids (engine coolant, brakes, clutch, battery,
windscreen washer, etc.)
Sight inspect accessory drive belt conditions
Check antievaporation system
Check and adjust handbrake lever stroke, if required
Check and adjust tappet clearance, if required
181-224 Fiat16 New GB 27-11-2007 11:29 Pagina 184

186
15 30 45 60 75 90 105 120 135 150 165 180
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●● ●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●
●●●●●●
●●●
●● ●●●●
●●●●●●●●●●●●
SERVICE SCHEDULE DIESEL VERSIONS
Service coupons shall be carried out every 15,000 km
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check electric system operation headlights,
direction indicators, hazard lights, passenger compartment/
boot light, instrument panel warning lights, etc.)
Check windscreen wiper operation, adjust nozzles if required
Check windscreen blade position/wear
Check front disk brake pad wear conditions and brake
pad wear indicator operation
Check rear disk brake pad or shoes conditions and wear
Sight inspect conditions and integrity of: bodywork and
underbody protection, pipes (exhaust, fuel, brakes),
rubber parts (boots, sleeves, bushes, etc.), brake and
fuel system hoses, axles and axle shafts
Top up fluids (engine coolant, brakes, clutch, battery,
windscreen washer, etc.)
Sight inspect accessory drive belt conditions
Check and adjust handbrake lever stroke, if required
Check and adjust tappet clearance, if required
Check exhaust emissions/smoke
Check cleanness of bonnet and boot locks and
lever cleanness and lubrication
181-224 Fiat16 New GB 27-11-2007 11:29 Pagina 186

187
15 30 45 60 75 90 105 120 135 150 165 180
(●)(●)(●)(●)(●)(●)
●● ●● ●● ●●
●●●●
●●●●
●
●
●●●
●●●●
●
●●●●
●●●●●●
●●●●●
●
●● ●●●●
●● ●●●●
●● ●●●●
●● ●●●●
● ●●●● ●●●●●●●
Thousands of km
Change engine oil and oil filter (Diesel versions - DPF)**
Check air cleaner conditions
Replace air cleaner cartridge
Change engine coolant
Change accessory drive belt conditions
Change timing belt *
Change fuel filter
Sight inspect fuel tank conditions
Check manual transaxle gear oil level
Change manual transaxle gear oil
Check transmission unit oil level (4x4 version)
Check rear differential oil level (4x4 version)
Change rear differential oil (4x4 version)
(just the first time at 15,000 km)
Check suspension operation
Check steering system (electric drive)
Check engine control system operation
(through diagnostic socket)
Change brake and clutch fluid (or every 2 years)
Change pollen filter (or every 2 years)
* Or every 4 years in the event of particularly demanding use (cold climates, driving in the city, idling for a long time, driving on dusty
roads or covered with sand and/or salt), or in any case every 5 years regardless of the km covered.
** Actual interval to change engine oil and oil filter depends on the conditions of use of the vehicle and it is indicated by the relevant in-
strument panel warning light (see section “Warning and indicator lights”), or in any case every 2 years.
181-224 Fiat16 New GB 27-11-2007 11:29 Pagina 187

191
Tightening torque for drain plug
For Petrol Engine Model:
50 Nm (5,0 kgm, 36.2 lb-ft)
For Diesel Engine Model:
20 Nm (2,0 kgm, 14.4 lb-ft)
❒Reinstall the drain plug and gasket.
Tighten the plug with a wrench to the
specified torque.
NOTE
(For Diesel Engine Model)
Whenever the engine oil is changed, the
monitoring system to find the next oil
change stage must be reset whether the
oil pressure light blinks or not. For details
on how to reset the system, ask your Fi-
at Dealership. CHANGING ENGINE OIL AND
FILTER
Drain the engine oil while the engine is still
warm.
❒Remove the oil filler cap.
❒Place a drain pan under the drain plug.
❒Using a wrench, remove the drain plug
and drain out the engine oil.
54G091
OpenClose
The engine oil temperature
may be high enough to burn
your fingers when the drain plug is
loosened. Wait until the drain plug is
cool enough to touch with your bare
hands.
WARNING
60G306A
New and used oil can be
hazardous.
Children and pets may be harmed by
swallowing new or used oil. Keep new
and used oil and used oil filters away
from children and pets.
Repeated, prolonged contact with
used engine oil may cause skin can-
cer.
Brief contact with used oil may irri-
tate skin.
WARNING
To minimize your exposure
to used oil, wear a long-
sleeve shirt and moisture- proof
gloves (such as dishwashing gloves)
when changing oil. If oil contacts your
skin, wash thoroughly with soap and
water.
Launder any clothing or rags if wet
with oil.
Recycle or properly dispose of used
oil and filters.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:29 Pagina 191

201
NOTE If your engine is equipped with the
hightension cord type ignition wiring and
you experience some firing problem of
spark plugs, such as, hard engine- starting,
misfire etc., the cause may be located not
only on spark plugs but also on deterio-
rated ignition wirings (generally, used for
more than 80000 km or five years). If
spark plug replacement does not solve the
problem, have the ignition wiring and oth-
er ignition system inspected by your Fiat
Dealership.FUEL FILTER
(Diesel engine)
The fuel filter works as a water sedimen-
tor as well.
Drain water when the fuel filter warning
light comes on. To drain water:
❒Place a pan or ample rag under the fu-
el filter drain nozzle.
❒Loosen the drain knob (1). The water
will be drained.
❒Tighten the drain knob when the water
changes to the diesel fuel.
❒Tighten the drain knob.
(1)
79J147
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 201

202
NOTE With disc brakes, the fluid level can
be expected to gradually fall as the brake
pads wear.
BRAKES
BRAKE FLUID
Check the brake fluid level by looking at
the reservoir in the engine compartment.
Check that the fluid level is between the
“MAX” and “MIN” lines. If the brake flu-
id level is near the “MIN” line, fill it up to
the “MAX” line with TUTELA TOP 4 SAE
J1704 o DOT4 brake fluid.
79J010
Failure to follow the guide-
lines below can result in per-
sonal injury or serious damage to the
brake system.
– If the brake fluid in the reservoir
drops below a certain level, the brake
warning light on the instrument pan-
el will come on (the engine must be
running with the parking brake fully
disengaged). Should the light come
on, immediately ask your Fiat Deal-
ership to inspect the brake system.
– A rapid fluid loss indicates a leak in
the brake system which should be in-
spected by your Fiat Dealership im-
mediately.
WARNING– Brake fluid can harm your
eyes and damage painted
surfaces. Use caution when refilling
the reservoir.
– Do not use any fluid other than SAE
J1704 or DOT4 brake fluid. Do not
use reclaimed fluid or fluid that has
been stored in old or open contain-
ers. It is essential that foreign parti-
cles and other liquids are kept out of
the brake fluid reservoir.
WARNING
Brake fluid is harmful or fa-
tal if swallowed, and harm-
ful if it comes in contact with skin or
eyes. If swallowed, do not induce
vomiting. Immediately contact a poi-
son control center or a physician. If
brake fluid gets in eyes, flush eyes
with water and seek medical atten-
tion. Wash thoroughly after handling.
Solution can be poisonous to animals.
Keep out of the reach of children and
animals.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 202

204
STEERING
Steering wheel play “c”:
0 – 30 mm (0.0 – 1.2 in.)
Check the play of the steering wheel by
gently turning it from left to right and mea-
suring the distance that it moves before
you feel slight resistance. The play should
be between the specified values.
Check that the steering wheel turns eas-
ily and smoothly without rattling by turn-
ing it all the way to the right and to the left
while driving very slowly in an open area.
If the amount of free play is outside the
specification or you find anything else to
be wrong, an inspection must be per-
formed by your Fiat Dealership. PARKING BRAKE
Ratchet tooth specification “b”:
6th – 8th
Lever pull force (1):
200 N (20 kg, 44 lbs)
Check the parking brake for proper ad-
justment by counting the number of clicks
made by the ratchet teeth as you slowly
pull up on the parking brake lever to the
point of full engagement. The parking
brake lever should stop between the spec-
ified ratchet teeth and the rear wheels
should be securely locked. If the parking
brake is not properly adjusted or the
brakes drag after the lever has been fully
released, have the parking brake inspect-
ed and/ or adjusted by your Fiat Dealer-
ship.
54G10954G110
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 204

208

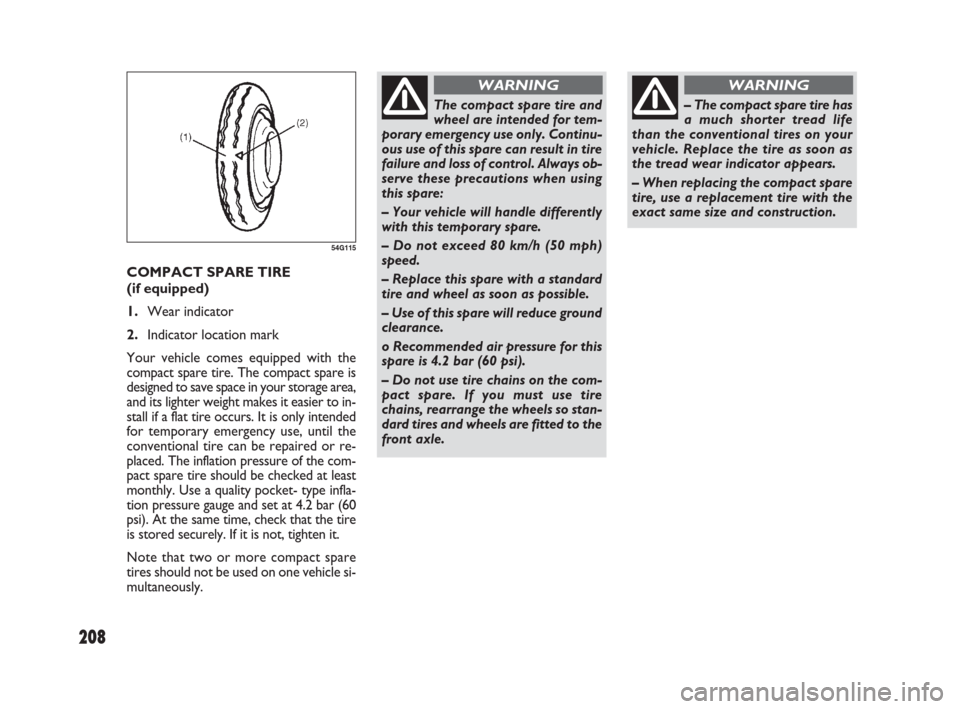

COMPACT SPARE TIRE
(if equipped)
1.Wear indicator
2.Indicator location mark
Your vehicle comes equipped with the
compact spare tire. The compact spare is
designed to save space in your storage area,
and its lighter weight makes it easier to in-
stall if a flat tire occurs. It is only intended
for temporary emergency use, until the
conventional tire can be repaired or re-
placed. The inflation pressure of the com-
pact spare tire should be checked at least
monthly. Use a quality pocket- type infla-
tion pressure gauge and set at 4.2 bar (60
psi). At the same time, check that the tire
is stored securely. If it is not, tighten it.
Note that two or more compact spare
tires should not be used on one vehicle si-
multaneously.
54G115
The compact spare tire and
wheel are intended for tem-
porary emergency use only. Continu-
ous use of this spare can result in tire
failure and loss of control. Always ob-
serve these precautions when using
this spare:
– Your vehicle will handle differently
with this temporary spare.
– Do not exceed 80 km/h (50 mph)
speed.
– Replace this spare with a standard
tire and wheel as soon as possible.
– Use of this spare will reduce ground
clearance.
o Recommended air pressure for this
spare is 4.2 bar (60 psi).
– Do not use tire chains on the com-
pact spare. If you must use tire
chains, rearrange the wheels so stan-
dard tires and wheels are fitted to the
front axle.
WARNING
– The compact spare tire has
a much shorter tread life
than the conventional tires on your
vehicle. Replace the tire as soon as
the tread wear indicator appears.
– When replacing the compact spare
tire, use a replacement tire with the
exact same size and construction.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 208
