2007 FIAT SEDICI turn signal bulb

218
HEADLIGHT
Open the engine hood. Disconnect the
coupler. Remove the sealing rubber.
Push the retaining spring forward and un-
hook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.SIDE TURN SIGNAL LIGHT
As the bulb is built-in type, the light as-
sembly must be replaced. Remove the light
assembly by sliding the light housing left-
ward with your finger. CENTER INTERIOR LIGHT
(if equipped)
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown.
To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the
bulb securely.
60G11554G12164J195
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 218

219
Lampada
3.Removal
4.Installation
There are two types of bulb, “Full glass
type” (1) and “Glass/ metal type” (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb. OTHER GENERAL LIGHTS
Bulb holder
1.Removal
2.Installation
To remove a bulb holder from a light
housing, turn the holder counterclockwise
and pull it out. To install the holder, push
the holder in and turn it clockwise.
(1)
(1) (2)(2)
54G123
(1)
(2) (3)
(4)
54G124
(1)
(2)
79J012
Front parking light (1)
Front turn signal light (2)
To remove a glass metal type bulb (2)
from a bulb holder, push in the bulb and
turn it counterclockwise. To install a new
bulb, push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 219

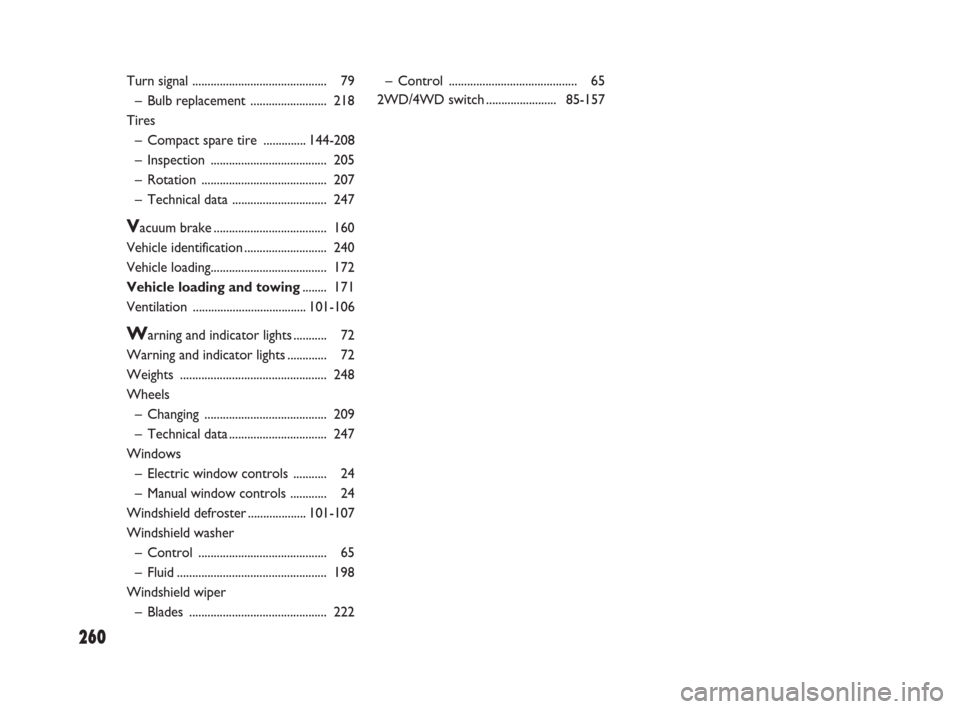

260
