2007 FIAT IDEA technical specifications

PRETENSIONERS
To increase the efficiency of the seat belts, the vehicle
is fitted with pretensioners. These devices, in the
event of a violent crash, rewind the seat belts a few
centimetres. In this way they ensure that the seat belt
adheres perfectly to the wearer before the restraining
action begins.
The seat belt locks to indicate that the device has
intervened; the seat belt cannot be drawn back up
even when guiding it manually.IMPORTANT To obtain the highest degree of
protection from the action of the pretensioning device,
wear the seat belt keeping it firmly close to the chest
and pelvis.
A small amount of smoke may be produced. This
smoke is in no way toxic and presents no fire hazard.
The pretensioner does not require any maintenance
or greasing.
Anything that modifies its original conditions
invalidates its efficiency.
If due to unusual natural events (floods, sea storm,
etc.) the device has been affected by water and mud, it
must necessarily be replaced.
156
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNINGThe pretensioner can only be used once. After a collision that has triggered it, have it
replaced at a Fiat Dealership. Pretensioner validity is written on the plate set on the
upper oddment compartment on passenger side. Pretensioners should be replaced at Fiat
Dealership as this date approaches.
Operations which lead to knocks, vibrations or localised heating (over 100°C for a maximum of 6
hours) in the area around the pretensioners may cause damage or trigger them. These devices are
not affected by vibrations caused by irregularities of the road surface or low obstacles such as kerbs,
etc. Contact a Fiat Dealership for any assistance.

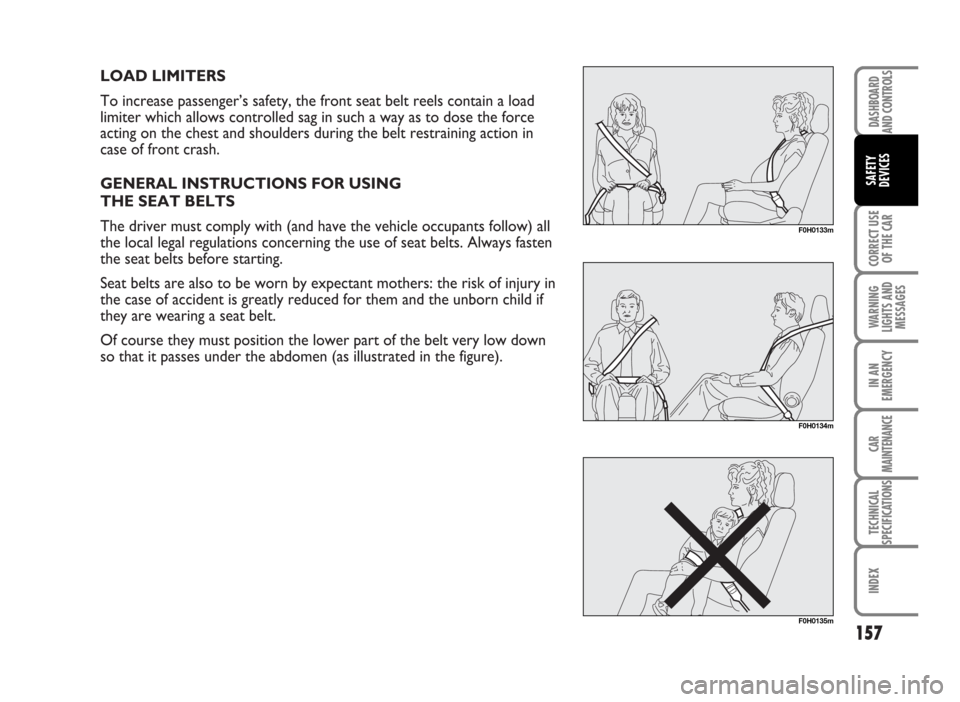

LOAD LIMITERS
To increase passenger’s safety, the front seat belt reels contain a load
limiter which allows controlled sag in such a way as to dose the force
acting on the chest and shoulders during the belt restraining action in
case of front crash.
GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
The driver must comply with (and have the vehicle occupants follow) all
the local legal regulations concerning the use of seat belts. Always fasten
the seat belts before starting.
Seat belts are also to be worn by expectant mothers: the risk of injury in
the case of accident is greatly reduced for them and the unborn child if
they are wearing a seat belt.
Of course they must position the lower part of the belt very low down
so that it passes under the abdomen (as illustrated in the figure).
157
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0133m
F0H0134m
F0H0135m

158
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

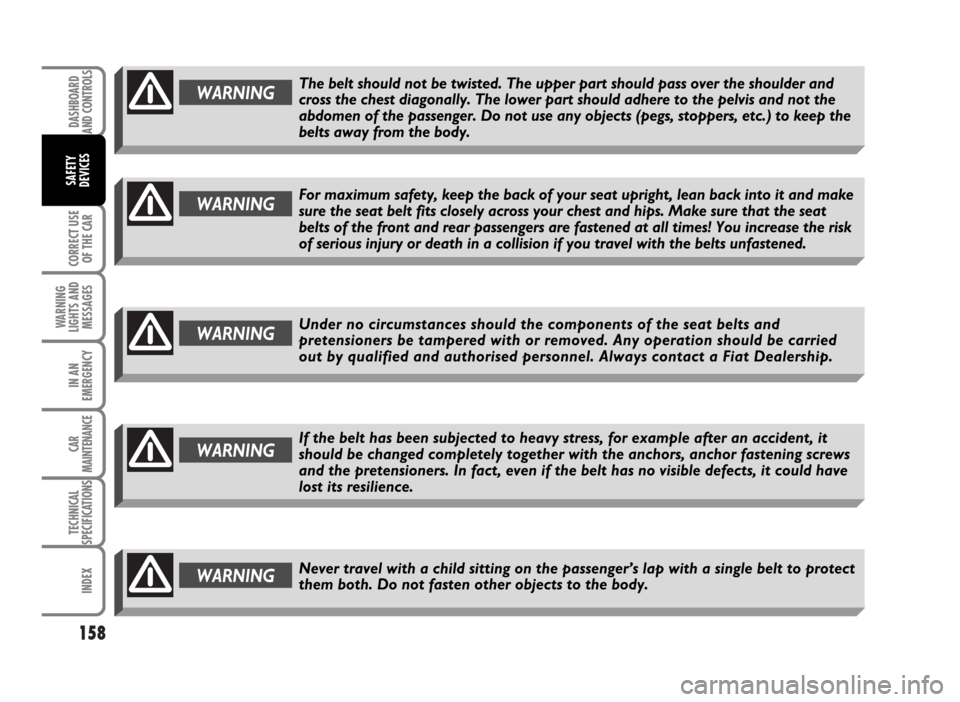

WARNINGThe belt should not be twisted. The upper part should pass over the shoulder and
cross the chest diagonally. The lower part should adhere to the pelvis and not the
abdomen of the passenger. Do not use any objects (pegs, stoppers, etc.) to keep the
belts away from the body.
WARNINGFor maximum safety, keep the back of your seat upright, lean back into it and make
sure the seat belt fits closely across your chest and hips. Make sure that the seat
belts of the front and rear passengers are fastened at all times! You increase the risk
of serious injury or death in a collision if you travel with the belts unfastened.
WARNINGUnder no circumstances should the components of the seat belts and
pretensioners be tampered with or removed. Any operation should be carried
out by qualified and authorised personnel. Always contact a Fiat Dealership.
WARNINGNever travel with a child sitting on the passenger’s lap with a single belt to protect
them both. Do not fasten other objects to the body.
WARNINGIf the belt has been subjected to heavy stress, for example after an accident, it
should be changed completely together with the anchors, anchor fastening screws
and the pretensioners. In fact, even if the belt has no visible defects, it could have
lost its resilience.

HOW TO KEEP THE SEAT BELTS ALWAYS
IN EFFICIENT CONDITIONS
❒Always use the belt with the tape taut and never
twisted; make sure that it is free to run without
impediments.
❒After a serious accident, replace the belt being
worn at that time, even if it does not appear
damaged. Always replace the seat belts if
pretensioners have been activated.
❒To clean the belts, wash by hand with neutral soap,
rinse and leave to dry in the shade. Never use
strong detergents, bleach or dyes or other
chemical substance that might weaken the fibres.
❒Prevent the reels from getting wet: their correct
operation is only guaranteed if water does not get
inside.
❒Replace the seat belt when showing significant wear
or cut signs.CARRYING CHILDREN
SAFELY
For optimal protection in the event of a crash, all
passengers must be seated and wearing adequate
restraint systems.
This is even more important for children.
According to 2003/20/EC Directive, this prescription
is compulsory for all European Community countries.
Compared with adults, their head is proportionally
larger and heavier than the rest of the body, while the
muscles and bone structure are not completely
developed. Therefore, correct restraint systems are
necessary, other than adult seat belts. The results of
research on the best child restraint systems are
contained in the European Standard ECE-R44. This
Standard enforces the use of restraint systems
classified in five groups:
Group 0 0-10 kg in weight
Group 0+ 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap partly and in
fact, in commerce it is possible to find devices that
cover more than one weight group.
159
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

All restraint devices must bear the certification data,
together with the control brand, on a solidly fixed
label which must absolutely never be removed.Over 1.50 m in height, from the point of view of
restraint systems, children are considered as adults
and wear the seat belts normally.
Lineaccessori Fiat offers seats for each weight group,
which are the recommended choice, as they have been
designed and experimented specifically for Fiat cars.
160
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNINGWith passenger’s air bag active, never place child’s seats with the cradle facing
backwards since the air bag activation could cause to the child serious injuries,
even mortal, regardless of the seriousness of the crash that triggered it. You are
advised to carry children always with proper restraint systems on the rear seats, as
this is the most protected position in the case of a crash.
WARNINGSERIOUS DANGER Should it be absolutely necessary to carry a baby on the front
passenger seat with a child's seat with the cradle facing backwards, deactivate the
passenger's air bags (front and side on the seat, where provided) using the key
switch (where provided) and then check warning light Fon the cluster to make
sure that deactivation has actually took place (see paragraph “ Manual
deactivation of passenger's air bag (front and side bags)”).
The front passenger's seat shall be adjusted in the most backward position to
prevent any contact between child's seat and dashboard.

GROUP 0 and 0+
Babies up to 13 kg must be carried facing backwards on a cradle seat,
which, supporting the head, does not induce stress on the neck in the
event of sharp deceleration.
The cradle is restrained by the car seat belts and in turn it must restrain
the child with its own belts.
161
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0136m
WARNING
WARNINGSeats exist which are suitable for covering weight groups 0 and 1 with a rear
connection to the vehicle belts and their own belts to restrain the child. Due to
their size, they can be dangerous if installed incorrectly fastened to the car belts
with a cushion. Carefully follow the instructions for installation provided with the
seat. The figure is only an example for mounting. Attain to the instructions for fastening
which must be enclosed with the specific child restraining system you are using.

GROUP 1
Starting from 9 kg to 18 kg in weight, children may be carried facing
forwards, with seat fitted with front cushion, through which the car seat
belt restrains both child and seat.
GROUP 2
Starting from 15 kg to 25 kg in weight, children may be restrained
directly by the car belts. The only function of the seat is to position the
child correctly in relation to the belts, so that the diagonal part adheres
to the chest and not to the neck and that the horizontal part clings to the
child’s pelvis and not the abdomen.
162
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0137m
F0H0138m
WARNING
WARNINGSeats exist which are suitable for covering weight groups 0 and 1 with a rear
connection to the vehicle belts and their own belts to restrain the child. Due to
their size, they can be dangerous if installed incorrectly fastened to the car belts
with a cushion. Carefully follow the instructions for installation provided with the
seat.
The figure is only an example for mounting. Attain to the instructions for fastening
which must be enclosed with the specific child restraining system you are using.

GROUP 3
For children from 22 kg to 36 kg the size of the child’s chest no longer
requires a support to space the child’s back from the seat back.
The figure shows proper child seat positioning on the rear seat.
Children taller than 1.50 m can wear seat belts like adults.
163
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0139m
WARNINGThe figure is only an example for mounting. Attain to the instructions for fastening
which must be enclosed with the specific child restraining system you are using.
