The tilted seats are fastened in this position by the action of the side
struts.
Partial extension
Operating the required part (right or left) of the seat in the same way it
is possible to obtain partial extension of the boot as illustrated.
IMPORTANT For rear seat complete tilting it could be necessary to
move the front seats forward.
To return the cushions on the floor
Use tapes (B) to return the cushions on the floor.
132
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0111m
F0H0112m
F0H0110m
With table folded seats, in the event of a
crash it can be dangerous to carry heavy
objects on the rear seat back.WARNING
WARNINGThe position of the rear seat backs folded
on the respective cushions shall not be
considered a loading position and
therefore cannot bear heavy weights.
If the central seat belt is fastened to the
seat, release it before tilting the seat.WARNING

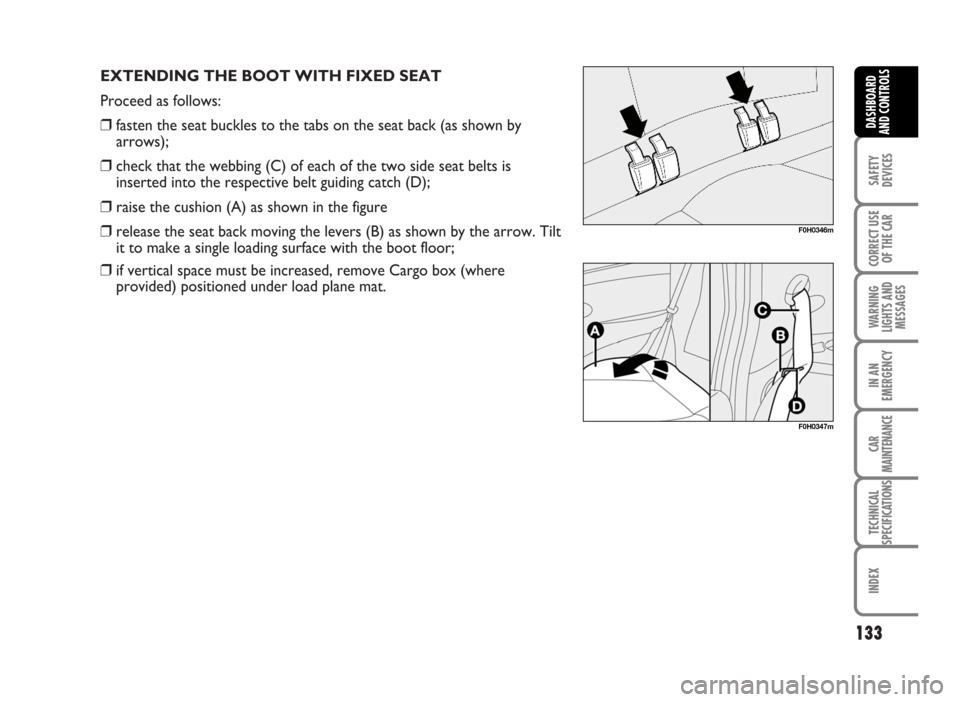

EXTENDING THE BOOT WITH FIXED SEAT
