2007 FIAT GRANDE PUNTO warning

77

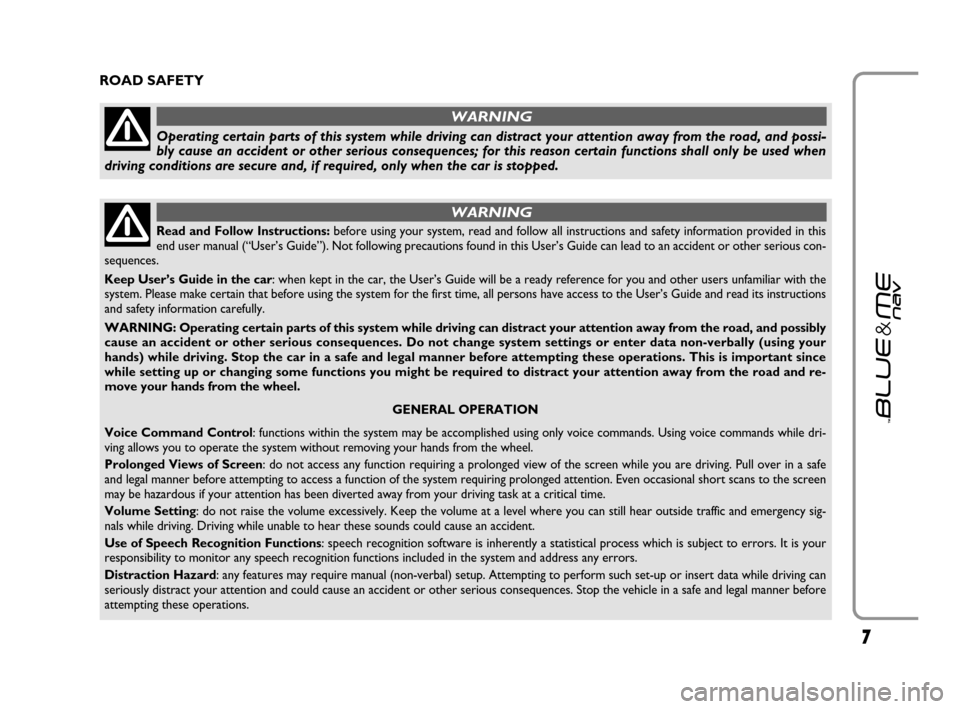

ROAD SAFETY
Read and Follow Instructions:before using your system, read and follow all instructions and safety information provided in this
end user manual (“User’s Guide”). Not following precautions found in this User’s Guide can lead to an accident or other serious con-
sequences.
Keep User’s Guide in the car: when kept in the car, the User’s Guide will be a ready reference for you and other users unfamiliar with the
system. Please make certain that before using the system for the first time, all persons have access to the User’s Guide and read its instructions
and safety information carefully.
WARNING: Operating certain parts of this system while driving can distract your attention away from the road, and possibly
cause an accident or other serious consequences. Do not change system settings or enter data non-verbally (using your
hands) while driving. Stop the car in a safe and legal manner before attempting these operations. This is important since
while setting up or changing some functions you might be required to distract your attention away from the road and re-
move your hands from the wheel.
GENERAL OPERATION
Voice Command Control: functions within the system may be accomplished using only voice commands. Using voice commands while dri-
ving allows you to operate the system without removing your hands from the wheel.
Prolonged Views of Screen: do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe
and legal manner before attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen
may be hazardous if your attention has been diverted away from your driving task at a critical time.
Volume Setting: do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency sig-
nals while driving. Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions: speech recognition software is inherently a statistical process which is subject to errors. It is your
responsibility to monitor any speech recognition functions included in the system and address any errors.
Distraction Hazard: any features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can
seriously distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner before
attempting these operations.
WARNING
Operating certain parts of this system while driving can distract your attention away from the road, and possi-
bly cause an accident or other serious consequences; for this reason certain functions shall only be used when
driving conditions are secure and, if required, only when the car is stopped.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 7

1515
NAVIGATION SYSTEM
QUICK REFERENCE
GUIDE
Proceed as follows to begin using the
Blue&Me™ Navnavigation function:
❒Connect the USB device provided with
the Blue&Me™ Navnavigation kit
with the map software to the USB pre-
sent on the car (see fig. 1).
❒Ensure the ignition key is in MARpo-
sition.
❒Press the control on the steering wheel
‘and say “Navigation”;
Blue&Me™ Navwill show the fol-
lowing warning message on the display
THE DRIVER MUST RESPECT
THE ROAD RULES. Now say
“New destination” and then “Ad-
dress”. Blue&Me™ Navwill ask you
the required country and you should
say the country where your destination
is located.
The system will ask you to enter the name
of the destination city, starting with man-
ual interaction and then completing using
voice commands.
Use the
Nor Okeys to scroll through
the characters required to make up the
name of the town/city and confirm each
character selected by pressing the
SRC/OKor
ß/MAINkeys.As soon as you have entered enough char-
acters, Blue&Me™ Navwill ask you to
say the required town/city. You can also
continue entering the name of the
town/city using the steering wheel con-
trols.
❒Continue entering the destination
road/street using the same method as
when entering the town/city. The
town/city centre may also be chosen as
a destination.
❒Specify the house number of the desti-
nation street by saying “Enter num-
ber” or say “Start” to begin navigation
immediately.
Note
For road safety reasons, address input op-
erations may only be carried out with the
vehicle parked.
To obtain information on all navigation sys-
tem functions and user instructions, re-
fer to the “NAVIGATION FUNCTIONS”
section
If you are experiencing difficulty using
the navigation system, consult the “PROB-
LEM-SOLVING – NAVIGATION SYS-
TEM” section
HOW TO USE
Blue&Me™ Nav
CONTROLS STEERING WHEEL
Buttons on the steering wheel (see fig. 1)
are used to perform functions on the
hands-free kit, activating voice recognition,
using the media player functions or select-
ing a Blue&Me™ Navmenu option.
Certain buttons have multiple functions
which depend on the current state of the
system.
The function chosen in response to a key
press is in some cases controlled by the
duration of the key press (short or long).
DISPLAY AND BUTTONS ON THE
STEERING WHEEL.
Note
Instructions concerning manual controls
are identified in the text by symbol
?.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 15

36
FUNCTIONS OF THE
NAVIGATION SYSTEM
Blue&Me™ Navleads you to your cho-
sen destination quickly and safely by means
of its navigation function by means of voice
synthesis and pictograms that appear on a
reconfigurable multifunction display on the
control panel. The navigation system al-
lows you to navigate towards a destina-
tion address, to call up programmed des-
tinations or points of interest (e.g.: hotels,
restaurants, chemists, airports, railway sta-
tions, authorised workshops etc.). The
car’s position is determined by the GPS
(Global Position System), by processing
signals from GPS satellites and the car’s
odometric signals. Blue&Me™ Navus-
es digital mapping data preloaded onto
your USB device to lead you to your de-
sired destination by the best possible
route from your current location.Notes
❒GPS reception is difficult under trees,
among tall buildings, in covered car-
parks, in tunnels and in any place where
the satellite aerial reception may be hin-
dered.
❒The Blue&Me™ Navnavigator takes
a few minutes to determine the car’s
new position if the car is moved with
the system turned off (e.g. after trans-
porting the car on a ferry).
❒If the vehicle battery is disconnected,
the GPS takes about 15 minutes to ac-
tivate.
❒The system is equipped with a self-cal-
ibration function that needs to oper-
ate for about 100 km when the system
is first turned on or if the tyres are
changed. During this stage, the position
could be calculated with less accuracy.
❒Under continuous conditions of low
wheel grip (e.g. when skidding on ice),
the system may temporarily record an
inaccurate position.
Navigation display
On the control panel reconfigurable mul-
tifunction display (see fig. 3), the ma-
noeuvres to be carried out (right turn, left
turn, drive round round-about, go straight
on or change direction) are displayed by
means of pictograms.The display also indicates the name of the
current street and the distance to the next
turn-off. The name shown near the turn-
off is that of the street where the ma-
noeuvre is to be carried out.
A– Navigation pictogram
B– Distance to the next turn-off
C– Street name
Voice messages
The voice messages issued by the system
recommend all manoeuvres to be carried
in plenty of time: in particular, advance
warning of the manoeuvre to be carried
out is given, followed by detailed instruc-
tions on when to carry out the manoeu-
vre.
To repeat the last voice message, press
the
‘key and say “Next maneuver”.
The instructions provided by
Blue&Me™ Nav do not ex-
onerate the driver from full responsi-
bility for any manoeuvres carried out
in traffic while driving the car and for
respecting the highway code and oth-
er road traffic regulations. Responsi-
bility for road safety always lies with
the driver of the car under all circum-
stances.
WARNING
fig. 3F0M0373m
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 36

37
START NAVIGATION
Proceed as follows to begin using the
Blue&Me™ Navnavigation function:
❒Connect your USB device with pre-
loaded maps to the USB port on the ve-
hicle.
❒Turn the ignition key to MAR.
Note:
For reasons of road safety, some func-
tions, such as input of a new destination,
are allowed on with the vehicle at a stand-
still.
To activate the NAVIGATIONmenu in
manual mode, proceed as follows:
?
❒Press the NAVkey near the front
courtesy light (see fig. 1).
❒Or, with the Main Menu on, press
ß/MAIN, select the Navigation option
and press SRC/OKor
ß/MAIN.
Blue&Me™ Navwill show the following
warning message on the display THE
DRIVER MUST RESPECT THE
ROAD RULES. Press SRC/OKto con-
firm.Now you can access the submenus dedi-
cated to the Blue&Me™ Navnavigation
functions:
❒NEW DESTINATION
❒RESUME NAVIGATION
❒ARRIVAL INFORMATION
❒STOP NAVIGATION
❒RECENT DESTINATIONS
❒NAVIGATION SETTINGS
❒VEHICLE POSITION
❒ROUTE SIMULATION
Scroll to the required function using the
Nor Okeys and press SRC/OKor
ß/MAINto confirm.
}
Or with voice interaction:
Press
‘and say “Navigation”.
Blue&Me™ Navwill show the fol-
lowing warning message on the dis-
play THE DRIVER MUST RE-
SPECT THE ROAD RULES. Press SRC/OKto confirm (no spe-
cific voice command is available in
this event).Blue&Me™ Nav
will display a list of the available sub-
menus.
Speak one of the following com-
mands to gain access to the required
function:
❒New destination
❒Resume navigation
❒Arrival information
❒Stop navigation
❒Recent destinations
❒Navigation settings
❒Vehicle position
❒Route simulation
Note:
Some submenus may not be available since
they are activated only once navigation to-
wards a destination has started.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 37

38
New destination
The NEW DESTINATIONmenu al-
lows you to enter a destination in various
ways:
❒ADDRESS: set the address by choos-
ing a town/city centre or the required
street;
❒POINTS OF INTEREST: select a
point of interest from the relevant sub-
menu.
Address
Use this menu to enter the address of
your required destination, indicating the
country, the town/city, the name of the
road/street and the house number.
?
To enter an address using manual in-
teraction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the NEW DESTINATION
option by pressing SRC/OKor
ß/MAIN.
Select ADDRESSand then press
SRC/OKor
ß/MAIN.
}Or use voice interaction by pressing
‘and saying “Navigation”. Once
the system message has finished, say
“New destination” and then “Ad-
dress”.
Blue&Me™ Navstarts by asking
your to select the required country
name.
Before anything else, the system de-
termines which countries are pre-
loaded on your USB device. If the
maps for only one country are pre-
sent, this will be set as the destina-
tion country.Use the “
N” or “O” keys to select the
required country and press SRC/OKor
ß/MAINto confirm.
}Using voice interaction, say the re-
quired country. Blue&Me™ Nav
will ask you to confirm the select-
ed country by means of a voice
message.
Notes:
❒In order to select the country, the USB
device containing the maps must be in-
serted in the USB port on the car.
❒If several countries are loaded on your
USB device, Blue&Me™ Navwill
show a list of countries in alphabetical
order on the multifunction display. If
the system is able to detect the GPS po-
sition of the car, the country where you
are located will be shown at the head
of the list.
After selecting the country, Blue&Me™
Navwill ask you to enter the destination
town/city by means of the steering wheel
control and voice interaction.For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 38

45
}Or with voice interaction, press ‘and say “Navigation”. Then, once
the system message has finished, say
“Recent destinations”.
Blue&Me™ Navwill show a list of
the latest destinations entered on
the multifunctional display.
Select the required destination by
saying “Forward” or “Back”. Say
“Start” to start navigation or
“Delete” to delete the displayed
destination.
If you wish to delete all the stored
destinations, say “Delete all” and
confirm the operation when
prompted by the system.
Note
In order to start navigating towards the
last destination selected, the USB device
containing the maps must be inserted in
the USB port on the car.Navigation settings
The NAVIGATION SETTINGSmenu
allows you to establish navigation options,
e.g. by indicating whether you want
Blue&Me™ Navto calculate the fastest
or shortest route or whether motorways
or ferries should be included in the route
calculation.
This menu may also be used to set your
preference for voice completion of the
destination by means of the DICTATE
DESTINATIONoption.
?
In order to access the navigation set-
tings, using manual interaction, pro-
ceed in the following way:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the NAVIGATON SET-
TINGSmenu and press SRC/OK
or
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Navigation”.
Once you have heard the system
message, say “Navigation set-
tings”. Blue&Me™ Navwill dis-
play a list of the available options.
The available options are:
❒Type of Route
Use this option to tell Blue&Me™ Nav
whether you want the calculated route to
be FASTERor SHORTER.
?Using manual interaction, proceed
as follows:
Select the TYPE OF ROUTEop-
tion and then press SRC/OKor
ß/MAIN.
Select the required option using the
“
N” or “O” keys and press
SRC/OKor
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Type of route”.
Blue&Me™ Navwill tell you the
current setting using voice synthe-
sis and will ask you if you wish to
change it. Answer “Yes” to change
the option, “No” to maintain the
current setting.
For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 45

4848
SETTINGS FUNCTIONS
The SETTINGSmenu enables you to
perform the following functions:
❒Pairing a mobile phone
❒Managing user data
❒Managing Blue&Me™ Navupdate
❒Media player settings
❒Advanced Options.
To perform functions and adjustments in
the SETTINGSmenu, you may use but-
tons on the steering wheel or voice com-
mands at car standstill. When the car is
moving, you can use voice commands on-
ly. Instructions are provided for both
methods.
If you encounter difficulties with any of
the Blue&Me™ Navsettings, consult
section TROUBLESHOOTING.PAIRING A MOBILE PHONE
Before you can use your mobile phone
with the hands-free phone function on
your car, you must create a pairing rela-
tionship between the mobile phone and
the hands-free phone system.
During the pairing procedure, the hands-
free phone system attempts to detect a
phone equipped with Bluetooth
®wire-
less technology within range, and then es-
tablishes the connection using a Personal
Identification Number (PIN). After a pair-
ing relationship is established, you can use
the hands-free phone system to make and
receive phone calls, and do other opera-
tions via your wirelessly-connected mo-
bile phone.
IMPORTANT The mobile phone pairing
PIN number is a special PIN generated
randomly at each new pairing and used
just for this operation. It is not your SIM
PIN and therefore it is not required to
store or to keep it in mind; loosing it will
not impair the hands-free phone system
operation.
The pairing procedure will only need to
be performed once for your mobile
phone. After this procedure Blue&Me™
Navwill automatically connect to your
phone each time you get into the car and
turn the ignition key to MAR. For road safety reasons, it is only possi-
ble to alter the navigation settings with the
car at a standstill.
?
To simulate the active route, by
means ofmanual interaction:
Activate the main Menu, select the
NAVIGATIONoption and then press
SRC/OKor
ß/MAIN.
Select the ROUTE SIMULATION
option and press SRC/OKor
ß/MAIN
to start the simulation.
To stop the simulation, simply press
the NAVkey on the keypad near the
courtesy light.
}Or with voice interaction:
Press
‘and say “Navigation”.
Once you have heard the system
message, say “route simulation”.
Blue&Me™ Navwill start the sim-
ulation.
To stop the simulation, press
‘and say “Navigation”
For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 48

100100
SYSTEM SOFTWARE USE NOTICE
This system contains software that is licensed to Manufacturer pursuant to a license agreement. Any removal, reproduction, reverse
engineering or other unauthorized use of the software from this system in violation of the license agreement is strictly prohibited
and may subject you to legal action.
WARNING Hacking the Blue&Me™ Navdevice or installing unapproved software may lead to warranty void and compromises
of safety and of the security of stored information.
END USER LICENSE AGREEMENT (“EULA”)
– You have acquired a device (“DEVICE”) which includes software licensed by Fiat Auto S.p.A. from one or more software licen-
sors (“Fiat Auto S.p.A.’s Software Suppliers”). Such software products, as well as associated media, printed materials, and “on-
line” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties. The SOFT-
WARE is licensed, not sold. All rights reserved.
– IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. INSTEAD, PROMPTLY CONTACT FIAT AUTO S.p.A. FOR INSTRUCTIONS ON RETURN OF THE UN-
USED DEVICE(S). ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE,
WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CON-
SENT).
GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:
– You may use the SOFTWARE as installed on the DEVICE.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
– Speech Recognition.If the SOFTWARE includes speech recognition component(s), you should understand that speech recog-
nition is an inherently statistical process and that recognition errors are inherent in the process. Neither Fiat Auto S.p.A. nor its
suppliers shall be liable for any damages arising out of errors in the speech recognition process.
–Limitations on Reverse Engineering, Decompilation and Disassembly.You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwith-
standing this limitation.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 100
